NETGEAR GS108MX
8-Port Gigabit Ethernet Unmanaged Switch with 1 dedicated 10G/Multi-Gig Port
Our Price: $139.99
More pricing below, click here!
Overview:
Unlock the Potential of your Gigabit devices
The NETGEAR 8-port Gigabit Unmanaged Switches, GS108X and GS108MX, help businesses cost-effectively connect their network with powerful gigabit speeds. The GS108MX features one 10G/Multi-Gig Ethernet port for non-blocking uplink while the GS108X features a 10G SFP+ port for non-blocking uplink over longer distances.
Both switches come with eight 1G Ethernet ports housed in a fanless metal case that can be placed on a desk or mounted on a wall. These switches are energy efficient, built to last, and rigorously tested to provide the reliability businesses need.
Highlights
- Plug-and-Play
Simple set up with no software to install or configuration needed and zero maintenance - 10 Gigabit Uplink
10G/Multi-Gig uplink reduces network bottlenecks. - Flexible Mounting
Wall-mount or desktop - Small Form Factor
Compact design to fit in any small cabinet or wiring panel - High Quality and Reliable Performance
Durable metal case and long product life (shown by MTBF numbers) - LED to indicate activity on each port
Check port activity directly on the switch for network activity status. - Silent Switches
Fanless quiet operation - Industry Leading Warranty
Limited Lifetime Hardware Warranty
Features and Benefits:
Compact form factor with fanless design
Ideal for nearly any configuration or environment (especially noise-sensitive ones such as a classroom, conference room, doctor's office, etc).
Flexible Mounting Options
Desktop or wall-mount to be used in any environment.
36 Gbps non-blocking switching architecture
Get all the connectivity you need to your devices without congestion.
Energy Efficient Ethernet (IEEE 802.3az)
For maximum power savings and reduced energy costs.
Specifications:

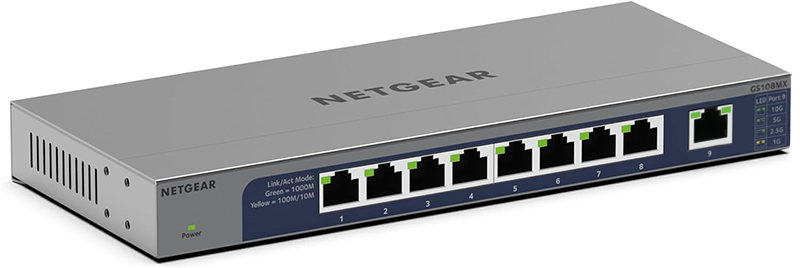

Front View
Rear View
| GS108MX Technical Specifications | |
|---|---|
| Product Specifications | |
| Gigabit ports | 8 |
| 100M/1G/2.5G/5G/10G RJ-45 copper ports | 1 |
| Form Factor | Desktop/Wall-mount |
| Performance Specifications | |
| Bandwidth | 36 Gbps |
| Priority queues | 8 |
| Priority queuing | Weighted Round Robin (WRR) |
| MAC Address database size (48-bit MAC addresses) | 16K |
| Packet forwarding rate (64 byte packet size) (Mpps) | 41.664Mfps |
| Speed / Latency | 100Mbps: <5µs 1Gbps: <2µs 2.5Gbps: <4µs 5Gbps: <3µs 10Gbps : <2µs |
| Jumbo frame support | Up to 9728 bytes |
| Acoustic noise level @ 25°C (dBA) (ANSI-S10.12) | 0 dBA |
| Mean Time Between Failures (MTBF) @ 25°C | 3,514,690 hrs (401 yrs) |
| Power/Energy Efficency | |
| Energy-Efficient Ethernet | Yes |
| Max power (worst case, all ports used, line-rate traffic) (Watts) | 5.8W |
| Quality of Service (QoS) | |
| 802.1p-based QoS/CoS Supported | Yes |
| IEEE 802.1p COS | Yes |
| IPv4 DSCP | Yes |
| Pre-Defined Rate Limiting Rates | N/A |
| Pre-Defined Port Priority Queues | 8 |
| Weighted Round Robin (WRR) | Yes |
| L2 Services - Availability | |
| Broadcast, multicast, unknown unicast storm control | N/A |
| Static Manual LAGs (Port Trunking) | N/A |
| LACP | N/A |
| IEEE 802.3x (full duplex and flow control) | Yes |
| LEDs | |
| Per port | Speed, Link, Activity |
| Per device | Power |
| Physical Specifications | |
| Dimensions | 235 x 100.8 x 27 mm (9.25 x 3.97 x 1.06 in) |
| Weight | 0.575 kg (1.267 lbs) |
| Power Consumption | |
| Power Supply | External Power Adapter 12V 1.5A |
| Max power (worst case, all ports used, line-rate traffic) (Watts) | 5.8W |
| Min power (link-down standby) (Watts) | 2.4W |
| Heat Dissipation (max and min) (BTU/hr) | Max: 19.91 BTU/hr Min: 8.21 BTU/hr |
| Fan(s) | Fanless |
| Environmental Specifications | |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Humidity | 90% maximum relative humidity (RH), non-condensing |
| Altitude | 10,000 ft (3,000 m) maximum |
| Electromagnetic Emissions and Immunity | |
| Certifications |
|
| Electromagnetic Compliance (Class A or B) | Class B |
| Safety Certifications | |
| Certifications |
|
| Warranty and Support | |
| Warranty |
|
| ProSUPPORT OnCall 24x7, Service Packs** |
|
| Package Content | |
| All Models |
|
* This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only.
** The NETGEAR OnCall 24x7 contract provides unlimited phone and email technical support for your networking product. For ProSAFE products purchased prior to 06/2014, also includes next business-day hardware replacement.

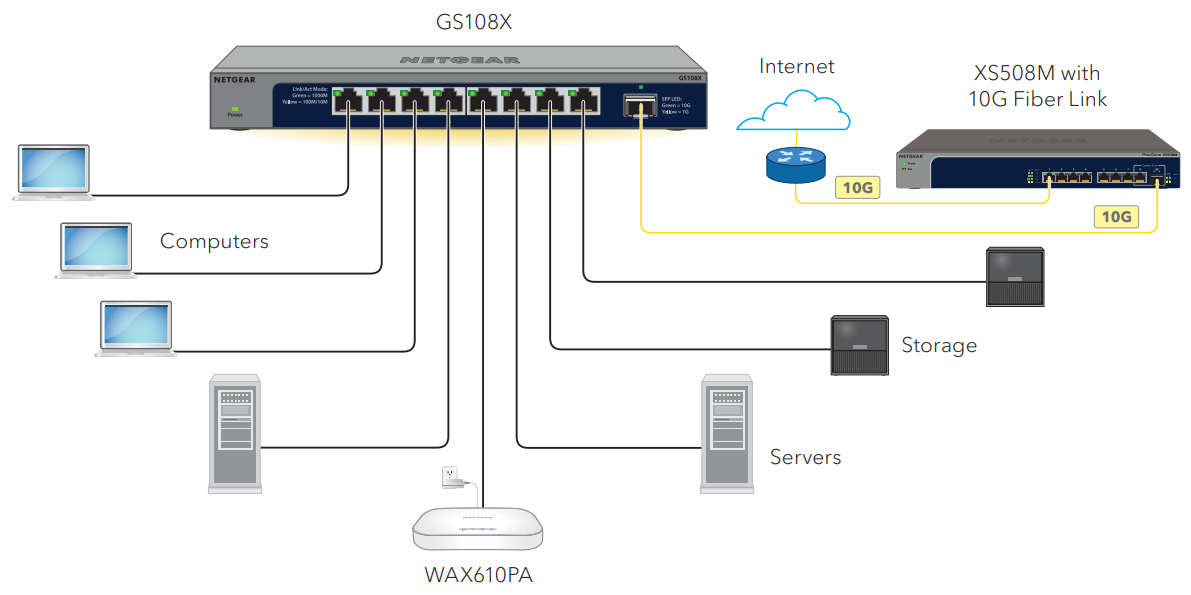

Diagram:
GS108X in a Business Environment
Why the NETGEAR GS108X/GS108MX Switch is ideal for small businesses
- Remove network bottlenecks with the 10 Gigabit uplinks
- Limited Lifetime Warranty
- Energy efficient switches that automatically adjust power consumption according to Energy-Efficient Ethernet standard
Documentation:
Download the NETGEAR GS108X / GS108MX 8-port Gigabit Switch Datasheet (PDF).
