NETGEAR AX6000 Tri-Band Orbi Pro WiFi 6 Mesh System
Superior WiFi for Business. Everywhere.
Sorry, this product is no longer available, please contact us for a replacement.
More pricing below, click here!
Overview:
Orbi Pro WiFi 6 is a Tri-band Mesh System built with the latest generation of WiFi technology - WiFi 6 - to give small businesses the ultimate staff and business-to-customer WiFi experience. It provides WiFi coverage and connection capacity with higher speeds and no dead zones. Superior WiFi for Business. Everywhere.
More WiFi Everywhere
- More Control
Configure your network and performance settings to meet you unique needs. - More Coverage
Choose from 3,000 to 21,000 square feet of always-strong WiFi every corner of your home or business. - More Devices
Work and play without interruptions on up to 100 connected devices simultaneously. - More Speed
Up to 6Gbps for blazing-fast downloads and smooth video calls, powered by advanced WiFi6.
Small Business Control
Securely isolate your back-office network and critical data from the networks your guests and employees access, while optimizing WiFi performance for everyone’s needs.

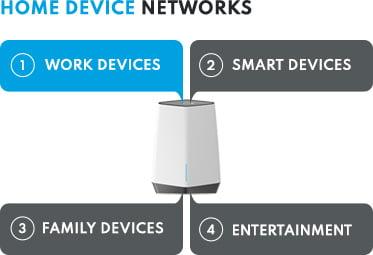

Work From Home Control
Separate your work devices on their own network, for maximum security and the performance you need for fast streaming, uninterrupted video calls and large file downloads.

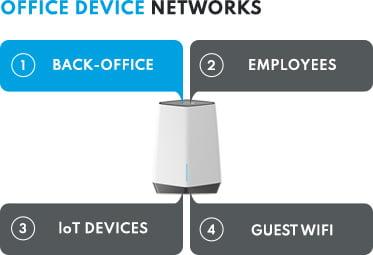

Unrivaled Security with Network Segmentation
Orbi Pro is the industry's first mesh system to support IP segmentation across wired and wireless interfaces. Isolate network segments by assigning individual Ethernet ports and SSIDs across the router and all satellites to any VLAN you create.

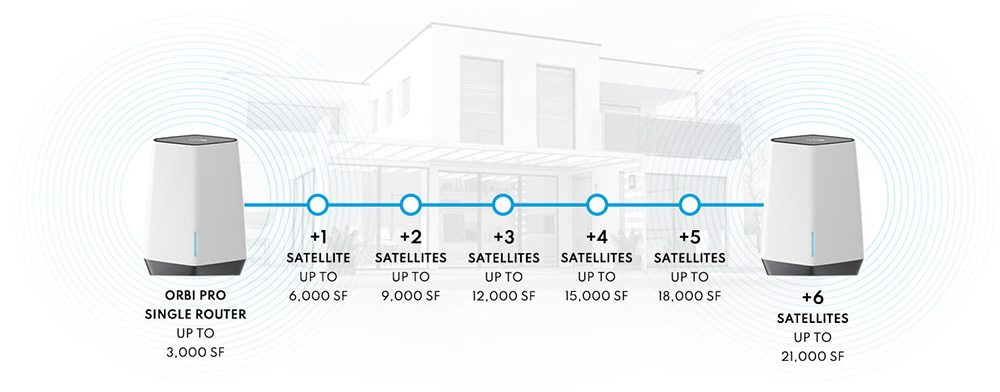

Expandable as your needs grow
Easily add WiFi coverage with additional wireless satellites — each expands coverage by 3,000 sq. ft. (sold separately).
The Best Performance, Period
Orbi Pro’s unique shape, height and array of high-power antennas deliver longer, stronger WiFi signals and maximum speed in every corner of your home or business.
NETGEAR Insight Management
Manage locally or remotely through the Cloud for simple yet powerful control of your network anytime, anywhere.
One-Step VPN Connectivity for your Business
Site-to-site and site-to-multisite VPN to connect the main office with branch and home offices, all through a common SSID with the NETGEAR Insight add-on service, Business VPN*
*30-day trial included with the purchase of an Orbi Pro. One Orbi Pro router is required in the main office, and one additional Orbi Pro router required in each branch or home office.
Features:
NETGEAR WiFi 6 Technology
2x the throughput compared to Orbi Pro SRK60, 4x more client device capacity, and improved smartphone battery life
Secure WiFi Zones - Business Grade Security
4x SSIDs (Guest, Employee, IoT, Administration, for example) each assigned a VLAN, creating secured SSID WiFi networks, with client isolation within the Secured WiFi Zone

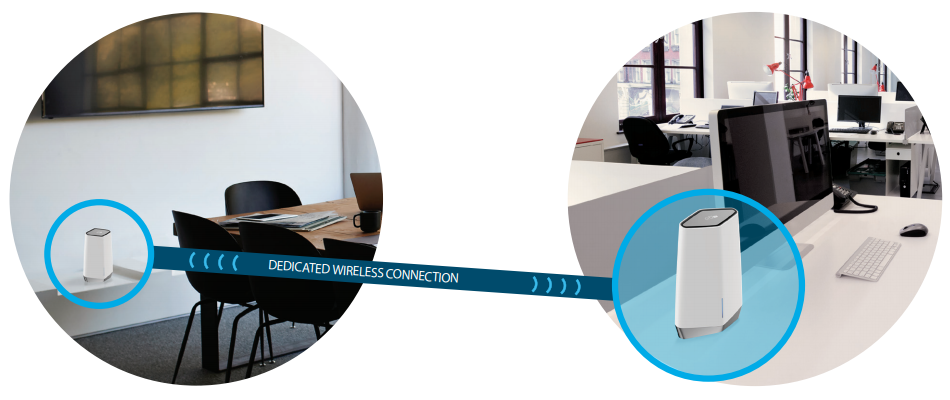

Blazing Fast Backhaul and Fronthaul
4x4 transmit-receive radio in all three bands, allowing a total 6Gbps throughput per unit and a 2.4Gbps backhaul
Insight App for Cloud Management
Easy installation, cloud and local management for Orbi Pro and other NETGEAR Business networking devices
Ease-of-use
Intuitive installation through local admin UI and secured cloud monitoring with Insight app.
House and Office Diagram:
Orbi Pro WiFi 6 Deployment
WiFi 6:
WiFi 6 for business and home office
NETGEAR has been at the forefront of innovation and cutting-edge solution for more than 20 years, providing innovative and ground-breaking network solutions which include a suite of advanced WiFi 6 products – giving you access to the most advanced WiFi on the planet.
WiFi 6 overcomes these challenges
- Coverage and range, especially through walls in blind spots
- Need for faster and easier set up
- Network and per device speed, especially with more devices
- Demand for security and access control
- Need for smooth configuration and firmware updates
WiFi 6 for Business
Why are businesses adopting WiFi 6?
- Best WiFi Speed – 70% more throughput than WiFi 5
- Connect More Devices - optimized speed even in high density areas
- Improved Coverage
- Future-Proofing
- Compatibility
- Battery Efficiency
- Seamless Roaming
- Faster Backbone with 2.5G - Multi-gig networking and connectivity
- High Density IoT
- Safer Networks
Remote WiFi 6 Management
Most NETGEAR WiFi 6 business access points include NETGEAR Insight, the award-winning remote cloud management solution for easy installation, monitoring, and management from anywhere.
NETGEAR Insight is an industry first in network management, providing easy plug-and-play setup and management. Its cloud portal can be accessed via an intuitive web interface or the Insight mobile app. Insight offers a wide variety of configuration options for the most basic networks to multi-tenancy and multi-roles.
NETGEAR Insight enables easy configuration, monitoring, and management of your wireless access points together with Insight-managed switches and storage. Wireless management features include: Instant WiFi for automatic wireless configuration to limit interferences, frequency band selection, VLAN creation and association with SSID, WiFi security configuration, visibility into WiFi clients, reporting, and many more.
Use cases
Who is upgrading to WiFi 6?
- Sharing a WiFi connection with the rest of the family as people are working from home, video calling or downloading large files can slow everyone down. WiFi 6 is optimized for concurrent users.
- As medicine moves toward more innovative technologies for imaging, record storage, and telehealth, it requires more bandwidth. Upgrading to WiFi 6 helps ease high demand and provide efficiency.
- Older, legacy WiFi systems have slow bandwidth lack device capacity and less secure connections. WiFi 6 can meet growing demand for connectivity across all the technology and devices the industry depends on.
- As wireless handheld Point of Sale devices increase in use so does the need for suffcinet bandwidth and total site coverage. WiFi 6 can meet those growing demands.
- Libraries, city halls, police offices and the public sector in general are becoming more technologically advanced and reliant on WiFi and need the bandwidth capacity and efficiency it offers.
- The increase in video streaming, online with WiFi 6 greatly improve student’s and teacher’s educational experiences.
- From AI assembly line robots to autonomous delivery trucks, most or all new machinery and loT will require high bandwidth and capacity.
- Finance companies need high bandwidth and zero-delay streaming to meet the needs of daily stock market traders and demanding finance apps. WiFi 6 can keep up with these demand.
- Houses of worship need great network conncetivity to make sure everything runs smoothly for the team and improve the congregation’s experince. Reliability, simplicity and affordability are high priorities. WiFi 6 checks all those boxes.
The WiFi 6 Difference
Increased speed, coverage, and capacity for today’s WiFi demands
- Speed
Up to 70% faster speeds on both bands - Coverage
Up to 50% more coverage, with no dead zones - Device Capacity
More simultaneous users, with high WiFi quality for everyone
Specifications:
Package Contents
- One (1) Orbi Pro WiFi 6 Router (SXR80)
- One (1) Orbi Pro WiFi 6 Satellite (SXS80)
- Two (2) wall mounts with screws
- Two (2) ceiling mounts with screws
- One (1) 2m Ethernet cable
- Two (2) 12V/3.5A power adapters
- Installation guide

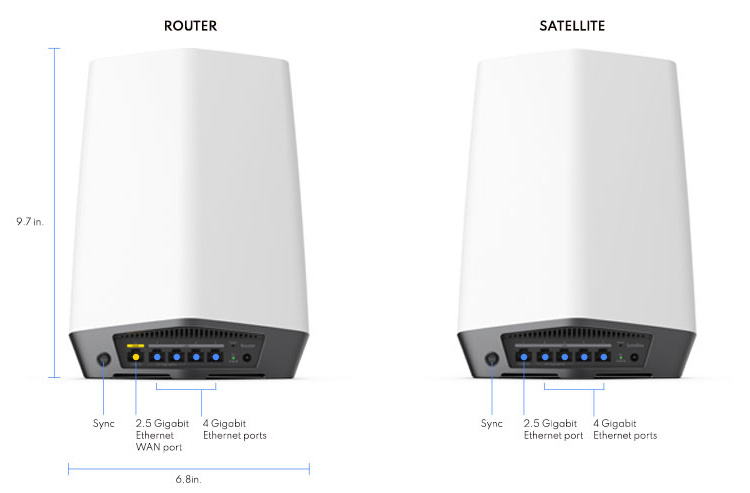

Physical Specifications
- Dimensions: 6.8 x 3.3 x 9.7 in each
- Weight: 2.06lb each
Warranty and Support
- ProSUPPORT OnCall 24x7 Service Packs
- PMP0312-10000S
- PMP0332-10000S
- PMP0352-10000S
- Insight
- 1-year subscription included
Technical Specifications
- Orbi Pro WiFi 6 AX6000 Router and AX6000 Satellite (2,400 + 2,400 + 1,200) Mbps†
- Simultaneous Tri-band WiFi
- Radio 1: IEEE 802.11b/g/n/ax 2.4GHz - 256QAM support
- Radio 2: IEEE 802.11a/n/ac/ax 5GHz - 1024QAM support
- Radio 3: IEEE 802.11a/n/ac/ax 5GHz - 1024QAM support
- Eight (8) high-performance antennas with high-power amplifiers
- OFDMA and bi-directional MU-MIMO WiFi 6 throughput
- TWT (Target Wait Time) for longer smartphone battery life
- Implicit/Explicit Beamforming for 2.4GHz and 5GHz bands
- Internet Port for Router Unit 1x 2.5Gbps Ethernet
- Local Area Network Ports for Router Unit 4x GbE, of which two can be formed in a LAG
- Local Area Network Ports for Satellite Unit 1x 2.5GbE; 4x GbE, of which two can be formed in a LAG
- MU-MIMO capable for simultaneous data streaming on multiple devices
- Ports – Orbi Pro WiFI 6 Router
- One (1) Gigabit or 2.5 Gigabit Ethernet WAN or LAN port
- Two (2) Gigabit Ethernet LAN ports, Link Aggregation Mode optional
- Two (2) Gigabit Ethernet LAN ports
- Ports – Orbi Pro WiFi 6 Satellite
- One (1) Gigabit or 2.5 Gigabit Ethernet LAN port
- Two (2) Gigabit Ethernet LAN ports, Link Aggregation Mode optional
- Two (2) Gigabit Ethernet LAN ports
- Security
- Four (4) SSID wireless networks
- Aministration
- Employee devices
- Guest WiFi - IoT devices
- Four (4) SSID wireless networks
- Flexible VLAN configuration on all four (4) SSID WiFi networks
- Client isolation by default on Guest SSID and configurable on other SSIDs
- WPA/WPA2/WPA3 support
- Insight App - Secured cloud and local management
- Local Admin UI available for extensive feature setting and maintenance
† Maximum wireless signal range derived from IEEE standard 802.11 specifications. Actual data throughput and data over distance will vary. Network conditions and environmental factors, including volume of network traffic, building material and construction, and network overhead, result in lower actual data throughput rate and wireless coverage.

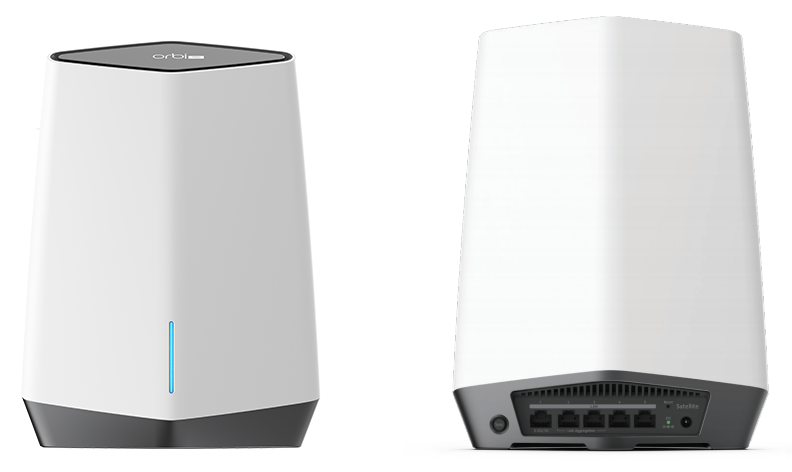

Views:
Orbi Pro WiFi 6 Router (SXR80)
Orbi Pro WiFi 6 Satellite (SXS80)
Documentation:
Download the NETGEAR Orbi Pro WiFi 6 - AX6000 Tri-band WiFi System Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
