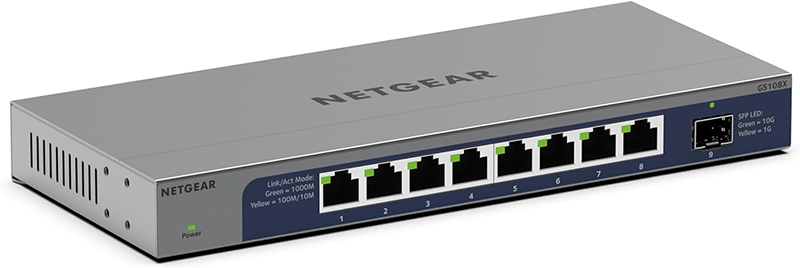

NETGEAR GS108X
8-Port Gigabit Ethernet Unmanaged Switch with 1 dedicated 10G SFP+ Port


NETGEAR GS108X

Netgear Products
NETGEAR Unmanaged Switches
NETGEAR GS108X 8-Port Gigabit Ethernet Unmanaged Switch with 1 dedicated 10G SFP+ Port
#GS108X-100NAS
List Price: $155.98
Add to Cart for Pricing

More pricing below, click here!

Overview:

Unlock the Potential of your Gigabit devices

The GS108X comes with 8 Gigabit Ethernet ports and 10 Gigabit SFP+ uplink port. Gigabit unmanaged switches help businesses cost-effectively expand their network to Gigabit speeds and higher port counts. This GS108X is energy efficient, built to last, and rigorously tested to provide the reliability businesses need. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.

The GS108X offers flexible mounting options - they can be mounted on a wall or can be used as a desktop switch. Moreover the compact and fanless design makes the GS108X ideal for any home or business environment.

Highlights

  • Plug-and-Play
    Simple set up with no software to install or configuration needed and zero maintenance
  • 10 Gigabit Uplink
    No network bottlenecks thanks to the 10 Gigabit SFP+ uplink
  • Flexible Mounting
    Wall-mount or desktop
  • Small Form Factor
    Compact design to fit in any small cabinet or wiring panel
  • High Quality and Reliable Performance
    Durable metal case and long product life (shown by MTBF numbers)
  • Longer Distance Connections
    The 10G SFP+ uplink offers the capacity to maintain high-speed connections over 100 meters (328 feet).
  • Silent Switches
    Fanless quiet operation
  • Industry Leading Warranty
    Limited Lifetime Hardware Warranty

Features and Benefits:

Compact form factor with fanless design

Adapts to your needs and configuration in any environment, even noise-sensitive (in a classroom, in a conference room, in a doctor’s office…)

Flexible Mounting Options

Desktop or wall-mount to be used in any environment.

36 Gbps non-blocking switching architecture

Get all the connectivity you need to your devices without congestion.

Energy Efficient Ethernet (IEEE 802.3az)

For maximum power savings and reduced energy costs.

Specifications:

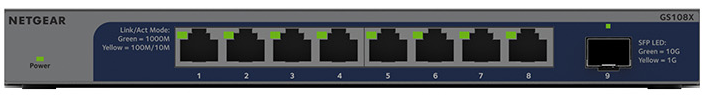

Front View

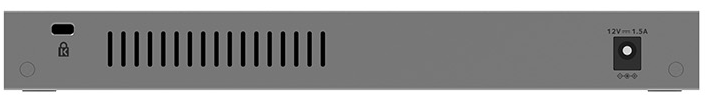

Rear View

GS108X Technical Specifications
Product Specifications
Gigabit ports 8
SFP+ ports 1
Form Factor Desktop/Wall-mount
Performance Specifications
Bandwidth 36 Gbps
Priority queues 8
Priority queuing Weighted Round Robin (WRR)
MAC Address database size (48-bit MAC addresses) 16K
Multicast groups N/A
Packet forwarding rate (64 byte packet size) (Mpps) 41.664Mfps
Speed / Latency 100Mbps: <5µs
1Gbps: <2µs
10Gbps : <1µs
Jumbo frame support Up to 9728 bytes
Acoustic noise level @ 25°C (dBA) (ANSI-S10.12) 0 dBA
Mean Time Between Failures (MTBF) @ 25°C 4,802,599 hrs (548.2 yrs)
Power/Energy Efficency
Energy-Efficient Ethernet Yes
Max power (worst case, all ports used, line-rate traffic) (Watts) 5.7W
Quality of Service (QoS)
802.1p-based QoS/CoS Supported Yes
Port-based rate limiting N/A
Port-based QoS N/A
IEEE 802.1p COS Yes
IPv4 DSCP Yes
Pre-Defined Rate Limiting Rates N/A
Pre-Defined Port Priority Queues 8
Weighted Round Robin (WRR) Yes
L2 Services - Availability
Broadcast, multicast, unknown unicast storm control N/A
Static Manual LAGs (Port Trunking) N/A
LACP N/A
IEEE 802.3x (full duplex and flow control) Yes
LEDs
Per port Speed, Link, Activity
Per device Power
Physical Specifications
Dimensions 235 x 100.8 x 27 mm (9.25 x 3.97 x 1.06 in)
Weight 0.575 kg (1.267 lbs)
Power Consumption
Power Supply External Power Adapter 12V 1.5A
Max power (worst case, all ports used, line-rate traffic) (Watts) 5.7W
Min power (link-down standby) (Watts) 2.3W
Heat Dissipation (max and min) (BTU/hr) Max: 19.33 BTU/hr
Min: 7.86 BTU/hr
Fan(s) Fanless
Environmental Specifications
Operating Temperature 0° to 40°C (32° to 104°F)
Humidity 90% maximum relative humidity (RH), non-condensing
Altitude 10,000 ft (3,000 m) maximum
Electromagnetic Emissions and Immunity
Certifications
  • RCM
  • ICES-003
  • FCC Part 15
  • CE
  • UKCA
  • VCCI
  • KC
  • BSMI
Electromagnetic Compliance (Class A or B) Class B
Safety Certifications
Certifications
  • RCM
  • CE
  • UKCA
  • BSMI
Warranty and Support
Warranty
  • Limited Lifetime* Warranty
  • 90-day 24x7 Online Technical Support
  • Limited Lifetime Next Business Day Hardware Replacement (NBD)
ProSUPPORT OnCall 24x7, Service Packs**
  • Category S2:
    • PMB0S12-10000S (1 yr)
    • PMB0S32-10000S (3 yrs)
    • PMB0S52-10000S (5 yrs)
Package Content
All Models
  • GS108X 8-Port Gigabit Ethernet Unmanaged Switch with 1 dedicated 10G SFP+
  • Port Power adapter (varies by region)
  • Wall-mount kit
  • Rubber feet
  • Installation guide

* This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only.
** The NETGEAR OnCall 24x7 contract provides unlimited phone and email technical support for your networking product. For ProSAFE products purchased prior to 06/2014, also includes next business-day hardware replacement.

Diagram:

GS108X in a Business Environment

GS108X in a Business Environment

Why the NETGEAR GS108X Switch is ideal for small businesses

  1. Remove any network bottleneck with the 10 Gigabit SFP+ uplink
  2. Small and silent compact form factor for quiet operation – Adapts to your needs and configuration in any environment
  3. Limited Lifetime Warranty
  4. Energy efficient switches that automatically adjust power consumption according to Energy-Efficient Ethernet standard
