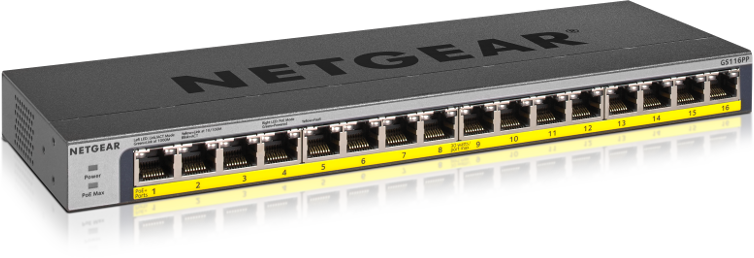

NETGEAR GS116PP
16-port Gigabit Ethernet Unmanaged Switch with 16-port PoE/PoE+ (183W PoE Budget)
*Includes a Lifetime Hardware Warranty, 90 Days of Free Tech Support, and Lifetime Online Tech Support
Price:
Add to Cart for Pricing
More pricing below, click here!
Overview:
Outstanding Power with Flexible Placement
The NETGEAR® Gigabit Unmanaged Switch series helps businesses costeffectively increase power budget to expand their network.
Powered by the industry’s first flexible PoE+ integrated technology, you can increase or decrease the PoE budget by simply buying a new power supply, effectively futureproofing small business networks and budgets.
All ports support PoE/PoE+ that makes them the perfect switches for deploying Wireless APs, Pan/Tilt/Zoom and fixed IP Cameras, VoIP Phones, access-limited security door locks or any other IoT PoE-powered devices.

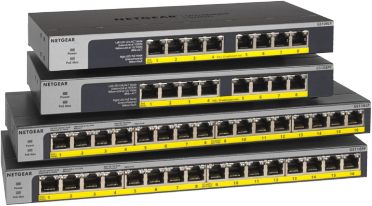

The GS108LP, GS108PP, GS116LP and GS116PP Gigabit Ethernet switches come with 8 and 16 Gigabit copper ports in a desktop metal case.
The small form factor combined with the rack-mount and wall-mount accessories give you the flexibility to place these switches in small cabinets, in a 19” rack, on a wall or on your desk.
Key Highlights
All ports Support PoE+
All ports supports PoE+ and PoE being able to provide up to 30W per port to any power-hungry device (PTZ Cameras, PoE Lights, PD Switches, Access Points).
Flexible mounting options
Adapts to your needs and configuration and configuration in any environment. Rackmount, wall or desktop mounting options.
Flexible PoE Budget
Interchangeable External Power Supply. Increase or decrease your PoE Budget as needed.
GS108LP/GS108PP:
60W, 83W, 123W PoE Budget
GS116LP/GS116PP:
76W, 115W, 183W PoE Budget
Silent Design
Small form factor and silent for quiet operation makes it the ideal switch for noise-sensitive environments.
At a Glance:
Hardware at a Glance
Model Name | Form-Factor | 10/100/1000 Base-T RJ45 ports | PoE/PoE+ 802.3af/802.3at Ports | PoE Budget/PSU | LED’s | PSU Supported/PoE Budget | Fans |
---|---|---|---|---|---|---|---|
GS108LP | Desktop, wall & rack mount | 8 | 8 | PoE Budget: 60W PSU: 67.5W |
Power, Port Link/Speed/Activity | PSU: 67.5W/90W/130W PoE: 60W/83W/123W |
Fanless |
GS108PP | Desktop, wall & rack mount | 8 | 8 | PoE Budget: 123W PSU: 130W |
Power, Port Link/Speed/Activity | PSU: 67.5W/90W/130W PoE: 60W/83W/123W |
Fanless |
GS116LP | Desktop, wall & rack mount | 16 | 16 | PoE Budget: 76W PSU: 90W | Power, Port Link/Speed/Activity | PSU: 90W/130W/200W PoE: 76W/115W/183W |
Fanless |
GS116PP | Desktop, wall & rack mount | 16 | 16 | PoE Budget: 183W PSU: 200W |
Power, Port Link/Speed/Activity | PSU: 90W/130W/200W PoE: 76W/115W/183W |
Fanless |
Application:

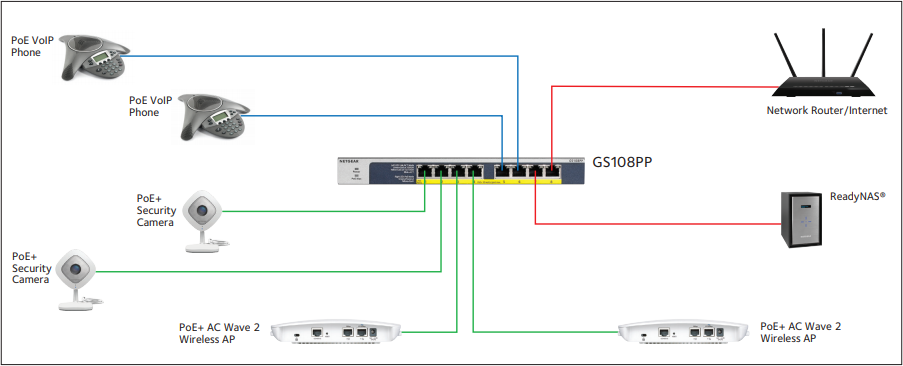

GS108LP/GS108PP in a Business Environment
GS108LP/GS108PP in a Business Environment
The following table describes the PoE classes and switch allocations.
Device Class | Standard | Class Description | Minimum Power Allocated to the Powered Device | Range of Power Delivered to the Powered Device |
---|---|---|---|---|
0 | PoE and PoE+ | Default Power (full) | 0.44W | .044W - 12.95W |
1 | PoE and PoE+ | Very Low Power | 4.0W | 0.44W - 3.84W |
2 | PoE and PoE+ | Low Power | 7.0W | 3.84W - 6.49W |
3 | PoE and PoE+ | Mid Power | 15.4W | 6.49W - 12.95W |
4 | PoE only | High Power | 30.0W | 12.95W - 25.5W |
Why the NETGEAR PoE/PoE+ Switches are ideal for SMB
- Upgradable PoE budget with interchangeable power supplies
- Small form factor and silent for quiet operation
- Plug-and-play, automatic connectivity to your router or modem
- Prioritize voice and video traffic
- Lifetime Warranty* plus lifetime online support and lifetime Next Business Day (NBD) replacement
Documentation:
Download the NETGEAR 8-port and 16-port Gigabit Ethernet Unmanaged PoE/PoE+ Switches Datasheet (PDF).
