NETGEAR GS308
8-Port Gigabit Ethernet SOHO Unmanaged Switch

NETGEAR GS3058

Netgear Products

NETGEAR Unmanaged Switches

NETGEAR 8-Port Gigabit Ethernet SOHO Unmanaged Switch

#GS308-300PAS
Price: ~~$43.43~~
Add to Cart for Pricing

More pricing below, click here!

Overview:

Expanding Wired Connectivity for SOHO Networks

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The GS305P/GS305PP and GS308P with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.

Auto-MDI/MDIX eliminates the need for crossover cables
LED indicators for ease of use
Energy-efficient technology for power savings
Fanless design for silent operation
Auto-negotiation for automatic connection at the highest common speed between switch and an end device
Non-blocking switching architecture for maximum throughput at wire speed
802.1p QoS for traffic/frame prioritization
Plug-and-play; no setup required
Durable and rugged metal case
Desktop or wall-mountable (5, 8, 16-port models); GS324 is desktop, wall-mountable, and rack-mountable (rack-mount kit included); GS348 is rackmountable (rack-mount kit included)
Ideal for small office and home networks
Standards-based technology ensures interoperability with any standardsbased devices in the existing network
Power up to 4 PoE-capable devices (GS305P/GS305PP and GS308P only)
802.3af Power Over Ethernet (PoE) for IP cameras, VoIP/Internet-based phones, wireless access points (GS308P only)

Specifications:

Technical Specifications	GS305	GS305P	GS305PP	GS308	GS308P	GS316	GS324	GS348
Features
10/100/1000Mbps Ports (Auto Uplink)	5	5	5	8	8	16	24	48
Enclosure	Metal	Metal	Metal	Metal	Metal	Metal	Metal	Metal
Connector Type	Metal	Metal	Metal	Plastic	Metal	Metal	Plastic	Metal
Form Factor	Desktop or wall-mountable	Desktop or wall-mountable	Desktop or wall-mountable	Desktop or wall-mountable	Desktop or wall-mountable	Desktop or wall-mountable	Desktop, wall-mountable, rackmountable	Desktop, rack-mountable
Power On/Off Switch	No	No	No	Yes	No	No	No	No
Performance Specifications
Bandwidth (Non-Blocking)	10 Gbps	10 Gbps	10 Gbps	16 Gbps	16 Gbps	32 Gbps	48 Gbps	96 Gbps
Packet Buffer Memory (Dynamically shared across only used ports)	128KB	128KB	128KB	192KB	192KB	768KB	512KB	1.5MB
Jumbo Frame Support	9,216 bytes	9,216 bytes	9,216 bytes	9,216 bytes	9,720 bytes	9,216 bytes	9,216 bytes	9,216 bytes
Queue WRR (Weighted Round Robin) Ratio	1:2:4:8	1:3:5:7:8:10:12:15	1:3:5:7:8:10:12:15	1:2:4:8	1:2:4:8	1:2:4:8	1:2:4:8	1:3:5:7:8:10:12:15
Forwarding Rate (using 64-byte packets) - 1000Mbps Port	1,448,000 pps	1,448,000 pps	1,448,000 pps	1,448,000 pps	1,448,000 pps	1,448,000 pps	1,448,000 pps	1,448,000 pps
Latency (using 64-byte packets) - 1000Mbps Port (average)	< 2.6 µsec	< 2.4 µsec	< 2.4 µsec	< 2.6 µsec	< 3.0 µsec	< 3.9 µsec	< 4.7 µsec	< 4 µsec
MAC Address Table Size	2K	2K	2K	8K	4K	16K	8K	8K
Auto MDI/MDI-X Cable Detection	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Auto-sensing Half/Full Duplex Switched Ports	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Mean Time Between Failures (MTBF) @ 25° C	3,831,422 hours	3,222,482 hours	6,189,896 hours	3,711,898 hours	2,244,211 hours	9,041,798 hours	620,798 hours	1,094,297 hours
LEDs
Per port	Link/Activity	Speed, Link/ Activity (Left), Ports 1-4: PoE (Right)	Speed, Link/ Activity (Left), Ports 1-4: PoE (Right)	Link/Activity	Speed, Link/ Activity (Left), Ports 1-4: PoE (Right)	Speed, Link/Activity	Speed, Link/Activity	Speed, Link/Activity
Per device	Power	Power, PoE Max	Power, PoE Max	Power	Power, PoE Max	Power	Power	Power
Quality Of Service (QOS)
Energy Efficient Ethernet (IEEE 802.3az)	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Auto Power Down	Yes	No	No	Yes	No	No	Yes	Yes
POE Configuration
802.3af PoE Ports	N/A	Ports 1-4	Ports 1-4	N/A	Ports 1-4	N/A	N/A	N/A
PoE Max Power Per Port	N/A	up to 15.4W	up to 30W	N/A	up to 15.4W	N/A	N/A	N/A
Total PoE Power Budget**	N/A	up to 55.5W	up to 83W	N/A	up to 53W	N/A	N/A	N/A
Power/Consumption
DC Input	5V / 0.7A	48V / 1.25A	54V / 1.66A	12V / 0.5A	48V / 1.25A	12V / 1.0A	Internal (AC:110-240V, 50/60Hz, 1.0A max)	Internal (AC: 110-240V, 50/60Hz, 1.0A max)
Power Consumption (Max and Standby)	2.15W/0.31W	60W/0.96W	2.89W/88.89W	3.04W/0.36W	60.0W/0.28W	8.4W/1.83W	11.1W/8.47W	23W/8.81W
Heat Dissipation (Max and Standby) (BTU/Hr	7.35 BTU/ 1.06 BTU	205.2 BTU/ 3.28 BTU	304BTU/ 5.3BTU	10.40 BTU/ 1.06 BTU	205.20 BTU/ 0.96 BTU	28.73 BTU/ 6.26 BTU	37.96 BTU/ 28.97 BTU	78.66 BTU/ 30.13 BTU
Energy Efficency
Energy Efficient Ethernet (EEE) IEEE 802.3az compliant	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Auto Power Down	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Short Cable Detection	Yes	Yes	Yes	Yes	Yes	Yes	Yes	No
Fan/Fanless	Fanless	Fanless	Fanless	Fanless	Fanless	Fanless	Fanless	Fanless
Physical Specifications
Dimensions	101 x 94 x 29 mm (4.0 x 3.7 x 1.1 in)	158 x 101 x 29 mm (6.2 x 4.0 x 1.1 in)	158 x 101 x 29 mm (6.2 x 4.0 x 1.1 in)	158 x 101 x 29 mm (6.2 x 4.0 x 1.1 in)	158 x 101 x 29 mm (6.2 x 4.0 x 1.1 in)	286 x 101 x 26 mm (11.3 x 4.0 x 1.0 in)	252 x 180 x 44 mm (9.9 x 7.1 x 1.7 in)	440 x 202 x 43 mm (17.3 x 8 x 1.7 in)
Weight	0.25 kg (0.55 lb)	0.39 kg (0.86 lb)	0.41 kg (0.90 lb)	0.39 kg (0.86 lb)	0.46 kg (1.02 lb)	0.84 kg (1.86 lb)	1.31 kg (2.90 lb)	3.15 kg (6.95 lb)
Environmental Specifications
Operating Temperature	0° to 40°C (32° to 104°F)
Operating Humidity (relative)	90% maximum relative humidity (RH), non-condensing
Operating Altitude	10,000 ft (3,000 m) maximum
Storage Temperature	20° to 70°C (– 4° to 158°F)
Storage Humidity	95% maximum relative humidity (RH), non-condensing
Electromagnetic Emissions and Immunity
Certifications	CE Mark, FCC Part 15 Class B, IC Class B, RCM, VCCI	CE Mark, FCC Part 15 Class B, IC Class B, RCM, CCC, VCCI, KC	CE Mark, FCC Part 15 Class B, IC Class B, RCM, CCC, VCCI, KC	CE Mark, FCC Part 15 Class B, IC Class B, RCM, CCC, VCCI, KC	CE Mark, FCC Part 15 Class B, IC Class B, RCM, CCC, VCCI, KC	CE Mark, FCC Part 15 Class B, IC Class B, RCM, CCC, VCCI, KC	CE Mark, FCC Part 15 Class B, IC Class B, RCM, CCC, VCCI, KC	CE Mark, FCC Part 15 Class B, IC Class B, RCM, CCC, VCCI, KC
Safety Certifications
Certifications	CB, CE LVD	CB, CE LVD, CCC	CB, CE LVD, CCC	CB, CE LVD, CCC	CB, CE LVD, CCC	CB, CE LVD, CCC	CB, CE LVD, CCC	CB, CE LVD, CCC
IEEE Network Protocols
IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3i 10BASE-T Ethernet IEEE 802.3x Flow Control IEEE 802.1p Priority QoS (all models) IEEE 802.1p Priority QoS and DSCP (except GS316) IEEE 802.3 CSMA/CD 802.3az Energy Efficient Ethernet

*This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only.

Diagram:

Small Office/Home Office Network Diagram

Views:

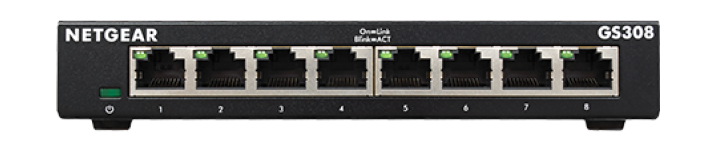

Front View

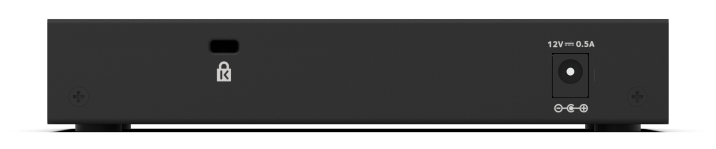

Rear View

Documentation:

Download the NETGEAR 300 Series SOHO Gigabit Ethernet Switches Datasheet (PDF).
