NETGEAR GS324PP
24-Port Gigabit Ethernet High-Power Unmanaged Switch with 24-Ports PoE+ (380W)


NETGEAR GS324PP

Netgear Products
NETGEAR Unmanaged Switches
NETGEAR 24-Port Gigabit Ethernet Unmanaged High-Power PoE+ Switch (380W)
#GS324PP-100NAS
List Price: $514.76
Add to Cart for Pricing

More pricing below, click here!

Overview:

Take Gigabit to the Desktop and Expand Wired Connectivity

NETGEAR 300 Series Gigabit Ethernet Unmanaged switches with PoE provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The SOHO Gigabit PoE unmanaged switches support NETGEAR’s exclusive FlexPoE upgradeable PoE power feature. Powered by the industry’s first flexible PoE+ integrated technology, you can increase or decrease the PoE budget by simply purchasing a new NETGEAR. FlexPoE power supply, effectively futureproofing small business networks and budgets. With NETGEAR’s exclusive FlexPoE, these two switches help businesses cost effectively increase their power budget to expand their network as needed. The unmanaged switches provides power and data from a single Ethernet (CAT-5e) cable to devices such as IP cameras, VoIP/ Internet-based phones, wireless access points, etc. The majority of these models also support PoE power auto-balance and allocation feature. NETGEAR’s unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. These switches deliver the power the device needs, at the most granular level.

  • Auto-MDI/MDIX eliminates the need for crossover cables
  • LED indicators for ease of use
  • Energy-efficient technology for power savings
  • Fanless design for silent operation
  • Auto-negotiation for automatic connection at the highest common speed between switch and an end device
  • Non-blocking switching architecture for maximum throughput at wire speed
  • Plug-and-play; no setup required
  • Durable and rugged metal case
  • Desktop or wall-mountable (based on specific model)
  • Ideal for small office and home networks
  • Standards-based technology ensures interoperability with any standardsbased devices in the existing network
  • 802.3af and 802.3at Power over Ethernet (PoE and /PoE+, depending on specific model) for IP cameras, VoIP/ Internet-based phones, wireless access points

Outstanding power flexibility with NETGEAR’s exclusive FlexPoE

The SOHO Gigabit PoE unmanaged switches support NETGEAR’s exclusive FlexPoE upgradeable PoE power feature. Powered by the industry’s first flexible PoE+ integrated technology, you can increase or decrease the PoE budget by simply purchasing a new NETGEAR. FlexPoE power supply, effectively futureproofing small business networks and budgets. With NETGEAR’s exclusive FlexPoE, these two switches help businesses cost effectively increase their power budget to expand their network as needed.

All ports support PoE/PoE+ up to 30W per port, which makes them the perfect switches for deploying Wireless APs, Pan/ Tilt/Zoom and fixed IP Cameras, VoIP Phones, access-limited security door locks or any other IoT PoE-powered devices. The SOHO Gigabit PoE unmanaged switches have copper Gigabit Ethernet PoE+ ports featuring NETGEAR FlexPoE power. The GS308PP ships with 83W of PoE budget, GS316P ships with 115W, and the GS316PP features an astounding 183W of PoE power budget. Should you need more power in the future, rather than replacing the entire switch, with NETGEAR FlexPoE, you can just purchase the optional NETGEAR FlexPoE EPS130W power adapter, which will boost the PoE budget of your GS308PP and with the EPS200W Power adapter, which will boost the PoE budget of your GS316P.

Specifications:

10,000 ft (3,000 m) maximum
Technical Specifications GS305P GS305PP GS308PP GS316P GS316PP GS324P GS324PP GS348PP
Features
10/100/1000 RJ45 Copper Ports (Auto Uplink) 5 5 8 16 16 24 24 48
Enclosure Metal Metal Metal Metal Metal Metal Metal Metal
Connector Type Metal Metal Metal Metal Metal Metal Metal Metal
Form Factor Desktop or wall-mountable Desktop or wall-mountable Desktop or wall-mountable Desktop or wall-mountable Desktop or wall-mountable Rack mount/ Desktop Rack mount/ Desktop Rack mount/ Desktop
Power On/Off Switch No No No No No NA NA NA
PoE Configuration
802.3af PoE Ports 4 4 8 16 16
802.3at PoE+ Ports 4 4 8 16 16 16 24 24
PoE Max Power Per Port Up to 30W Up to 30W Up to 30W Up to 30W Up to 30W 30W 30W 30W
Total PoE Power Budget** up to 63W up to 83W 83W (FlexPoE upgradeable to 123W using 130W power adapter 115W§ 183W§ 190W 380W 380W
PoE auto-balance Yes Yes Yes Yes Yes
Power Consumption
DC Input/Power In 54V, 1.25A 54V, 1.66A 54V/1.66A (FlexPoE 130W power adapter: 54V/2.4A) 54V, 2.4A 54V, 3.7A Internal (100-240VAC, 50/60Hz, 3A max) Internal (100-240VAC, 50/60Hz, 8A max) Internal (AC: 110-240V, 50/60Hz, 8A max)
Power Consumption (Max and Standby) 66.78W/ 1.02W 85.77W/ 1.01W 90W/3.86W 127.9W/ 2.68W 195.9 W/ 2.67W 210W/ 10W 400W/ 10W 410W/ 10W
Heat Dissipation (Max and Standby) (BTU/Hr) 228.38 BTU/ 3.24 BTU 293.33 BTU/ 3.078 BTU 300.6 BTU/ 3.69 BTU 437.42BTU/ 9.18BTU 669.9BTU/ 9.14BTU 718.2BTU/ 34.2BTU 1368BTU/ 34.2BTU 1402.2BTU/ 34.2BTU
Performance Specifications
Bandwidth (Non-Blocking) 10 Gbps 10 Gbps 16 Gbps 32 Gbps 32 Gbps 48 Gbps 48 Gbps 48 Gbps
Packet Buffer Memory (Dynamically shared across only used ports) 128 KB 128 KB 192 KB 1MB 1MB 192 KB 192 KB 1.5MB
Jumbo Frame Support 9,216 bytes 9,216 bytes 9,216 bytes 9,216 bytes 9,216 bytes 10000 bytes 10000 bytes 12288 bytes
Queue WRR (Weighted Round Robin) Ratio 1:2:4:8 1:2:4:8 1:3:5:7:8: 10:12:15 1:3:5:7:8: 10:12:15 1:3:5:7:8: 10:12:15 1:2:4:8 1:2:4:8 1:3:5:7:8: 10:12:15
Forwarding Rate (using 64-byte packets) 1000Mbps Port 1,448,000 pps 1,448,000 pps 1,448,000 pps 1,448,000 pps 1,448,000 pps 1,448,000 pps 1,448,000 pps 1,448,000 pps
Latency (using 64-byte packets) - 1000Mbps Port (average) < 2.4 µsec < 2.4 µsec < 3.0 µsec < 3.7 µsec < 3.7 µsec < 4 µsec < 4 µsec < 4 µsec
MAC Address Table Size 2K 2K 4K 4K 4K 8K 8K 8K
Auto MDI/MDI-X Cable Detection Yes Yes Yes Yes Yes Yes Yes Yes
Auto-sensing Half/Full Duplex Switched Ports Yes Yes Yes Yes Yes Yes Yes Yes
Mean Time Between Failures (MTBF) @ 25° C 4,113,947 hours 4,113,947 hours 2,752,476 hours 2,362,192 hours 2,362,192 hours 1,193,574 hours 667,762 hours 570,972 hours
LEDs
Models: GS305P GS305PP GS308PP GS316P GS316PP GS324P GS324PP GS348PP
Per port Speed, Link/ Activity (Left), Ports 1-4: PoE (Right) Speed, Link/ Activity (Left), Ports 1-4: PoE (Right) Speed, Link/ Activity (Left), Ports 1-8: PoE (Right) Speed, Link/ Activity (Left), PoE (Right) Speed, Link/ Activity (Left), PoE (Right) Speed, Link/ Activity, PoE Speed, Link/ Activity, PoE Speed, Link/ Activity, PoE
Per device Power, PoE Max Power, PoE Max Power, PoE Max Power, PoE Max Power, PoE Max Power, PoE Max, Fan Power, PoE Max, Fan Power, PoE Max, Fan
Quality of Service (QoS)
802.1P Based (CoS) Supported Yes Yes Yes Yes Yes Yes Yes Yes
Honors DSCP (DiffServ) Tags Yes Yes Yes Yes Yes Yes Yes Yes
Energy Efficiency
Energy Efficient Ethernet (EEE) IEEE 802.3az compliant Yes Yes Yes Yes Yes Yes Yes Yes
Auto Power Down Yes Yes Yes Yes Yes Yes Yes Yes
Short Cable Detection Yes Yes Yes Yes Yes Yes Yes Yes
Fan/Fanless Fanless Fanless Fanless Fanless Fanless 1 Fan 2 Fans 2 Fans
L3 Services - DHCP
DHCP Client Yes Yes Yes Yes Yes Yes
Physical Specifications
Models: GS305P GS305PP GS308PP GS316P GS316PP GS324P GS324PP GS348PP
Dimensions (W x D x H) 158 x 101 x 29 mm
(6.2 x 4.0 x 1.1 in)
158 x 101 x 29 mm
(6.2 x 4.0 x 1.1 in)
236 x 102 x 27 mm
(9.3 x 4 x 1.1 in)
286 x 102 x 27 mm
(11.3 x 4 x 1.1 in)
286 x 102 x 27 mm
(11.3 x 4 x 1.1 in)
330 x 206 x 43 mm
(13 x 8.1 x 1.7 in.)
440 x 204 x 43 mm
(17.3 x 8 x 1.7 in)
440 x 310 x 43 mm
(17.3 x 12.2 x 1.7 in.)
Weight 0.40 kg
(0.88 lb)
0.40 kg
(0.88 lb)
0.49 kg
(1.08 lb)
0.88 kg
(1.94 lb)
0.88 kg
(1.94 lb)
2.44 kg
(5.38 lb)
3.30 kg
(7.3 lb)
4.56 kg
(10.05 lb)
Environmental Specifications
Operating Temperature 32° to 104°F (0° to 40°C) 0° to 45°C (32° to 113°F)
Operating Humidity 90% maximum relative humidity (RH), non-condensing 10%–90% relative humidity, noncondensing
Operating Altitude 10,000 ft (3,000 m) maximum
Storage Temperature –20° to 70°C (– 4° to 158°F)
Storage Humidity 95% maximum relative humidity (RH), non-condensing 10%~95%, non-condensing
Electromagnetic Emissions and Immunity
Models: GS305P GS305PP GS308PP GS316P GS316PP GS324P GS324PP GS348PP
Certifications CE Mark, FCC Part 15 Class B, IC Class B, RCM, VCCI, KC CE Mark, FCC Part 15 Class B, IC Class B, RCM, VCCI, KC CE Mark, FCC Part 15 Class B, IC Class B, RCM, VCCI, KC CE Mark, FCC Part 15 Class A, IC Class A, RCM, VCCI, BSMI, KC CE Mark, FCC Part 15 Class A, IC Class A, RCM, VCCI, BSMI, KC CE Mark, FCC Part 15 Class A, IC Class A, RCM, VCCI, KC CE Mark, FCC Part 15 Class A, IC Class A, RCM, VCCI, KC CE Mark, FCC Part 15 Class A, IC Class A, RCM, VCCI, KC
Safety Certifications CB, CE LVD CB, CE LVD CB, CE LVD CB, CE LVD CB, CE LVD CB, CE LVD, UL CB, CE LVD, UL CB, CE LVD, UL
IEEE Network Protocols

  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • IEEE 802.3i 10BASE-T Ethernet
  • IEEE 802.3x Flow Control
  • IEEE 802.1p Priority QoS (GS305Pv3, GS305PPv3, GS308PP, GS316P, GS316PP)
  • IEEE 802.3 CSMA/CD
  • 802.3az Energy Efficient Ethernet
Warranty and Support
Models: GS305P GS305PP GS308PP GS316P GS316PP GS324P GS324PP GS348PP
Power Adapter Warranty 2-year warranty
Technical Support (online, phone) 90 days free of Technical Support with registration
ProSUPPORT OnCall 24x7 Service Plans Category S1
PMB0S11- 10000S (1 yr)
PMB0S31- 10000S (3 yrs)
PMB0S51- 10000S (5 yrs)
Category S2
PMB0S12- 10000S (1 yr)
PMB0S32- 10000S (3 yrs)
PMB0S52- 10000S (5 yrs)
Category 2
PMB0312- 10000S (1 yr)
PMB0332- 10000S (3 yrs)
PMB0352- 10000S (5 yrs)
Package Contents
All Models
  • Unmanaged PoE Gigabit Ethernet switch
  • Power adapter/cord (localized to the country of sale)
  • Rubber footpads for desktop installation
  • Wall mount kit
  • Installation guide
  • Unmanaged Gigabit Ethernet PoE+ switch
  • Power cord (localized to country of sale)
  • Rack mount kit
  • Desktop rubber feet
  • Installation guide

§ NETGEAR FlexPoE power - interchangable external power adapter allows for increasing or decreasing your PoE budget at any time with optional NETGEAR FlexPoE power adapters. Actual SKU availability may vary per region. Please check the local website for product availability.
* This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and modifications to product may void the warranty; see http://www.netgear.com/about/warranty/ for details. 24/7 basic technical support provided for 90 days from purchase date when purchased from a NETGEAR authorized reseller.
** Maximum PoE power supplied is 15.4W per port, but not to exceed 53W total power supplied across all PoE connected devices.

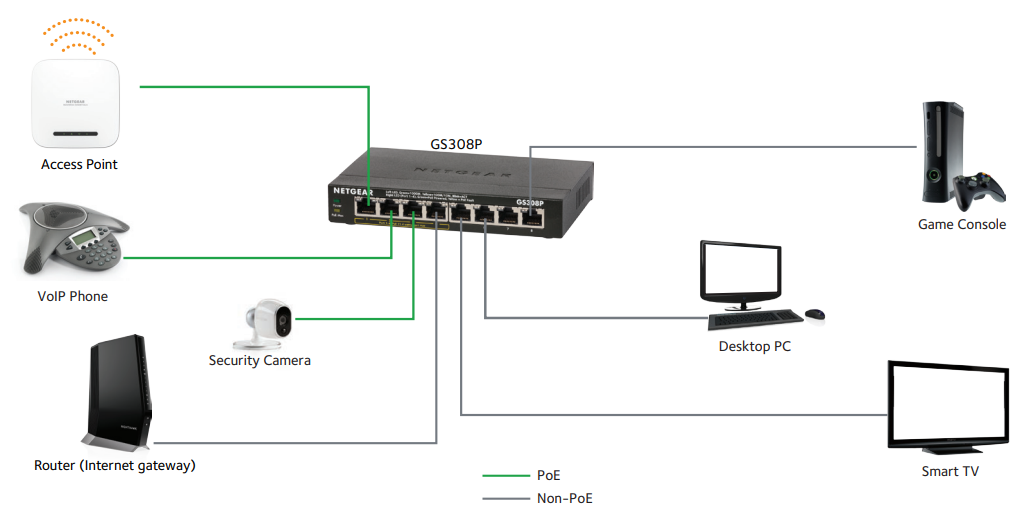

Network Diagram:

Small Office/Home Office Network Diagram

Small Office/Home Office Network Diagram

Views:

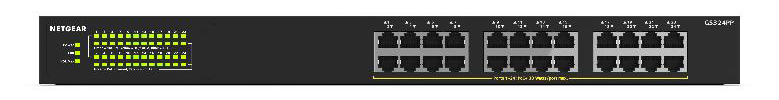

Front View

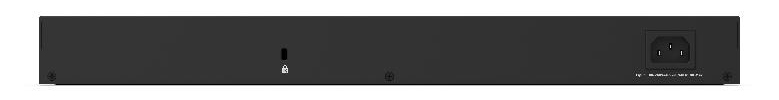

Rear View
