NETGEAR GS324T
24-Port Gigabit Ethernet Smart Switch with 2 Dedicated SFP Ports


NETGEAR GS324T

Netgear Products
NETGEAR Smart Switches
NETGEAR 24-Port Gigabit Ethernet Smart Switch with 2 Dedicated SFP Ports
#GS324T-100NAS
List Price: $374.38
Add to Cart for Pricing

More pricing below, click here!

Overview:

Powerful Connectivity and Security

As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of reliable and high performance networks that are SMB budget aware. With the growth of virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, SMB networks need to extend beyond simple reliability to performance and security. The NETGEAR S350 Gigabit Smart Switch series is tailored to these essential network needs of your business; delivering unprecedented non-blocking Gigabit bandwidth and solid network security at an affordable cost.

The NETGEAR Smart S350 series consists of five switch models, including 8-, 24- and 48-port Gigabit Ethernet switches and 8-, and 24-port Gigabit Ethernet PoE+ switches with 2 or 4 SFP ports for fiber uplinks, offering powerful Layer 2 features, enhanced performance and ease of use. They are purposely designed for converged networks where voice, video, data are all carried on a single network platform. Advanced features such as L2/ L3/L4 Access Control Lists (ACLs), Quality of Service (QoS), Link Aggregation Control Protocol (LACP) and Spanning Tree Protocol (STP) will ensure a high-speed and highly secured network environment for your business.

The 8-port S350 series switch models are in small “desktop” form factors, which will not take much space to place. The 24- and 48-port models are also rack-mountable. All models include Kensington lock slot to physically secure your switch in open space. The fan-less 8-port models and 24- port non-PoE model will operate silently, ideal for the noise-sensitive environment. The 24-port PoE+ model and 48-port model also work under 33dBA acoustic level. All NETGEAR S350 Series switches support IEEE 802.3az Energy Efficient Ethernet mode, caring power saving for your business. NETGEAR S350 Series is covered by a 5-year limited Hardware Warranty* and extendable support, offering a worry-free user’s experience at very affordable total cost of ownership.

  • 8/24/48 Gigabit 10/100/1000BASE-T RJ-45 ports
  • 55W (GS310TP) or 190W (GS324TP) PoE budget across 8 or 24 Gigabit PoE+ ports (802.3at)
  • Dedicated SFP fiber ports: 2 on GS310TP/ GS324T/GS324TP and 4 on GS348T
  • Non-blocking switching with 16Gbps to 104Gbps line rate fabric
  • Fan-less design on GS308T/GS310TP/ GS324T; GS324TP and GS348T has max acoustic noise level at 32.8dB and 26dB respectively under 25°C (77°F) ambient
  • Advanced VLAN support for better network segmentation
  • L2/L3/L4 Access control lists (ACLs) for granular network access control including 802.1x port authentication
  • QoS (Quality of Service) for traffic prioritization including port-based, 802.1p and L2/L3/L4 DSCP-based
  • Auto “denial-of-service” (DoS) prevention
  • IGMP Snooping and Querier for multicast optimization
  • Rate limiting and priority queuing for better bandwidth allocation
  • Port mirroring for network monitoring
  • Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings
  • Cable test to troubleshoot connection issues (except for GS324T/GS324TP)
  • Easy-to-use Web browser-based management GUI available in English, German and Japanese
  • SNMP v1, v2c, v3 and RMON remote monitoring Smart IT, not Big IT
  • Easy to manage via web-Based Management GUI or Smart Control Center (Windows PC required) for multi-switch deployment
  • Smart Control Center, a powerful tool for multi-switch discovery, deployment, monitoring and firmware upgrade
  • Network Management System (NMS300), allowing all NETGEAR business products to be deployed and managed through this single interface
  • Dual firmware images, improving reliability and uptime to your network

Why is the NETGEAR S350 Series Gigabit Ethernet Smart Switch the right choice for SMBs?

As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of reliable and high performance networks that are SMB budget aware. With the growth of virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, SMB networks need to extend beyond simple reliability to performance and security. The NETGEAR S350 Gigabit Smart Switch series is tailored to these essential network needs of your business; delivering unprecedented non-blocking Gigabit bandwidth and solid network security at an affordable cost.

What you can expect from NETGEAR S350 Series Switches:

  • One-wire installation with 8, 12 or 24 Gigabit ports with PoE+ options (55W or 190W PoE total budget), and 2 or 4 SFP ports options provide not only redundant uplinks, but also build dual redundancy by a trunked uplink with link aggregation and failover redundancy.
  • Quiet and Cost-effective Smart Layer2 switches with essential business class network needs, ideal for voice, video and data convergence in office application
  • Smart switch features include VLAN, ACL, QoS, IGMP Snooping, LACP Link aggregation, STP and SNMP for enhanced security and reliability
  • Easy-to-use Web browser-based management GUI and full control through NETGEAR Smart Control Center, no need for an IT expert
  • 5-year hardware warranty with Next Business Day replacement, 90-day free technical support

Features and Benefits:

Hardware Features

  • Dedicated SFP Fiber Uplinks
    Dedicated SFP ports provides fiber uplinks without sacrificing any downlink Gigabit port. Up to 4 SFP ports provide not only redundant uplinks, but can also build dual redundancy by a trunked uplink with link aggregation and failover, the dualredundancy, a powerful design for the network virtualization
  • PoE+ Support on all ports (GS310TP and GS324TP)
    Flexible to plug-in or change into high-power PD devices on any port without worrying which one port to plug in and whether it will be running out of PoE+ ports.
  • Low Acoustics
    Fan-less design on GS308T/GS310TP/GS324T, and maximum acoustic noise level at 32.8dB for GS324TP and 26dB for GS348T respectively at 25°C (77°F) ambient for quieter office environment
  • Energy Efficient Ethernet (IEEE 802.3az)
    Maximum power reduction for ongoing operation cost savings.

Software Features

  • Advanced per port PoE controls
    Remote power management of PoE connected devices including operation scheduling (e.g. Wireless APs, IP security cameras, secure access door locks, IoT devices…)
  • ACL filtering to permit or deny traffic based on
    Provide granular network access control including L2/L3/L4 access control lists (ACLs).
  • Robust security features:
    Build a secured, converged network with all types of traffic by preventing external attacks and blocking malware, while allowing secure access for authorized users with RADIUS 802.1x port authentication.
    • 802.1x authentication (EAP)
    • Port-based security by locked MAC
    • DHCP Snooping
  • Comprehensive QoS features:
    Advanced controls for optimized network performance and better delivery of mission-critical traffic such as voice and video.
    • Port-based or 802.1p-based prioritization
    • Layer 3-based (DSCP) prioritization
    • Port-based ingress and egress rate limiting
  • Auto-VoIP, Auto-Voice VLAN, and Auto-Video VLAN
    Automatic Voice over IP prioritization (Auto-VoIP) simplifies most complex multi-vendor IP telephone deployments either based on protocols (SIP) or on OUI bytes (default database and user-based OUIs) in the phone source MAC address, providing the best class of service to VoIP streams (both data and signaling) over other ordinary traffic by classifying traffic, and enabling correct egress queue configuration. Similarly, Auto-Video VLAN enables IGMP snooping to minimize broadcast streams.
  • IGMP Snooping
    Facilitate fast receiver joins and leaves for multicast streams. Save cost and improve network efficiency by ensuring multicast traffic only reaches designated receivers without the need of an extra multicast router
  • Protected Ports
    Ensure no exchange of unicast, broadcast, or multicast traffic between the protected ports on the switch, thereby improving the security of your converged network. This allows your sensitive phone conversations to stay private and your surveillance video clips can be forwarded to their designated storage device without leakage or alteration.
  • DHCP Snooping
    Ensure IP address allocation integrity by only allowing DHCP messages from trusted DHCP servers and dropping malformed DHCP messages with a port or MAC address mismatch.
  • Dynamic VLAN Assignment (RADIUS)
    IP phones and PCs can authenticate on the same port but under different VLAN assignment policies. Users are free to move around and enjoy the same level of network access regardless of their physical location on the network.
  • Dual Firmware Images
    Dual firmware images for transparent firmware updates with minimum service interruption.

Specifications:

Technical Specifications GS308T GS310TP GS324T GS324TP GS348T
10M/100M/1G RJ-45 copper ports 8 8 24 24 48
PoE / PoE+ ports - 8 PoE+ (55W PoE budget) - 24 PoE+ (190W PoE budget) -
1G SFP (fiber) ports - 2 (dedicated) 2 (dedicated) 2 (dedicated) 4 (dedicated)
Performance Specification
CPU 500MHz
128MB RAM
32MB FLASH
500MHz
128MB RAM
32MB FLASH
800MHz
512MB RAM
128MB FLASH
800MHz
512MB RAM
128MB FLASH
400MHz
512MB RAM
128MB FLASH
Packet buffer memory (Dynamically shared across only used ports) 512KB 512KB 512KB 512KB 1.5MB
Forwarding modes Store-and-forward
Bandwidth 16 Gbps 20 Gbps 52 Gbps 52 Gbps 104 Gpbs
Priority queues 8 8 4 4 8
Priority queuing Weighted Round Robin (WRR) and Strict Priority
MAC address database size (48-bit MAC addresses) 8K 8K 16K 16K 16K
Multicast groups 256 256 512 512 512
Number of VLANs 64 64 64 64 64
Number of DHCP snooping bindings 8K 8K 8K 8K 8K
Access Control Lists (ACLs) 100 shared for MAC (ingress)
Packet forwarding rate (64 byte packet size) (Mpps) 11.9 14.8 38.6 38.6 77.3
Jumbo frame support (bytes) 10K 10K 9216 9216 9216
Acoustic noise level @ 25°C (dBA) (ANSI-S10.12) Fan-less Fan-less Fan-less 32.8dBA 26.0dBA
Mean Time Between Failures (MTBF) @ 25°C 2,957,592 hrs
(337 yrs)
1,081,119 hrs
(123yrs)
1,999,947 hrs
(228 yrs)
1,328,429 hrs
(152 yrs)
1,271,842 hrs
(145 yrs)
1G Copper Latency
(64-byte; 1518-byte; 9216-byte frames)
3.995µs;
4.202µs;
3.966µs
3.995µs;
4.202µs;
3.966µs
3.858μs;
3.868μs;
3.754μs
3.734μs;
3.749μs;
3.807μs
2.860μs;
2.920μs;
2.760μs
1G Fiber Latency
(64-byte; 1518-byte; 9216-byte frames)
- 3.428µs;
3.666µs;
3.400µs
2.899μs;
2.937μs;
2.860μs
2.896μs;
2.903μs;
2.914μs
1.740μs;
1.720μs;
1.680μs
L2 Services - VLANs
IEEE 802.1Q VLAN tagging Yes
IP-based VLANs Yes
MAC-based VLANs Yes
Auto-Voice VLAN Yes, based on OUI bytes (default database and user-based OUIs) in the phone source MAC address
Auto-VoIP Yes, based on protocols (SIP). Prioritzes traffic to a higher queue
Voice VLAN Yes, based on either VLAN ID or 802.1p priority, packets are passed onto the connecting VoIP phone using LLDP-MED.
Auto-Video VLAN Yes
L2 Services - Availability
Broadcast, multicast, unknown unicast storm control Yes
IEEE 802.3ad - LAGs (LACP) Yes
IEEE 802.3x (full duplex and flow control) Yes
IEEE 802.1D Spanning Tree Protocol Yes
IEEE 802.1w Rapid Spanning Tree Protocol Yes
IEEE 802.1s Multiple Spanning Tree Protocol Yes
L2 Services - Multicast Filtering
IIGMP snooping (v1, v2, and v3) Yes
IGMP snooping querier Yes
DHCP Services
DHCP client Yes
DHCP snooping Yes
Link Aggregation
IEEE 802.3ad - LAGs (LACP) Yes
Manual Static LAG Yes
# of Static or LACP LAGs
# of Members in each LAG
8 LAGs with max 8 members in each LAG
Network Monitoring and Discovery Services
802.1ab LLDP Yes
SNMP v1, v2c, v3
RMON group 1,2,3,9 Yes
Network Security
IEEE 802.1x Yes
Guest VLAN Yes
RADIUS-based VLAN assignment via .1x Yes
MAC-based .1x Yes
RADIUS accounting Yes
Access Control Lists (ACLs) L2 / L3 / L4 ingress
IP-based ACLs (IPv4 and IPv6) IPv4
MAC-based ACLs Yes
TCP/UDP-based ACLs Yes
MAC lockdown Yes
MAC lockdown by the number of MACs Yes
Control MAC # Dynamic learned entries 4096
Control MAC # Static entries 48
IEEE 802.1x RADIUS port access authentication Yes
Port-based security by locked MAC addresses Yes
Network Security
Broadcast, multicast, unknown unicast storm control Yes
DoS attacks prevention Yes
Quality of Service (QoS)
Models: GS308T GS310TP GS324T GS324TP GS348T
Port-based rate limiting Ingress and
egress
Ingress and
egress
Egress Egress Egress
Port-based QoS Yes
DiffServ QoS Yes
IEEE 802.1p COS Yes
Destination MAC and IP Yes
IPv4 and v6 DSCP Yes
IPv4 and IPv6 ToS Yes
Weighted Round Robin (WRR) Yes
Strict priority queue technology Yes
Auto-VoIP VLAN / Auto-Voice VLAN Yes, based on OUI bytes (default database and user-based OUIs) in the phone source MAC address
Auto-VoIP Yes, based on protocols SIP, H323 and SCCP. Prioritzes traffic to a higher queue
Voice VLAN Yes, based on either VLAN ID or 802.1p priority, packets are passed onto the connecting VoIP phone using LLDP-MED
Auto-Video VLAN Yes
IEEE Network Protocols
  • IEEE 802.3 Ethernet
  • IEEE 802.3u 100BASE-T
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3af PoE
  • IEEE 802.3at PoE+
  • IEEE 802.3az Energy Efficient Ethernet (EEE)
  • IEEE 802.3ad Dynamic Link Aggregation (LACP)
  • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX
  • IEEE 802.3x Full-Duplex Flow Control
  • IEEE 802.1Q VLAN Tagging
  • IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED)
  • IEEE 802.1p Class of Service (CoS)
  • IEEE 802.1D Spanning Tree Protocol (STP)
  • IEEE 802.1s Multiple Spanning Tree (MSTP)
  • IEEE 802.1w Rapid Spanning Tree (RSTP)
  • IEEE 802.1x RADIUS Network Access Control
Management
Models: GS308T GS310TP GS324T GS324TP GS348T
Password management Yes
Configurable management VLAN Yes
Admin access control via RADIUS and TACACS+ Yes
SNTP client over UDP port 123 Yes
SNMP v1/v2c Yes
SNMP v3 with multiple IP addresses Yes
RMON group 1,2,3,9 Yes
Port mirroring ingress and egress
Many-to-one port mirroring 8 10 26 26 52
Web browser-based graphical user interface (GUI) Yes
Smart Control Center (SCC) for multi-switch management Yes
Dual software (firmware) image Yes
Cable test utility Yes Yes No No Yes
TLS/HTTPS Web-based access (version) Yes (v1.2)
File transfers (uploads, downloads) TFTP / HTTP
HTTP upload/download (firmware) Yes
Syslog (RFC 3164) Yes
LEDs
Models: GS308T GS310TP GS324T GS324TP GS348T
Per port Speed, Link/Activity Speed, Link/Activity, or PoE in different mode Speed, Link/Activity Speed, Link/Activity, or PoE in different mode Speed, Link/Activity
Per device Power Power, PoE Max Power Power, Fan, PoE Max Power, Fan
Physical Specifications
Dimensions (W x D x H) 158 x 101 x 30 mm
(6.2 x 4.0 x 1.2 in)
236 x 101 x 30 mm
(9.3 x 4.0 x 1.2 in)
328 x 169 x 43 mm
(12.9 x 6.7 x 1.7 in)
330 x 206 x 43 mm
(13.0 x 8.1 x 1.7 in)
440 x 206 x 43 mm
(17.3 x 8.1 x 1.7 in)
Weight 0.41kg
(0.9 lb)
0.61kg
(1.34 lb)
1.62kg
(3.57 lb)
2.69kg
(5.93 lb)
3.05 kg
(6.72 lb)
Power Consumption
Max power (worst case, all ports used, full PoE, line-rate traffic) (Watts) 6.4W 69.3W 13.5W 229.9W 39.1W
Max power without PoE (worst case, all ports used, line-rate traffic) (Watts) - 15.1W - 16.3W -
Iddle power consumption (all ports link-down standby) (Watts) 2.0W 3.3W 6.5W 11.1W 25.0W
Heat Dissipation (worst case, all ports used, full PoE, line-rate traffic) (BTU/hr) Max:
22.02 BTU/hr
Max:
236.59 BTU/hr
Max:
46.09 BTU/hr
Max:
784.88 BTU/hr
Max:
148.24 BTU/hr
Energy Efficient Ethernet (EEE) IEEE 802.3az Yes (deactivated by default)
Fan Fan-less Fan-less Fan-less 2 1
Environmental Specifications
Operating Temperature 0° to 40° C (32° to 104° F) 0° to 45° C (32° to 113° F)
Operating Humidity (relative) 95% maximum relative humidity (RH), non-condensing
Operating Altitude 10,000 ft (3,000 m) maximum
Storage Temperature –20° to 70°C (– 4° to 158°F)
Storage Humidity (relative) 95% maximum relative humidity (RH), non-condensing
Storage Altitude 10,000 ft (3,000 m) maximum

Diagram:

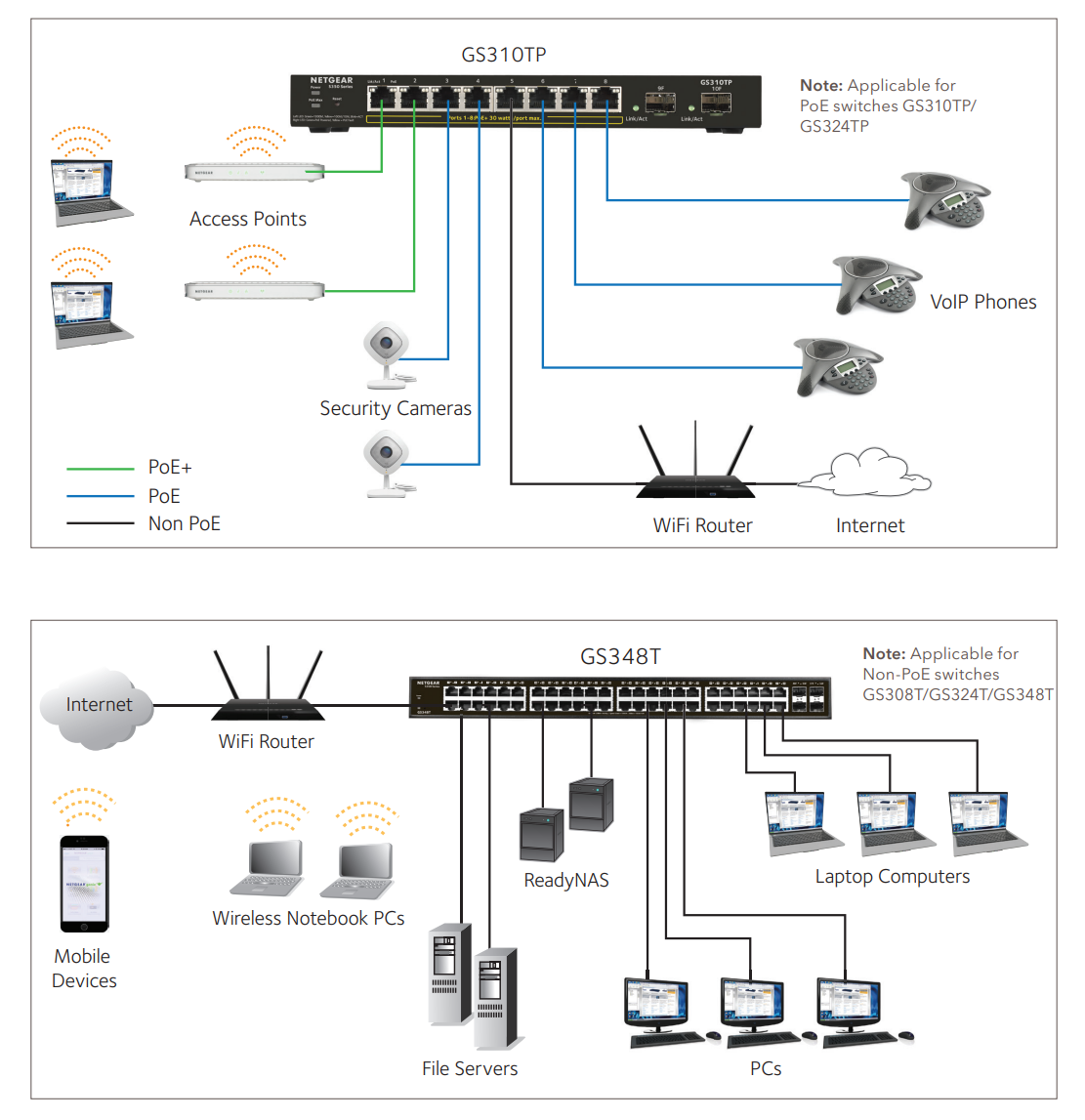

Small Office/Home Office Network Diagram

Network Convergence

Documentation:

Download the NETGEAR GS324T Datasheet (PDF).

Pricing Notes:

Netgear Products
NETGEAR Smart Switches
NETGEAR 24-Port Gigabit Ethernet Smart Switch with 2 Dedicated SFP Ports
#GS324T-100NAS
List Price: $374.38
Add to Cart for Pricing
