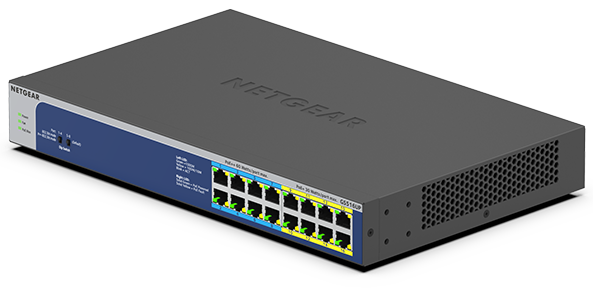

NETGEAR GS516UP
16-Port Gigabit Ethernet High-Power PoE+ Unmanaged Switch with 8-Ports PoE++ (380W)


NETGEAR GS516UP

NETGEAR Products
NETGEAR Unmanaged Switches
USA: FREE Ground ShippingNETGEAR GS516UP 16-Port Gigabit Ethernet High-Power PoE+ Unmanaged Switch with 8-Ports PoE++ (380W)
#GS516UP-100NAS
List Price: $545.96
Our Price: $349.99

More pricing below, click here!

Overview:

Expanding Wired Connectivity for SOHO Networks

The GS516PP 16-port High-power PoE+ Gigabit Ethernet Unmanaged Switch and the GS524PP 24-port High-power PoE+ Gigabit Ethernet Unmanaged Switch join the NETGEAR Unmanaged switch family, adding full 16 and 24 port PoE+ support for flexible deployment of modern high-power PoE devices. Companies can now deploy denser PoE+ devices connected to a single switch instead of multiples with a total PoE power budget of 260W (GS516PP) and 300W (GS524PP). The quiet design makes the GS516PP and GS524PP ideal for any home or business environment.

NETGEAR brings even larger PoE budgets on Unmanaged switches with Ultra60 PoE++ technology with two new 16- Port (GS516UP) and 24-port (GS524UP) Unmanaged Switches, ideal for powerful PoE+/PoE++ installations with impressive PoE budgets up to 380W and 480W, a compact size, plug-and-play installation, and reliable performance at affordable prices.

These switches can support all types of PoE installation with larger PoE budgets and ports that provide PoE+ and PoE++ power for up to 60W per port.

Standardized to IEEEE 802.3bt, the Ultra60 PoE++ switches can deliver up to 60W of power per port, allowing the connections of higher power required devices, such as high performance 802.11AX wireless access points, PTZ and 4K IP surveillance cameras, PoE lighting, PoE-powered audio speakers, as well as other high-powered devices. The GS516UP and GS524UP has a PoE mode used to enable pre-802.bt compatibility for pre-bt devices that were created before 802.3bt Standard was ratified.

  • High-power PoE with impressive PoE budgets for all types of PoE installations
  • Simple set up with no software or configuration needed
  • Per port LEDs for port activity and speed
  • Energy efficient technology for power savings
  • Auto-negotiation for automatic connection at the highest common speed between switch and an end device
  • 16 or 24 auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with up to 32 or 48Gb non-blocking switching
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Small, sturdy desktop metal case and quiet operation
  • Ideal for small and medium offices
  • Non-blocking switching architecture for maximum throughput at wire speed
  • Standards-based technology ensures interoperability with any standards-based devices in the existing network
  • Power up to 30W per device (GS516PP and GS524PP)
  • Power up to 60W per device (GS516UP and GS524UP)
  • Desktop and rackmountable
  • 802.3at Power Over Ethernet (PoE+) on all models for IP cameras, VoIP/Internet-based phones, wireless access points
  • 802.3bt Power Over Ethernet (PoE++) on the GS516UP and GS524UP models for IP cameras, VoIP/Internet-based phones, wireless access points, smart building lighting, audio speakers and pan-tilt-zoom cameras
  • Unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. The switches deliver the power the device needs, at the most granular level.
  • Enable Pre-802.3bt devices using our PoE Mode

Specifications:

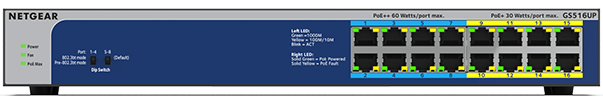

GS516UP Front View


GS516UP Rear View

Technical Specifications GS516PP GS516UP GS524PP GS524UP
Technical Specifications
10/100/1000Mbps Ports (Auto Uplink) 16 16 24 24
Enclosure Metal Metal Metal Metal
Connector Type Metal Metal Metal Metal
Form Factor Desktop/ Rackmount Desktop/ Rackmount Desktop/ Rackmount Desktop/ Rackmount
Power On/Off Switch N/A N/A N/A N/A
PoE Configuration
802.3at PoE+ Ports 16 8 24 8
802.3bt PoE++ Type 3 Ports 0 8 0 16
Pre-802.3bt compatible N/A Yes N/A Yes
PoE Max Power Per Port 30W 60W 30W 60W
Total PoE Power Budget 260W 380W 300W 480W
Performance Specifications
Bandwidth (Non-Blocking) 32 Gbps 32 Gbps 48 Gbps 48 Gbps
Packet Buffer Memory
(Dynamically shared across only used ports)
192 KB 192 KB 192 KB 192 KB
Jumbo Frames 9,216 bytes 9,216 bytes 9,216 bytes 9,216 bytes
Queue WRR (Weighted Round Robin) Ratio 1:2:4:8 1:2:4:8 1:2:4:8 1:2:4:8
Forwarding Rate (using 64-byte packets) - 1000Mbps Port 1,448,000 pps 1,448,000 pps 1,448,000 pps 1,448,000 pps
Latency (using 64-byte packets) - 1000Mbps Port (average) < 12 µsec < 12 µsec < 12 µsec < 12 µsec
MAC Address Table Size 8K 8K 8K 8K
Auto MDI/MDI-X Cable Detection Yes Yes Yes Yes
Auto-sensing Half/Full Duplex Switched Ports Yes Yes Yes Yes
Mean Time Between Failures (MTBF) @ 25° C 2415333.9 hrs 1213791.0 hrs 1457063 hrs 809853.3 hrs
LEDs
Per port Speed, Link/ Activity, PoE Speed, Link/ Activity, PoE Speed, Link/ Activity, PoE Speed, Link/ Activity, PoE
Per device Power, PoE Max, Fan Power, PoE Max, Fan Power, PoE Max, Fan Power, PoE Max, Fan
Quality of Service (QoS)
802.1P Based (CoS) Supported Yes Yes Yes Yes
Honors DSCP (DiffServ) Tags Yes Yes Yes Yes
Power Consumption
DC Input/Power In Internal
(100–240V ~ 50–60 Hz, 5A)
Internal
(100–240V ~ 50–60 Hz, 8–4A)
Internal
(100–240V ~ 50–60 Hz, 6A)
Internal
(100–240V ~ 50–60 Hz, 8–4A)
Power Consumption (Max and Standby) 316.1W / 9.1W 456.8W / 14.9W 359.5W / 12.9W 578.8W / 24.4W
Heat Dissipation (Max and Standby) (BTU/Hr) 1079.1654BTU/ 31.0674BTU 1559.5152BTU/ 50.8686BTU 1227.333BTU/ 44.0404BTU 1976.0232BTU/ 83.3016BTU
Energy Efficency
Energy Efficient Ethernet (EEE) IEEE 802.3az Yes Yes Yes Yes
Auto Power Down Yes Yes Yes Yes
Short Cable Detection Yes Yes Yes Yes
Fan/Fanless 2 Fan 3 Fan 2 Fan 2 Fan
Power Supply Internal
100-240V
50-60Hz
5A
Internal
100-240V
50-60Hz
8-4A
Internal
100-240V
50-60Hz
6A
Internal
100-240Vac
50-60Hz
8-4A
Physical Specifications
Dimensions 330 x 207 x 43 mm
(12.99 in. x 8.15 in. x 1.7 in.)
330 x 207 x 43 mm
(12.99 in. x 8.15 in. x 1.7 in.)
390 x 220 x 43 mm
(15.4 in. x 8.7 in. x 1.7 in.)
390 x 220 x 43 mm
(15.4 in. x 8.7 in. x 1.7 in.)
Weight 2.30kg (5.07 lb) 2.60kg (5.73 lb) 2.89kg (6.37 lb) 3.10kg (6.83 lb)
Environmental Specifications
Operating Temperature 0° to 50°C (32° to 122°F)
Operating Humidity 10% to 95% relative humidity, non-condensing
Operating Altitude 3000 M
Storage Temperature –20° to 70°C (– 4° to 158°F)
Storage Humidity (relative) 10% to 95% relative humidity
Electromagnetic Emissions and Immunity
Certifications FCC 47 CFR Part15B (Class A)
ICES-003 Class A
EN 55024/55032/55035 (Class A)
AS/NZS CISPR 32
VCCI
BSMI CNS13438
KCC
Safety
Certifications UL 62368-1
CB_IEC 60950-1 + IEC 62368-1 Ed-3
LVD EN60950-1+EN62368-1 Ed-2 Rpt
AS/NZS 62368.1 Ed-2
BSMI CNS14336-1
IEEE Network Protocols
IEEE Network Protocols IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3 CSMA/CD
802.3az Energy Efficient Ethernet
Warranty and Support
Next-Business-Day (NBD) Replacement Limited lifetime*
Technical Support (online, phone) 90 days free from date of purchase*
24/7 Online Chat Technical support Limited lifetime*
ProSUPPORT OnCall 24x7 Service Plans Category 1
PMB0311-10000S (1 year)
PMB0331-10000S (3 years)
PMB0351-10000S (5 years)
Package Content
All Models Unmanaged Gigabit Ethernet Switch
Power cord (localized to country of sale)
Rackmount kit
Desktop rubber feet
Insight Registration Flyer
Installation Guide

* This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and modifications to product may void the warranty; see http:// www.netgear.com/about/warranty/ for details. 24/7 basic technical support provided for 90 days from purchase date when purchased from a NETGEAR authorized reseller.

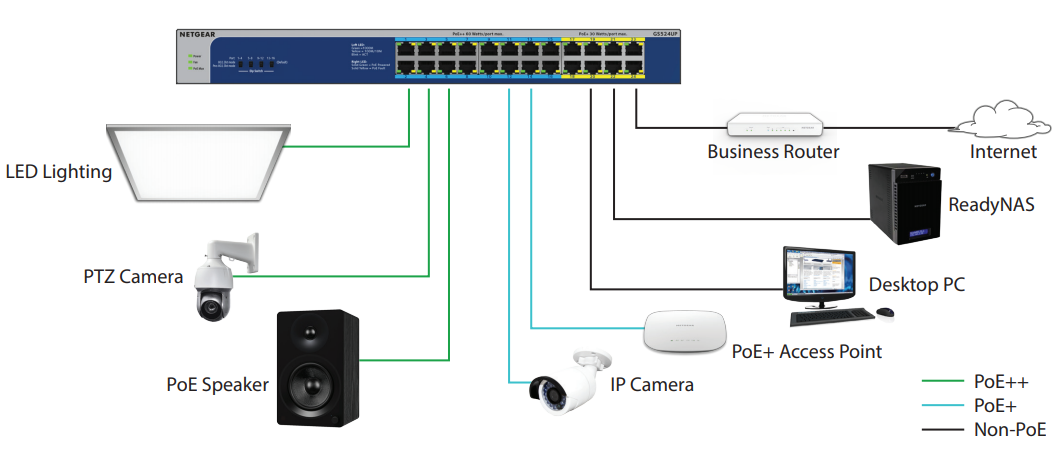

Network Diagram:

Deploying NETGEAR Ultra60 PoE++

GS516UP and GS524UP can support, but are not limited to, power the devices shown in the above examples.
GS516UP and GS524UP can support, but are not limited to, power the devices shown in the above examples.

Documentation:

Download the NETGEAR GS516PP, GS516UP, GS524PP and GS524UP Datasheet (PDF).
