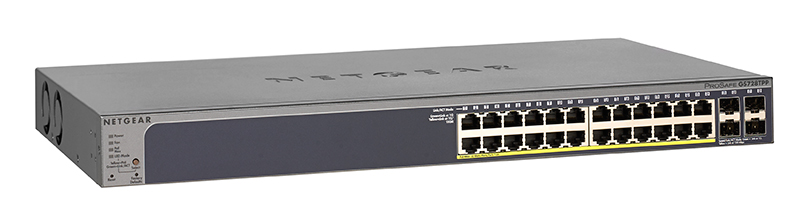

NETGEAR GS728TPP
ProSAFE 24-port 1000base-T Gigabit PoE+ Smart Switch

GS728TPP

Netgear Products
NETGEAR Smart Switches
NETGEAR 24-Port Gigabit PoE+ Smart Managed Pro Switch with 4 SFP Ports (380W)
#GS728TPP-200NAS
Our Price: $629.99
NETGEAR 24-Port Gigabit PoE+ Smart Managed Pro Switch with 4 SFP Ports (380W)
#GS728TPP-300NAS
List Price: $982.78
Add to Cart for Pricing

More pricing below, click here!

Overview:

Product Features:

  • Designed and Built for the network convergence

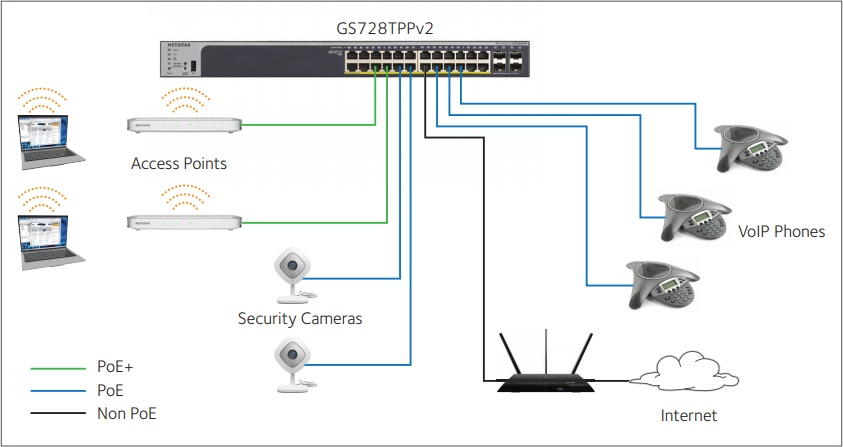

  • Optimized for integration and deployment of VoIP, IP Surveilance and WLAN
  • Support PoE+ with up to 30w of power budget per port
  • Advanced L2 features and comprehensive IPv6 support

All ports PoE+ with up to 760W PoE budget and Remote/Cloud Management option - Select your new network engine!

As a leading provider of network equipment for SMBs, NETGEAR understands the importance of providing a great choice of PoE port counts and power budgets that can adapt to your business’ needs, whether in the hospitality, catering, education or retail domains. The GS728TP, GS728TPP, GS752TP, and GS752TPP Gigabit Ethernet switches with PoE+ and 4 SFP ports join the NETGEAR standalone Smart switches family, adding full 24 and 48 port PoE+ support for deployment of modern high-power PoE devices. Cautious spender organizations can now deploy denser PoE+ devices connected to a cost-effective switch, with a reasonable PoE power budget of 190W over 24-port, or 380W over 48-port. Organizations who buy infrastructure for the long term and want future proofing for the unforeseeable can now select a switch with a PoE power budget of 380W over 24-port, or 760W over 48-port providing more headroom.

Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the GS728TP supports quiet rack mounting operation with a maximum of 27.08dB even at full PoE power with traffic on all ports and 25°C (77°F) ambient. Following the same measurements, the GS728TPP is rated at 33.42dB, the GS752TP at 36.94dB and the GS752TPP at 39.74dB.

Highlights

The NETGEAR PoE+ Gigabit Smart switches with Remote/Cloud management provides a great value, with configurable L2 network features like VLANs and PoE operation scheduling, allowing SMB customers to deploy PoEbased VoIP phones, IP cameras, videoover-IP endpoints and wireless access points simply and securely. Advanced features such as IPv4/IPv6 Layer 3 static routing, LACP link aggregation, DiffServ QoS, Private VLANs, Multicast VLAN Registration and Spanning Tree will satisfy even the most advanced small business networks.


Key features include:

  • Quiet rack mounting operation with 27.08dB to 39.74dB at 25°C (77°F) ambient
  • Layer 3 static routing with 32 routes (IPv4 and IPv6) for interVLAN local routing
  • Advanced VLAN and Private VLAN support for better network segmentation
  • L2/L3/L4 access control lists (ACLs) for granular network access control including 802.1x port authentication
  • Advanced per port PoE controls for remote power management of PoE connected devices including operation scheduling (e.g. Wireless APs, IP security cameras, LED lighting, secure access door locks, IoT devices…)
  • Advanced QoS (Quality of Service) for traffic prioritization including port-based, 802.1p and L2/L3/L4 DSCP-based
  • Auto DoS (Denial of Service) prevention
  • IGMP Snooping and Querier for multicast optimization
  • Multicast VLAN Registration (MVR) for larger L2 multicast networks and AV over IP deployment
  • Dynamic ARP for increased security targeting a class of Man in the Middle attack
  • Rate limiting and priority queuing for better bandwidth allocation
  • Port mirroring for network monitoring
  • Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings
  • Cable test to troubleshoot connection issues
  • SNMP v1, v2c, v3 and RMON remote monitoring

Build a future-proof network with NETGEAR

  • Solid performance with non-blocking architecture, 16K MAC addresses, 256 VLANs, 100 shared (ingress) ACLs and 512 Multicast groups
  • Comprehensive IPv6 supporting management, QoS, ACL and routing, ensuring investment protection and a smooth migration to IPv6-based network
  • PoE+ support on all models and on all ports
  • 4 Dedicated SFPs, not only providing fiber uplinks, but also uplink redundancy and failover, improving reliability and availability for the network

Fully-integrated Cloud-manageable Devices

  • Remote/Cloud management capability with NETGEAR Insight. Instantly activate NETGEAR Insight Cloud management from the web GUI, for simpler configuration and deployment from anywhere using the NETGEAR Insight app on mobile devices or the Insight Cloud portal through a web browser

Smart IT, not Big IT

  • Easy-to-use Web browser-based management GUI
  • Network Management System (NMS300), allowing all NETGEAR business products to be deployed and managed through this single interface
  • Dual firmware images improve reliability and uptime to your network

NETGEAR Quality and Reliability

  • Worry-free NETGEAR limited lifetime warranty, online technical chat support and Next Business Day (NBD) replacement.
  • 90-days Free 24x7 advanced Technical phone support

Simply activate NETGEAR Insight Cloud management to manage your network. Anytime. Anywhere.

By activating the NETGEAR Insight Cloud management, the users will enable fundamental management features allowing businesses simpler configuration and deployment from anywhere using the NETGEAR Insight app from mobile devices or the Insight Cloud portal from any device with a web browser.

Unique advanced management features of these Insight Managed devices include:

  • Remote monitoring and management with performance dashboards and troubleshooting features including remote reboot, port and PoE advanced configuration including remote enable/disable/power-cycle, PoE scheduling, and firmware updates with autoschedule mode
  • Single pane-of-glass multi-device, multi-network, and multi-site remote monitoring and notifications with the NETGEAR Insight app
  • Full-fledged local or remote access for configuration, management, and monitoring on a larger display using your tablet, laptop, or desktop computer through the NETGEAR Insight Cloud portal
  • Configurable in-app and email alerts and notifications
  • Auto-join and configure (zero-touch provisioning) for additional Insight managed devices added to the network
  • Centralized network configuration (policies) across Insight managed switches, and access points for VLANs, ACLs, QoS, LAGs, etc.
  • Cloud-based network administration, monitoring, and firmware management

Features and Benefits:

Hardware Features Benefits
1000BASE-T Copper Ethernet PoE+ connections Support high-density VoIP, Surveillance and Wi-Fi AP deployments, scalable for future growth. Never face the risk of running out of PoE ports.
1000BASE-X Fiber SFP ports Four dedicated Gigabit SFP ports for aggregation to the network core. Support for Fiber and Copper modules. Can also build dual redundancy by a trunked uplink with link aggregation and failover.
Great choice of PoE port counts and PoE power budgets that can adapt to the business’s needs 190W, 380W or 760W PoE budget available across 24 or 48 Gigabit PoE+ ports (802.3at) – Connect multiple power demanding devices to your network with a single wire for power and connectivity.
Low Acoustics Temperature-based fan-speed control minimizes system acoustic noise in any environment starting at 27.08dB at 25°C (77°F) ambient.
Energy Efficient Ethernet (IEEE 802.3az) Maximum power reduction for onging operational cost savings.
Software Features Benefits
Fully-integrated Cloud-manageable Devices IP phones and PCs can authenticate on the same port but under different VLAN assignment policies. Users are free to move around and enjoy the same level of network access regardless of their physical location in the network.
Comprehensive IPv6 Support for Management, ACL and QoS A simple way to provide segmentation of the network with internal routing through the switch – reserving the router for external traffic routing only, making the entire network more efficient.
IPv4 & IPv6 Static Routing Build current network with future in mind. Ensure investment protection and a smooth migration to IPv6-based network without switch replacement.
Robust security features:
  • 802.1x authentication
  • Port-based security by locked MAC
  • ACL filtering to permit or deny traffic based on MAC and IP addresses
Build a secured, converged network with all types of traffic by preventing external attacks and blocking malware while allowing secure access for authorized users.
Comprehensive QoS features:
  • Port-based or 802.1p-based prioritization
  • Layer 3-based (DSCP) prioritization
  • Port-based ingress and egress rate limiting
Advanced controls for optimized network performance and better delivery of mission-critical traffic such as voice and video.
Auto-VoIP, Auto-Voice VLAN, and Auto-Video VLAN Automatic Voice over IP prioritization (Auto-VoIP) simplifies most complex multi-vendor IP telephone deployments either based on protocols (SIP) or on OUI bytes (default database and user-based OUIs) in the phone source MAC address, providing the best class of service to VoIP streams (both data and signaling) over other ordinary traffic by classifying traffic, and enabling correct egress queue configuration. Similarly, Auto-Video VLAN enables IGMP snooping to minimize broadcast streams.
IGMP (IPv4) and MLD (IPv6) Snooping and Querier modes with Fast Leave Facilitate fast receiver joins and leaves for multicast streams. Save cost and improve network efficiency by ensuring multicast traffic only reaches designated receivers without the need of an extra multicast router.
Protected Ports Ensure no exchange of unicast, broadcast, or multicast traffic between the protected ports on the switch, thereby improving the security of your converged network. This allows your sensitive phone conversations to stay private and your surveillance video clips can be forwarded to their designated storage device without leakage or alteration.
DHCP Snooping and Dynamic ARP Inspection Ensure IP address allocation integrity by only allowing DHCP messages from trusted DHCP servers and dropping malformed DHCP messages with a port or MAC address mismatch. Use the DHCP snooping bindings database per port and per VLAN to drop incoming packets that do not match any binding and to enforce source IP/MAC addresses for malicious users traffic elimination.
Dynamic VLAN Assignment (RADIUS) IP phones and PCs can authenticate on the same port but under different VLAN assignment policies. Users are free to move around and enjoy the same level of network access regardless of their physical location on the network.
Dual Firmware Images Dual firmware images for transparent firmware updates with minimum service interruption.
Firmware Updates from Cloud Direct cloud-to-device firmware updates, initiated and/or scheduled using the Insight app, all from the palm of your hand, anytime, anywhere.

At a Glance:

Hardware at a Glance:

FRONT REAR SIDE
Model Name Form-Factor 10/100/1000 Base-T RJ45 ports 1000BASE-X Fiber SFP Ports PoE+ 802.3at Ports (Budget) Power Supply Fans
GS728TPv2 Rackmount 24 4 24 PoE+ (190W) 1 internal PSU, fixed 2 internal fans, fixed
GS728TPPv2 Rackmount 24 4 24 PoE+ (380W) 1 internal PSU, fixed 2 internal fans, fixed
GS752TPv2 Rackmount 48 4 48 PoE+ (380W) 1 internal PSU, fixed 2 internal fans, fixed
GS752TPP Rackmount 48 4 48 PoE+ (760W) 1 internal PSU, fixed 3 internal fans, fixed

Software at a Glance:

LAYER 2+ / LAYER 3 LITE FEATURES
Web Browser-based GUI (HTTP/HTTPS),
PC-Based Smart Control Center Utility (SCC)
RMON, SNMP
L2, L3, L4, ingress IGMP and MLD Snooping Yes Yes Static, Dynamic, Voice, MAC, Protocol-based, and Private VLAN LLDP-MED, 2RADIUS,
802.1X
Yes

Performance at a Glance:

Model Name Packet buffer CPU ACLs MAC Address Table ARP Table VLANs Fabric Latency (Max Connection Speed) Static Routes (IPv4 & IPv6) Multicast IGMP Group
GS728TPv2 1.5MB MIPS-34Kc 700MHz Single Core
128MB DDR RAM
32MB FLASH
100 shared 16K MAC
512 ARP
256 VLANs
56Gbps line-rate 1G Copper: <3.35μs
1G Fiber: <2.5μs
IPv4: 32
IPv6: 32
512
GS728TPPv2
GS752TPv2 104Gbps line-rate
GS752TPP

Specifications:

Technical Specifications GS728TP GS728TPP GS752TP GS752TPP
10M/100M/1G RJ-45 copper ports 24 24 48 48
PoE/PoE+ ports 24 PoE+ (380W PoE budget) 24 PoE+ (380W PoE budget) 48 PoE+ (380W PoE budget) 48 PoE+ (380W PoE budget)
1G SFP (fiber) ports 4 (dedicated) 4 (dedicated) 4 (dedicated) 4 (dedicated)
USB port (for config file upload/backup & firmware updates) Yes Yes Yes Yes
Unified Network Management (Discovery, Setup, Monitoring, and Management)
Discovery, setup, monitoring and management NETGEAR Insight mobile app on phone or tablet; Insight Cloud portal from PC, Mac, or tablet web browser
Remote/Cloud management Anywhere, anytime, from the palm of your hand using Insight mobile app or from any PC, Mac, or tablet web browser using the Insight Cloud portal
Centralized network configuration (policies) Centralized network configuration (policies) across Insight managed switches, and wireless access points for VLANs, ACLs, QoS, and LAGs
Device auto-join and configure (zero-touch provisioning) Additional Insight managed devices added to the network automatically inherit the network configuration
Multi-site, multi-network single pane-of-glass view Manage multiple sites, locations, and networks in a single view using the Insight mobile app or Insight Cloud portal
Multi-switch, multi-port concurrent configuration for ACLs, VLANs, QoS, PoE, etc Apply settings and policies on multiple ports across multiple switches all at the same time using the Port Config Wizard
Performance Specification
CPU MIPS-34Kc 700MHz Single Core MIPS-34Kc 700MHz Single Core MIPS-34Kc 700MHz Single Core MIPS-34Kc 700MHz Single Core
Packet buffer memory (Dynamically shared across only used ports) 1.5 MB 1.5 MB 1.5 MB 1.5 MB
Forwarding modes Store-and-forward Store-and-forward Store-and-forward Store-and-forward
Bandwidth (non-blocking, full duplex) 56 Gbps 56 Gbps 104 Gbps 104 Gbps
Priority queues 8 8 8 8
Priority queuing Weighted Round Robin (WRR) Weighted Round Robin (WRR) Weighted Round Robin (WRR) Weighted Round Robin (WRR)
MAC Address database size (48-bit MAC addresses) 16K 16K 16K 16K
Multicast groups 512 512 512 512
Number of IPv4 static routes 32 32 32 32
Number of IPv6 static routes 32 32 32 32
Number of VLANs 256 256 256 256
Number of ARP cache entries 512 ARP 512 ARP 512 ARP 512 ARP
Number of DHCP snooping bindings 256 256 256 256
Access Control Lists (ACLs) 100 shared for MAC, IP and IPv6 ACLs (ingress) 100 shared for MAC, IP and IPv6 ACLs (ingress) 100 shared for MAC, IP and IPv6 ACLs (ingress) 100 shared for MAC, IP and IPv6 ACLs (ingress)
Packet forwarding rate (64 byte packet size) (Mpps) 41.67 41.67 77.38 77.38
Jumbo frame support (bytes) Up to 10K packet size Up to 10K packet size Up to 10K packet size Up to 10K packet size
Acoustic noise level @ 25°C (dBA) (ANSI-S10.12) 27.08dBA 33.42dBA 36.94dBA 39.74dBA
Mean Time Between Failures (MTBF) @ 25°C 1,250,365 hours 1,071,896 hours 1,737,411 hours 1,107,549 hours
100M Copper Latency (64-byte; 1518-byte; 9216- byte frames) 8.916µs; 9.258µs; 9.009µs 8.916µs; 9.258µs; 9.009µs 8.314µs; 8.612µs; 8.451µs 8.314µs; 8.612µs; 8.451µs
1G Copper Latency (64-byte; 1518-byte; 9216- byte frames) 3.388µs; 3.625µs; 3.716µs 3.388µs; 3.625µs; 3.716µs 3.614µs; 3.545µs; 3.628µs 3.614µs; 3.545µs; 3.628µs
1G Fiber Latency (64-byte; 1518-byte; 9216-byte frames) 3.204µs; 3.209µs; 3.298µs 3.204µs; 3.209µs; 3.298µs 2.980µs; 3.101µs; 3.179µs 2.980µs; 3.101µs; 3.179µs
L2 Services - VLANs
Models: GS728TP GS728TPP GS752TP GS752TPP
IEEE 802.1Q VLAN tagging Yes Yes Yes Yes
IP-based VLANs Yes Yes Yes Yes
MAC-based VLANs Yes Yes Yes Yes
Auto-VoIP VLAN / Auto-Voice VLAN Yes, based on OUI bytes (default database and user-based OUIs) in the phone source MAC address
Auto-VoIP Yes, based on protocols (SIP). Prioritzes traffic to a higher queue
Voice VLAN Yes, based on either VLAN ID or 802.1p priority, packets are passed onto the connecting VoIP phone using LLDP-MED.
Auto-Video VLAN Yes Yes Yes Yes
GARP with GVRP Yes Yes Yes Yes
Private VLAN Yes Yes Yes Yes
L2 Services - Availability
Broadcast, multicast, unknown unicast storm control Yes Yes Yes Yes
IEEE 802.3ad - LAGs (LACP) Yes Yes Yes Yes
IEEE 802.3x (full duplex and flow control) Yes Yes Yes Yes
IEEE 802.1D Spanning Tree Protocol Yes Yes Yes Yes
IEEE 802.1w Rapid Spanning Tree Protocol Yes Yes Yes Yes
IEEE 802.1s Multiple Spanning Tree Protocol Yes Yes Yes Yes
Layer 2 DHCP Relay Yes Yes Yes Yes
L2 Services - Multicast Filtering
IGMP snooping (v1, v2, and v3) Yes Yes Yes Yes
MLD snooping support (v1 and v2) Yes Yes Yes Yes
IGMP snooping querier (v2) Yes Yes Yes Yes
MLD snooping querier (v1) Yes Yes Yes Yes
Multicast VLAN Registration (MVR) Yes Yes Yes Yes
DHCP Services
Models: GS728TP GS728TPP GS752TP GS752TPP
DHCP client Yes Yes Yes Yes
DHCP snooping Yes Yes Yes Yes
L3 Services - Routing
IPv4 static routing 32 32 32 32
IPv6 static routing 32 32 32 32
VLAN routing Yes Yes Yes Yes
Host ARP table (number of entries) 512 ARP 512 ARP 512 ARP 512 ARP
ICMP Router Discovery Protocol (IRDP) Yes Yes Yes Yes
Number of IP VLAN interfaces (routed VLANs) 15 15 15 15
Link Aggregation
IEEE 802.3ad - LAGs (LACP) Yes Yes Yes Yes
Manual LAG Yes Yes Yes Yes
# of LAGs
# of Members in each LAG
8 LAGs with max 8 members in each LAG 8 LAGs with max 8 members in each LAG 8 LAGs with max 8 members in each LAG 8 LAGs with max 8 members in each LAG
Network Monitoring and Discovery Services
802.1ab LLDP Yes Yes Yes Yes
SNMP v1, v2c, v3 v1, v2c, v3 v1, v2c, v3 v1, v2c, v3
RMON group 1,2,3,9 Yes Yes Yes Yes
Network Security
IEEE 802.1x Yes Yes Yes Yes
Guest VLAN Yes Yes Yes Yes
RADIUS-based VLAN assignment via .1x Yes Yes Yes Yes
MAC-based .1x Yes Yes Yes Yes
RADIUS accounting Yes Yes Yes Yes
Access Control Lists (ACLs) L2 / L3 / L4 ingress L2 / L3 / L4 ingress L2 / L3 / L4 ingress L2 / L3 / L4 ingress
IP-based ACLs (IPv4 and IPv6) Yes Yes Yes Yes
MAC-based ACLs Yes Yes Yes Yes
TCP/UDP-based ACLs Yes Yes Yes Yes
MAC lockdown Yes Yes Yes Yes
MAC lockdown by the number of MACs Yes Yes Yes Yes
Control MAC # Dynamic learned entries 4096 4096 4096 4096
Control MAC # Static entries 48 48 48 48
IEEE 802.1x RADIUS port access authentication Yes Yes Yes Yes
Port-based security by locked MAC addresses Yes Yes Yes Yes
Broadcast, multicast, unknown unicast storm control Yes Yes Yes Yes
DoS attacks prevention Yes Yes Yes Yes
Network storm protection, DoS Yes Yes Yes Yes
Broadcast, unicast, multicast DoS protection Yes Yes Yes Yes
Quality of Service (QoS)
Models: GS728TP GS728TPP GS752TP GS752TPP
Port-based rate limiting Yes ingress and egress Yes ingress and egress Yes ingress and egress Yes ingress and egress
Port-based QoS Yes Yes Yes Yes
Support for IPv6 fields Yes Yes Yes Yes
DiffServ QoS Yes ingress Yes ingress Yes ingress Yes ingress
IEEE 802.1p COS  Yes Yes Yes Yes
Destination MAC and IP  Yes Yes Yes Yes
IPv4 and IPv6 DSCP Yes Yes Yes Yes
IPv4 and IPv6 ToS Yes Yes Yes Yes
TCP/UDP-based Yes Yes Yes Yes
Weighted Round Robin (WRR) Yes Yes Yes Yes
Strict priority queue technology Yes Yes Yes Yes
Auto-VoIP VLAN / Auto-Voice VLAN Yes, based on OUI bytes (default database and user-based OUIs) in the phone source MAC address
Auto-VoIP Yes, based on protocols (SIP). Prioritzes traffic to a higher queue
Voice VLAN Yes, based on either VLAN ID or 802.1p priority, packets are passed onto the connecting VoIP phone using LLDP-MED
Auto-Video VLAN Yes Yes Yes Yes
IEEE Network Protocols

  • IEEE 802.3 Ethernet
  • IEEE 802.3u 100BASE-T
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3af PoE
  • IEEE 802.3at PoE+
  • IEEE 802.3az Energy Efficient Ethernet (EEE)
  • IEEE 802.3ad Trunking (LACP)
  • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX IEEE 802.3x Full-Duplex Flow Control
  • IEEE 802.1Q VLAN Tagging
  • IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED)
  • IEEE 802.1p Class of Service
  • IEEE 802.1D Spanning Tree (STP)
  • IEEE 802.1s Multiple Spanning Tree (MSTP)
  • IEEE 802.1w Rapid Spanning Tree (RSTP)
  • IEEE 802.1x RADIUS Network Access Control
Management, Monitoring & Troubleshooting
Models: GS728TP GS728TPP GS752TP GS752TPP
Cloud/Remote management Yes Yes Yes Yes
Insight mobile app & Insight Cloud Portal management Yes Yes Yes Yes
uPnP Discovery Yes Yes Yes Yes
Bonjour Discovery Yes Yes Yes Yes
Networking monitoring Yes Yes Yes Yes
Data/performance logs Yes Yes Yes Yes
Centralized network configuration/policies (network-centric management) Yes Yes Yes Yes
Device auto-join and configure (zero-touch provisioning) Yes Yes Yes Yes
Multi-site, multi-network single pane-of-glass view Yes Yes Yes Yes
Multi-switch, multi-port concurrent configuration Yes Yes Yes Yes
Network/global password (for all Insight managed devices on a network) Yes (per network/subnet via NETGEAR Insight mobile app and Insight Cloud portal)
Password management Yes Yes Yes Yes
IP Access List Yes Yes Yes Yes
Configurable management VLAN Yes Yes Yes Yes
Admin access control via RADIUS and TACACS+ Yes Yes Yes Yes
IPv6 management Yes Yes Yes Yes
SNTP client over UDP port 123 Yes Yes Yes Yes
Firmware upgrade direct from Cloud (via mobile device or Insight Cloud portal) Yes Yes Yes Yes
SNMP v1/v2c Yes Yes Yes Yes
SNMP v3 with multiple IP addresses Yes Yes Yes Yes
RMON group 1,2,3,9 Yes Yes Yes Yes
Port mirroring Yes Yes Yes Yes
Many-to-one port mirroring 28 28 52 52
Web browser-based graphical user interface (GUI) Yes Yes Yes Yes
Dual software (firmware) image Yes Yes Yes Yes
Cable test utility Yes Yes Yes Yes
HTTP/TLS Web-based access (version) Yes (1.2) Yes (1.2) Yes (1.2) Yes (1.2)
File transfers (uploads, downloads) TFTP / HTTP TFTP / HTTP TFTP / HTTP TFTP / HTTP
HTTP upload/download (firmware) Yes Yes Yes Yes
Syslog (RFC 3164) Yes Yes Yes Yes
USB port for firmware and config upload/ download Yes Yes Yes Yes
Power Consumption
Models: GS728TP GS728TPP GS752TP GS752TPP
Max power (worst case, all ports used, full PoE, line-rate traffic) (Watts) 226W 439W 446W 861W
Max power without PoE (worst case, all ports used, line-rate traffic) (Watts) 36W 59W 66W 101W
Iddle power consumption (all ports link-down standby) (Watts) 20W 22.5W 28W 30W
Heat Dissipation (worst case, all ports used, full PoE, line-rate traffic) (BTU/hr) 772.9 BTU/hr 1,501.3 BTU/hr 1,525.32 BTU/hr 2,944.6 BTU/hr
Energy Efficient Ethernet (EEE) IEEE 802.3az Yes (deactivated by default) Yes (deactivated by default) Yes (deactivated by default) Yes (deactivated by default)
Fan 2 2 2 2
Physical Specifications
Dimensions (W x D x H) 440 x 257 x 43.2 mm
(17.3 x 10.1 x 1.7 in)
440 x 257 x 43.2 mm
(17.3 x 10.1 x 1.7 in)
440 x 310 x 43.2 mm
(17.3 x 12.2 x 1.7 in)
440 x 310 x 43.2 mm
(17.3 x 12.2 x 1.7 in)
Weight 3.78 kg (8.32 lb) 4.11 kg (9.05 lb) 4.93 kg (10.86 lb) 5.03 kg (11.08 lb)
Environmental Specifications
Operating Temperature 0° to 50°C (32° to 122°F)
Operating Humidity (relative) 95% maximum relative humidity (RH), non-condensing
Operating Altitude 10,000 ft (3,000 m) maximum
Storage Temperature –20° to 70°C (– 4° to 158°F)
Storage Humidity (relative) 95% maximum relative humidity (RH), non-condensing
Storage Altitude 10,000 ft (3,000 m) maximum
Warranty and Support
Models: GS728TP GS728TPP GS752TP GS752TPP
Hardware Limited Warranty Limited Lifetime* Limited Lifetime* Limited Lifetime* Limited Lifetime*
Technical Support via Phone and Email* 90 days 90 days 90 days 90 days
Limited Lifetime* 24x7 Online Chat Technical Support Limited Lifetime* Limited Lifetime* Limited Lifetime* Limited Lifetime*
Limited Lifetime* Next-Business-Day (NBD) Replacement Limited Lifetime* Limited Lifetime* Limited Lifetime* Limited Lifetime*
ProSUPPORT OnCall 24x7 Service Packs** Category 1
PMB0311-10000S
PMB0331-10000S
PMB0351-10000S
Category 1
PMB0311-10000S
PMB0331-10000S
PMB0351-10000S
Category 2
PMB0312 (1 yr)
PMB0332 (3 yrs)
PMB0352 (5 yrs)
Category 2
PMB0312 (1 yr)
PMB0332 (3 yrs)
PMB0352 (5 yrs)
Package Contents Smart switch
AC power cord with C13 connector (localized to region of sale)
Brackets and screws for rack mounting
Rubber footpads for tabletop installation
Rubber protection caps, which are already installed in the SFP sockets
Installation guide

* This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only.
** The NETGEAR OnCall 24x7 contract provides unlimited phone and email technical support for your networking product. For ProSAFE products purchased prior to 06/2014, also includes next-business-day hardware replacement.

Diagram:

GS7XXTP(P)-diagram

Within small and medium-sized organizations — especially in the hospitality, catering, education, and retail industries — there is growing deployment of VoIP phones, IP security cameras, video-over-IP endpoints, proximity sensors, LED lighting, secure access door locks, and other IoT devices. The dense proximity of these devices requires network switches capable of supporting PoE so a network manager can add power-hungry devices to the network with a single wire for power AND connectivity. Wave 2 802.11ac wireless access points and pan-tilt-zoom HD surveillance cameras with features such as night vision and built-in motion tracking also require PoE+ power (802.3at), increasing the power demands on PoE switches.

The new 24-port and 48-port NETGEAR Smart Managed Pro Switches support dense deployments of these modern high-power PoE+ devices. They offer powerful Layer 2 and Lite Layer 3 (static routing) features for IPv4 and IPv6 with enhanced performance and a focus on usability within SMB environments:

  • 190W (GS728TPv2) or 380W (GS728TPPv2) PoE budget across 24 Gigabit PoE+ ports
  • 380W (GS752TPv2) or 760W (GS752TPP) PoE budget across 48 Gigabit PoE+ ports
  • 4 dedicated Gigabit SFP fiber ports for aggregation to the network core
  • Quiet rack mounting operation with 27.08dB to 39.74dB max at 25°C (77°F) ambient
  • Layer 3 static routing with 32 routes (IPv4 and IPv6) for interVLAN local routing
  • IGMP Snooping, IGMP Querier and IGMP Fast Leave for multicast optimization
  • Include VLANs, Private VLAN, PoE scheduling, ACLs, DiffServ, LACP, MVR and STP
  • Easy-to-use Web browser-based management GUI — No need for an IT expert
  • LIFETIME Limited Warranty, Next Business Day Replacement, Tech support

Pricing Notes:

Netgear Products
NETGEAR Smart Switches
NETGEAR 24-Port Gigabit PoE+ Smart Managed Pro Switch with 4 SFP Ports (380W)
#GS728TPP-200NAS
Our Price: $629.99
NETGEAR 24-Port Gigabit PoE+ Smart Managed Pro Switch with 4 SFP Ports (380W)
#GS728TPP-300NAS
List Price: $982.78
Add to Cart for Pricing
NETGEAR ProSUPPORT - Learn More
ProSUPPORT Category 1, 1-Year Contract
#PMB0311-10000S
List Price: $75.00
Add to Cart for Pricing
ProSUPPORT Category 1, 3-Year Contract
#PMB0331-10000S
List Price: $146.54
Add to Cart for Pricing
ProSUPPORT Category 1, 5-Year Contract
#PMB0351-10000S
List Price: $213.15
Add to Cart for Pricing
