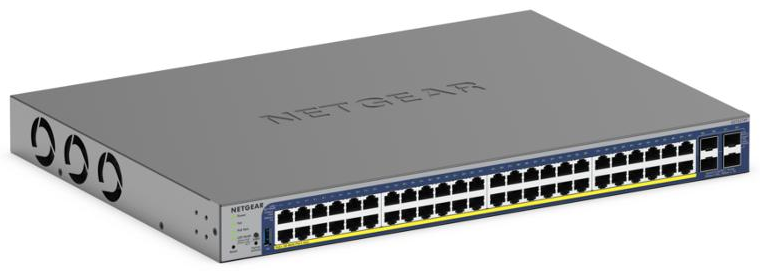

NETGEAR GS752TXP
48-Port Gigabit Ethernet PoE+ Smart Switch w/ optional Remote/Cloud Management and 4 SFP+ Ports (380W)


NETGEAR GS752TXP


Netgear Products
NETGEAR Smart Switches
NETGEAR 48-Port Gigabit Ethernet PoE+ Smart Switch with 4 SFP Ports and optional Insight Remote/Cloud Management (380W)
#GS752TXP-300NAS
Our Price: $899.99

More pricing below, click here!

Overview:

All ports PoE+ with up to 380W PoE budget and Remote/Cloud Management option - Select your new network engine!

As a leading provider of network equipment for businesses, NETGEAR understands the importance of providing a great choice of PoE port counts and power budgets that can adapt to your business’ needs, whether in the hospitality, catering, education or retail domains. The GS728TXPv3 and GS752TXPv3 Gigabit Ethernet Switches with PoE+ and 4 SFP+ Ports join the NETGEAR Smart switches with Cloud family, adding full 24 and 48 port PoE+ support for organizations that deploy high-density PoE+ devices and require a powerful interconnect link between access and aggregation.

Organizations who buy infrastructure for the long term and want future proofing for the unforeseeable can now select a switch with a PoE power budget of 190W over 24-port, or 380W over 48-port providing more headroom.

Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the GS728TXPv3 supports quiet rack mounting operation with a maximum of 26.80dBA even at full PoE power with traffic on all ports and 25°C (77°F) ambient. Following the same measurements, GS752TXPv3 is rated at 36.6dBA.

Highlights

The NETGEAR PoE+ Gigabit Smart switches with Remote/Cloud Management provides a great value, with configurable L2 network features like VLANs and PoE operation scheduling, allowing SMB customers to deploy PoEbased VoIP phones, IP cameras, videoover-IP endpoints and Wireless access points simply and securely. Advanced features such as IPv4/IPv6 Layer 3 static routing, LACP link aggregation, DiffServ QoS, Private VLANs, Multicast VLAN Registration and Spanning Tree will satisfy even the most advanced small business networks.


Key features include:

  • 24-port and 48-port PoE+ with 190W and 380W total PoE budget
  • 4 Dedicated 10G SFP+ ports, not only providing high-speed fiber uplinks, but also uplink redundancy and failover, improving reliability and availability for the network
  • Quiet rack mounting operation with 26.80dBA to 36.6dBA at 25°C (77°F) ambient
  • Layer 3 static routing with 32 routes (IPv4 and IPv6) for interVLAN local routing
  • Advanced VLAN and Private VLAN support for better network segmentation
  • L2/L3/L4 access control lists (ACLs) for granular network access control including 802.1x port authentication
  • Advanced per port PoE controls for remote power management of PoE connected devices including operation scheduling (e.g. Wireless APs, IP security cameras, LED lighting, secure access door locks, IoT devices…)
  • Advanced QoS (Quality of Service) for traffic prioritization including port-based, 802.1p and L2/L3/L4 DSCP-based
  • Auto “denial-of-service” (DoS) prevention
  • IGMP Snooping and Querier for multicast optimization
  • Multicast VLAN Registration (MVR) for larger L2 multicast networks and AV over IP deployment
  • Dynamic ARP for increased security targeting a class of Man in the Middle attack
  • Rate limiting and priority queuing for better bandwidth allocation
  • Port mirroring for network monitoring
  • Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings
  • Cable test to troubleshoot connection issues
  • SNMP v1, v2c, v3 and RMON remote monitoring

Build a future-proof network with NETGEAR:

  • Solid performance with non-blocking architecture, 16K MAC addresses, 256 VLANs, 100 shared (ingress) ACLs and 512 Multicast groups
  • Comprehensive IPv6 supporting management, QoS, ACL and routing, ensuring investment protection and a smooth migration to IPv6-based network

Fully-integrated cloud-manageable devices

  • Remote/Cloud Management capability with NETGEAR Insight. Instantly activate NETGEAR Insight Cloud management from the web GUI, for simpler configuration and deployment from anywhere using the NETGEAR Insight app on mobile devices or the Insight Cloud portal through a web browser

Smart IT, not Big IT

  • Easy-to-use Web browser-based management GUI
  • Dual firmware images improve reliability and uptime to your network
  • Text-based Lite Command-line Interface (CLI)

NETGEAR quality and reliability

  • Worry-free NETGEAR Limited Lifetime Warranty, online technical chat support and Next Business Day (NBD) replacement
  • 90-days Free 24x7 Advanced Technical Phone Support

Simply activate NETGEAR Insight Cloud management to manage your network. Anytime. Anywhere.

Activating NETGEAR Insight Cloud management enables users to experience simpler configuration and deployment from anywhere using the NETGEAR Insight app from mobile devices or the Insight Cloud portal from any device with a web browser.

Unique advanced management features of these Insight managed devices include:

  • Remote monitoring and management with performance dashboards and troubleshooting features including remote reboot, port and PoE advanced configuration including remote enable/disable/power-cycle, PoE scheduling, and firmware updates with autoschedule mode
  • Single pane-of-glass multi-device, multi-network, and multi-site remote monitoring and notifications with the NETGEAR Insight app
  • Full-fledged local or remote access for configuration, management, and monitoring on a larger display using your tablet, laptop, or desktop computer through the NETGEAR Insight Cloud portal
  • Configurable in-app and email alerts and notifications
  • Auto-join and configure (zero-touch provisioning) for additional Insight devices added to the network
  • Centralized network configuration (policies) across Insight managed switches, and access points for VLANs, ACLs, QoS, LAGs, etc.
  • Cloud-based network administration, monitoring, and firmware management

Features & Benefits:

Hardware Features

  • 1000BASE-T Copper Ethernet PoE+ connections
    Support high-density VoIP, Surveillance and Wi-Fi AP deployments, scalable for future growth. Never face the risk of running out of PoE ports.
  • 1000/10GBASE-X Fiber SFP+ ports
    Four dedicated 10G SFP+ ports for aggregation to the network core. Support for Fiber and Copper modules. Can also build dual redundancy by a trunked uplink with link aggregation and failover.
  • Great choice of PoE port counts and PoE power budgets that can adapt to the business’s needs
    190W or 380W PoE budget available across 24 or 48 Gigabit PoE+ ports (802.3at) – Connect multiple power demanding devices to your network with a single wire for power and connectivity.
  • Low Acoustics
    Temperature-based fan-speed control minimizes system acoustic noise in any environment starting at 26.80dBA at 25°C (77°F) ambient.
  • Energy Efficient Ethernet (IEEE 802.3az)
    Maximum power reduction for ongoing operation cost savings.

Software Features

  • Fully-integrated Cloud-manageable Devices
    Require no additional hardware (cloud keys, network portals, local servers, VPN or proxy appliances etc) to directly connect to the cloud and allow remote management. No additional hardware or software. Just switch to Insight Cloud management mode through Web browser-based user interface and go.
  • Text-based Lite Command-line Interface (CLI)
    Provide a text-based way to manage and monitor the system. The CLI can be accessed by using a direct serial connection, or by using a remote logical connection with telnet or SSH.
  • Comprehensive IPv6 Support for Management, ACL and QoS
    Build current network with future in mind. Ensure investment protection and a smooth migration to an IPv6-based network without switch replacement.
  • IPv4 & IPv6 Static Routing
    A simple way to provide segmentation of the network with internal routing through the switch – reserving the router for external traffic routing only, making the entire network more efficient.
  • Robust security features:
    Build a secured, converged network with all types of traffic by preventing external attacks and blocking malware while allowing secure access for authorized users.
    • 802.1x authentication (EAP)
    • Port-based security by locked MAC
    • ACL filtering to permit or deny traffic based on MAC and IP addresses
  • Comprehensive QoS features:
    Advanced controls for optimized network performance and better delivery of mission-critical traffic such as voice and video.
    • Port-based or VLAN 802.1p-based prioritization
    • Layer 3-based (DSCP) prioritization
    • Port-based ingress and egress rate limiting
  • Auto-VoIP, Auto-Voice VLAN, and Auto-Video VLAN
    Automatic Voice over IP prioritization (Auto-VoIP) simplifies most complex multi-vendor IP telephone deployments either based on protocols (SIP) or on OUI bytes (default database and user-based OUIs) in the phone source MAC address, providing the best class of service to VoIP streams (both data and signaling) over other ordinary traffic by classifying traffic, and enabling correct egress queue configuration. Similarly, Auto-video VLAN enables IGMP snooping to minimize broadcast streams.
  • IGMP (IPv4) and MLD (IPv6) Snooping and Querier modes with Fast Leave
    Facilitate fast receiver joins and leaves for multicast streams. Save cost and improve network efficiency by ensuring multicast traffic only reaches designated receivers without the need of an extra multicast router.
  • Protected Ports
    Ensure no exchange of unicast, broadcast, or multicast traffic between the protected ports on the switch, thereby improving the security of your converged network. This allows your sensitive phone phone conversations to stay private and your surveillance video clips can be forwarded to their designated storage device without leakage or alteration.
  • DHCP Snooping and Dynamic ARP Inspection
    Ensure IP address allocation integrity by only allowing DHCP messages from trusted DHCP servers and dropping malformed DHCP messages with a port or MAC address mismatch. Use the DHCP snooping bindings database per port and per VLAN to drop incoming packets that do not match any binding and to enforce source IP/MAC addresses for malicious users traffic elimination.
  • Dynamic VLAN Assignment (RADIUS)
    IP phones and PCs can authenticate on the same port but under different VLAN assignment policies. Users are free to move around and enjoy the same level of network access regardless of their physical location on the network.
  • Dual Firmware Images
    Dual firmware images for transparent firmware updates with minimum service interruption.
  • Firmware Updates from Cloud
    Direct cloud-to-device firmware updates, initiated and/or scheduled using the Insight app, all from the palm of your hand, anytime, anywhere.

Specifications:

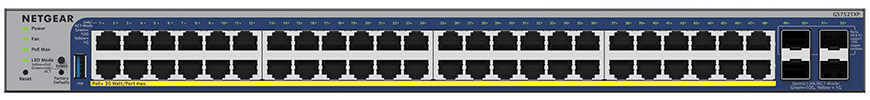

Front View

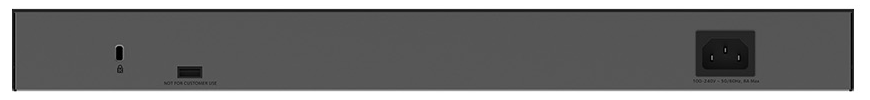

Rear View

GS752TXPv3 Technical Specifications
10M/100M/1G RJ-45 copper ports 48
PoE/PoE+ ports 48 PoE+ (380W PoE budget)
10G SFP+ (fiber) ports 4 (dedicated)
USB port (for config file upload/backup & firmware updates) Yes
Unified Network Management (Discovery, Setup, Monitoring, and Management) through NETGEAR Insight Cloud Management
Discovery, setup, monitoring and management NETGEAR Insight mobile app on phone or tablet; Insight Cloud portal from PC, Mac, or tablet web browser
Remote/Cloud management Anywhere, anytime, from the palm of your hand using Insight mobile app or from any PC, Mac, or tablet web browser using the Insight Cloud portal
Centralized network configuration (policies) Centralized network configuration (policies) across Insight managed switches, and wireless access points for VLANs, ACLs, QoS, and LAGs
Device auto-join and configure (zero-touch provisioning) Additional Insight managed devices added to the network automatically inherit the network configuration
Multi-site, multi-network single pane-of-glass view Manage multiple sites, locations, and networks in a single view using the Insight mobile app or Insight Cloud portal
Multi-switch, multi-port concurrent configuration for ACLs, VLANs, QoS, PoE, etc Apply settings and policies on multiple ports across multiple switches all at the same time using the Port Config Wizard
Performance Specification
CPU 800MHz ARM A55 Single Core
Packet buffer memory (Dynamically shared across only used ports) 1.5MB
Forwarding modes Store-and-forward
Bandwidth (non-blocking, full duplex) 176 Gbps
Priority queues 8
Priority queuing Weighted Round Robin (WRR) or Strict Priority
MAC Address database size (48-bit MAC addresses) 16K
Multicast groups 512
Number of IPv4 static routes 32
Number of IPv6 static routes 32
Number of VLANs 256
Number of ARP cache entries 512 ARP
Number of DHCP snooping bindings 256
Access Control Lists (ACLs) 100 shared for MAC, IP and IPv6 ACLs (ingress)
Packet forwarding rate (64 byte packet size) (Mpps) 130.94
Jumbo frame support (bytes) Up to 10K packet size
Acoustic noise level @ 25°C (dBA) (ANSI-S10.12) 36.6dBA
Mean Time Between Failures (MTBF) @ 25°C 1,296,949 hours
100M Copper Latency (64-byte; 1518-byte; 9216-byte frames) 9.891μs;9.444μs; 9.617μs
1G Copper Latency (64-byte; 1518-byte; 9216-byte frames) 3.910μs;4.319μs; 4.411μs
1G Fiber Latency (64-byte; 1518-byte; 9216-byte frames) 64-byte: 2.126(uSec)
1518-byte:2.162(uSec)
9216-byte frames:2.178(uSec)
L2 Services - VLANs
IEEE 802.1Q VLAN tagging Yes
IP-based VLANs Yes
MAC-based VLANs Yes
Auto-VoIP VLAN / Auto-Voice VLAN Yes, based on OUI bytes (default database and user-based OUIs) in the phone source MAC address
Auto-VoIP Yes, based on protocols (SIP). Prioritzes traffic to a higher queue
Voice VLAN Yes, based on either VLAN ID or 802.1p priority, packets are passed onto the connecting VoIP phone using LLDP-MED
Auto-Video VLAN Yes
GARP with GVRP Yes
Private VLAN Yes
L2 Services - Availability
Broadcast, multicast, unknown unicast storm control Yes
IEEE 802.3ad - LAGs (LACP) Yes
IEEE 802.3x (full duplex and flow control) Yes
IEEE 802.1D Spanning Tree Protocol Yes
IEEE 802.1w Rapid Spanning Tree Protocol Yes
IEEE 802.1s Multiple Spanning Tree Protocol Yes
Layer 2 DHCP Relay Yes
L2 Services - Multicast Filtering
IGMP snooping (v1, v2, and v3) Yes
MLD snooping support (v1 and v2) Yes
IGMP snooping querier (v2) Yes
MLD snooping querier (v1) Yes
Multicast VLAN Registration (MVR) Yes
L3 Services - DHCP
DHCP client Yes
DHCP snooping Yes
L3 Services - Routing
IPv4 static routing 32
IPv6 static routing 32
VLAN routing Yes
Host ARP table (number of entries) 512 ARP
ICMP Router Discovery Protocol (IRDP) Yes
Number of IP VLAN interfaces (routed VLANs) 15
Link Aggregation
IEEE 802.3ad - LAGs (LACP) Yes
Manual Static LAG Yes
# of LAGs / # of members in each LAG 16 LAGs with max 8 members in each LAG
Network Monitoring and Discovery Services
802.1ab LLDP Yes
SNMP v1, v2c, v3
RMON group 1,2,3,9 Yes
Network Security
IEEE 802.1x Yes (EAP)
Guest VLAN Yes
RADIUS-based VLAN assignment via .1x Yes
MAC-based .1x Yes
RADIUS accounting Yes
Access Control Lists (ACLs) L2 / L3 / L4
IP-based ACLs (IPv4 and IPv6) Yes
MAC-based ACLs Yes
TCP/UDP-based ACLs Yes
MAC lockdown Yes
MAC lockdown by the number of MACs Yes
Control MAC # Dynamic learned entries 16,384
Control MAC # Static entries 256
IEEE 802.1x RADIUS port access authentication Yes
Port-based security by locked MAC addresses Yes
Dynamic ARP inspection Yes
Broadcast, unicast, multicast DoS protection Yes
DoS attacks prevention Yes
Network storm protection, DoS Yes
Broadcast, unicast, multicast DoS protection Yes
DoS attacks prevention Yes
Quality of Service (QoS)
Port-based rate limiting Yes ingress and egress
Port-based QoS Yes
Support for IPv6 fields Yes
DiffServ QoS Yes ingress
IEEE 802.1p COS  Yes
Destination MAC and IP  Yes
IPv4 and IPv6 DSCP Yes
IPv4 and IPv6 ToS Yes
TCP/UDP-based Yes
Weighted Round Robin (WRR) Yes
Strict priority queue technology Yes
Auto-VoIP VLAN / Auto-Voice VLAN Yes, based on OUI bytes (default database and user-based OUIs) in the phone source MAC address
Auto-VoIP Yes, based on protocols (SIP). Prioritzes traffic to a higher queue
Voice VLAN Yes, based on either VLAN ID or 802.1p priority, packets are passed onto the connecting VoIP phone using LLDP-MED
Auto-Video VLAN Yes
IEEE Network Protocols
IEEE Network Protocols
  • IEEE 802.3 Ethernet
  • IEEE 802.3u 100BASE-T
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3af PoE
  • IEEE 802.3at PoE+
  • IEEE 802.3az Energy Efficient Ethernet (EEE)
  • IEEE 802.3ad Trunking (LACP)
  • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX IEEE 802.3x Full-Duplex Flow Control
  • IEEE 802.1Q VLAN Tagging
  • IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED)
  • IEEE 802.1p Class of Service
  • IEEE 802.1D Spanning Tree (STP)
  • IEEE 802.1s Multiple Spanning Tree (MSTP)
  • IEEE 802.1w Rapid Spanning Tree (RSTP)
  • IEEE 802.1x RADIUS Network Access Control
Management, Monitoring & Troubleshooting
Cloud/Remote management Yes
Insight mobile app & Insight Cloud Portal management Yes
uPnP Discovery Yes
Lite Command-line Interface (CLI) Yes (Refer to Lite CLI Manual on NETGEAR Support page of the switch model)
Networking monitoring Yes
Data/performance logs Yes
Centralized network configuration/policies (network-centric management) Yes
Device auto-join and configure (zero-touch provisioning) Yes
Multi-site, multi-network single pane-of-glass view Yes
Multi-switch, multi-port concurrent configuration Yes
Network/global password (for all Insight Managed devices on a network) Yes (per network/subnet via NETGEAR Insight mobile app and Insight Cloud portal)
Management, Monitoring & Troubleshooting
Password management Yes
Configurable management VLAN Yes
Admin access control via RADIUS and TACACS+ Yes
IPv6 management Yes
SNTP client over UDP port 123 Yes
SNMP v1/v2c Yes
SNMP v3 with multiple IP addresses Yes
RMON group 1,2,3,9 Yes
Port mirroring Yes ingress and egress
Many-to-one port mirroring 28
Web browser-based graphical user interface (GUI) Yes
Dual software (firmware) image Yes
Cable test utility Yes
TLS/HTTPS Web-based access (version) Yes (v1.2 and v1.3)
File transfers (uploads, downloads) TFTP / HTTP
HTTP upload/download (firmware) Yes
Syslog (RFC 3164) Yes
USB port for firmware and config upload/ download Yes
LEDs
Per port Speed, Link, Activity; or PoE in different mode
Per device Power, Fan, PoE Max
Physical Specifications
Dimensions (W x D x H) 440 x 257 x 43.2 mm (17.3 x 10.1 x 1.7 in)
Weight 3.78kg (8.32lb)
Power Consumption
Max power (worst case, all ports used, line-rate traffic) (Watts) 436
Max power without PoE (worst case, all ports used, line-rate traffic) (Watts) 51
Iddle power consumption (all ports link-down standby) (Watts) 28
Heat Dissipation (worst case, all ports used, full PoE, line-rate traffic) (BTU/hr) 2,944.6 BTU/hr
Energy Efficient Ethernet (EEE) IEEE 802.3az Yes (deactivated by default)
Fan 3
Environmental Specifications
Operating Temperature 0° to 50°C (32° to 122°F)
Operating Humidity (relative) 90% maximum relative humidity (RH), non-condensing
Operating Altitude 10,000 ft (3,000 m) maximum
Storage Temperature –20° to 70°C (– 4° to 158°F)
Storage Humidity (relative) 95% maximum relative humidity (RH), non-condensing
Storage Altitude 10,000 ft (3,000 m) maximum
Electromagnetic Emissions and Immunity
Certifications CE, FCC Class A, RCM, ICES Class A, VCCI, KC, BSMI, UKCA
Safety
Certifications CB, CE, CSA, RCM, KC, BSMI
Warranty and Support
Hardware Limited Warranty Limited Lifetime*
Technical Support via Phone and Email* 90 days
Limited Lifetime* 24x7 Online Chat Technical Support Limited Lifetime*
Limited Lifetime* Next-Business-Day (NBD) Replacement Limited Lifetime*
ProSUPPORT OnCall 24x7 Service Packs** Category 1
PMB0311-10000S
PMB0331-10000S
PMB0351-10000S
Package Contents

Smart switch
AC Power cord with C13 connector (localized to region of sale)
Brackets and screws for rack mounting
Rubber footpads for tabletop installation
Rubber protection caps, which are already installed in the SFP sockets Installation guide

* This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and modifications to product may void the warranty; covers hardware, fans, and internal power supplies - not software or external power supplies; see http://www.netgear.com/about/warranty/ for details. Lifetime technical support includes basic phone support for 90 days from purchase date and lifetime online chat support when purchased from a NETGEAR authorized reseller.
** The NETGEAR OnCall 24x7 contract provides unlimited phone and email technical support for your networking product. For ProSAFE products purchased prior to 06/2014, also includes next business-day hardware replacement.

Diagram:

Target Application

Network Convergence

Within small and medium-sized organizations — especially in the hospitality, catering, education, and retail industries — there is growing deployment of VoIP phones, IP security cameras, video-over-IP endpoints, proximity sensors, LED lighting, secure access door locks, and other IoT devices. The dense proximity of these devices requires network switches capable of supporting PoE so a network manager can add power-hungry devices to the network with a single wire for power and connectivity. Wave 2 802.11ac wireless access points and pan-tilt-zoom HD surveillance cameras with features such as night vision and built-in motion tracking also require PoE+ power (802.3at), increasing the power demands on PoE switches.

The new 24-port and 48-port NETGEAR Smart switches support dense deployments of these modern high-power PoE+ devices. They offer powerful Layer 2 and Lite Layer 3 (static routing) features for IPv4 and IPv6 with enhanced performance and a focus on usability within SMB environments:

  • 190W (GS728TXPv3) PoE budget across 24 Gigabit PoE+ ports
  • 380W (GS752TXPv3) PoE budget across 48 Gigabit PoE+ ports
  • 4 dedicated Gigabit SFP+ fiber ports for aggregation to the network core
  • Quiet rack mounting operation with 26.80dBA to 36.6dBA max at 25°C (77°F) ambient
  • Layer 3 static routing with 32 routes (IPv4 and IPv6) for interVLAN local routing
  • IGMP Snooping, IGMP Querier and IGMP Fast Leave for multicast optimization
  • Include VLANs, Private VLAN, PoE scheduling, ACLs, DiffServ, LACP, MVR and STP
  • Easy-to-use Web browser-based management GUI — No need for an IT expert
  • Limited Lifetime Warranty, Next Business Day replacement, Tech support

Pricing Notes:

Netgear Products
NETGEAR Smart Switches
NETGEAR 48-Port Gigabit Ethernet PoE+ Smart Switch with 4 SFP Ports and optional Insight Remote/Cloud Management (380W)
#GS752TXP-300NAS
Our Price: $899.99
