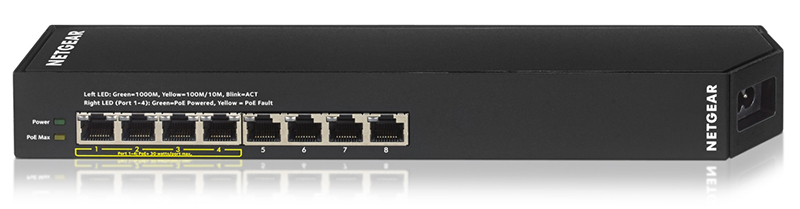

NETGEAR GSS108EPP
ProSAFE 8-Port Gigabit Web Managed Click Switch with 4 PoE+
Sorry, this product is no longer available, Please contact usfor a replacement.
Overview:
Today’s networks have increasing numbers of devices attached to them, both wired and wireless. As wired devices proliferate, it can be difficult to easily and neatly place networked ports where you want them.
NETGEAR ProSAFE Click Switches address this issue with an innovative and thoughtful hardware design, including the flexible Virtually Anywhere Click mounting system. NETGEAR ProSAFE Web Managed Gigabit Ethernet Click Switches are uniquely designed with an industry-first, bracket mounting system for easy installation. Available in either 8-port (PoE and non-PoE) or 16-port configurations, their slim design and internal power supplies enable you to organize wires, secure cables, eliminate bulky power adapters, and improve the overall appearance of wiring closets, training facilities, lab benches, conference rooms, and even home entertainment centers that require multiple connected devices.
Hardware Highlights
- Unique Virtually Anywhere Click mounting system for flexible placement options
- Cable management with provided retaining strap
- Multi-directional power cable to optimize placement
- Internal power supply to eliminate power brick
- 2 USB ports for quick access to charging tablets or smartphones (GSS108E only)
- 4 PoE/PoE+ ports to power up Phones, Access Points, IP cameras ( GSS108EPP only)
- Turn LED lights ON/OFF for non-distracting operation in dark environments such as next to a TV
- All models are fanless for silent operation
Software Highlights
- VLAN support for traffic segmentation
- Quality of Service (QoS) for traffic prioritization
- Auto Denial-of-Service (DoS) prevention (GSS108EPP and GSS116E only)
- Advanced per-port PoE controls (GSS108EPP only)
- Loop detection and broadcast storm controls
- IGMP snooping v1, v2 and v3 support for multicast optimization
- Rate limiting for better bandwidth allocation
- Port mirroring for network monitoring
- Port trunking for bigger uplink bandwidth. (GSS116E and GSS108EPP only)
- Jumbo frame support
- Energy Efficient Ethernet (IEEE 802.3az) support for maxium power savings
- Troubleshoot connection issues via cable test
Industry Leading Warranty
- LIFETIME Hardware Warranty*
- LIFETIME 24/7 Technical Support
- LIFETIME Next Business Day Replacement
Innovative Mounting Bracket
Simple to use mounting bracket enables vertical or horizontal orientation of ports.
To install, just mount the bracket onto a wall, desk, table leg/pole, or virtually anywhere, and "Click" the switch into the bracket.
Your ports and cables where you want them
Today's networks have increasing numbers of devices attached to them, both wired and wireless. As wired devices proliferate, it can be difficult to easily and neatly place networked ports where you want them.
NETGEAR ProSAFE Web Managed Click Switches address this issue with an innovative and thoughtful hardware design, including the "Virtually Anywhere" flexible 1-2-3-4 Click mounting system. The new ProSAFE Web Managed Click Switches are Gigabit Ethernet switches with an industry-first, bracket mounting system for easy installation. Available in either 8- or 16-Gigabit port configurations, their slim design and internal power supplies enables you to organize wires, secure cables, eliminate bulky power adapters, and improve the overall appearance of wiring closets, training facilities, lab benches, conference rooms, and entertainment centers that require multiple connected devices.
Flexible 1-2-3-4 Click Mounting System
The innovative 1-2-3-4 mounting system gives you the flexibility to place the Click Switch in locations where other switches will not go. Whether it’s directly on a wall, strapped to a pole, under the meeting table in a conference room or in a server closet, vertical or horizontal, the Click Switch’s unique mounting system allow you to control exactly how your ports and cables are deployed.
NETGEAR ProSAFE Web Managed Click Switch Family Overview
The Web Managed Click Switches GSS108E (8-port) and GSS116E (16-port) feature an innovative and flexible mounting bracket, making it easy to mount the Web Managed Click Switches vertically and horizontally, on a wall, under a desk, or strapped to a pole, flat or perpendicular - allowing you to put your ports where and how you need them! Watch the video to the left for more information.
Web Managed Switch Networking Features
The Web Managed Click Switches can go beyond plug n' play connectivity with additional ProSAFE Web Managed Switch networking features, allowing businesses to segment the network with VLANs or prioritize voice and video traffic with QoS. IGMP Snooping allows for optimized multimedia delivery and port trunking (GSS116E only) adds redundancy to uplinks and servers. Setup and configuration is simple using the web-based configuration GUI.
Features and Benefits:
| Hardware Features: | Benefits: |
|---|---|
| Click Mounting System | The innovative Virtually Anywhere mounting system gives you the flexibility to place the ProSAFE Click Switches in locations where other switches cannot go. Whether it’s directly on a wall, strapped to a pole, under the meeting table in a conference room or in a server closet, vertical or horizontal, flat or perpendicular, the Click Switch’s unique mounting system allow you to control exactly how and where your ports and cables are deployed. |
| Easy Cable Management | Multi-directional power cable can be routed outwards or to suit most any mounting needs. Ethernet cables can be strapped to the bracket or mounting surface using the provided retaining strap. |
| PoE/PoE+ support (GSS108EPP only) | Power-Over-Ethernet (PoE) option available for powering IP Security Cameras, VOIP phones, wireless access points, and other PD-powered devices. 4 PoE+ ports (47W total) ) allows connection of up to 4 PoE/PoE+ (802.3af and 802.3at) devices and 4 additional non-PoE devices. |
| USB Charging ports (GSS108E only) | The GSS108E features two conveniently placed USB ports for users to charge their smartphones and tablets. |
| Software Features: | Benefits: |
| Port-based and 802.1Q-based VLANs | Segment network into smaller groups for more secure and efficient use of network resources. |
Comprehensive QoS features:
|
Advanced controls for optimized network performance and better delivery of mission-critical traffic such as voice and video. Ingress and egress rate limiting allows for bandwidth shaping for mitigating network resources constraints or for optimizing guest access bandwidth on the network. |
| IGMP Snooping | For improved network efficiency on delivering multicast traffic. Save cost and improve network efficiency by ensuring multicast traffic only reaches designated receivers without the need of an extra multicast router. |
| Port trunking/Link Aggregation (Static Manual LAGs) (GSS116E/GSS108EPP only) | Build up bigger bandwidth to support aggregated uplink/downlink traffic or to provide redundant link(s) using Static Manual LAGs. |
| Advanced per-port PoE Controls (GSS108EPP Only) | Advanced per-port PoE controls for remote power management of PoE connected devices (eg. Wireless AP, IP security cameras, LED lighting, door locks, IoT devices...) |
| Voice VLAN (GSS108EPP Only) | The feature enables auto assignment of voice traffic (based on OUI) to a special VLAN (AKA Voice VLAN), allowing the assignment of special QoS parameters to that traffic, and tagging the port automatically, giving it high priority services. Voice VLAN must be enabled on a per port basis. |
| Loop detection and auto-DoS prevention (GSS108EPP and GSS116E only) | Detect accidental network loops and protect against DoS attacks. |
| Port Mirroring | For better and quicker network diagnostics and troubleshooting. |
| Energy Efficient Ethernet (IEEE 802.3az) | For maximum power savings and reduced energy costs. |
| Cable Test | Easily identify bad Ethernet cables. |
At a Glance:
| Hardware at a glance | |||||||
|---|---|---|---|---|---|---|---|
| Model name | Form-Factor | 10M/100M/1G Copper Ports | Internal Power Supply | USB Charging Ports | PoE/PoE+ ports | Case Material | Fans |
| GSS108E | Click Switch Virtually Anywhere |
8 | Yes | 2 ports 10W maximum per port 15W maximum total |
N/A | Metal | Fanless |
| GSS108EPP | Click Switch Virtually Anywhere |
8 | Yes | N/A | 4 PoE+ (47W budget) | Metal | Fanless |
| GSS116E | Click Switch Virtually Anywhere |
16 | Yes | N/A | N/A | Metal | Fanless |
| Software at a glance | |||||||
|---|---|---|---|---|---|---|---|
| Management | VLANs | QoS | Port Trunking (Manual LAG) | IP Multicast Filtering | Rate Limiting & Priority Queueing | Jumbo Frame Support | IEEE (802.3az) Energy Effiecient Ethernet |
| Web Browser-based GUI (HTTP), PC-Based ProSAFE Plus Utility | Port-based, IEEE 802.1Q-based, Voice (1GSS108EPP Only) | Port-based, IEEE 802.1p/DSCPbased | Static LAG (GSS108EPP, GSS116E) | IGMP Snooping | Yes | Yes | Yes |
| Performance at a glance | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model name | Fabric | Packet Buffer | Latency (Max Connection Speed) | VLANS | MAC Address Table | Priority Queues | Multicast IGMP Group | Packet Forwarding Rate (64 byte) | Jumbo Frames (bytes) |
| GSS108E | 16Gbps line-rate | 128KB | 10Mbps: <79µs 100Mbps: <9.4µs 1000Mbps: <3.2µs |
64 | 8K Entries (dynamic) | 4 (WRR) | 128 | 11.9 Mfps | up to 9K |
| GSS108EPP | 16Gbps line-rate | 192KB | 10Mbps: < 77µs 100Mbps: <8.9µs 1000Mbps: <2.6µs |
64 | 4K Entries (dynamic) | 4 (WRR) | 128 | 11.9 Mfps | up to 9K |
| GSS116E | 16Gbps line-rate | 512KB | 10Mbps: <110µs 100Mbps: <14.5µs 1000Mbps: <5.0µs |
128 | 8K Entries (dynamic) | 4 (WRR) | 128 | 23.8 Mfps | up to 9K |
Deployment:
In a Home Environment
In a Business Environment
SMB Network Application
Why the NETGEAR Click Switch is the ideal upgrade from Unmanaged Switches for SMB networks:
- “Virtually Anywhere” mounting system gets your PoE+ ports where you need them
- 4-way placement of switch– vertical, horizontal, flat or perpendicular
- 4 PoE+ (802.3at or 802.3af) and 4 non-PoE ports for flexible deployment (GSS108EPP only)
- Fanless silent operation and Energy Efficient Ethernet 5. Lifetime limited warranty and lifetime support chat
Specifications:
| NETGEAR GSS108EPP Specifications | |
|---|---|
| Gigabit ports | 8 |
| PoE/PoE+ ports | 4 PoE+ (47W PoE Budget) |
| USB charging ports | N/A |
| Performance Specification | |
| Packet buffer memory (Dynamically shared across only used ports) | 192KB |
| Forwarding modes | Store-and-forward |
| Bandwidth | 16 Gbps |
| Priority queues | 4 |
| Priority queuing | Weighted Round Robin (WRR) |
| MAC address database size (48-bit MAC addresses) | 4K |
| Multicast groups | 128 |
| Number of VLANs | 64 |
| Packet forwarding rate (64 byte packet size) (Mfps or Mpps) | 11.9Mfps |
| Speed/Latency | 10Mbps: < 77µs 100Mbps: <8.9µs 1000Mbps: <2.6µs |
| Jumbo frame support | Up to 9K packet size |
| Acoustic noise level @ 25° C (dBA) (ANSI-S10.12) | 0dB (Fanless) |
| Mean Time Between Failures (MTBF) @ 25° C | 1,494,913 hours |
| L2 Services - VLANS | |
| IEEE 802.1Q VLAN Tagging | Yes |
| Port-based VLAN | Yes |
| L2 Services - Availability | |
| Broadcast, multicast, unknown unicast storm control | Yes |
| Link Aggregation/Port Trunking (Static Manual LAGs only) | 2 LAGs with max 4 members in each LAG |
| IEEE 802.3x (full duplex and flow control) | Yes |
| L2 Services - Multicast Filtering | |
| IGMP Snooping (v1, v2 and v3) | Yes |
| IGMP Snooping queries | No |
| Block unknown Multicast | Yes |
| Static multicast router port | No |
| L3 Services - DHCP | |
| DHCP Client | Yes |
| Link Aggregation | |
| Static Manual LAGs (Port Trunking) | Yes |
| # of Static LAGs/# of members in each LAG | 2 LAGs with max 4 members in each LAG |
| Network Monitoring and Discovery Services | |
| Broadcast, multicast, unknown unicast storm control | Yes |
| DoS attacks prevention | Yes |
| Quality of Service (QoS) | |
| Port-based rate limiting | Ingress and egress |
| Port-based QoS | Yes |
| IEEE 802.1p COS | Yes |
| IPv4 DSCP | Yes |
| IPv4 ToS | Yes |
| TCP/UDP-based | No |
| Weighted Round Robin (WRR) | Yes |
| Strict Priority queue technology | No |
| Voice VLAN | Yes, based on OUI bytes in the phone source MAC address |
| IEEE Network Protocols | |
| IEEE Network Protocols |
|
| Management | |
| Password management | Yes |
| Web browser-based graphical user interface (GUI) | Yes |
| ProSAFE Plus Configuration Utility (PCU) for multi-switch management | Yes |
| Firmware upgrade | TFTP (Plus Utility) / HTTP (Web GUI) |
| Config file transfers (backup, restore) | Plus Utility or Web GUI |
| Firmware upgrade through Plus Utility (TFTP) | Yes |
| Config download (to switch) through Plus Utility | Yes |
| Config upload (to server) through Plus Utility | Yes |
| Firmware upgrade through web GUI (HTTP) | Yes |
| Config download (to switch) through web GUI (HTTP) | Yes |
| Config upload (to server) through web GUI (HTTP) | Yes |
| Cable test utility | Yes |
| Port mirroring | Yes |
| Many-to-one port mirroring | 1 |
| Mirroring port can still work normally? | Yes |
| LEDs | |
| Per port | Speed, Link, Activity (all) PoE Status (Ports 1~4) |
| Per device | Power, PoE Max |
| PoE Configuration | |
| Number of PoE/PoE+ ports | 4 PoE+ (802.3at) |
| Total PoE power budget (watts) | 47W |
| Physical Specifications | |
| Dimensions | 305 x 65 x 35mm (12 x 2.6 x 1.4in) |
| Weight | 3.20kg (7.07lb) |
| Power Consumption | |
| Power Supply | Fixed internal PSU, 100-240VAC, 50-60Hz, 1.4A max Power cord localized to country of sale |
| Max power (worst case, all ports used, line-rate traffic) (Watts) | 5.3W (no PoE) 57.4W (with PoE max) |
| Min power (link-down standby) (Watts) | 1.65W |
| Heat Dissipation (max and min) (BTU/hr) | Max: 195.79 BTU/hr Min: 5.63 BTU/hr |
| Energy Efficient Ethernet (EEE) IEEE 802.3az | Yes |
| Short cable power reduction | Yes |
| Auto power-down | Yes |
| Fan(s) | None (Fanless) |
| Environmental Specifications | |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Operating Humidity | 90% maximum relative humidity, non-condensing |
| Operating Altitude | 10,000 ft (3,000 m) maximum |
| Storage Temperature | –20° to 70°C (– 4° to 158°F) |
| Storage Humidity | 95% maximum relative humidity, non-condensing |
| Storage Altitude | 10,000 ft (3,000 m) maximum |
| Electromagnetic Emissions and Immunity | |
| Certifications |
|
| Electromagnetic Compliance (Class A or B) | Class B |
| Safety Certifications | |
| Certifications |
|
| Warranty and Support | |
| Warranty | Lifetime |
| Technical Support | Lifetime Tech Support via chat, 90 day tech support via phone |
| Next Business Day Replacement | Lifetime |
| ProSUPPORT OnCall 24x7 Service Packs** | Category 1: PMB0311 (1 yr.) PMB0331 (3 yrs.) PMB0351 (5 yrs.) |
| Package Contents | |
| Including |
|
Documentation:
Download the NETGEAR Click Switches Datasheet (PDF).
