NETGEAR JGS524E
24-Port Gigabit Ethernet Plus Switch
Netgear Products
NETGEAR Unmanaged Plus Switches

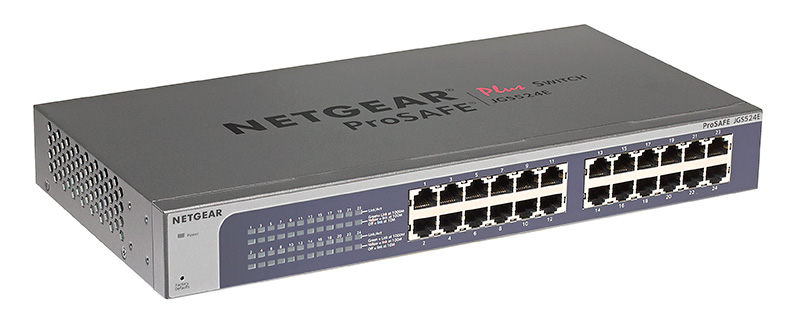

NETGEAR ProSafe JGS524E Plus 24-Port Gigabit Ethernet Switch
#JGS524E-200NAS
Price:$280.77
Add to Cart for Pricing
Price:
Add to Cart for Pricing
More pricing below, click here!
Overview:
Control and Configure Beyond Plug-and-Play Connectivity
Today's growing businesses rely more on their network to carry out missioncritical business activities. Deployment of VoIP and IP surveillance needs the network intelligence to separate the voice and video traffic from data, and prioritize them accordingly. However, companies do not necessarily have more money or advanced training to deal with complex managed switches.
NETGEAR Plus Switches meet this growing need by providing fundamental network features such as VLANs, QoS, and IGMP Snooping that will help optimize the performance of business networks. Plus Switches come in a variety of configurations ranging from 5 port desktop to 48 port rack mount. Some models support Power-overEthernet (PoE) and can power devices such as IP phones, IP surveillance cameras and wireless access points with just an Ethernet cable; perfect for low cost PoE deployments. Plus Switches are the perfect upgrade from the plugand-play unmanaged switch, delivering essential networking features at a very affordable price.
- Enable network configuration and management at the price point of Unmanaged Switches
- Gigabit connection delivers up to 2000 Mbps of dedicated, nonblocking bandwidth per port
- Simple, yet useful network set-up on top of plug-and-play connectivity
- Flexible management via easy-to-use web browser-based management GUI or using the PC-based Utility application
- Web Interface with multiple language option
- VLAN support for traffic segmentation
- Quality of Service (QoS) for traffic prioritization
- Auto “denial-of-service” (DoS) prevention
- Troubleshoot connection issues via cable test
- Loop detection and broadcast storm controls
- IGMP snooping v1, v2 and v3 support for multicast optimization
- Rate limiting for better bandwidth allocation
- Port mirroring for network monitoring
- Link aggregation/port trunking for bigger uplink bandwidth (16-port and 24-port models support static manual LAGs only; GS750E supports static manual LAGs and LACP)
- Jumbo frame support
- Energy Efficient Ethernet (IEEE 802.3az) support for maxium power savings
- Limited Lifetime Hardware Warranty (excludes external power adapters on applicable models)
- Lifetime 24/7 Chat Technical Support
- Next-Business-Day Hardware Replacement
Features and Benefits:
| Hardware Features: | Benefits: |
|---|---|
| All Gigabit models | Making Plus Switch an ideal upgrade for SMB network combining management capability with higher speed and better performance |
| PoE offerings in Plus Switches | With half of the ports capable of supporting PoE, these PoE Plus models are the most cost efficient Gigabit Ethernet solution for converaged network where PoE support is needed, but isn't necessary on all ports |
| Desktop and rackmount | Flexibile deployment for either desktop placement, undertable mount, wall mount as well as rackmount |
| Software Features: | Benefits: |
| VLAN | Segment network into smaller groups for more secure and efficient use of network resources |
| QoS | For optimized network performance and better delivery of mission-critical traffic such as voice and video |
| IGMP Snooping | For improved network efficiency on delivering multicast traffic |
| Port Trunking | Build up a bigger bandwidth to support aggregated uplink traffic |
| Port Mirroring | For better and quicker network diagnotics and troubleshooting |
| Cable Test | Easily identify bad Ethernet cables |
At a Glance:
| Hardware at a glance | |||||
|---|---|---|---|---|---|
| Front | Rear | ||||
| Model name | Form-Factor | 10/100/1000Base-T RJ45 ports | PoE 802.3af | Power Supply | PoE budget |
| GS105E | Desktop | 5 | N/A | External Power Adapter | N/A |
| GS105PE | Desktop | 5 | 2 | None - Requires power from a PoE switch | up to 22w |
| GS108PE | Desktop | 8 | N/A | External Power Adapter | N/A |
| GS108PE | Desktop | 8 | 4 | External Power Adapter | 45w |
| GS116E | Desktop | 16 | N/A | External Power Adapter | N/A |
| JGS516PE | Rackmount | 16 | 8 | Internal | 85w |
| JGS524E | Rackmount | 24 | N/A | Internal | N/A |
| JGS524PE | Rackmount | 24 | 12 | Internal | 100w |
| GS750E | Rackmount | 48 Copper and 2 SFP | N/A | Internal | N/A |
| Software at a glance | |||||||
|---|---|---|---|---|---|---|---|
| Management | IP Multicast filtering | EEE (802.3az) Auto-EEE | VLANs | QoS | Port Trunking | Rate Limiting | Jumbo Frame Support |
| PC Utility Tool Web GUI | IGMP Snooping v1, v2 and v3 |
Yes | Port-based, IEEE802.1Q-based VLANs |
Port-based, IEEE802.1p-based |
Yes | Yes | Yes |
Model Comparison:
| Models: | GS105Ev2 | GS105PE | GS108Ev3 | GS108PEv3 | GS116Ev2 | JGS516PE | JGS524Ev2 | JGS524PE | GS750E |
|---|---|---|---|---|---|---|---|---|---|
| Product Specifications | |||||||||
| Gigabit Ports | 5 | 5 | 8 | 8 | 16 | 16 | 24 | 24 | 48 |
| Gigabit Ports | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 2 SFP |
| # of PoE Ports | N/A | 2 | N/A | 4 | N/A | 8 | N/A | 12 | N/A |
| Total PoE Power budget (Watts) | N/A | PoE pass-thru: 20W with AT in, 8W with AF in. | N/A | 45 | N/A | 85 | N/A | 100 | N/A |
| Max MAC entries | 2K | 2K | 4K | 4K | 16K | 16K | 16K | 16K | 16K |
| Buffer size | 128KB | 128KB | 192K | 192K | 768KB | 768KB | 768KB | 768KB | 1.5MB |
| Energy Efficient Enthernet (IEEE802.3az complaint) | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Performance Specifications | |||||||||
| Forwarding modes | Store-and-forward | ||||||||
| Bandwidth | 10 Gbps | 10 Gbps | 16 Gbps | 16 Gbps | 32 Gbps | 32 Gbps | 48 Gbps | 48 Gbps | 100Gbps |
| Priority queuing | Weighted Round Robin (WRR), Strict or both | ||||||||
| Jumbo frame support | Up to 9K packet size | Up to 9K packet size | Up to 9720 bytes | Up to 9720 bytes | Up to 9K packet size | Up to 9K packet size | Up to 9K packet size | Up to 9K packet size | Up to 9K packet size |
| Acoustic noise (ANSI-S10.12) | 0 | 0 | 0 | 0 | 0 | 24.5 | 0 | 24.4 | 0 |
| Mean Time Between Failures (MTBF) | 2,531,294 | 1,685,972 | 2,525,259 | 1,242,394 | 504,993 | 840,354 | 243,476 | 643,506 | 1,055,076 |
| L2 Services - VLANS | |||||||||
| Models: | GS105Ev2 | GS105PE | GS108Ev3 | GS108PEv3 | GS116Ev2 | JGS516PE | JGS524Ev2 | JGS524PE | GS750E |
| VLAN (# Supported) | 64 | 64 | 32 | 32 | 100 | 100 | 100 | 100 | 4000 |
| IEEE 802.1Q VLAN Tagging | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Port-based VLAN | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| L2 Services - Availability | |||||||||
| Link Aggregation/ Port Trunking | No | No | No | No | Static Manual LAGs only | Static Manual LAGs only | Static Manual LAGs only | Static Manual LAGs only | Static and LACP |
| Number of Static Manual LAGs and # of members | N/A | N/A | N/A | N/A | 8 LAGs & 2 to 4 members | 8 LAGs & 2 to 4 members | 8 LAGs & 2 to 4 members | 8 LAGs & 2 to 8 members | |
| L2 Services - Multicast Filtering | |||||||||
| IGMP Snooping (v1, v2 and v3) | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Block unknown Multicast | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Supported Mulitcast groups | 128 | 128 | 128 | 128 | 64 | 64 | 64 | 64 | 64 |
| L3 Services - DHCP | |||||||||
| DHCP Client | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Quality of Service (QoS) | |||||||||
| Models: | GS105Ev2 | GS105PE | GS108Ev3 | GS108PEv3 | GS116Ev2 | JGS516PE | JGS524Ev2 | JGS524PE | GS750E |
| Rate Limiting | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| DSCP | Yes | Yes | Yes | Yes | No | No | No | No | Yes |
| IEEE 802.1p COS | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Port-based VLAN | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| TOS | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| WRED (Weighted Deficit Round Robin) | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Strict Priority Queue Technology | No | No | No | No | No | No | No | No | No |
| IEEE Network Protocols | |||||||||
| IEEE Network Protocols |
|
||||||||
| Management | |||||||||
| Models: | GS105Ev2 | GS105PE | GS108Ev3 | GS108PEv3 | GS116Ev2 | JGS516PE | JGS524Ev2 | JGS524PE | GS750E |
| System Password | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| PC Utility | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Port Mirroring | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Max number of source ports allowed (many to 1) | 4 | 4 | 7 | 7 | 15 | 15 | 23 | 23 | 47 |
| Many to One Port Mirroring | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Cable Test utility | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| FW Upgrade thru Plus Utility (TFTP) | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Config Download (to Switch) thru Plus Utility | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Config Upload (to Server) | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Miscellaneous Features | |||||||||
| Loop Detection | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Loop Prevention |
| DoS Prevention | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Broadcast Storm Control | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Energy Efficient Ethernet (EEE) | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| LEDs | |||||||||
| Per port | Speed, Link, Activity | ||||||||
| Per device | Power, Fan and PoE Power Status | ||||||||
| Physical Specifications | |||||||||
| Models: | GS105Ev2 | GS105PE | GS108Ev3 | GS108PEv3 | GS116Ev2 | JGS516PE | JGS524Ev2 | JGS524PE | GS750E |
| Dimensions (mm) | 94x101x26 | 158x 105x27 | 158x 105x27 | 235x 103x27 | 286x 101x26 | 328x 169x43 | 328x 170x43 | 328x 169x43 | 440x204x43 |
| Weight (kg) | 0.27 | 0.45 | 0.55 | 0.726 | 0.84 | 1.67 | 1.4 | 1.84 | 3.25 |
| Fan | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 1 | 0 |
| Power Consumption (when all ports used, line-rate traffic and max PoE) | |||||||||
| Worst case, all ports used, line-rate traffic, max PoE (W) | 2.6 | 22.0 | 4.5 | 60.0 | 10.0 | 110.0 | 13.8 | 123.0 | 30 |
| Heat Dissipation Max/Standby (BTU/hr) | Max: 8.9 Min: 2.2 |
Max: 6.7 Min: 1.2 |
Max: 15.2 Min: 4.9 |
Max: 205.2 Min: 3.7 |
Max: 34.2 Min: 13.3 |
Max: 34.2 Min: 14.4 |
Max: 47.2 Min: 19.6 |
Max: 78.7 Min: 19.8 |
Max: 102.7 Min: 38.9 |
| Environmental Specifications | |||||||||
| Operating Temperature | 32° to 122°F (0° to 50°C) | ||||||||
| Operating Humidity | 90% maximum relative humidity, non-condensing | ||||||||
| Operating Altitude | 10,000 ft (3,000 m) maximum | ||||||||
| Storage Temperature | – 4° to 158°F (–20° to 70°C) | ||||||||
| Storage Humidity | 95% maximum relative humidity, non-condensing | ||||||||
| Storage Altitude | 10,000 ft (3,000 m) maximum | ||||||||
| Electromagnetic Emissions and Immunity | |||||||||
| Certifications Class (including but not limited to CE mark, commercial, FCC Part 15, VCCI, EN55022 (CISPR 22), C-Tick, EN50082-1, EN55024, CCC) | B | B | B | A | A | A | A | A | A |
| Safety | |||||||||
| Models: | GS105Ev2 | GS105PE | GS108Ev3 | GS108PEv3 | GS116Ev2 | JGS516PE | JGS524Ev2 | JGS524PE | GS750E |
| Certifications |
|
||||||||
| Warranty and Support | |||||||||
| Switch Warranty | Limited lifetime warranty* | ||||||||
| Power Adapter Warranty | 2 years | 2 years | 2 years | 2 years | |||||
| Technical Support | Lifetime Tech Support* via chat, 90 day tech support via email | ||||||||
| Next-Business-Day (NBD) Replacement | Limited lifetime* | ||||||||
| Package Contents | |||||||||
| All Models |
|
||||||||
* 24x7 Lifetime Advanced Technical Support includes Remote Diagnostics performed by our technical experts for prompt resolution of technical issues.
** 3-year Next business day onsite hardware replacement support included: see http://onsite.netgear.com for coverage, availability and terms and conditions.
Network Diagram:
SMB Network Application:
Why the NETGEAR Gigabit Plus Switch is the ideal upgrade from Unmanaged Switches for SMB networks:
- Configurable with simple set-up
- Build multiple user groups
- Prioritize voice and video traffic
- Monitor and troubleshoot
Documentation:
Download the NETGEAR Gigabit Ethernet Plus Switches Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
