NETGEAR MS105
5-Port Multi-Gigabit (2.5G) Ethernet Unmanaged Switch
Price:
Add to Cart for Pricing
More pricing below, click here!
Overview:
The NETGEAR 5-port Multi-Gigabit Unmanaged Switch, MS105, help businesses cost effectively expand their networks with multi-gig speeds. The MS105 Multi-Gigabit Ethernet switch comes with five (5) 2.5G ports in a metal case and can be placed on a desk or mounted on a wall with the included wall-mount kit. This switch is energy efficient, built to last, and rigorously tested to provide the reliability businesses need. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.
Highlights:
- Simple set up with no software or configuration needed.
- Flexible desktop or wall placement.
- Easy monitoring through per port LEDs for port activity and speed.
- Energy Efficient Ethernet (IEEE 802.3az) support for maxium power savings.
- 5 ports of multi-gig 1G/2.5G speeds to connect devices instantly and give them each exactly the speed they need: 1G or 2.5G automatically.
- Non-blocking switching architecture for maximum throughput at wire speed.
- Fanless, silent operation with desktop and wall mounting options.
- Lifetime 24/7 Chat Technical Support*
- Next-Business-Day Hardware Replacement**
- Limited Lifetime Hardware Warrant
*This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power
supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see
https://www.netgear.com/about/warranty for details. Intended for indoor use only.
**The NETGEAR OnCall 24x7 contract provides unlimited phone, chat and email technical support for your networking product.
Features:
Reliable Performance
Superior network performance at non-blocking rate delivers true Multi-Gig speed with no compromise
Energy Efficient
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
Plug-and-Play
No software to install. No configuration needed. Zero maintenance required
Silent Operation
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments.
Versatile Mounting Options
Install your switch on your desktop, or mount it to your wall with the hardware provided in the box.

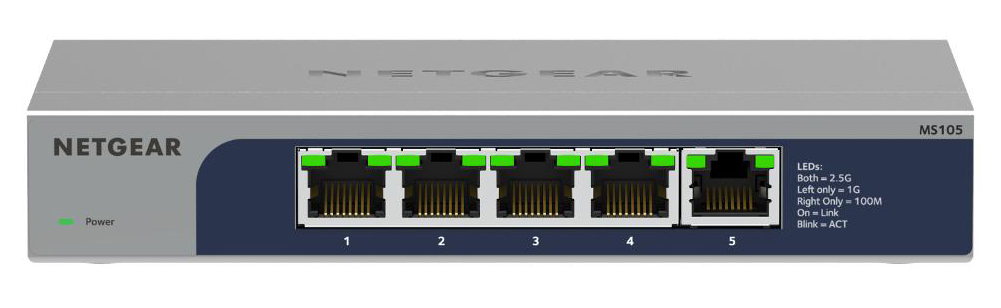

MS105 Front View

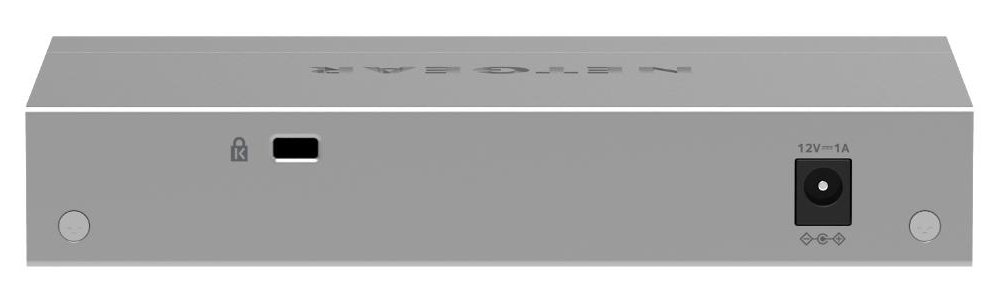

MS105 Rear View
MS105 Specifications | |
---|---|
Features | |
1G/2.5G Ethernet RJ-45 copper ports (100M/1G/2.5G) - 1000BASE-T | 5 |
Enclosure | Metal |
Connector type | Metal |
Form-Factor | Desktop/Wall-mount |
Performance Specifications | |
Bandwidth | 25 Gbps |
Max MAC entries | 16K |
Buffer size | 1MB |
Energy Efficient Ethernet (IEEE 802.3az) compliant | Yes |
Queue WRR Ratio | 1:3:5:7:8:10:12:15 |
Forwarding Rate (using 64-byte packets) - 1000Mbps Port | 1,488,000pps |
Forwarding Rate (using 64-byte packets) - 2.5Gbps Por | 3,720,000pps |
Latency (using 64-byte packets) - 1000Mbps Port (average) | <2.458μs |
Latency (using 64-byte packets) - 2.5Gbps Port (average) | <5.773μs |
Jumbo frame support | 9,720 bytes |
Acoustic noise level @ 25° C (dBA) (ANSI-S10.12) | 0 |
Auto MDI/MDI-X Cable Detection | Yes |
Auto-sensing Half/Full Duplex Switched Ports | Yes |
Non Head-of-Line Blocking Architecture | Yes |
Mean Time Between Failures (MTBF) @ 25° C | 1,401,743 hrs (159.9 yrs) |
IEEE Network Protocols | |
IEEE Network Protocols |
|
Quality of Service | |
802.1p-based QoS/CoS Supported | Yes |
Honors DSCP (DiffServ) Tags | Yes |
LEDs | |
Per port | Speed, Link, Activity |
Per device | Power |
Power Consumption | |
DC Input/Power In | External (12V/1.0A) |
Power Consumption (Max and Standby) | 9.24W (Max)/4.60W Min/Standby (no PoE) |
Heat Dissipation (Max and Standby) (BTU/Hr) | 31.545BTU/15.704BTU |
Energy Efficiency | |
IEEE 802.3az (Energy Efficient Ethernet) | Yes |
Auto Power Down | Yes |
Short Cable Detection/Power Saving | Yes |
Fan/Fanless | Fanless |
Physical Specifications | |
Dimensions | 158 x 101 x 29 mm (6.2 x 4.0 x 1.1 in) |
Weight | 0.48 kg (1.06 lb) |
Environmental Specifications | |
Operating Temperature | 32° to 104°F (0° to 40°C) |
Operating Humidity | 90% maximum relative humidity (RH), non-condensing |
Operating Altitude | 10,000 ft (3,000 m) maximum |
Storage Temperature | – 4° to 158°F (–20° to 70°C) |
Storage Humidity | 95% maximum relative humidity (RH), non-condensing |
Storage Altitude | 10,000 ft (3,000 m) maximum |
Electromagnetic Certifications and Compliance | |
Certifications | CE, FCC part 15 Class B, ISED, VCCI, KC, CCC, BSMI, RCM |
Safety Certifications | |
Certifications | CB, CSA, CCC, BSMI, RCM, CE LVD |
Warranty and Support | |
Hardware warranty (All except China/India) | Limited Lifetime* warranty |
External power adapter warranty | N/A |
Technical support (online, phone) | 90 days free with registration from the date of purchase* |
ProSUPPORT OnCall 24x7 service plans | Category 2: PMB0312 (1 yr.) PMB0332 (3 yrs.) PMB0352 (5 yrs.) |
Package Contents | |
All Models |
|
* This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only
** The NETGEAR OnCall 24x7 contract provides unlimited phone and email technical support for your networking product. For ProSAFE products purchased prior to 06/2014, also includes next business-day hardware replacement.

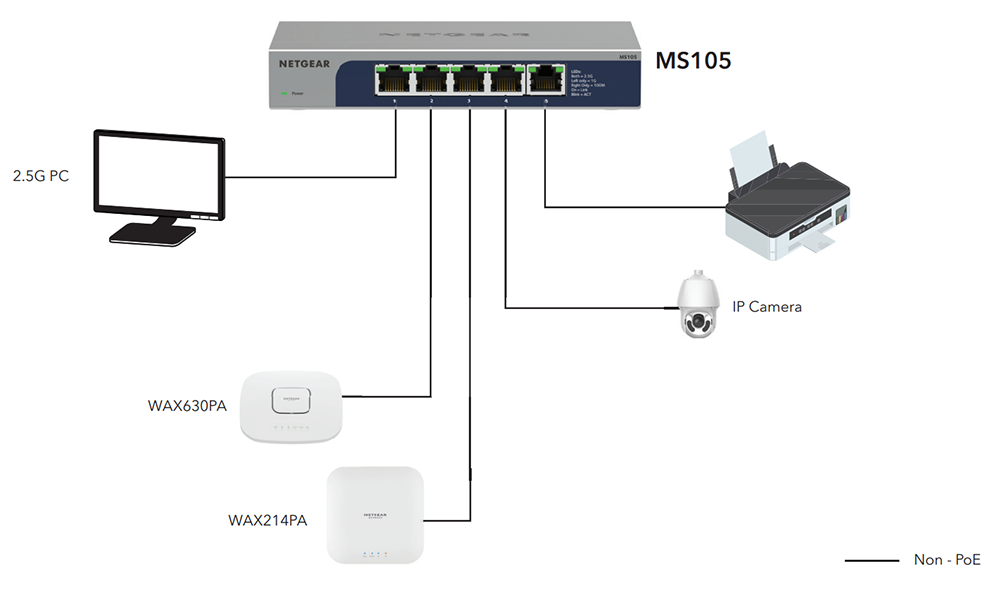

Network Diagram:
Multi-Gig for higher bandwidth
Documentation:
Download the NETGEAR MS105 5-Port Multi-Gigabit (2.5G) Ethernet Unmanaged Switch Datasheet (PDF).
