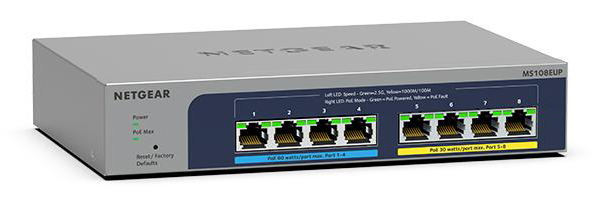

NETGEAR MS108EUP
8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

NETGEAR MS108EUP

Netgear Products
NETGEAR Unmanaged Plus Switches
NETGEAR MS108EUP 8-port Multi-Gigabit (2.5G) Ultra60 PoE++ Ethernet Plus Switch
#MS108EUP-100NAS
List Price: $686.36
Add to Cart for Pricing

More pricing below, click here!

Overview:

NETGEAR Plus Switches with PoE meet business networks growing needs by providing fundamental network features such as simplified VLANs, QoS set-up and IGMP Snooping that will help optimize the performance of business networks. Plus Switches are the perfect upgrade from the plug-and-play unmanaged switch, delivering essential networking features at a very affordable price. The new model MS108EUP supports 2.5 Gigabit speed connectivity and Power-Over-Ethernet (PoE) that can provide up to 60W/port. The new switch model can power devices such as VoIP phones, surveillance IP cameras, wireless access points and many other applications. This new Plus switch includes advance PoE control to help optimize the performance and troubleshooting of business networks. The new and improved businessfriendly GUI allows easy management and simple configuration. With the growing deployment of applications and an all-in-one solution, providing management and power to these applications would be ideal.

Highlights:

  • 802.3bt standard offering up to 60W/ port on Port 1-4, 802.3at (30W/port) on Port 5-8
  • Enable network configuration and management at the price point of Unmanaged Switches
  • Simple, yet useful network set-up on top of plug-and-play connectivity
  • Business-friendly and easy-to-use web browser-based management GUI
  • VLAN support for traffic segmentation
  • Quality of Service (QoS) for traffic prioritization
  • Auto “denial-of-service” (DoS) prevention
  • Troubleshoot connection issues via cable test
  • Energy Efficient Ethernet (IEEE 802.3az) support for maxium power savings
  • Loop prevention and broadcast storm controls
  • Rate limiting for better bandwidth allocation
  • Port mirroring for network monitoring
  • Jumbo frame support
  • Advanced features such as per port PoE controls
  • Fanless, silent operation with desktop and wall-mount options
  • Lifetime 24/7 Chat Technical Support*
  • Next-Business-Day Hardware Replacement**
  • Limited Lifetime Hardware Warrant

*This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only.
**The NETGEAR OnCall 24x7 contract provides unlimited phone, chat and email technical support for your networking product.

Features:

Multi-Gigabit Ethernet

8 ports provide up to 2.5 Gbps of dedicated, non-blocking bandwidth each.

PoE Support

4 Ultra60 PoE++ and 4 PoE+ ports provide a total of 230W of power so you can power and connect your devices with a single wire.

Advanced PoE Controls

Manage PoE prioritization, scheduling, power limit per port, and more for simple control over all PoE-powered devices.

Non-Blocking Switching

40Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices.

Fanless Design

Silent operation makes this switch perfect for noise-sensitive environments.

Versatile Mounting Options

Install your switch on your desktop, or mount it to your wall or rack with the hardware provided in the box.

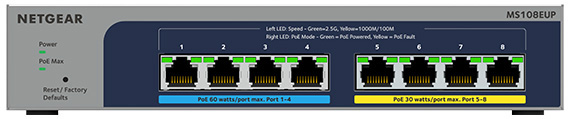

MS108EUP Front View

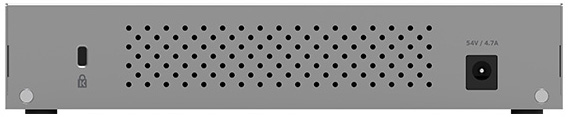

MS108EUP Rear View

MS108EUP Specifications
Features
1G/2.5G Ethernet RJ-45 copper ports (100M/1G/2.5G) - 1000BASE-T 8
Enclosure Metal
Connector type Metal
PoE
# of PoE ports 8
# of PoE/ PoE+ / PoE++ ports 4 PoE+ and 4 PoE++
Total PoE/PoE+ budget 230W
Advanced PoE controls Yes
PoE schedulingt Yes
Performance Specifications
Forwarding modes Store-and-forward
Bandwidth 40 Gbps
Max MAC entries 16K
Buffer size 1.5MB
Energy Efficient Ethernet (IEEE 802.3az) compliant Yes
Priority queuing WRR
Jumbo frame support 12,000 bytes
Acoustic noise level @ 25° C (dBA) (ANSI-S10.12) 0
Mean Time Between Failures (MTBF) @ 25° C 373,644 hrs (42.6 yrs)
L2 Services - VLANs
Number of IPv6 static routes 64
Number of VLANs Yes
Number of ARP cache entries Yes
L2 Services - Availability
Number of DHCP snooping bindings Yes
Access Control Lists (ACLs) 4 LAG with max 4 members in each LAG
L2 Services - Multicast Filtering
Packet forwarding rate (64 byte packet size) (Mfps or Mpps) Yes
Jumbo frame support Yes
Acoustic noise level @ 25°C (dBA) (ANSI-S10.12) 128
L3 Services - DHCP
Mean Time Between Failures (MTBF) @ 25°C Yes
Quality of Service
Rate limiting Yes
DSCP Yes
IEEE 802.1p COS Yes
Port-based QoS Yes
TOS Yes
WRR (Weighted Round Robin) Yes
Strict Priority queue technology No
IEEE Network Protocols
IEEE Network Protocols CE, FCC part 15 Class B, ISED, VCCI, KC, CCC, BSMI, RCM
Management
System password Yes
Web browser based management GUI Yes
PC utility No
Port mirroring Yes
Max number of source ports allowed (one-to-one port mirroring) 1
Many-to-one port mirroring No, 1-to-1 only
Cable test utility Yes
FW Upgrade thru plus utility (TFTP) No
Config download (to switch) thru plus utility No
Config upload (to server) Yes
LEDs
Per port Speed, Link, Activity, PoE
Per device Power, PoE Max
Physical Specifications
Dimensions 210 x 140 x 40 mm (8.27 x 5.51 x 1.58 in)
Weight 0.9 kg (1.984 lb)
Environmental Specifications
Operating Temperature 32° to 104°F (0° to 40°C)
Operating Humidity 90% maximum relative humidity, non-condensing
Operating Altitude 10,000 ft (3,000 m) maximum
Storage Temperature – 4° to 158°F (–20° to 70°C)
Storage Humidity 95% maximum relative humidity, non-condensing
Storage Altitude 10,000 ft (3,000 m) maximum
Electromagnetic Emissions and Immunity
Certifications
  • CE mark
  • FCC Part 15 class B
  • CE/EN55032/24
  • CSA
  • VCCI
  • ACMA
  • KC
  • CCC
  • BSMI
Warranty and Support
Hardware warranty (All except China/India) Limited lifetime warranty
External power adapter warranty 2-year warranty
Technical support (online, phone) 90 days free technical support with registration
ProSUPPORT OnCall 24x7 service plans Category 2:
PMB0312 (1 yr.)
PMB0332 (3 yrs.)
PMB0352 (5 yrs.)
Package Contents
All Models
  • NETGEAR Plus Switch
  • Power adapter(power cable varies by region)
  • Wall installation kit
  • Rubber feet
  • Installation guide

* This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only
** The NETGEAR OnCall 24x7 contract provides unlimited phone and email technical support for your networking product. For ProSAFE products purchased prior to 06/2014, also includes next business-day hardware replacement.

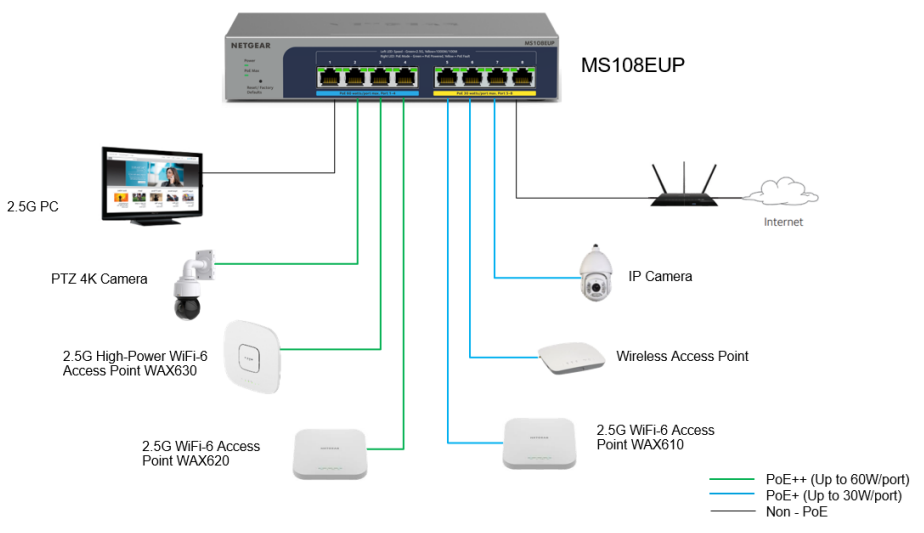

Network Diagram:

Power The Devices in Your SMB Business

Power The Devices in Your SMB Business
