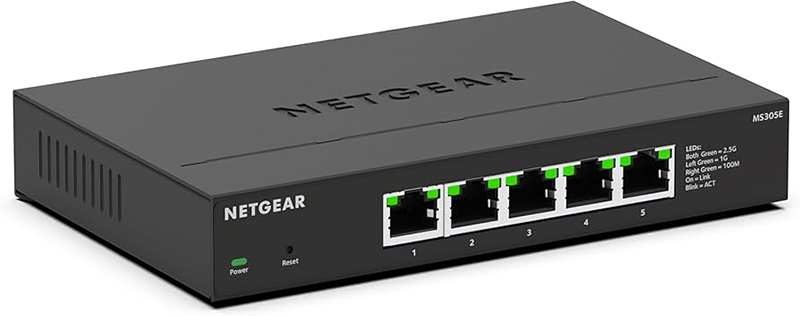

NETGEAR MS305E
5-port 2.5G Multi-Gigabit Ethernet Plus Switch
Price:
Add to Cart for Pricing
More pricing below, click here!
Overview:
Expanding Wired Connectivity for SOHO Networks
NETGEAR is expanding its portfolio of next-generation 2.5G Multi-Gigabit Ethernet Plus Switches with the introduction of the new MS305E and MS308E. These switches come with 5 or 8 2.5G Multi-Gig ports in a durable metal case and are designed to seamlessly integrate into any business environment.
Featuring fundamental network capabilities such as network monitoring, traffic prioritization, VLANs, QoS, IGMP Snooping, and an intuitive web-based GUI, these switches provide an adaptable network solution with effortless management. Plus Switches are the perfect upgrade from plug-and-play Unmanaged Switches, delivering essential networking features at an affordable price.
- Enable network configuration and management at the price point of Unmanaged Switches
- Simple, yet useful network set-up on top of plug-and-play connectivity
- Business-friendly and easy-to-use web browser-based management GUI
- VLAN support for traffic segmentation
- Quality of Service (QoS) for traffic prioritization
- Auto “denial-of-service” (DoS) prevention
- Troubleshoot connection issues via cable test
- Loop detection and broadcast storm controls
- Rate limiting for better bandwidth allocation
- Port mirroring for network monitoring
- Jumbo frame support
- Fanless, silent operation with desktop and wall-mount options
Features:
Multi-Gigabit Ethernet
5 ports provide up to 2.5 Gbps of dedicated, non-blocking bandwidth each
Non-Blocking Switching
25Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices
Auto-Negotiation
Automatic connection at the highest common speed between the switch and an end device
Fanless Design
Silent operation makes this switch perfect for noise-sensitive environments
Versitile Mounting Options
Install your switch on your desktop or mount it to your wall with the hardware provided in the box
Energy Efficient
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
Specifications:

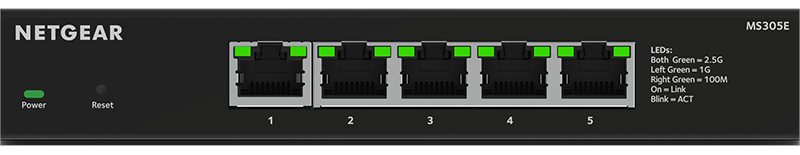

Front View

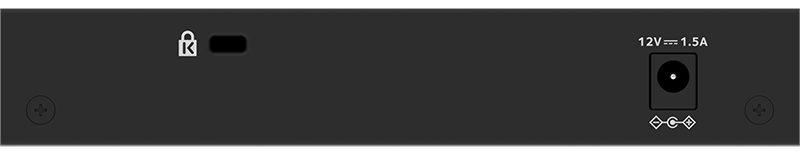

Rear View
| Models: | MS305E | MS308E |
|---|---|---|
| Features | ||
| 1G/2.5G Ethernet RJ-45 copper ports (100M/1G/2.5G) - 1000BASE-T | 5 | 8 |
| Enclosure | Metal | Metal |
| Performance Specifications | ||
| Max MAC entries | 4K | 4K |
| Buffer Size | 1MB | 1MB |
| Energy Efficient Ethernet (IEEE 802.3az) compliant | Yes | Yes |
| Forwarding modes | Store-and-forward | |
| Bandwidth | 25 Gbps | 25 Gbps |
| Priority queuing | Weighted Round Robin (WRR) | |
| Jumbo Frame Support | Up to 12K packet size | |
| Acoustic noise level @ 25° C (dBA) (ANSI-S10.12) | 0 | 0 |
| Mean Time Between Failures (MTBF) @ 25° C | 4,273,003 hrs (487 yrs) | 3,309,911 hrs |
| L2 Services - VLANS | ||
| VLAN (# Supported) | 64 | 64 |
| IEEE 802.1Q VLAN Tagging | Yes | Yes |
| Port-based VLANs | Yes | Yes |
| L2 Services - Availability | ||
| Link Aggregation/Port Trunking | Yes | Yes |
| Number of Static Manual LAGs and # of members | 2 LAG with max 4 members in each LAG | 2 LAG with max 4 members in each LAG |
| L2 Services - Multicast Filtering | ||
| IGMP snooping (v1, v2, and v3) | Yes | Yes |
| Block unknown multicast | Yes | Yes |
| Supported Multicast groups | 256 | 256 |
| L3 Services - DHCP | ||
| DHCP client | Yes | Yes |
| Quality of Service | ||
| Rate Limiting | Yes | Yes |
| DSCP | Yes | Yes |
| IEEE 802.1p COS | Yes | Yes |
| Port-based VLAN | Yes | Yes |
| TOS | Yes | Yes |
| Strict Priority queue technology | Yes | Yes |
|
||
| Management | ||
| System Password | Yes | Yes |
| Web browserbased management GUI | Yes | Yes |
| PC Utility | Yes | Yes |
| Port Mirroring | Yes | Yes |
| Max number of source ports allowed (many-to-one port mirroring) | 4 | 7 |
| Many-to-one Port Mirroring | Yes | Yes |
| Cable Test Utility | Yes | Yes |
| FW Upgrade Thru Plus Utility (TFTP) | No | No |
| Config download (to Switch) thru Plus Utility | Yes | Yes |
| Config upload (to server) | Yes | Yes |
| LEDs | ||
| Per port | Speed, Link, Activity | |
| Per device | Power, system | |
| Power Consumption | ||
| DC Input/Power In | External (12V/1.5A) | External (12V/1.5A) |
| Power Consumption (Maximum) | 5.6W | 8.1W |
| Heat Dissipation (Maximum and Standby) (BTU/Hr) | Max: 19.18 BTU/hr / Min: 7.19 BTU/hr | Max: 27.73 BTU/hr / Min: 8.27 BTU/hr |
| Physical Specifications | ||
| Dimensions | 158 x 101 x 27 mm (6.2 x 4 x 1.1 in) |
158 x 101 x 27 mm (6.2 x 4 x 1.1 in) |
| Weight | 0.45kg (1lb) | 0.43kg (0.9lb) |
| Environmental Specifications | ||
| Operating Temperature | 32° to 122°F (0° to 50°C) | 32°F to 104°F (0° to 40°C) |
| Operating Humidity (relative) | 95% maximum relative humidity (RH), non-condensing | |
| Operating Altitude | 10,000 ft (3,000 m) maximum | |
| Storage Temperature | – 4° to 158°F (–20° to 70°C) | |
| Storage Humidity | 95% maximum relative humidity | |
| Storage Altitude | 10,000 ft (3,000 m) maximum | |
| Electromagnetic Emissions and Immunity | ||
| Certifications | CE Class A (EN55032+EN55035) UKCA Class A FCC Part 15 Class A ISED Class A VCCI Class A RCM KC BSMI |
|
| Warranty and Support | ||
| Warranty | 5-year warranty | |
| Technical Support (online, phone) | 90 days free from date of purchase | |
| ProSUPPORT OnCall 24x7 Service Plans | Category 1 PMB0S11-10000S PMB0S31-10000S PMB0S51-10000S |
|
| Package Contents | ||
| Package Contents | NETGEAR Plus Switch Power adapter (power cable varies by region) Rubber feet Installation guide |
|
Diagram:
Small Office/Home Office Network Diagram
Documentation:
Download the NETGEAR MS305E and MS308E Datasheet (PDF).
