NETGEAR MS324TXUP
24-Port Multi-Gigabit (2.5G) Ethernet Ultra60 PoE++ Smart Switch with 4 SFP+ Ports
Netgear Products
NETGEAR Smart Switches
NETGEAR 24-Port 2.5G Multi-Gigabit Ethernet Ultra60 PoE++ Smart Switch with 24 PoE++ and 4 SFP+ Ports (720W)
#MS324TXUP-100NAS
Price:$2,680.24
Add to Cart for Pricing
Price:
Add to Cart for Pricing
More pricing below, click here!
Overview:
Elevate your business above the 1Gb barrier
As a leading provider of network equipment, NETGEAR® Business understands the importance of providing a great choice of speed and power to support core business needs. With the growth of network speed, virtualization, and cloud-based applications like VoIP, video streaming, and IP surveillance, businesses in all sectors must keep up to ensure success. Also, the increase in speeds for WiFi 6 and WiFi 6E access points now require faster speeds in the network.
The MS324TXUP 24-Port Multi-Gigabit (2.5G) Ethernet Ultra60 PoE++ Smart Switch with 4 SFP+ Ports joins the NETGEAR Smart Switch family, adding Multi-Gigabit/10G speed, a high PoE budget for all PoE/PoE+ devices, and Ultra60 PoE++ support. NETGEAR Pro WiFi Access Points and other PoE devices with multi-gig capabilities are perfect for use with the MS324TXUP.
NETGEAR Smart Switches offer powerful L2+/Lite L3 features, great PoE functionality, and enhanced performance and usability. They are purposely designed for modern applications and support BYOD which requires companies to have more bandwidth to ensure smooth network connectivity with no congestion.
Furthermore, for 2.5G speeds there is no requirement to upgrade your cabling beyond Cat5E, allowing for higher speeds without additional cabling upgrade costs.
The MS324TXUP switch supports NETGEAR Insight Cloud management, allowing businesses simpler configuration and deployment from anywhere using the NETGEAR Insight app from mobile devices or the Insight Cloud portal from any device with a web browser.
Highlights:
Temperature- and load-based fan-speed control combines accurate monitoring with minimized acoustic noise which is ideal for office environments. The MS324TXUP operates quietly with a maximum of 38 dBA even at full power and 25° C (77° F) ambient.
More Powerful Switch with Multi-Gigabit/10G Speed
- 24 x 1G/2.5G Multi-Gigabit Ultra60 PoE++ Ethernet ports with 720W Total PoE
- 4 x Dedicated 10G SFP+ fiber ports
Fast and flexible solution for data, voice and video converged network
- Non-blocking switching with 200Gbps bandwidth
- Flexible rack-mounting option

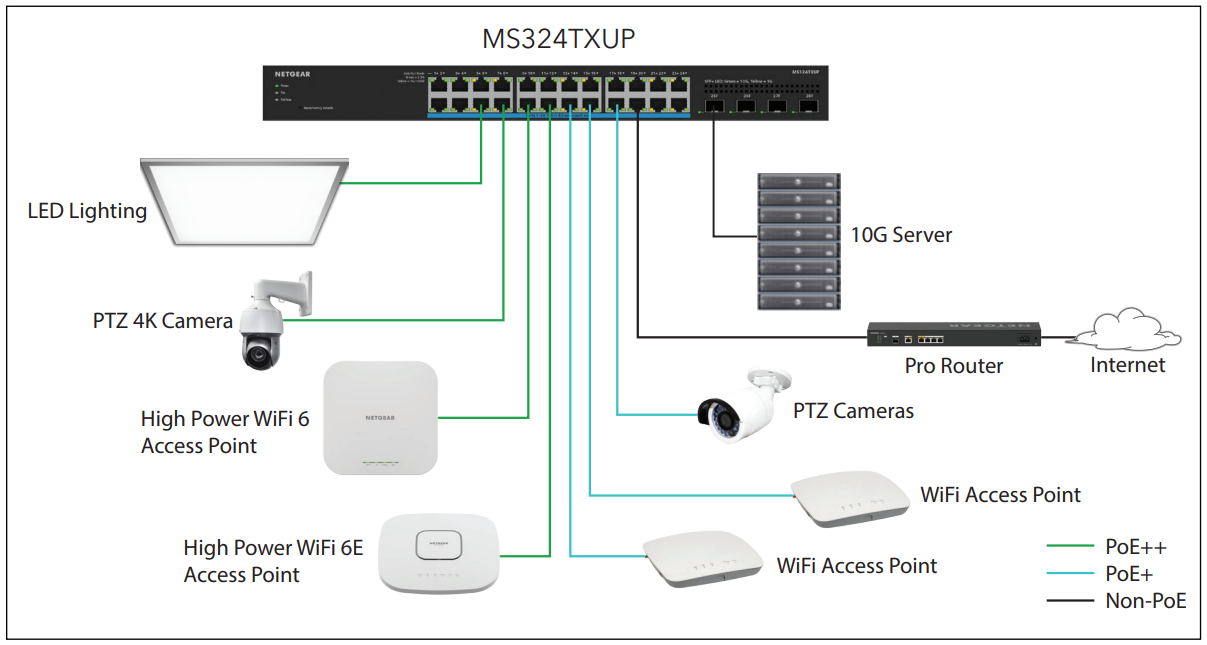

Ideal companion to your NETGEAR WAX630E WiFi 6E Access Point
- Connect and power your WAX630E with MS324TXUP
- Manage all devices from a single dashboard with NETGEAR Insight
Powerful Connectivity and Security
- Advanced VLAN support for better network segmentation
- L2/L3/L4 access control lists (ACLs) for granular network access control including 802.1x port authentication
- Advanced per-port PoE controls and remote power management of PoE powered devices including operation scheduling
- Advanced QoS (Quality of Service) for traffic prioritization including portbased, 802.1p and L2/L3/L4 DSCPbased
- Auto DoS (Denial of Service) prevention
- IGMP Snooping and Querier for multicast optimization
- Egress Rate limiting and priority queuing for better bandwidth allocation
- Port mirroring for network monitoring
- Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings
- IPv6 management: IPv6 QoS, IPv6 ACL, IPv6 Multicast, and static and dynamic IPv6 address assignment
- Cable test to troubleshoot connection issues
- Easy-to-use Web browser-based management GUI available in English, German and Japanese
- SNMP v1, v2c, v3 and RMON remote monitoring
Fully-integrated cloud-manageable devices
- Optional NETGEAR Insight Remote/ Cloud management. Easily activated through the local device GUI.
Smart IT, not Big IT
- Scripting and management via direct text command using Lite Command Line Interface (CLI).
- NETGEAR Switch Discovery Tool (NSDT) to discover, register and access to the local browser interface to configure the switches
NETGEAR Quality and Reliability
- 5-year hardware warranty*, 90-days technical support via phone or chat and 5-year Next Business Day (NBD) replacement.
Simply activate NETGEAR Insight Cloud management to manage your network. Anytime. Anywhere.
Activating NETGEAR Insight Cloud management enables users to experience simpler configuration and deployment from anywhere using the NETGEAR Insight app from mobile devices or the Insight Cloud portal from any device with a web browser.
Unique advanced management features of these Insight managed devices include:
- Remote monitoring and management with performance dashboards and troubleshooting features including remote reboot, port and PoE advanced configuration including remote enable/disable/power-cycle, PoE scheduling, and firmware updates with auto-schedule mode
- Single pane-of-glass multi-device, multi-network, and multi-site remote monitoring and notifications with the NETGEAR Insight app
- Full-fledged local or remote access for configuration, management, and monitoring on a larger display using your tablet, laptop, or desktop computer through the NETGEAR Insight Cloud portal
- Configurable in-app and email alerts and notifications
- Auto-join and configure (zero-touch provisioning) for additional Insight managed devices added to the network
- Centralized network configuration (policies) across Insight managed switches, and access points for VLANs, ACLs, QoS, LAGs, etc.
- Cloud-based network administration, monitoring, and firmware management
Features and Benefits:
| Hardware Features: | Benefits: |
|---|---|
| Fully-integrated Cloud-manageable Devices | Requires no additional hardware (cloud keys, network portals, local servers, VPN or proxy appliances etc) to directly connect to the cloud and allow remote management. No additional hardware or software. Just switch to Insight Cloud Management mode through Web browser-based user interface and go. |
| Multi-Gigabit 2.5GBASE-T Copper Ethernet Ultra60 PoE++ connections | Support high-density VoIP, Surveillance and Wi-Fi AP deployments, scalable for future growth. Reduce the risk of running out of PoE ports. |
| 10G 1000BASE-X SFP ports | Four dedicated 10G SFP+ ports for aggregation to the network core. Support for Fiber and Copper modules. |
| Low Acoustics | Temperature- and load-based fan-speed control allow for quiet operation in both desktop or rack mount configuration. |
| Energy Efficient Ethernet (IEEE 802.3az) | Maximum power reduction for ongoing operation cost savings. |
| Desktop and rack-mount (kit available) | Flexible deployment on desktop and also support rackmount. |
| Ideal companion to your NETGEAR WAX630E |
|
| Software Features: | Benefits: |
| Remote setup, management, and monitoring anywhere, anytime, from your mobile device, PC, Mac, or tablet | Locally or remotely setup, configure, manage, monitor or even troubleshoot your network from anywhere, anytime. Check network status, view dashboards for network health and activity, power cycle PoE ports, etc, and update firmware remotely. No need to be on-site, open up ports to your network, or VPN into it. |
| Auto-join and Configure (Zero-Touch Provisioning) | Additional Insight Managed devices added to the network automatically inherit settings and configuration. |
| Multi-site, Multi-network Single Pane-of-Glass View | View and configure multiple networks across multiple sites, all from one single app; NETGEAR Insight. |
| Comprehensive IPv6 Support for Management, ACLs and QoS | Build current network with future in mind. Ensure investment protection and a smooth migration to an IPv6-based network without switch replacement. |
Robust security features:
|
Build a secured, converged network with all types of traffic by preventing external attacks and blocking malware while allowing secure access for authorized users. |
Comprehensive QoS features:
|
Advanced controls for optimized network performance and better delivery of mission-critical traffic such as voice and video. |
| Auto-VoIP, Auto-Voice VLAN | Automatic Voice over IP prioritization (Auto-VoIP) simplifies most complex multi-vendor IP telephone deployments either based on OUI bytes (default database and user-based OUIs) in the phone source MAC address, providing the best class of service to VoIP streams (both data and signaling) over other ordinary traffic by classifying traffic, and enabling correct egress queue configuration. |
| Auto-WiFi, Auto-Camera VLAN | Auto-WiFi VLAN and Auto-Camera VLAN allows the switch to forward packets with the inputed OUIs of Wireless APs and cameras in a special VLAN with priority settings of that VLAN automatically. |
| IGMP Snooping | Facilitate fast receiver joins and leaves for multicast streams. Save cost and improve network efficiency by ensuring multicast traffic only reaches designated receivers without the need of an extra multicast router. |
| Protected Ports | Ensure no exchange of unicast, broadcast, or multicast traffic between the protected ports on the switch, thereby improving the security of your converged network. This allows your sensitive phone phone conversations to stay private and your surveillance video clips can be forwarded to their designated storage device without leakage or alteration. |
| DHCP Snooping | Ensure IP address allocation integrity by only allowing DHCP messages from trusted DHCP servers and dropping malformed DHCP messages with a port or MAC address mismatch. |
| Dynamic VLAN Assignment (RADIUS) | IP phones and PCs can authenticate on the same port but under different VLAN assignment policies. Users are free to move around and enjoy the same level of network access regardless of their physical location on the network. |
| Link Aggregation (LACP) | Build up bigger bandwidth to support aggregated uplink/downlink traffic or to provide redundant link(s). Aggregate up to 8 ports for 8Gbps connections. |
| Loop Prevention and Auto-DoS Prevention | Detect and prevent (auto port shutdown) accidental network loops and protect against DoS attacks. |
| PoE Timer and Scheduling | Allows IT administrators to increase network security, better utilize network resources and conserve energy by scheduling or remotely controlling on/ off of PoE ports. |
| Port Mirroring and Cable Test | Many-to-one port mirroring for better and quicker network diagnostics and troubleshooting. Cable test easily identifies bad Ethernet cables. |
| Dual Firmware Images | Dual firmware images for transparent firmware updates with minimum service interruption. |
| Firmware Updates from Cloud | Direct cloud-to-device firmware updates, initiated and/or scheduled using the Insight app, all from the palm of your hand, anytime, anywhere! |
At a Glance:
| Hardware at a glance | |||||||||
|---|---|---|---|---|---|---|---|---|---|

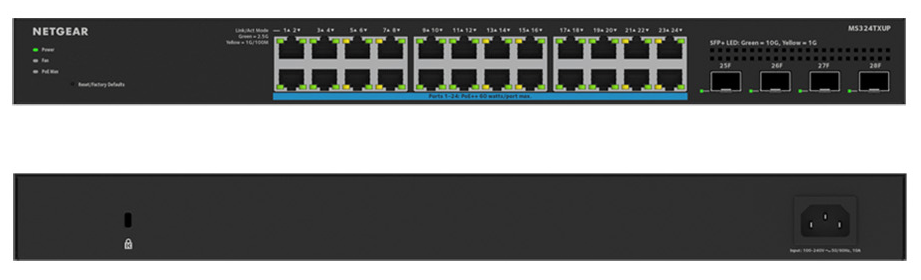

| Front | Rear | Side | |||||||
| Model name | Form-Factor | 1G/2.5G 1000BASE-T RJ-45 Copper Ports Copper Ports | 10G SFP+ Uplink | Ultra60 PoE++ (60W/port) Ports | Total PoE Budget | Power Supply (PoE Budget) | Fans | ||
| MS324TXUP | Rackmount kit | 24 | 4 | 24 | 720 Watts | 1 internal PSU, fixed | 3 internal fans, fixed | ||
| Software at a glance | |||||||
|---|---|---|---|---|---|---|---|
| Management | PoE Control Features | IPv4/IPv6 ACL and QoS | IPv4/IPv6 Multicast Filtering | VLANs | IEEE (802.3az) Energy Efficient Ethernet | Convergence | Link Aggregation |
| Web Browser-based GUI (HTTP/HTTPS), RMON, SNMP NETGEAR Insight Cloud Management via mobile App and Insight Portal |
PoE on/off, Dynamic PoE budget allocation, PoE power priority setting, PoE Power Usage Metering, PoE scheduling Uninterrupted PoE |
L2, L3, L4 Ingress | IGMP Snooping, Querier | Static, Dynamic, VoIP, Voice, WiFi, Camera | Yes | LLDP-MED, RADIUS, 802.1X | LACP and Manual Static LAGs (up to 8 LAGs with max 8 members) |
| Performance at a glance | |||||||
|---|---|---|---|---|---|---|---|
| Model Name | Packet buffer | CPU | ACL | MAC Address Table ARP Table VLANs | Fabric | Latency (64-Byte Packet) | Multicast IGMP Group |
| MS324TXUP | 2 MB | 1GHz dual core 256MB RAM 64MB SPI FLASH |
100 shared (ingress) | 32K Max MAC 256 VLANs |
200 Gbps line-rate | 1G Copper: <5.32μsec 2.5G Copper: <8.03μsec 10G SFP+ Fiber: < 1.14μsec |
512 |
Specifications:
| Models: | MS324TXUP |
|---|---|
| Product Specifications | |
| 1G/2.5G Ethernet RJ-45 Copper ports (100M/1G/2.5G) - 1000BASE-T | 24 |
| PoE / PoE+ / PoE++ ports | 24 (60W/port 802.3bt) |
| 10 Gigabit SFP+ (fiber) ports (1G/10G) - 1000BASE-X | 4 (dedicated) |
| Power Supply | Internal Power Supply |
| LEDS | |
| Front (per device) | Power (with Cloud Mode Indicator), Fan, LED Mode |
| Front (per port) | Speed/Link/Activity/PoE Status |
| Unified Network Management (Discovery, Setup, Monitoring, and Management) through NETGEAR Insight Cloud Management) | |
| Discovery, setup, monitoring and management | NETGEAR Insight mobile app on phone or tablet; Insight Cloud Portal from PC, Mac, or tablet web browser |
| Remote/Cloud management | Anywhere, anytime, from the palm of your hand using Insight mobile app or from any PC, Mac, or tablet web browser using the Insight Cloud Portal |
| Centralized network configuration (policies) | Centralized network configuration (policies) across Insight Managed Switches, Wireless Access Points, and Business-class ReadyNAS Storage for VLANs, ACLs, QoS, and LAGs |
| Device auto-join and configure (zero-touch provisioning | Additional Insight Managed devices added to the network automatically inherit the network configuration |
| Multi-site, multi-network single pane-of-glass view | Manage multiple sites, locations, and networks in a single view using the Insight mobile app or Insight Cloud Portal |
| Multi-switch, multi-port concurrent configuration for ACLs, VLANs, QoS, PoE, etc | Apply settings and policies on multiple ports across multiple switches all at the same time using the Port Config Wizard |
| Performance Specifications | |
| CPU | 1GHz dual core 1GB RAM 64MB SPI FLASH |
| Packet buffer memory (Dynamically shared across only used ports) | 2 MB |
| Forwarding modes | Store-and-forward |
| Bandwidth (non-blocking, full duplex) | 200 Gbps |
| Priority queues | 8 |
| Priority queuing | Weighted Round Robin (WRR) and Strict Priority |
| MAC Address database size (48-bit MAC addresses) | 32K |
| Multicast groups | 512 |
| Number of VLANs | 256 |
| Number of DHCP snooping bindings | 256 |
| Access Control Lists (ACLs) | 100 shared for MAC, IP and IPv6 ACLs (ingress) |
| Packet forwarding rate (64 byte packet size) (Mfps or Mpps) | 14.8 |
| 1G Copper standard latency (μsec) (64-byte; 1518-byte; 9216-byte frames) 64-byte | 64-byte: 5.32 μsec 1518-bye: 5.67 μsec 9216-byte: 5.64 μsec |
| 2.5G Copper standard latency (μsec) (64-byte; 1518-byte; 9216-byte frames) 64-byte | 64-byte: 8.03 μsec 1518-bye: 8.19 μsec 9216-byte: 8.22 μsec |
| 10G SFP+ Fiber latency (μsec) (64-byte; 1518-byte; 9216-byte frames) | 64-byte: 1.14 μsec 1518-bye: 1.228 μsec 9216-byte: 1.236 μsec |
| Jumbo frame support | 10K |
| Acoustic noise level @ 25°C (dBA) (ANSI-S10.12) | 38 dBA |
| Mean Time Between Failures (MTBF) @ 25°C | 1,017,939 hrs (116.12 ys) |
| POE Configuration | |
| Number of PoE (802.3af) / PoE+ (802.3at) / PoE++ (802.3bt) ports | 24 PoE++ |
| Total PoE power budget (watts) | 720W |
| Advanced per-port PoE controls (enable/disable/power limit) | Yes |
| Uninterrupted PoE | Yes |
| PoE Self-healing | Yes |
| Advanced per-port PoE scheduling/timers | Yes |
| L2 Services - VLANs | |
| IEEE 802.1Q VLAN tagging | Yes |
| MAC-based VLANs | Yes |
| Protocol-based VLAN | Yes |
| Auto-VoIP VLAN / Auto-Voice VLAN | Yes, based on OUI bytes (default database and user-based OUIs) in the phone source MAC address |
| Auto-VoIP | Yes, based on protocols (SIP). Prioritzes traffic to a higher queue |
| Voice VLAN | Yes, based on either VLAN ID or 802.1p priority, packets are passed onto the connecting VoIP phone using LLDP-MED |
| Auto-Video VLAN | Yes |
| Auto-Camera VLAN | Yes |
| Auto-WiFi VLAN | Yes |
| GARP with GVRP | Yes |
| Private VLAN | Yes |
| L2+/Lite L3 Services - Availability | |
| Broadcast, multicast, unknown unicast storm control | Yes |
| IEEE 802.3ad - LAGs (LACP) | Yes |
| IEEE 802.3x (full duplex and flow control) | Yes |
| IEEE 802.1D Spanning Tree Protocol | Yes |
| IEEE 802.1w Rapid Spanning Tree Protocol | Yes |
| IEEE 802.1s Multiple Spanning Tree Protocol | Yes |
| L2+/Lite L3 Services - Multicast Filtering | |
| IGMP snooping (v1, v2 and v3) | Yes |
| MLD snooping support (v1 and v2) | Yes |
| IGMP snooping queries | Yes |
| MLD snooping querier (v1) | Yes |
| Multicast groups | 512 |
| Multicast VLAN Registration (MVR) | Yes |
| L3 Services - Routing | |
| DHCP client | Yes |
| DHCP snooping | Yes |
| Number of DHCP snooping bindings | 256 |
| IPv4 static routing | 32 |
| IPv6 static routing | 32 |
| VLAN routing | Yes |
| Host ARP table (number of entries) | 1024 ARP |
| ICMP Router Discovery Protocol (IRDP) | Yes |
| Number of IP VLAN interfaces (routed VLANs) | 15 |
| DHCP Services | |
| DHCP client | Yes |
| DHCP snooping | Yes |
| Number of DHCP snooping bindings | 256 |
| DHCP Server | Yes |
| DHCP Relay | Yes |
| DHCP IPv6 Server | Yes |
| DHCP IPv6 Relay | Yes |
| Link Aggregation | |
| IEEE 802.3ad - LAGs (LACP) | Yes |
| Manual Static LAG | Yes |
| # of Static or LACP LAGs # of members in each LAG |
8 LAGs with max 8 members in each LAG |
| Network Monitoring and Discovery Services | |
| 802.1ab LLDP | Yes |
| LLDP-MED | Yes |
| SNMP | Yes, v1/v2c/v3 |
| RMON group 1,2,3,9 | Yes |
| Network Security | |
| IEEE 802.1x | Yes |
| Guest VLAN | Yes |
| RADIUS-based VLAN assignment via .1x | Yes |
| MAC-based .1x | Yes |
| RADIUS accounting | Yes |
| Access Control Lists (ACLs) | L2 / L3 / L4 |
| IP-based ACLs (IPv4 and IPv6) | Yes |
| MAC-based ACLs | Yes |
| TCP/UPD-based ACLs | Yes |
| MAC lockdown | Yes |
| MAC lockdown by the number of MACs | Yes |
| Control MAC # Dynamic learned entries | 4096 |
| Control MAC # static entries | 48 |
| IEEE 802.1x RADIUS port access authentication | Yes |
| Port-based security by locked MAC addresses | Yes |
| Dynamic ARP inspection | Yes |
| Broadcast, multicast, unknown unicast storm control | Yes |
| DoS attacks prevention | Yes |
| Quality of Service (QoS) | |
| Port-based rate limiting | Yes, ingress and egress |
| Port-based QoS | Yes |
| Support for IPv6 fields | Yes |
| DiffServ QoS | Yes, ingress |
| IEEE 802.1p COS | Yes |
| Destination MAC and IP | Yes |
| IPv4 and v6 DSCP | IPv4 and IPv6 |
| IPv4 and IPv6 ToS | Yes |
| TCP/UDP-based | Yes |
| Weighted Round Robin (WRR) | Yes |
| Strict priority queue technology | Yes |
| Auto-VoIP VLAN / Auto-Voice VLAN | Yes, manual or automatic assigment of VoIP phone traffic based on OUI bytes (default database and user-based OUIs) in the phone source MAC address to Voice VLAN associated with high priority QoS parameters |
| Other Features | |
| Advanced per-port PoE controls (enable/disable/power limit) | Yes |
| Advanced per-port PoE scheduling | Yes |
| Loop detection & prevention | Yes |
| DNS Client | Yes |
| Option to enable/disable BPDU flooding when STP is disabled | Yes |
| Option to enable/disable the flooding of EAPOL when 802.1x is disabled | Yes |
| Management, Monitoring & Troubleshooting | |
| Cloud/Remote management | Yes |
| Insight mobile app & Insight Cloud Portal management | Yes |
| uPnP Discovery | Yes, activated by default |
| Networking monitoring | Yes |
| Data/performance logs | Yes |
| Centralized network configuration/policies (network-centric management) | Yes |
| Device auto-join and configure (zero-touch provisioning) | Yes |
| Multi-site, multi-network single pane-of-glass view | Yes |
| Multi-switch, multi-port concurrent configuration | Yes |
| Network/global password (for all Insight Managed devices on a network) | Yes (per network/subnet via NETGEAR Insight mobile app and Insight Cloud Portal) |
| Password management | Yes |
| IP Access List | Yes |
| Configurable management VLAN | Yes |
| Admin access control via RADIUS and TACACS+ | Yes |
| IPv6 management | Yes |
| SNTP client over UDP port 123 | Yes |
| Firmware upgrade direct from Cloud (via mobile device or Insight Cloud Portal) | Yes |
| SNMP v1/v2c | Yes |
| SNMP v3 with multiple IP addresses | Yes |
| RMON group 1, 2, 3, 9 | Yes |
| Smart Control Center (SCC) for multi-switch management | Yes |
| Port mirroring | Yes |
| Many-to-one port mirroring | Yes |
| Cable test utility | Yes |
| Ping and tracerout client | Yes |
| Local-only web browser-based management GUI | Yes |
| HTTP/TLS Web-based access (version) | Yes (v1.2) |
| HTTP firmware upload/download | Yes |
| File transfers (uploads, downloads) | TFTP / HTTP |
| Dual software (firmware) image | Yes |
| Memory and flash log | Yes |
| Syslog (Server) | Yes |
| Physical Specifications | |
| Dimensions | 440 x 310 x 43mm (17.3 x 12.2 x 1.7in) |
| Weight | 9.78lb (4.44kg) |
| Mounting options | Desktop, rack mount |
| Power Consumption | |
| Max power (worst case, all ports used, line-rate traffic) (Watts) | 765W |
| Min power (link-down standby) (Watts) | 22W |
| Heat Dissipation (max and min) (BTU/hr) | Max: 2610.2886 BTU/hr Min: 75.067 BTU/hr |
| Energy Efficient Ethernet (EEE) IEEE 802.3az | Yes (deactivated by default) |
| Auto power down | Yes |
| Fan(s) (temperature- and load-based speed control) | 3 |
| Environmental Specifications | |
| Operating Temperature | 0° to 50°C (32° to 122°F) |
| Operating Humidity | 95% maximum relative humidity (RH), non-condensing |
| Operating Altitude | 10,000 ft (3,000 m) maximum |
| Storage Temperature | –20° to 70°C (– 4° to 158°F) |
| Storage Humidity | 95% maximum relative humidity (RH), non-condensing |
| Storage Altitude | 10,000 ft (3,000 m) maximum |
| Warranty and Support | |
| Hardware Lifetime Warranty | 5 Years |
| Next-Business-Day (NBD) Replacement | 5 Years |
| Technical support via phone | 90 days free from date of purchase* |
| ProSUPPORT OnCall 24x7 Service Packs** | Category 3 PMB0313-10000S PMB0333-10000S PMB0353-10000S |
| Insight | 1-year Insight subscription included |
| Package Contents | |
| All Models |
|
* This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only.
** The NETGEAR OnCall 24x7 contract provides unlimited phone and email technical support for your networking product. For ProSAFE products purchased prior to 06/2014, also includes next business-day hardware replacement.
Network Diagram:
Get Multi-gigabit and 10G Speed to your business with more powerful PoE++
MS324TXUP Sample Connection Diagram
Documentation:
Download the NETGEAR MS324TXUP Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
Netgear Products
NETGEAR Smart Switches
NETGEAR 24-Port 2.5G Multi-Gigabit Ethernet Ultra60 PoE++ Smart Switch with 24 PoE++ and 4 SFP+ Ports (720W)
#MS324TXUP-100NAS
Price:$2,680.24
Add to Cart for Pricing
Price:
Add to Cart for Pricing
