NETGEAR Managed Switches
Future Proofed. Campus LAN Proven.

NETGEAR ProSAFE® high-end Managed switches seamlessly connect end-users, critical services, servers and storage across highly flexible core, distribution and access layers. Our Managed Infrastructure includes state-of-the-art Chassis switches with Passive Backplane and Fixed Configuration switches with Distributed Link Aggregation that work in concert to create a reliable, affordable and simple to use Campus LAN solution. A single-pane-of-glass management platform – NMS300 – increases overall operational efficiency.

M4250 Series: 1G AV over IP

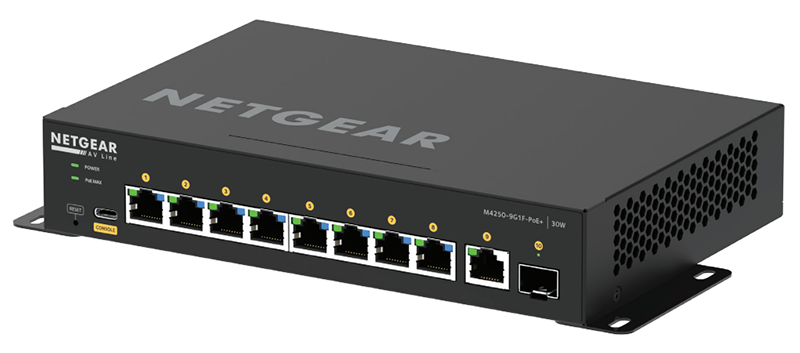

M4250-9G1F-PoE+ (GSM4210PD)

  • 8-port 10/100/1000BASE-T (RJ45) PoE+ with 110W PoE budget
  • 2-port 1000BASE-X (SFP)
  • 20 Gbps non-blocking fabric across 8 ports
  • Out-of-band 1G Ethernet management port
  • USB-C and USB-A storage port
    •

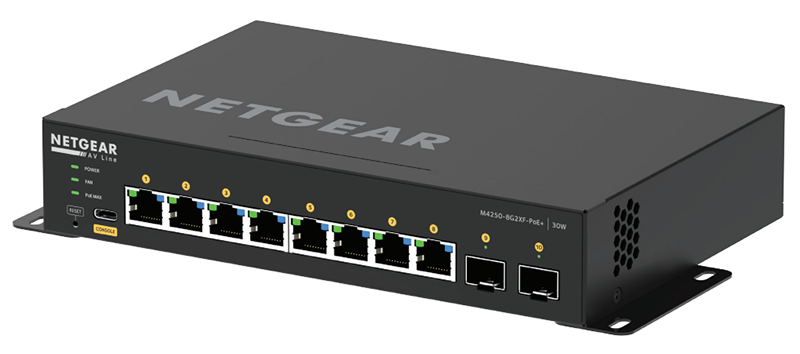

M4250-8G2XF-PoE+ (GSM4210PX)

  • 8-port 10/100/1000BASE-T (RJ45) PoE+ with 220W PoE budget
  • 2-port 1000/10GBASE-X (SFP+)
  • 56 Gbps non-blocking fabric across 8 ports
  • Out-of-band 1G Ethernet management port
  • USB-C and USB-A storage port
    •

M4250-10G2F-PoE+ (GSM4212P)

  • 8-port 10/100/1000BASE-T (RJ45) PoE+ with 125W PoE budget
  • 2-port 10/100/1000BASE-T (RJ45)
  • 2-port 1000BASE-X (SFP)
  • 24 Gbps non-blocking fabric across 12 ports
  • Out-of-band 1G Ethernet management port
  • USB-C and RJ45 RS232 console ports and USB-A storage port
    •

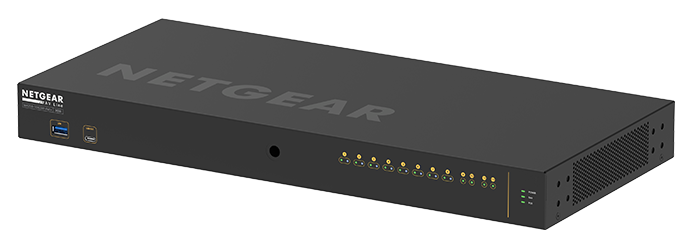

M4250-10G2XF-PoE+ (GSM4212PX)

  • 8-port 10/100/1000BASE-T (RJ45) PoE+ with 240W PoE budget
  • 2-port 10/100/1000BASE-T (RJ45)
  • 2-port 1000/10GBASE-X (SFP+)
  • 60 Gbps non-blocking fabric across 12 ports
  • Out-of-band 1G Ethernet management port
  • USB-C and RJ45 RS232 console ports and USB-A storage port
    •

M4250-10G2XF-PoE++ (GSM4212UX)

  • 8-port 10/100/1000BASE-T (RJ45) Ultra90 PoE++ with 720W PoE budget
  • 2-port 10/100/1000BASE-T (RJ45)
  • 2-port 1000/10GBASE-X (SFP+)
  • 60 Gbps non-blocking fabric across 12 ports
  • Out-of-band 1G Ethernet management port
  • USB-C and RJ45 RS232 console ports and USB-A storage port
    •

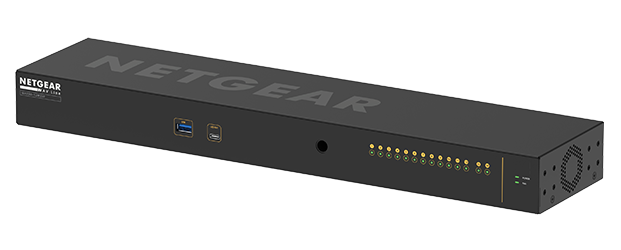

M4250-12M2XF (MSM4214X)

  • 12-port 100/1000/2.5GBASE-T (RJ45)
  • 2-port 1000/10GBASE-X (SFP+)
  • 100 Gbps non-blocking fabric across 14 ports
  • Out-of-band 1G Ethernet management port
  • USB-C and RJ45 RS232 console ports and USB-A storage port
    •

M4250-16XF (XSM4216F)

  • 16-port 1000/10GBASE-X (SFP+)
  • 320 Gbps non-blocking fabric across 16 ports
  • Out-of-band 1G Ethernet management port
  • USB-C and RJ45 RS232 console ports and USB-A storage port
    •

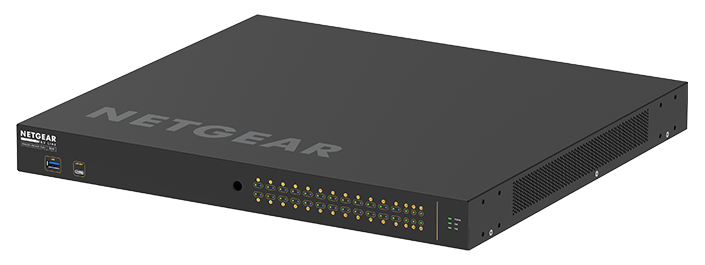

M4250-26G4XF-PoE+ (GSM4230PX)

  • 24-port 10/100/1000BASE-T (RJ45) PoE+ with 480W PoE budget
  • 2-port 10/100/1000BASE-T (RJ45)
  • 4-port 1000/10GBASE-X (SFP+)
  • 132 Gbps non-blocking fabric across 30 ports
  • Out-of-band 1G Ethernet management port
  • USB-C and RJ45 RS232 console ports and USB-A storage port
    •

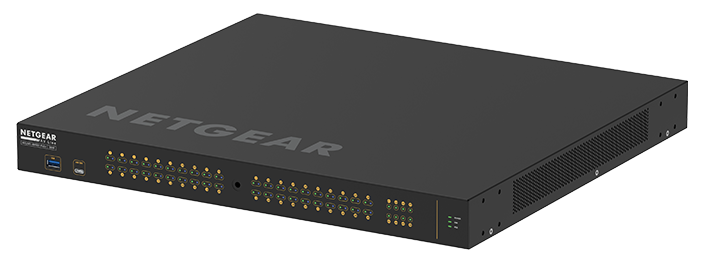

M4250-40G8F-PoE+ (GSM4248P)

  • 40-port 10/100/1000BASE-T (RJ45) PoE+ with 480W PoE budget
  • 8-port 1000BASE-X (SFP)
  • 96 Gbps non-blocking fabric across 48 ports
  • Out-of-band 1G Ethernet management port
  • USB-C and RJ45 RS232 console ports and USB-A storage port
    •

M4250-40G8XF-PoE+ (GSM4248PX)

  • 40-port 10/100/1000BASE-T (RJ45) PoE+ with 960W PoE budget
  • 8-port 1000/10GBASE-X (SFP+)
  • 240 Gbps non-blocking fabric across 48 ports
  • Out-of-band 1G Ethernet management port
  • USB-C and RJ45 RS232 console ports and USB-A storage port
    •

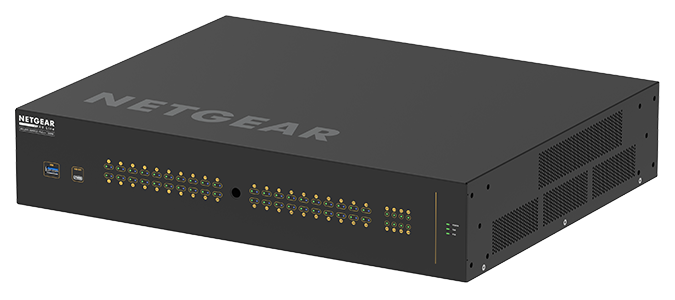

M4250-40G8XF-PoE++ (GSM4248UX)

  • 40-port 10/100/1000BASE-T (RJ45) Ultra90 PoE++ with 2,880W PoE budget
  • 8-port 1000/10GBASE-X (SFP+)
  • 3 internal, fixed PSUs (C14 inlets) with embedded RPS/EPS function
  • 240 Gbps non-blocking fabric across 48 ports
  • Out-of-band 1G Ethernet management port
  • USB-C and RJ45 RS232 console ports and USB-A storage port
    •

M4250-26G4F-PoE+ (GSM4230P)

  • 24-port 10/100/1000BASE-T (RJ45) PoE+ with 300W PoE budget
  • 2-port 10/100/1000BASE-T (RJ45)
  • 4-port 1000BASE-X (SFP)
  • 60 Gbps non-blocking fabric across 24 ports
  • Out-of-band 1G Ethernet management port
  • USB-C and RJ45 RS232 console ports and USB-A storage port
    •

M4250-26G4F-PoE++ (GSM4230UP)

  • 24-port 10/100/1000BASE-T (RJ45) PoE++ with 1,440W PoE budget
  • 2-port 10/100/1000BASE-T (RJ45)
  • 4-port 1000BASE-X (SFP)
  • 60 Gbps non-blocking fabric across 24 ports
  • Out-of-band 1G Ethernet management port
  • USB-C and RJ45 RS232 console ports and USB-A storage port
    •

M4250-26G4XF-PoE+ (GSM4230PX)

  • 24-port 10/100/1000BASE-T (RJ45) PoE+ with 480W PoE budget
  • 2-port 10/100/1000BASE-T (RJ45)
  • 4-port 1000/10GBASE-X (SFP+)
  • 132 Gbps non-blocking fabric across 24 ports
  • Out-of-band 1G Ethernet management port
  • USB-C and RJ45 RS232 console ports and USB-A storage port
    •
M4300 Series: 1G to 10G for AV over IP and IT

M4300-8X8F (XSM4316S)

M4300-8X8F

  • 8-port 10GBASE-T (RJ45) all independent
  • 8-port 10GBASE-X (SFP+) all independent
  • 320Gbps non-blocking fabric across 16 ports
    •

M4300-12X12F (XSM4324S)

M4300-12X12F

  • 12-port 10GBASE-T (RJ45) all independent
  • 12-port 10GBASE-X (SFP+) all independent
  • 480Gbps non-blocking fabric across 24 ports
    •

M4300-16X (XSM4316P)

  • 16-port 10GBASE-T (RJ45)
  • 320Gbps non-blocking fabric across 16 ports
    •

M4300-24X (XSM4324CS)

  • 24-port 10GBASE-T (RJ45)
  • 4-port 10GBASE-X (SFP+) (shared, back)
  • 480Gbps non-blocking fabric across 24 ports
    •

M4300-24X24F (XSM4348S)

M4300-24X24F

  • 24-port 10GBASE-T (RJ45) all independent
  • 24-port 10GBASE-X (SFP+) all independent
  • 960Gbps non-blocking fabric across 48 ports
    •

M4300-28G (GSM4328S)

M4300-28G

  • 24-port 1000BASE-T (RJ45)
  • 2-port 10GBASE-T (RJ45) all independent
  • 2-port 10GBASE-X (SFP+) all independent
  • 128Gbps non-blocking fabric across 28 ports
    •

M4300-28G-PoE+ (GSM4328P)

M4300-28G-PoE+

  • 24-port 1000BASE-T (RJ45) PoE+
  • 2-port 10GBASE-T (RJ45) all independent
  • 2-port 10GBASE-X (SFP+) all independent
  • 128Gbps non-blocking fabric across 28 ports
  • One modular APS550W or APS1100W PSU in first power supply slot
    •

M4300-48X (XSM4348CS)

  • 48-port 10GBASE-T (RJ45)
  • 4-port 10GBASE-X (SFP+) (shared)
  • 960Gbps non-blocking fabric across 48 ports
    •

M4300-48XF (XSM4348FS)

M4300-48XF

  • 48-port 10GBASE-X (SFP+)
  • 2-port 10GBASE-T (RJ45) (shared)
  • 960Gbps non-blocking fabric across 48 ports
    •

M4300-52G (GSM4352S)

M4300-52G

  • 48-port 1000BASE-T (RJ45)
  • 2-port 10GBASE-T (RJ45) all independent
  • 2-port 10GBASE-X (SFP+) all independent
  • 176Gbps non-blocking fabric across 52 ports
    •

M4300-52G-PoE+ (GSM4352P)

M4300-52G-PoE+

  • 48-port 1000BASE-T (RJ45) PoE+
  • 2-port 10GBASE-T (RJ45) all independent
  • 2-port 10GBASE-X (SFP+) all independent
  • 176Gbps non-blocking fabric across 52 ports
  • One modular APS550W or APS1100W PSU in first power supply slot
    •

M4300-96X (XSM4396K)

M4300-96X

  • 12-Slot Modular Stackable Managed Switch+
  • 8-port 10G and 2-port 40G expansion cards
  • 2-port 10GBASE-X (SFP+) all independent
  • 0 to 96 x 10GBASE-T (Fast Ethernet, 1G, 2.5G, 5G, and 10G speeds)
  • Layer 3 (static, policy-based and RIP OSPF VRRP PIM dynamic routing)
    •
M4350 Series: 1G to 25G for AV over IP and IT

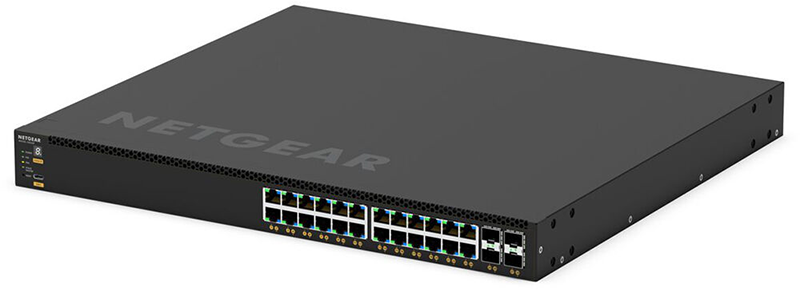

M4350-24G4XF (GSM4328)

M4350-24G4XF

  • 24 Gigabit PoE+ ports with 4 10GBASE-X SFP+ uplinks
  • 880W internal power supply providing 648W of PoE budget
  • 1 slot for modular power supply (1+1 redundancy and/or EPS share)
    •

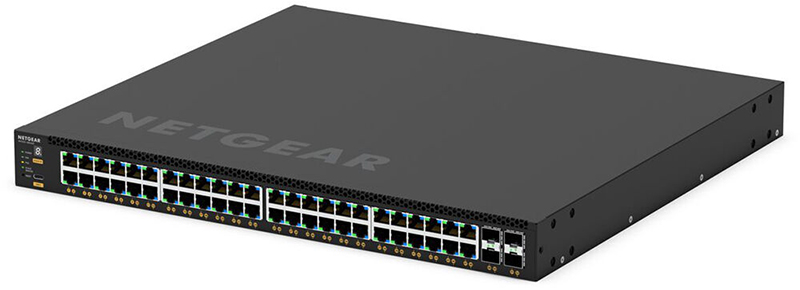

M4350-48G4XF (GSM4352)

M4350-48G4XF

  • 48 Gigabit PoE+ ports with 4 10GBASE-X SFP+ uplinks
  • 550W internal power supply providing 236W of PoE budget
  • 2 slots for modular power supplies (1+1 redundancy and/or EPS share)
    •

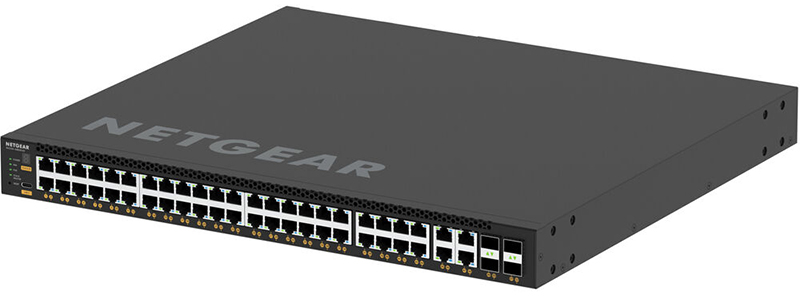

M4350-44M4X4V (MSM4352)

M4350-44M4X4V

  • 44 2.5G and 4 10G/Multi-gig PoE++ ports with 4 25GBASE-X SFP28 uplinks
  • 550W internal power supply providing 194W of PoE budget
  • 2 slots for modular power supplies (1+1 redundancy and/or EPS share)
    •

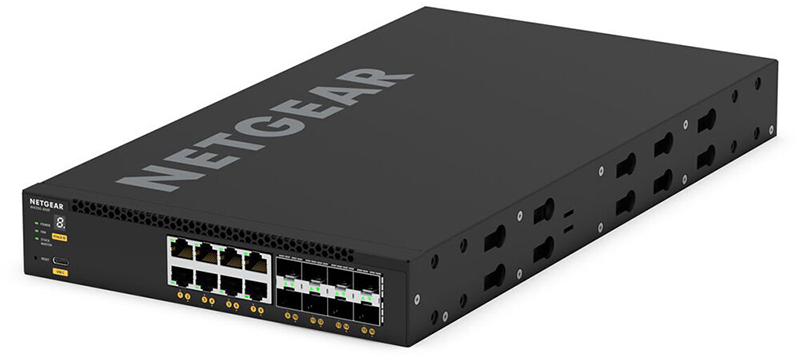

M4350-8X8F (XSM4316)

M4350-8X8F

  • 8 10G/Multi-Gig ports, and 8 10GBASE-X SFP+ ports
  • 240W internal power supply
  • Half-width form factor enables one or two switches in a single rack space for redundant top-of-rack
    •

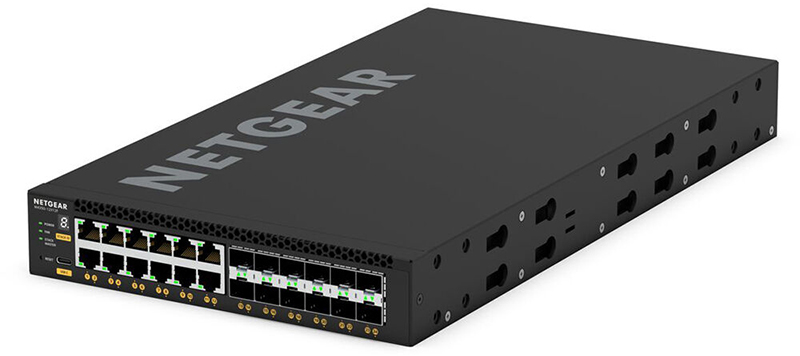

M4350-12X12F (XSM4324)

M4350-12X12F

  • 12 10G/Multi-Gig ports, and 12 10GBASE-X SFP+ ports
  • 240W internal power supply
  • Half-width form factor enables one or two switches in a single rack space for redundant top-of-rack
    •

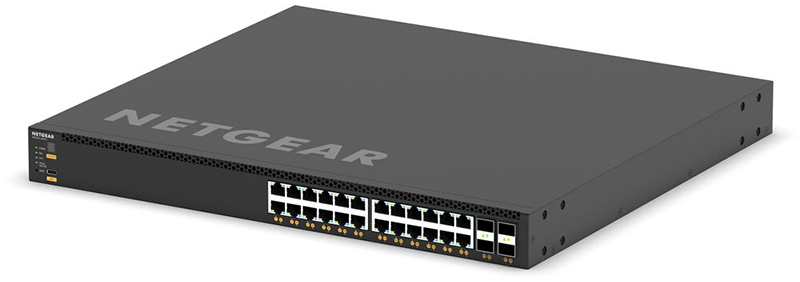

M4350-24X4V (XSM4328CV)

M4350-24X4V

  • 24 10G/Multi-Gig PoE+ ports with 4 25GBASE-X SFP28 uplinks
  • 880W internal power supply providing 576W of PoE budget
  • 1 slot for modular power supply (1+1 redundancy and/or EPS share)
    •

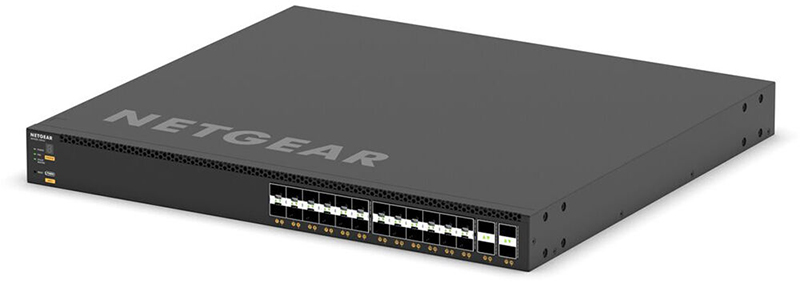

M4350-24F4V (XSM4328FV)

M4350-24F4V

  • 24 10GBASE-X SFP+ ports with 4 25GBASE-X SFP28 uplinks
  • 240W internal power supply
  • 1 slot for modular power supply (1+1 redundancy)
    •

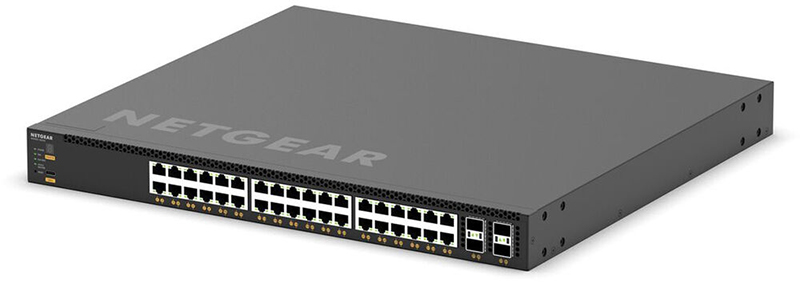

M4350-36X4V (XSM4340CV)

M4350-36X4V

  • 36 10G/Multi-Gig PoE++ ports with 4 25GBASE-X SFP28 uplinks
  • 750W internal power supply providing 280W of PoE budget
  • 1 slot for modular power supply (1+1 redundancy and/or EPS share)
    •

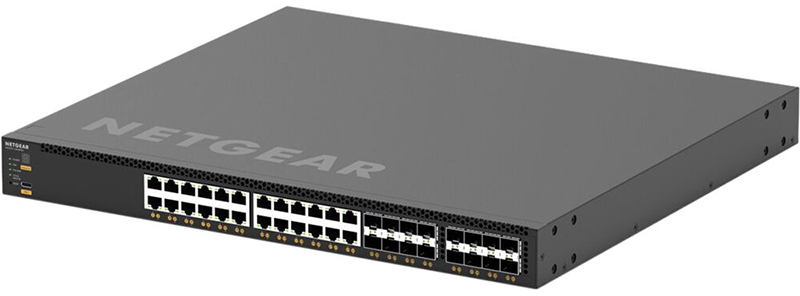

M4350-24X8F8V (XSM4340V)

M4350-24X8F8V

  • 24 10G/Multi-Gig PoE++ ports, 8 10GBASE-X SFP+ and 8 25GBASE-X SFP28 ports
  • 750W internal power supply providing 290W of PoE budget
  • 1 slot for modular power supply (1+1 redundancy and/or EPS share)
    •

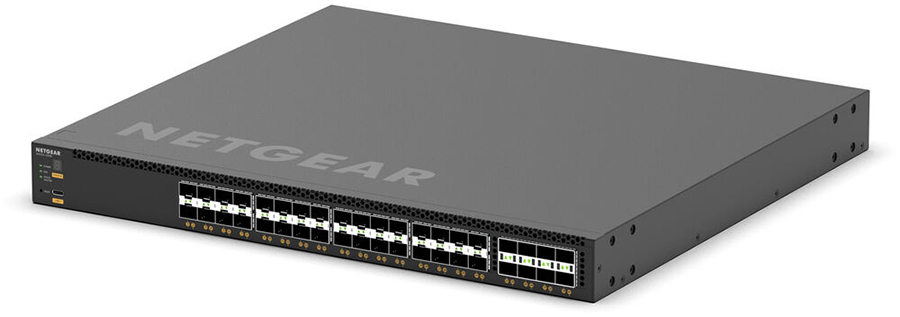

M4350-32F8V (XSM4340FV)

M4350-32F8V

  • 32 10GBASE-X SFP+ ports with 8 25GBASE-X SFP28 uplinks
  • 420W internal power supply
  • 1 slot for modular power supply (1+1 redundancy)
    •

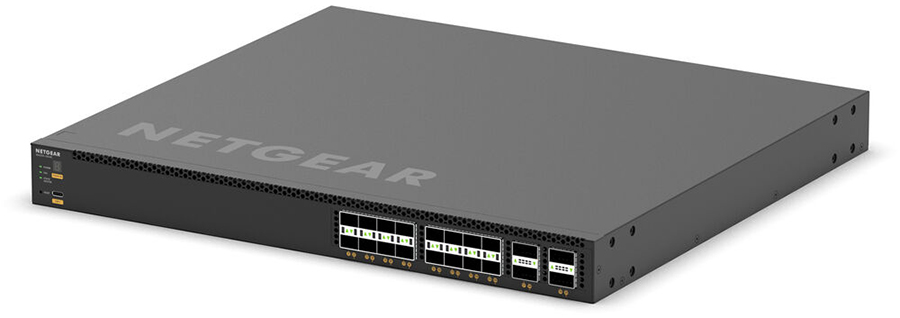

M4350-16V4C (VSM4320C)

M4350-16V4C

  • 16 25GBASE-X SFP28 ports with 4 100GBASE-X QSFP28 uplinks
  • 420W internal power supply
  • 1 slot for modular power supply (1+1 redundancy)
    •

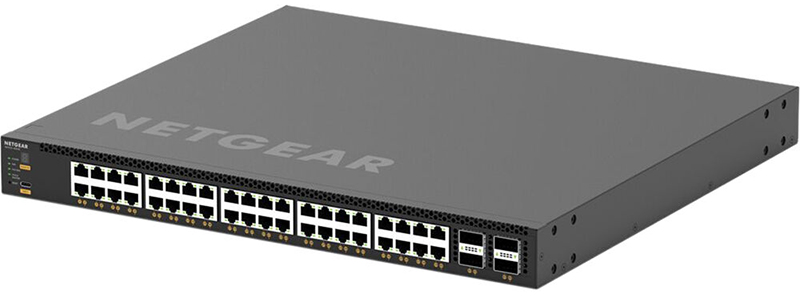

M4350-40X4C (XSM4344C)

M4350-40X4C

  • 40 10G/Multi-Gig PoE++ ports with 4 100GBASE-X QSFP28 uplinks
  • 750W internal power supply providing 196W of PoE budget
  • 1 slot for modular power supply (1+1 redundancy and/or EPS share)
    •
M4500 Series: 100G AV over IP

M4500-32C/M4500-48XF8C

M4500-32C/M4500-48XF8C

  • 32x100G QSFP28 ports / 48x10G/25G SFP28 and 8x100G QSFP28 ports
  • 1G Ethernet service port for out-of-band management (OOB, RJ45)
  • Full width 1U (508mm depth) with two mounting ears (front) and rail kits (back)
    •
