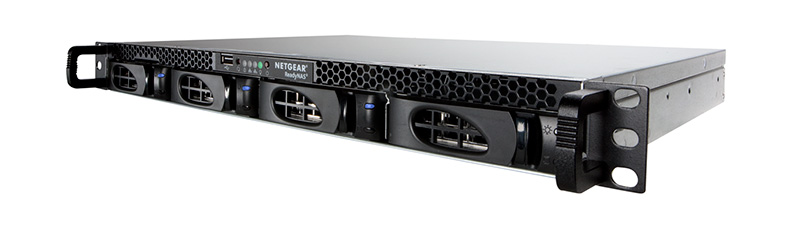

NETGEAR ReadyNAS 3138 Series
ReadyNAS 3138 Network Attached Storage (NAS)

NETGEAR ReadyNAS 3138 Series

Sorry, this product is no longer available, Please contact us for a replacement.



Overview:

Application data, virtual images, client files, email... the types of data central to running a successful business can seem endless. With ReadyNAS you finally have an advanced and easy-to use solution for centralizing, securing and controlling access to your digital assets. Way more than just simple unified (NAS and SAN) storage for your company, ReadyNAS allows you to do more than you ever thought you could afford by pairing the latest in performance with innovative efficiency technologies such as unlimited snapshots, thin provisioning and cloud-managed replication.

Every networked attached storage (NAS) device from NETGEAR runs on the revolutionary ReadyNAS operating system. This custom-built OS protects stored data not only with XRAID2 automatic expansion, but is the first desktop NAS for the SMB to feature the continuous data protection of unlimited snapshots along with real-time anti-virus and native encryption. Designed specifically for the unique needs of small business users, ReadyNAS devices utilize proprietary ReadyCLOUD technology for cloud-based discovery, provisioning and even ongoing management. In addition, these new devices are virtualization-ready with iSCSI support, thin provisioning capability and certification with VMware and Microsoft.

These days, your data is your world. With ReadyNAS, protecting and accessing that world has never been easier. ReadyNAS — Storage Made EASY.

Key Business Features


icon - Unlimited Snapshots

Unlimited Snapshots: Unlimited data snapshot capability for on-box protection and flexible data recovery

 icon - iSCSI

iSCSI and Thin Provisioning: Powerful tools for a businesses taking advantage of virtual infrastructures
icon - XRAID2

XRAID2 & Instant Provisioning: Easily expand capacity and feel confident knowing that data is always protected

 icon - Anti-virus & Encryption

Anti-virus & Encryption: Keep data protected from outside threats and safe from prying eyes
icon - Cloud-managed Replication

Cloud-managed Replication: Maintain data sets in multiple locations or ensure protection of data from remote or branch office locations

 icon - Modern GUI

Modern GUI and ReadyCLOUD Management: Sleek, modern interface that puts the tools you need, where and when you need them

Key Business Solutions


icon - File Server

File Server: Unified storage platform for sharing files between Windows, Mac and Linux-based computers

 icon - Disaster Recovery

Disaster Recovery: Cloud-managed replication for maintaining multiple sets of data and performing easy restores in case of disaster
icon - Modern GUI

Backup: RAID redundancy with automatic expansion and unlimited data snapshots for point-in-time restore

 icon - Virtualization

Virtualization: Thin provisioning, iSCSI support and certified with VMware and Microsoft

Specifications:


  ReadyNAS 2120v2 ReadyNAS 3138
Hardware
CPU Marvell Armada XP Dual Core 1.6GHz Intel Atom C2558 Quad Core 2.4GHz with QuickAssist
Memory 2GB 4GB ECC UDIMM
Drive Bays 4 4
Drive Types Supported SATA/SSD 2.5” or 3.5” SATA/SSD 2.5” or 3.5”
Hot Swappable Drives Yes Yes
Max Raw Internal Capacity (Based on 8TB drives): 32TB 32TB
eSATA Ports 2 2
Gigabit LAN Ports 2 2
USB Ports 1 x USB 2.0, 2 x USB 3.0 1 x USB 2.0, 2 x USB 3.0
Power Supply Internal 180W: input 100-240V AC, 50/60Hz Internal 180W: input 100-240V AC, 50/60Hz
Fan (mm) 3 x 40 3 x 40
Dimensions DxWxH (mm) 308 x 430 x 44 406 x 486 x 44
Weight (kg) 4.19 5.21
Chassis Warranty 5 years with NBD HW Replacement 5 years with NBD HW Replacement
Software and Functionality
Certification and Compatibility   VMware vSphere ESXi 6.0
Cloud-discovery, Setup and Management Yes Yes
Data Protection with Unlimited Snapshots Yes Yes
Web-managed Replication for Disaster Recovery Yes Yes
Real-time Antivirus Yes Yes
iSCSI and Thin Provisioning Yes Yes

Data Protection (Backup & Replication)

  • Unlimited block-based snapshots for continuous data protection.
  • Restore Snapshots to any point in time.
  • Restore Snapshot data from local admin GUI, ReadyCLOUD, or native Windows File Explorer
  • Scheduled and manual snapshots
  • File Synchronization (rsync)
  • Encrypted Remote Replication
  • Cloud managed Remote Replication(ReadyNAS to ReadyNAS). No licenses required for ReadyNAS OS 6 devices.
  • AES 256-bit volume based encryption
  • X-RAID2 (automatic single volume online expansion)
  • Single Disk, JBOD
  • RAID Levels: 0, 1, 5, 6, 10 (RAID level support depends on number of drives/bays)
  • RAID Global Hot Spare
  • eSATA Expansion
  • Backup to external storage (USB/eSATA)
  • Apple Time Machine support
  • Remote Apple Time Machine backup and restore (over ReadyNAS Remote)
  • ReadyNAS Vault Cloud backup (optional service)
  • ReadyDROP file synchronization (sync folder on Mac/Windows to a folder on ReadyNAS)
  • DropBox file synchronization (requires DropBox account)
  • Real-time Anti-Virus scanning using signature and heuristic algorithms. (No end-user licenses required) Protection for viruses, malware, worms, and Trojans.

Storage Area Networks (SAN), Virtualization

  • Unlimited iSCSI LUN Snapshot
  • Thin or thick provision LUNs
  • Multi-LUN per target
  • LUN mapping
  • LUN masking
  • SPC-3 Persistent Reservation (iSCSI)
  • MPIO (iSCSI)
  • MC/S (iSCSI)
  • Max # iSCSI Target: 256
  • Max # iSCSI LUN: 256
  • VMware vSphere 5
  • Citrix XenServer 6
  • Windows Server 2008 Hyper-V
  • Windows Server 2008 Failover Clustering
  • Windows Server 2012

Hardware

  • Marvell Armada XP (78230) 1.2GHz
  • Memory: 2GB DDR3
  • Floating Point CPU
  • Flash: 128MB for OS
  • Drive Types Supported: SATA/SSD 2.5" or 3.5"
  • Hot Swappable Drives
  • Two eSATA ports
  • One USB 2.0 & Two USB 3.0 ports
  • Total solution capacity: 16TB
  • Dual Gigabit Ethernet ports with link aggregation and failover
  • LEDs: Power, Activity, Disk, Backup, LAN
  • Integrated rackmount ears
  • Dimensions (DxWxH): 308mm x 430mmx 44mm
  • Weight: 7.48 kg
  • Power cord localized to country of sale

ReadyCLOUD (cloud access to ReadyNAS)

  • ReadyCLOUD portal based data access and management
  • VPN quality remote data transfer and management
  • Share data with friends & co-workers directly from portal

Remote Access Clients

  • ReadyNAS Remote clients for Apple Mac OS X, Microso" Windows, Android, Apple iOS (Remote file access and management client).
  • VPN quality remote data transfer and management
  • Simple remote access through ReadyNAS Remote (no firewall or router configuration needed)
  • ReadyDROP file synchronization (sync folder on Mac/Windows to a folder on ReadyNAS)

File System & Transfer Protocols

  • ReadyNAS OS 6
  • Linux 3.x
  • Internal File System: BTRFS
  • External File System: EXT3, EXT4, NTFS, FAT32, HFS+
  • Copy-on-write filesystem
  • Microsoft Network (CIFS/SMB3)
  • Apple OS X (AFP 3.3)
  • Linux/Unix (NFS v3)
  • Internet (HTTP)
  • Secure Internet (HTTPS)
  • File Transfer Protocol (FTP)
  • FTP over SSL / TLS (explicit)
  • FTP Passive mode with port range setup
  • FTP Bandwidth control
  • FTP Anonymous
  • FTP Transfer Log
  • Secure Shell (SSH)
  • SSH File Transfer Protocol (SFTP)
  • Web Authoring (WebDAV)
  • Storage Array Network (iSCSI)
  • File Synchronization (rsync)
  • Local web file manager

Users/Groups

  • Max # Users: 8192
  • Max # User Groups: 8192
  • Max # Share Folder: 1024
  • Max # Concurrent Connections: 1024
  • Share Folder Level ACL Support
  • Advanced Folder Permissions with Subfolder ACL support for CIFS/SMB, AFP, FTP
  • Microsoft Active Directory (AD) Domain Controller Authentication
  • Local access list
  • ReadyCLOUD based ACL
  • Domain user login via CIFS/SMB, AFP, FTP

Management

  • ReadyCLOUD cloud based discovery and management
  • RAIDar local discovery agent (Windows/Mac)
  • Save and restore system configuration(clone devices)
  • Local event log
  • Send events to SYSLOG server
  • Connection reporting (SMB)
  • Local Graphical User Interface (GUI) Languages: English, German, French, Japanese, Chinese, Russian, Swedish, Portuguese, Italian, Spanish, Polish, Czech, Dutch, Korean
  • Genie+ marketplace integration to add productivity, media, backup, surveillance and other applications
  • Unicode support
  • Volume Management
  • Thin provision Shares and LUNs
  • Instant Provisioning/Expansion with data protection
  • Restore to factory default
  • Supported Operating Systems (Microsoft Windows Vista (32/64-bit), 7 (32/64-bit), 8 (32/64-bit), Microsoft Windows Server 2008 R2/2012, Apple OS X, Linux/Unix, Solaris, Apple iOS, Google Android)
  • Supported Web Browsers (Microsoft Internet Exploer 9+, Mozilla Firefox 14+, Google Chrome 20+, Apple Safari 5+)

System Monitoring

  • Device capacity, performance, resource and health monitoring
  • Bad block scan
  • Hard Drive S.M.A.R.T.
  • File System Check
  • Disk Scrubbing
  • Disk Defragment
  • Alerts (SMTP email, LCD, SNMP, syslog, local log)
  • Auto-shutdown (hard drive, fan, UPS)
  • Auto-restart on power recovery

Networking Protocols

  • TCP/IP
  • IPv4
  • Next-generation Internet Protocol (IPv6)
  • Static IP Address
  • Dynamic IP Address
  • Multiple IP Settings
  • DHCP Client
  • UPnP Discovery
  • Bonjour Discovery
  • Link Aggregation IEEE 802.3ad
  • Port Trunking (balanced round robin, active backup, balance xor, broadcast, 802.3ad link aggregation LACP, transmit load balancing, adaptive load balancing)
  • Hash Types IEEE 802.3ad LACP or XOR (Layer 2, Layer3, Layer 4)
  • Jumbo Frames
  • Virtual LAN (VLAN)
  • SSH
  • SNMP v2, v3
  • Network Time Protocol (NTP)

Media

  • ReadyDLNA (UPnP DLNA Media Server)
  • ReadyDLNA Streams to any compliant device including PS3/Xbox 360
  • ReadyDLNA mobile clients for remote media streaming (iOS, Android)
  • ReadyDLNA supported music formats (wav, wma, pcm, ogg, mp3, m4a, flac, aac)
  • ReadyDLNA supported photo formats (jpg, jpeg)
  • ReadyDLNA supported video formats (3gp, mp4, wmv, xvid, vob, ts, tivo, mts, mpeg, mpg, mp4, mov, mkv, m4v, m4p, m2t, m2ts, flv,flc, fla, divx, avi, asf)
  • ReadyDLNA supported playlist formats (pls, m3u)
  • ReadyNAS Surveillance (free trial, license required) supports over 40 brands and 1000 models of IP cameras
  • iTunes Server
  • iTunes supported audio formats (mp3, m4a, m4p, wav, aif)
  • iTunes supported video formats (m4v, mov, mp4)
  • iTunes supported playlist formats (m3u, wpl)
  • TiVo Archiving
  • Plex Media Server streams to DLNA and Plex clients (mobile, desktop, Google TV, Roku, Samsung & LG TVs)

Compliance

  • ENGR 10049 EST Environmental Stress Test Guideline
  • ENGR 10045 EVT Engineering Validation Test Guideline
  • ENGR 10048 CVT Compliance Validation Test Guideline
  • ENGR 10046 SVT System Validation Test Guideline
  • ENGR 10023 HALT Highly Accelerated Life Test Guideline
  • ENGR 10036 CDG Component Derating Guideline

Environment

  • Noise levels: <28dBA (ReadyNAS 516), <25dBA (all other units)
  • Operating Temperature: 0°-40°C
  • Operating Humidity: 5-95% relative humidity, non-condensing
  • Smart Fan
  • Scheduled Power on/off
  • UPS Support
  • Network UPS with SNMP Management
  • Wake on LAN
  • Schedule power on/off
  • Auto-power on (after shutdown)
  • HDD Spin Down
  • AC Input Power Voltage 100V to 240V
  • Power Frequency: 50Hz to 60Hz, Single Phase
  • Certification: FCC Class B, CE Class B, RoHS, VCCI Class B
  • Warranty: 5 years*

Optional Support SKUs

  • OnCall 24x7 Support: 1-year (PMB0313), 3-year (PMB0333), 5-year (PMB0353)
  • Xpress HW Support: 3-year (PRR0333), 5-year (PRR0353)

*The 5-Year Hardware Warranty only covers hardware, fans, and internal power supplies, and does not include external power supplies or software. Hardware modifications or customization void the warranty. The warranty is only valid for the original purchaser and cannot be transferred.

Documentation:

Download the NETGEAR ReadyNAS 2120v2/3138 Datasheet (PDF).
