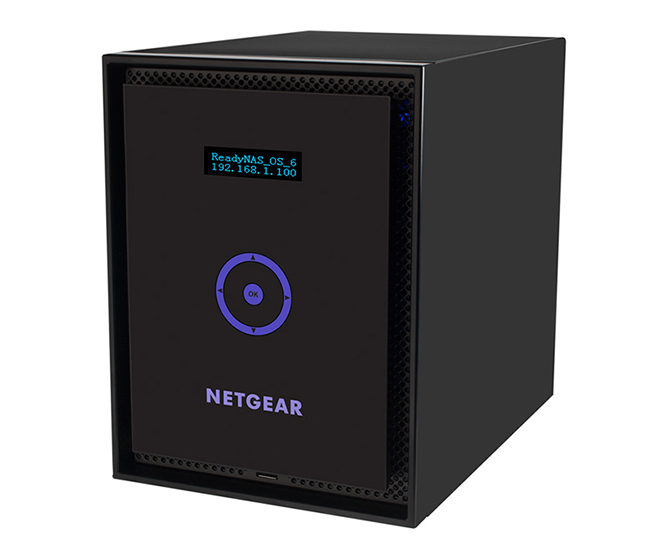

NETGEAR ReadyNAS 516 Series
Designed to service between 25-250 simultaneous users, the ReadyNAS 500 is an ideal desktop storage solution for an small or medium sized business.
Sorry, this product is no longer available, Please contact us for a replacement.
Overview:
Application data, virtual images, client files, email... the types of data central to running a successful business can seem endless. With ReadyNAS you finally have an advanced and easy-to use solution for centralizing, securing and controlling access to your digital assets. Way more than just simple unified (NAS and SAN) storage for your company, ReadyNAS allows you to do more than you ever thought you could afford by pairing the latest in performance with innovative efficiency technologies such as unlimited snapshots, thin provisioning and cloud-managed replication.
Every networked attached storage (NAS) device from NETGEAR runs on the revolutionary ReadyNAS operating system. This custom-built OS protects stored data not only with XRAID2 automatic expansion, but is the first desktop NAS for the SMB to feature the continuous data protection of unlimited snapshots along with real-time anti-virus and native encryption. Designed specifically for the unique needs of small business users, ReadyNAS devices utilize proprietary ReadyCLOUD technology for cloud-based discovery, provisioning and even ongoing management. In addition, these new devices are virtualization-ready with iSCSI support, thin provisioning capability and certification with VMware and Microsoft.
These days, your data is your world. With ReadyNAS, protecting and accessing that world has never been easier. ReadyNAS — Storage Made EASY.
| ReadyNAS 516 Series: | ||
|---|---|---|
ReadyNAS 516 6-Bay, DisklessRN51600
|
ReadyNAS 516 6-Bay, 6x1TB Enterprise DriveRN51661E
|
ReadyNAS 516 6-Bay 6x2TB Enterprise DriveRN51662E
|
ReadyNAS 516 6-Bay, 6x3TB Enterprise DriveRN51663E
|
ReadyNAS 516 6-Bay, 6x4TB Enterprise DriveRN51664E
|
|
Key Business Features
 |
Unlimited Snapshots: Unlimited data snapshot capability for on-box protection and flexible data recovery |  |
iSCSI and Thin Provisioning: Powerful tools for a businesses taking advantage of virtual infrastructures |
 |
XRAID2 & Instant Provisioning: Easily expand capacity and feel confident knowing that data is always protected |  |
Anti-virus & Encryption: Keep data protected from outside threats and safe from prying eyes |
 |
Cloud-managed Replication: Maintain data sets in multiple locations or ensure protection of data from remote or branch office locations |  |
Modern GUI and ReadyCLOUD Management: Sleek, modern interface that puts the tools you need, where and when you need them |
Key Business Solutions
 |
File Server: Unified storage platform for sharing files between Windows, Mac and Linux-based computers |  |
Disaster Recovery: Cloud-managed replication for maintaining multiple sets of data and performing easy restores in case of disaster |
 |
Backup: RAID redundancy with automatic expansion and unlimited data snapshots for point-in-time restore |  |
Virtualization: Thin provisioning, iSCSI support and certified with VMware and Microsoft |
Model Comparison:
| ReadyNAS Desktop Model Comparison - 300/500 Series | ||||
|---|---|---|---|---|
| ReadyNAS 312 | ReadyNAS 314 | ReadyNAS 316 | ReadyNAS 516 | |
| CPU | Intel® Atom 2.1GHz dual core | Intel® Atom 2.1GHz dual core | Intel® Atom 2.1GHz dual core | Intel® Ivy Bridge Core i3-3220 3.3GHz dual core |
| Memory | 2GB | 2GB | 2GB | 4GB ECC |
| Drive Bays | 2 | 4 | 6 | 6 |
| Drive Types Supported | SATA/SSD 2.5” or 3.5” | SATA/SSD 2.5” or 3.5” | SATA/SSD 2.5” or 3.5” | SATA/SSD 2.5” or 3.5” |
| Hot Swappable Drives | Yes | Yes | Yes | Yes |
| Tool-less 3.5” Disk Installation | Yes | Yes | Yes | Yes |
| eSATA Expansion Ports | 1 | 2 (1 Shared USB/ eSATA port) | 2 | 3 |
| Total Solution Capacity Internal / with optional EDA500 unit(s) |
8TB / 28TB | 16TB / 56TB | 24TB / 64TB | 24TB / 84TB |
| Gigabit LAN Ports | 2 | 2 | 2 | 2 |
| USB Ports | One (1) USB 2.0, Two (2) USB 3.0 | One (1) USB 2.0, Two (2) USB 3.0 | One (1) USB 2.0, Two (2) USB 3.0 | One (1) USB 2.0, Two (2) USB 3.0 |
| Power Supply | 12V, 5A External 60W: input 100-240V AC, 50/60Hz | 12V, 7A External 90W; input 100-240V AC, 50-60Hz | Internal 200W; input 100-240V AC, 50-60Hz | Internal 200W; input 100-240V AC, 50-60Hz |
| BTU at Full Power Supply Utilization | 51W | 69W | 111W | 189W |
| Power Consumption: Operation | 35W | 49W | 55W | 88W |
| Power Consumption (Wake on LAN) | 6227mW | 843mW | 804mW | 956mW |
| Power Consumption: Power Off | 266mW | 472mW | 338mW | 370mW |
| Chassis Warranty* | 5 years | 5 years | 5 years | 5 years |
| 2-Line LCD Display | No | Yes | Yes | Yes |
| Touch Screen Navigation | No | No | Yes | Yes |
| Fan (mm) | 92 | 92 | 120 | 120 |
| Dimensions DxWxH (mm) | 220 x 101 x 142 | 223 x 134 x 205 | 287.5 x 192 x 259 | 287.5 x 192 x 259 |
| Weight (kg) | 2.22 | 3.97 | 7.53 | 7.97 |
| ProSupport Service Packs Available | 300 Series | 500 Series | ||
| OnCall 24x7 | 1 year: PMB0312 3-year: PMB0332 5-year: PMB0352 |
1 year: PMB0313 3-year: PMB0333 5-year: PMB0353 |
||
*The 5-Year Hardware Warranty only covers hardware, fans, and internal power supplies, and does not include external power supplies or software. Hardware modifications or customization void the warranty. The warranty is only valid for the original purchaser and cannot be transferred.
* The 3-Year Hardware Warranty only covers hardware, fans, and internal power supplies, and does not include external power supplies or software. Hardware modifications or customization void the warranty. The warranty is only valid for the original purchaser and cannot be transferred.
Specifications:
Data Protection (Backup & Replication)
Storage Area Networks (SAN), Virtualization
Hardware
ReadyCLOUD (cloud access to ReadyNAS)
Remote Access Clients
|
File System & Transfer Protocols
Users/Groups
Management
System Monitoring
|
Networking Protocols
Media
Compliance
Environment
|
Documentation:
Download the NETGEAR ReadyNAS 300/500 Series Datasheet (PDF).
