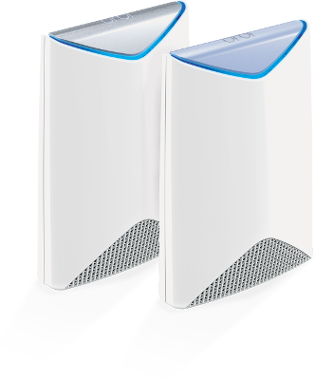

NETGEAR Orbi Pro Tri-band WiFi System
AC3000 Tri-band WiFi System

Features:

Wire-free Installation

No need to run cables. Power up the Orbi Pro Satellite and it will automatically connect to the Orbi Pro Router.

Blazing Fast 3 Gigabit AC WiFi

Reliable and high-performance AC3000 WiFi for up to 5,000 sq ft with optimized simultaneous connections for up to 40 users (MU-MIMO).

Separate Guest User Access

Orbi Pro comes with 3 predefined networks with traffic isolation for network owner/administrator, employees and customers. And includes a customizable guest portal.

Location Flexibility

New industrial design for desktop, wall or ceiling placement.

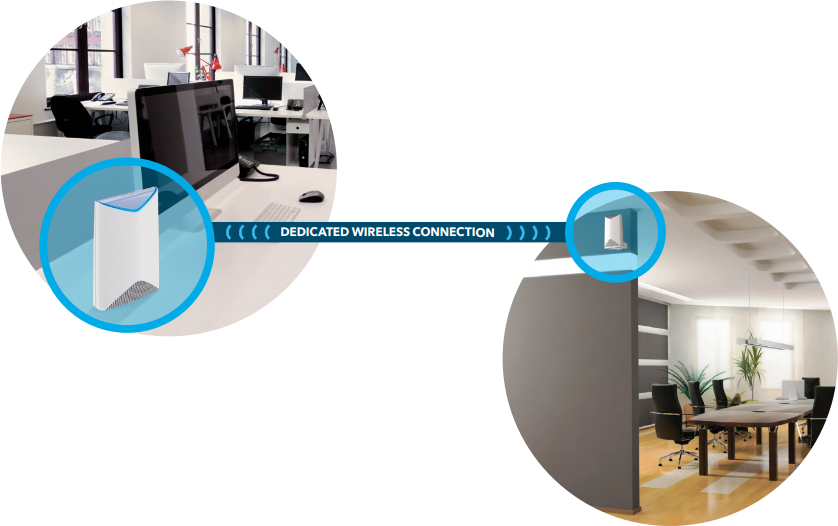

Orbi Pro Deployment Diagram:

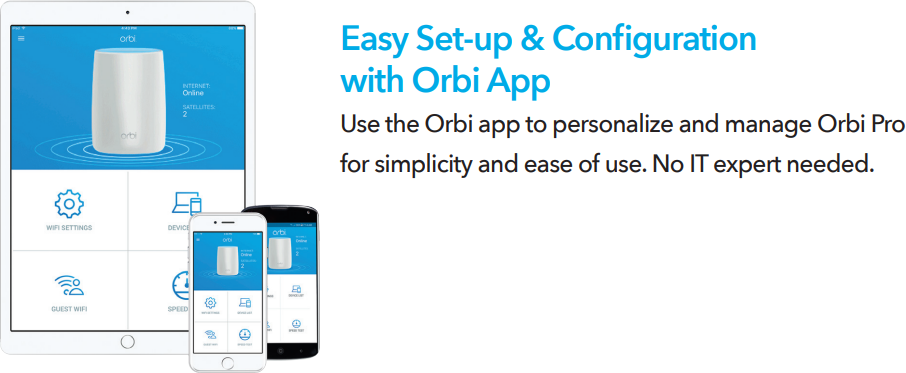

Orbi App:

Specifications:

What’s in the box?

• One (1) Orbi Pro Router (SRR60)
• One (1) Orbi Pro Satellite (SRS60)
• Two (2) wall mounts with screws
• Two (2) ceiling mounts with screws
• One (1) 2m Ethernet cable
• Two (2) 12V/3.5A power adapters
• Quick start guide

What do I need for Orbi to work?

• Connect to existing modem or gateway

Physical Specifications

• Dimensions: 6.8 x 3.3 x 9.7 in each
• Weight: 2.06lb each

Orbi Pro Router does not support and will not pair with Orbi Home WiFi System Satellites.

Technical Specifications

• Orbi AC3000 Router and AC3000 Satellite (1,733 + 866 + 400Mbps)^†
• Simultaneous Tri-band WiFi
• Radio 1: IEEE® 802.11b/g/n 2.4GHz–256QAM support
• Radio 2: IEEE® 802.11a/n/ac 5GHz–256QAM support
• Radio 3: IEEE® 802.11a/n/ac 5GHz–256QAM support
• Six (6) high-performance antennas with high-power amplifiers
• Implicit/Explicit Beamforming for 2.4 & 5GHz bands (1,733 + 866 + 400Mbps)^†
• MU-MIMO capable for simultaneous data streaming on multiple devices
• Four (4) 10/100/1000Mbps Gigabit Ethernet ports
• 1 WAN & 3 LAN for Router
• 4 LAN for Satellite
• Security
• WPA/WPA2-PSK support
• Three (3) wireless networks
• Administrative devices
• Employee devices
• Guest devices with Captive Portal Challenge
• Guest WiFi Network is easy to setup for secure Internet access
• Guest network devices are denied access to Administrative and Employee networks and any devices on those networks

This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller. * 90-day complimentary technical support following purchase from a NETGEAR authorized reseller. ^† Maximum wireless signal rate derived from IEEE standard 802.11 specifications. Network conditions and environmental factors, including volume of network traffic, building construction, and network overhead may decrease actual data throughput rate.

Views:

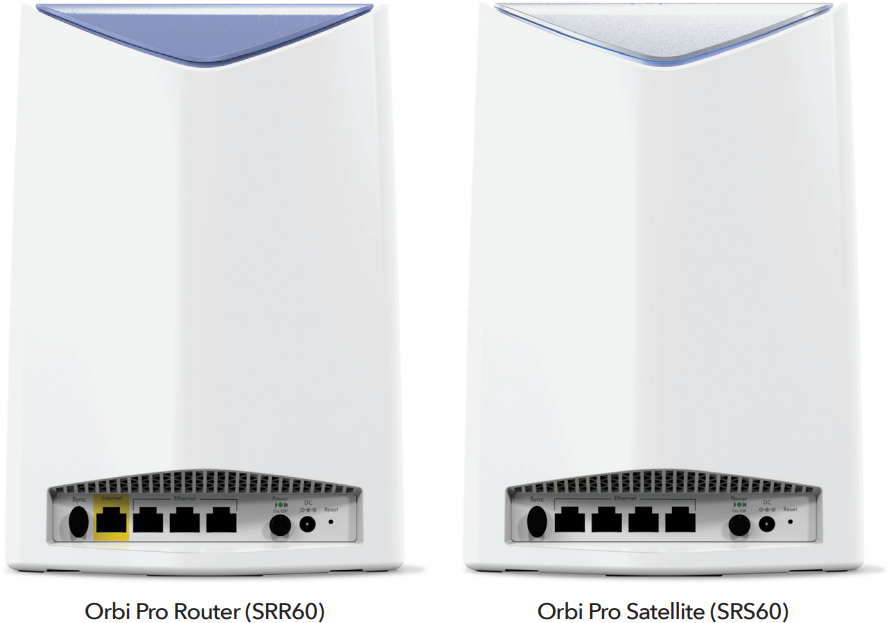

Orbi Pro Router & Satellite (SRS60)

Documentation:

Download the NETGEAR Orbi Pro Tri-band WiFi System Datasheet (PDF).
