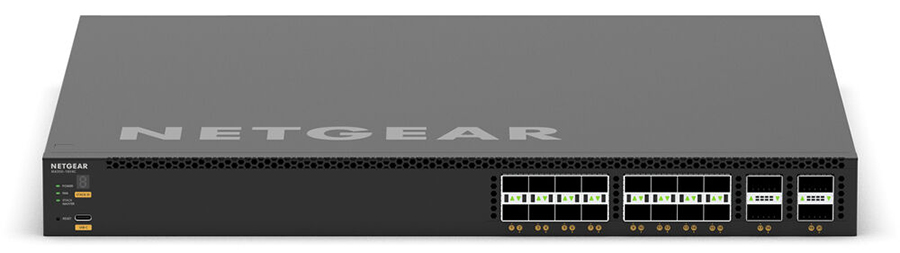

NETGEAR M4350-16V4C
16xSFP28 25G and 4xQSFP28 100G Managed Switch

Features:

The NETGEAR M4350 series is a versatile 1G, 2.5G, 10G, 25G, and 100G solution designed for the edge, the server room, and the core. M4350 delivers nonstop forwarding stacking, spine and leaf, edge to core connectivity for AV and IT networks. In AV environments, the AV User Interface, Engage Controller and AV profiles are certified by 200+ AV manufacturers

Key Features

• Ranges from 1G to 100G with a variety of PoE+ and Ultra90 PoE++ options for 15.4W, 30W, 60W, 75W and 90W AVoIP endpoints
• Non-stop forwarding (NSF) provides advanced High Availability (HA) with hitless failover across the stack
• Entire feature set (L2 switching, L3 dynamic routing, time sensitive networking, AVB) available without license
• Low acoustics, half-width 16-port and 24-port 10G models can be paired in a single rack space for redundant Top of Rack
• For the IT team, only one platform from the edge to the core, one software to standardize on
• Redundant modular power supplies contribute to business continuity management
• Layer 3 feature set includes static and policy-based routing, RIP, VRRP, OSPF, and PIM dynamic routing
• No need for tradeoffs anymore between performance, reliability, HA, features, scale, futureproofing, complexity, or cost
• Front to back cooling, always within 40cm (15.7in) depth and controlled thermal and acoustics
• Intelligent fans configurable in Quiet Mode to minimize noise, or Cool Mode to minimize heat

AV Software Features

• Designed for the most demanding AV over IP installations of up to thousands of endpoints
• AV-centric UserInterface allows for simple, profile-based, per-port configuration in a snap
• Works out of the box with automatic, multi-switch configuration for most AV-over-IP installs
• All the simplicity of the M4250 AV Line packed in more Enterprise-class hardware with redundant power supplies and larger fabrics with 25G and 100G uplinks
• Less time to install and configure using the NETGEAR Engage Controller
• SMPTE ST 2110 supported on select models, always with the same simplicity from the AV UI
• NETGEAR IGMP Plus means AV-over-IP multicasting will work out of the box and not flood your network
• With Auto-Trunk and Auto-LAG, simply connect M4350 switches together and you are done!

Other Software Features

• Static, RIP and PIM-SM, DM and SSM multicast routing, DHCP Server and PTPv2 Transparent Clock (1-step E2E)
• Advanced classifier-based, time-based hardware implementation for L2 (MAC), L3 (IP) and L4 (UDP/TCP transport ports) security and prioritization
• Selectable Port-Channel / LAG (802.3ad - 802.1AX) L2/L3/L4 hashing for fault tolerance and load sharing with any type of Ethernet channeling
• Voice VLAN with SIP, H323 and SCCP protocols detection and LLDP-MED IP phones automatic QoS and VLAN configuration
• Efficient authentication tiering with successive DOT1X, MAB and Captive Portal methods for streamlined BYOD
• Advanced IPv4/IPv6 security implementation including malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation

Management Features

• DHCP/BootP innovative auto-installation including firmware and configuration file upload automation
• Industry standard SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN and PTPv2
• Service port for out-of-band Ethernet management (OOB)
• USB Type-C port for local management console (unique NETGEAR driver for M4250/M4350)
• Standard USB-A ports for local storage, logs, configuration or image files
• Industry standard command line interface (CLI) for IT admins used to other vendors commands
• Fully functional Web console (main GUI) for IT admins who prefer an easy to use graphical interface
• Dedicated AV web-based GUI interface for AV installations

NETGEAR Warranty and Support

• NETGEAR ProSAFE Limited Lifetime Hardware Warranty
• Included Lifetime Technical Support
• Included Lifetime Next Business Day Hardware Replacement
• Offering free network design services and installation support, the NETGEAR Engineering Services Team is ready to help ensure your 1G deployments with the M4350 switches go as smooth as possible. Just drop us an email at [email protected] to get started!

At a Glance:

Deployment:

AV Target Application

IT Target Application

* Stacking, AVB, and PTP TC are mutually exclusive features. A stack cannot run AVB, nor PTP TC (or BC/GM).

Specifications:

Documentation:

Download the NETGEAR M4350 Series Datasheet (PDF).
