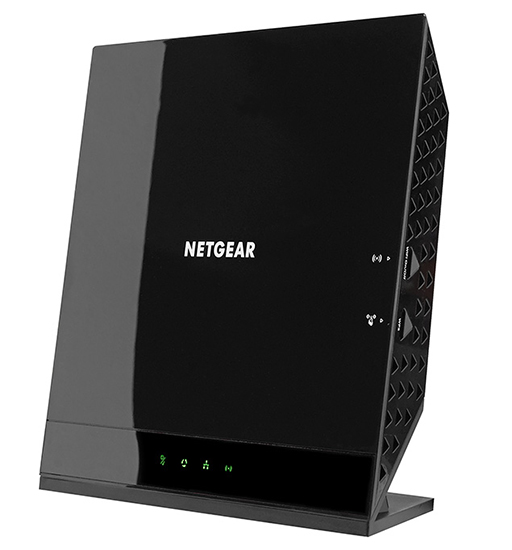

NETGEAR WAC120
802.11ac Wireless Access Point

NETGEAR WAC120

Sorry, this product is no longer available, Please contact us for a replacement.



Overview:

Superior 802.11ac performance with an affordable price point

The NETGEAR WAC120 Wireless Access Point is a cost effective, high performance dual band 802.11ac AP supporting up to an aggregate throughput of 1.2 Gbps (300 Mbps for 2.4 GHz and 867 Mbps 802.11ac for 5 GHz). WAC120 802.11ac AP operates in standalone mode with an intuitive user interface and a flexible desktop mounting stand. It is perfectly positioned for customers demanding high throughput, ultra superior performance, and extensive coverage deployment for Small and Home Office environments.

High performance dual band 802.11ac wireless access point

  • Deliver the cost effective solution for Small Office and Home Office
  • Industry leading performance and value with 1.2 Gbps of wireless throughput
  • NETGEAR reliable 3 year product warranty

Flexible deployment with simplicity in management

  • Small offices with a single WAC120 to provide maximum throughput for the entire premise
  • Dental offices with a few WAC120 to provide ubiquitous coverage with strong receptions
  • Small hospitalities such as Bed and Breakfast for ease of setup and reliable connectivity

Gigabit Wireless Connectivity for Small Office and Home Office

  • Support up to 1.2 Gbps (867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz) of wireless throughput
  • Gigabit wired connectivity to Internet gateway routers or cable modems
  • Dual band concurrent operation at both 2.4 and 5 GHz frequency range

Simple connectivity and ease of set up

  • Connect simply to DSL gateway, routers, or cable modems
  • WAC120 802.11ac Access Point provides high performance gigabit wireless
  • Wireless Protected Setup (WPS) button enables ease of client auto configuration

High performance and superior coverage

  • Up to 4x the speed of 802.11n networks
  • Maximize coverage for optimal deployment for SOHO

Comprehensive security

  • Supports wireless security features (WPA, WPA2)
  • MAC based Access Control List to protect against intruders

Interoperate with both new and legacy clients

  • Support latest 802.11ac wireless clients to achieve maximum speed
  • Backward compatible to allow legacy devices to connect at their fastest speed

Easy to Configure

  • Simple setup in minutes with intuitive Graphical User Interface (GUI)

Specifications:

NETGEAR WAC120 Specifications
Power
  • Country-specific plug: 12V / 1A (12W)
  • 1 Amp power adapter
  • Power consumption: 8.1W (maximum)
Physical Specifications
  • Dimensions (L x W x H): 7.08 x 6.69 x 2.36 in (180 x 170 x 60 mm)
  • Weight: 0.71 lb (322 g)
Mounting Desktop
Physical Interfaces One (1) 10/100/1000BASE-T Ethernet (RJ-45) port with Auto Uplink (Auto MDI-X)
LEDs Power/Test, ACT, LAN, Wireless
Default Reset Yes
Operating Temperature 32° to 104°F (0° to 40°C)
Storage Temperature -4° to 158°F (-20° to 70°C)
Operating Relative Humidity 10-90%
Storage Humidity 5-95%
MTBF
  • @ 25°C > 375,000 hours
  • @ 50°C > 125,000 hours
Standards
  • IEEE 802.11ac specification
  • IEEE 802.11n 2.0 specification
  • IEEE 802.11g
  • IEEE 802.11b
  • IEEE 802.11a
Frequency Band 2.4GHz and 5GHz concurrent operation
Maximum Theoretical Throughput
  • 300 Mbps (2.4GHz)
  • 867 Mbps (5GHz)
Maximum Number of Clients 64
Deployment options
  • Standalone
  • Web UI
Access Point Antenna: 2dBi (internal)
Advanced Wireless
  • WDS Point-to-point wireless bridge mode
  • WDS Point-to-multipoint wireless bridge mode
  • Wireless client mode
Security
  • Wired Equivalent Privacy (WEP) Encryption
  • WiFi Protected Access Pre-shared Key (WPA-PSK, WPA2-PSK)
  • MAC Address filtering
  • 1 BSSID
MAC ACL Yes
Wireless Client Mode Yes
VPN Pass-through Yes
802.11e WMM (Wireless multimedia mode) for QoS
Simultaneous Bridge/Client Association Yes
Package Contents
  • 802.11ac Wireless AP (WAC120)
  • Ethernet cable
  • Installation guide
  • Power adapter, localized to country of sale
  • Warranty/support information card
Safety Certification CE (EN60950-1)
Optional Support
  • PMB0351: 5 years OnCall 24x7
  • PMB0331: 3 years OnCall 24x7
  • PMB0311: 1 year OnCall 24x7
  • PRR0351: 5 years XPressHW
  • PRR0331: 3 years XPressHW
Product Ordering Information
  • WAC120-100AUS
  • WAC120-100NAS
  • WAC120-100PES
  • WAC120-100PRS
  • WAC120-100UKS
NETGEAR Warranty
  • This product is backed by a NETGEAR ProSAFE® Lifetime Hardware Warranty.
  • 3-Year Next Business Day Onsite Hardware Replacement. (See http://onsite.netgear.com for coverage, availability and terms and conditions).
  • ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat. (Remote diagnostics performed by our technical experts for prompt resolution of technical issues).

Deployment:

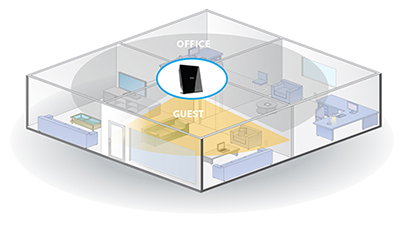

Standalone AP Deployment

Standalone AP Deployment

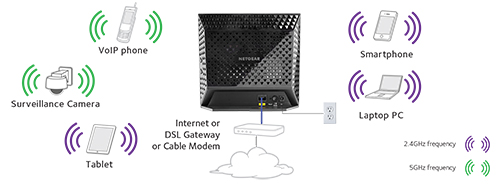

Dual Band 802.11ac Wireless Access Point

Dual Band 802.11ac Wireless Access Point

Documentation:

Download the NETGEAR WAC120 Datasheet (PDF).
