NETGEAR M4350-24X8F8V
24x10G/Multi-Gig PoE++ (290W base, up to 1,770W), 8xSFP+ and 8xSFP28 25G Managed Switch


NETGEAR M4350-24X8F8V

Netgear Products
NETGEAR Managed Switches

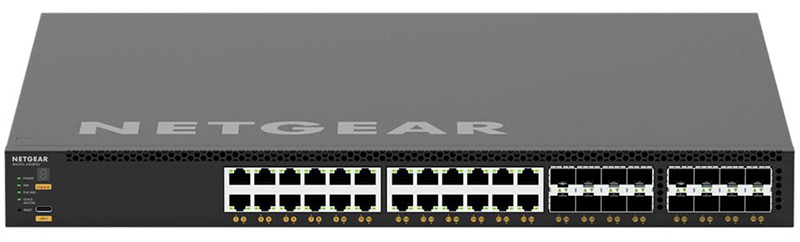

NETGEAR M4350-24X8F8V 24x10G/Multi-Gig PoE++ (290W base, up to 1,770W), 8xSFP+ and 8xSFP28 25G Managed Switch
#XSM4340V-100NES
Price: $9,359.59
Add to Cart for Pricing

More pricing below, click here!

Overview:

Introducing the NETGEAR AV and IT M4350 Switches, engineered and certified for audio/video over IP with dedicated service and support. The M4350 brings all the simplicity from the M4250 AV Line packed in more Enterprise-class hardware with redundant power supplies and larger fabrics with 25G and 100G uplinks. The revolutionary NETGEAR AV user interface and Engage™ Controller contain pre-configured profiles for all major audio, video, and lighting protocols.


M4350 AV Over IP Simplified

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

Mazimize Performance With Pro WiFi Access Points

Enable powerful, reliable WiFi at your location with Pro WiFi access points, powered by PoE or an external power adapter.


Power and Thoughput

Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.

Fast, Easy Configuration for AV Pros

A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.


Focus on the Event, Not Fan Noise

Most models have quiet mode which greatly reduces fan noise.

Designed for AV Over IP Right Out of the Box

With built-in NETGEAR IGMP Plus, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Features:

The NETGEAR M4350 series is a versatile 1G, 2.5G, 10G, 25G, and 100G solution designed for the edge, the server room, and the core. M4350 delivers nonstop forwarding stacking, spine and leaf, edge to core connectivity for AV and IT networks. In AV environments, the AV User Interface, Engage Controller and AV profiles are certified by 200+ AV manufacturers

Key Features

  • Ranges from 1G to 100G with a variety of PoE+ and Ultra90 PoE++ options for 15.4W, 30W, 60W, 75W and 90W AVoIP endpoints
  • Non-stop forwarding (NSF) provides advanced High Availability (HA) with hitless failover across the stack
  • Entire feature set (L2 switching, L3 dynamic routing, time sensitive networking, AVB) available without license
  • Low acoustics, half-width 16-port and 24-port 10G models can be paired in a single rack space for redundant Top of Rack
  • For the IT team, only one platform from the edge to the core, one software to standardize on
  • Redundant modular power supplies contribute to business continuity management
  • Layer 3 feature set includes static and policy-based routing, RIP, VRRP, OSPF, and PIM dynamic routing
  • No need for tradeoffs anymore between performance, reliability, HA, features, scale, futureproofing, complexity, or cost
  • Front to back cooling, always within 40cm (15.7in) depth and controlled thermal and acoustics
  • Intelligent fans configurable in Quiet Mode to minimize noise, or Cool Mode to minimize heat

AV Software Features

  • Designed for the most demanding AV over IP installations of up to thousands of endpoints
  • AV-centric UserInterface allows for simple, profile-based, per-port configuration in a snap
  • Works out of the box with automatic, multi-switch configuration for most AV-over-IP installs
  • All the simplicity of the M4250 AV Line packed in more Enterprise-class hardware with redundant power supplies and larger fabrics with 25G and 100G uplinks
  • Less time to install and configure using the NETGEAR Engage Controller
  • SMPTE ST 2110 supported on select models, always with the same simplicity from the AV UI
  • NETGEAR IGMP Plus means AV-over-IP multicasting will work out of the box and not flood your network
  • With Auto-Trunk and Auto-LAG, simply connect M4350 switches together and you are done!

Other Software Features

  • Static, RIP and PIM-SM, DM and SSM multicast routing, DHCP Server and PTPv2 Transparent Clock (1-step E2E)
  • Advanced classifier-based, time-based hardware implementation for L2 (MAC), L3 (IP) and L4 (UDP/TCP transport ports) security and prioritization
  • Selectable Port-Channel / LAG (802.3ad - 802.1AX) L2/L3/L4 hashing for fault tolerance and load sharing with any type of Ethernet channeling
  • Voice VLAN with SIP, H323 and SCCP protocols detection and LLDP-MED IP phones automatic QoS and VLAN configuration
  • Efficient authentication tiering with successive DOT1X, MAB and Captive Portal methods for streamlined BYOD
  • Advanced IPv4/IPv6 security implementation including malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation

Management Features

  • DHCP/BootP innovative auto-installation including firmware and configuration file upload automation
  • Industry standard SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN and PTPv2
  • Service port for out-of-band Ethernet management (OOB)
  • USB Type-C port for local management console (unique NETGEAR driver for M4250/M4350)
  • Standard USB-A ports for local storage, logs, configuration or image files
  • Industry standard command line interface (CLI) for IT admins used to other vendors commands
  • Fully functional Web console (main GUI) for IT admins who prefer an easy to use graphical interface
  • Dedicated AV web-based GUI interface for AV installations

NETGEAR Warranty and Support

  • NETGEAR ProSAFE Limited Lifetime Hardware Warranty
  • Included Lifetime Technical Support
  • Included Lifetime Next Business Day Hardware Replacement
  • Offering free network design services and installation support, the NETGEAR Engineering Services Team is ready to help ensure your 1G deployments with the M4350 switches go as smooth as possible. Just drop us an email at [email protected] to get started!

At a Glance:


Hardware at a glance
  Front Rear Management
Model name Form-Factor Switching Fabric 1000BASE-T RJ45 ports 2.5GBASE-T RJ45 ports 10GBASE-T RJ45 ports 10GBASE-X SFP+ ports 25GBASE-X SFP28 ports 100GBASE-X QSFP28 ports Internal PSU Modular PSU Bays Fans Out-of-band Console
M4350-24G4XF
(GSM4328)
Full width
1U rack mount
128 Gbps 24 ports PoE+
10M; 100M; 1G 648W (base) up to 720W
- - 4 ports
1G; 10G
- - 1 x Fixed
880W (C14) On/Off switch
1 slot Fixed Front-to-back Ethernet: Out-of-band 1G port (Back)

Console: USB-C (Front)

Storage: 2 x USB-A (Back)
M4350-48G4XF
(GSM4352)
Full width
1U rack mount
176 Gbps 48 ports PoE+
10M; 100M; 1G 236W (base) up to 1,440W
- - 4 ports
1G; 10G
- - 1 x Fixed
550W (C14) On/Off switch
2 slots
M4350-44M4X4V
(MSM4352)
Full width
1U rack mount
500 Gbps - 44 ports PoE++***
100M; 1G; 2.5G
4 ports PoE++***
100M; 1G; 2.5G; 5G; 10G
- 4 ports
1G; 10G; 25G (Ethernet Mode*) (Stacking: 25G**)
- 1 x Fixed
550W (C14) On/Off switch
2 slots
M4350-8X8F
(XSM4316)
Half-width
1- or 2-unit 1U rack mount
320Gbps - - 8 ports
100M; 1G; 2.5G; 5G; 10G
8 ports
1G; 10G
- - 1 x Fixed
240W (C14) On/Off switch
-
M4350-12X12F
(XSM4324)
Half-width
1- or 2-unit 1U rack mount
480 Gbps - - 12 ports
100M; 1G; 2.5G; 5G; 10G
12 ports
1G; 10G
- - 1 x Fixed
240W (C14) On/Off switch
-
M4350-24X4V
(XSM4328CV)
Full width
1U rack mount
680 Gbps - - 24 ports PoE+
100M; 1G; 2.5G; 5G; 10G 576W (base), up to 720W
- 4 ports
1G; 10G; 25G (Ethernet Mode*) (Stacking: 25G**
- 1 x Fixed
880W (C14) On/Off switch
1 slot
M4350-24F4V
(XSM4328FV)
Full width
1U rack mount
680 Gbps - - - 24 ports
1G; 10G
4 ports
1G; 10G; 25G (Ethernet Mode*) (Stacking: 25G**)
- 1 x Fixed
880W (C14) On/Off switch
1 slot
M4350-36X4V
(XSM4340CV)
Full width
1U rack mount
920 Gbps - - 36 ports PoE++***
100M; 1G; 2.5G; 5G; 10G 280W (base), up to 1,760W
- 4 ports
1G; 10G; 25G (Ethernet Mode*) (Stacking: 25G**)
- 1 x Fixed
750W (C14) On/Off switch
1 slot
M4350-24X8F8V
(XSM4340V)
Full width
1U rack mount
1.04 Tbps - - 24 ports PoE++***
100M; 1G; 2.5G; 5G; 10G 290W (base), up to 1,770W
8 ports
1G; 10G
8 ports
1G; 10G; 25G (Ethernet Mode*) (Stacking: 25G**)
- 1 x Fixed
750W (C14) On/Off switch
1 slot
M4350-32F8V
(XSM4340FV)
Full width
1U rack mount
1.04 Tbps - - - 32 ports
1G; 10G
8 ports
1G; 10G; 25G (Ethernet Mode*) (Stacking: 25G**)
- 1 x Fixed
420W (C14) On/Off switch
1 slot
M4350-16V4C
(VSM4320C)
Full width
1U rack mount
1.6 Tbps - - - - 16 ports
1G; 10G; 25G (Ethernet Mode*) (Stacking: 25G**)
4 ports
40G; 100G (Stacking: 100G**)
1 x Fixed
420W (C14) On/Off switch
1 slot
M4350-40X4C
(XSM4344C)
Full width
1U rack mount
1.6 Tbps - - 40 ports PoE++***
100M; 1G; 2.5G; 5G; 10G 196W (base), up to 1,676W
- - 4 ports
40G; 100G (Stacking: 100G**)
1 x Fixed
750W (C14) On/Off switch
1 slot

Software at a glance
  Layer 3 Package
Model name Management AV Dedicated UI IPv4 / IPv6 ACL and QoS, DiffServ IPv4 / IPv6 Multicast Filtering SMTPE ST 2110 IPv4 / IPv6 Policing and Convergence
M4350 series (All models) Out-of-band

IT Web GUI (main)

HTTPs CLI; Telnet; SSH

Stacking** NSF with Hitless Failover

SNMP, MIBs RSPAN

Radius Users, TACACS
AV Web-based GUI

Designed for AV installers

AV-related controls

Audio over IP profiles

AVB profile

Video over IP profiles

Mixed Audio and Video profiles
Ingress/egress

1 Kbps shaping Time-based

Single Rate Policing
NETGEAR IGMPTM Plus for automated IGMP between switches

IGMPv3 MLDv2 Snooping, Proxy ASM & SSM

IGMPv1,v2 Querier (compatible v3)

Control Packet Flooding
Select models only Auto-VoIP

Policy-based routing (PBR)

LLDP-MED

IEEE 1588 PTPv2 1-Step End-to-End Transparent Clock (TC)

AVB: 802.1AS, 802.1Qav, 802.1Qat MSRP, 802.1ak MMRP, 802.1ak MVRP
M4350-16V4C (VSM4320C)
M4350-40X4C (XSM4344C)
  ST 2110 profiles     Boundary Clock mode (BC)

Grandmaster Clock mode (GM)

PTP profiles for: SMPTE 2059-2 (video/audio), AES67 (Audio), AES-R16-2016 (Interoperability)

Single-step PTP to AV endpoints Single-step/ two-step to the GrandMaste

  Layer 3 Package
Model name Spanning Tree Green Ethernet VLANs Trunking Port Channel IPv4 / IPv6 Authentication Security IPv4 / IPv6 Static Routing IPv4 / IPv6 Dynamic Routing
M4300 Series (All models) STP, MTP, RSTP

PV(R)STP

BPDU/ STRG Root Guard

EEE 802.3az (EEE is disabled by default)
Static, Dynamic, Voice, MAC

GVRP/GMRP

Double VLAN mode

Private VLANs
Auto-Trunk and Auto-LAG between M4250, M4300, and M4350 Switches

Static LAG, or Dynamic LACP

(LACP automatically reverts to and from Static LAG)

Seven (7) L2/ L3/L4 hashing algorithm
Successive Tiering (DOT1X; MAB; Captive Portal)

DHCP Snooping Dynamic ARP Inspection IP Source Guard
Port, Subnet, VLAN routing

Multicast static routes

DHCPv4 Server

DHCP Relay

Stateful DHCPv6 Server
IPv4: RIP, VRRP

IPv4/IPv6: OSPF, Proxy ARP, PIM-SM, PIM-DM, SSM
M4350-16V4C (VSM4320C)
M4350-40X4C (XSM4344C)


Performance at a glance
Model name MAC ARP/NDP Routing / Switching Capacity Throughput 64-byte Application Route Scaling Packet Buffer Latency 64-byte CPU IP Multicast Routing Entries Jumbo Frames Multicast IGMP Group Membership VLANs DHCP
M4350-24G4XF
(GSM4328)
16K MAC
4K ARP/ 512 NDP
128 Gbps Line-Rate 95.23 Mpp Static: 256v4/64v6

RIP: 512

OSPF: 1,024
16Mb <2.42µs 1G
<0.92µs 10G fiber
Quad-Core Cortex-A57
ARMv8
1.8Ghz
64-bit
2GB RAM DDR4
512 IPv4
256 IPv6
Up to 12K 2K IPv4
2K IPv6
4K VLANs DHCP Server: 2K leases

IPv4: 256 pools IPv6: 16 pools
M4350-48G4XF
(GSM4352)
16K MAC
4K ARP/ 512 NDP
176 Gbps Line-Rate 130.94 Mpps 32Mb <2.20µs 1G
<0.70µs 10G fiber
M4350-44M4X4V
(MSM4352)
16K MAC
4K ARP/ 512 NDP
500 Gbps Line-Rate 372 Mpps 32Mb <5.61µs 2.5G
<2.27µs 10G copper
<0.75µs 25G
M4350-8X8F
(XSM4316)
16K MAC
4K ARP/ 512 NDP
320 Gbps Line-Rate 238.08 Mpps 32Mb <2.28µs 1G
<2.39µs 10G copper
<0.83µs 10G fiber
M4350-12X12F
(XSM4324)
16K MAC
4K ARP/ 512 NDP
480 Gbps Line-Rate 357.12 Mpps 32Mb <2.14µs 1G
<2.29µs 10G copper
<0.72µs 10G fiber
M4350-24X4V
(XSM4328CV)
16K MAC
4K ARP/ 512 NDP
680 Gbps Line-Rate 505.92 Mpps 32Mb <2.43µs 1G
<2.20µs 10G copper
<0.97µs 25G
M4350-24F4V
(XSM4328FV)
16K MAC
4K ARP/ 512 NDP
680 Gbps Line-Rate 505.92 Mpps 32Mb <1.06µs 1G
<0.63µs 10G fiber
<0.67µs 25G
M4350-36X4V
(XSM4340CV)
16K MAC
4K ARP/ 512 NDP
920 Gbps Line-Rate 684.48 Mpps 64Mb <2.54µs 1G
<2.75µs 10G copper
<1.08µs 25G
Quad-Core Cortex-A57
ARMv8
1.8Ghz
64-bit
4GB RAM DDR4
M4350-24X8F8V
(XSM4340V)
16K MAC
4K ARP/ 512 NDP
1.04 Tbps Line-Rate 773.76 Mpps 64Mb <2.7µs 10G copper
<1.27µs 10G fiber
<1.09µs 25G
M4350-32F8V
(XSM4340FV)
16K MAC
4K ARP/ 512 NDP
1.04 Tbps Line-Rate 773.76 Mpps 64Mb <1.27µs 10G fiber
<1.08µs 25G
M4350-16V4C
(VSM4320C)
16K MAC
4K ARP/ 512 NDP
1.6 Tbps Line-Rate 1190.4 Mpps 256Mb <2.71µs 10G fiber
<1.08µs 25G
<1.13µs 100G
M4350-40X4C
(XSM4344C)
16K MAC
4K ARP/ 512 NDP
1.6 Tbps Line-Rate 1190.4 Mpps 256Mb <2.71µs 10G copper
<1.08µs 25G fiber
<1.04µs 100G

Deployment:

AV Target Application


Core

At the core, two powerful M4350 models can be stacked*. For maximum performance, and best reliability, two switches should be the limit

  • Management unit hitless failover and nonstop forwarding ensure no single point of failure
  • The interconnect should provide headroom: for instance, all the multicast present in the network will be replicated between the two core switches

Building 1 to 5

  • Each M4350 model connects to the core using distributed link aggregation (LACP, fully automatic with Auto-LAG and Auto-Trunk)
  • In case of one core switch failure, there is no service interruption

Centrally managed by the NETGEAR Engage Controller

  • Simplify your AV multicast deployments with NETGEAR IGMP Plus which prevents any multicast flooding for your Professional AV, Medical AV, Residential AV, Broadcast AV, Lighting installations, and more.
  • Centrally available in Engage, the revolutionary NETGEAR AV user interface contains pre-configured profiles for all major audio, video, and lighting protocols including: AVB, Dante, Q-SYS, AES67, NVX, AMX, Q-SYS, NDI 4, NDI 5, ZeeVee, Aurora Multimedia, Kramer, Atlona, LibAV, Visionary, SDVoE and others. SMPTE ST 2110 is supported on select models


IT Target Application


Core

At the core, two powerful M4350 models can be stacked. For maximum performance, and best reliability, two switches should be the limit

  • Management unit hitless failover andnonstopforwardingensure nosinglepointof failure
  • The interconnect should provide headroom: for instance, all the multicast in the present network will be replicated between the two core switches

Building 1

  • For midsize server installations, two half-width M4350 10GbE models can be paired in a single rack space for redundant top-of-rack
  • Management unit hitless failover and nonstop forwarding ensure no single point of failure for servers and storage

Building 2

  • Common for intermediate distribution frames (IDF) in K-12 and other large campuses, stacking topologies greatly simplify deployments at the edge
  • While reducing the number of logical units to manage, stacking also brings network resiliency with distributed uplinks in aggregation to the core

Building 3

  • For typical collapsed core installations, with a variety of 1G, 2.5G, 10G, and 25G access ports in branch offices, server rooms or campus high performance labs
  • Double star architectures deliver highest performance with every leaf switch connecting to every spine switch


* Stacking, AVB, and PTP TC are mutually exclusive features. A stack cannot run AVB, nor PTP TC (or BC/GM).

Specifications:


NETGEAR M4350-24X8F8V (XSM4340V) Specifications
Primary Port Speed 10 Gigabit / Multi-Gig
Number of Ports 40 (24x 10G/Multi-Gig PoE++, 8 x 10G SFP+, 8 x 25G SFP28)
PoE Ports / Budget 24 PoE++ (90W/port), 290W Base, up to 1,770W Budget
Switching Fabric 1.04 Tbps
Throughput (64-byte frames) 773.76 Mpps
IGMP Support Enhanced (NETGEAR IGMP Plus)
Jumbo Frame Support Yes, up to 12kb
AVB Support Yes, included
Acoustics Quiet Mode 32.6dB@25ºC
Power Consumption With PoE: 464W/1582.24Btu/hr
Without PoE: 151.8W/476.65Btu/ hr
Standby without any port connection: 53.4W/167.68Btu/ hr
PSU Compatible Models APS600Wv3
APS1200Wv2
APS2000Wv2
Dimensions 440 x 400 x 43.2 mm
Weight 7.24kg (15.96lbs)
Operating Temperature 32° to 113°F (0° to 45°C)
Operating Humidity 90% maximum relative humidity, non-condensing
Operating Altitude 10,000 ft (3,000 m) maximum
Storage Temperature – 4° to 158°F (–20° to 70°C)
Storage Humidity 95% maximum relative humidity, non-condensing
Storage Altitude 10,000 ft (3,000 m) maximum
Electromagnetic Emissions and Immunity CE: EN 55032:2012+AC:2013/CISPR 32:2012, EN 61000-3-2:2014, Class A, EN 61000-3-3:2013, EN 55024:2010
VCCI : VCCI-CISPR 32:2016, Class A
RCM: AS/NZS CISPR 32:2013 Class A
CCC: GB4943.1-2011; YD/T993-1998; GB/T9254-2008 (Class A) FCC: 47 CFR
FCC Part 15, Class A, ANSI C63.4:2014
ISED: ICES-003:2016 Issue 6, Class A, ANSI C63.4:2014
BSMI: CNS 13438 Class A
Safety CB report / certificate IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013
UL listed (UL 1950)/cUL IEC 950/EN 60950
CE LVD: EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
RCM (AS/NZS) 60950.1:2015
CCC (China Compulsory Certificate): GB4943.1-2011; YD/T993-1998; GB/T9254-2008 (Class A)
BSMI: CNS 14336-1
Package Content
  • M4350-24X8F8V (XSM4340V)
  • Power cord(s)
  • Console USB Type-C
  • Rack-mounting standard bracket set
  • Set of longer brackets for recessed mounting
  • Four Rubber footpads for tabletop installation
  • Installation guide
Management NETGEAR Engage Controller
Centralized application to configure all switches across your entire network. Lightweight and portable, you can run it from a USB thumb drive.
Support
  • Pro AV Information
  • M4350-24X8F8V Support
  • AV Resource Center
Warranty and Support
ProSAFE Lifetime Warranty Included, lifetime
90 days of Technical Support via phone and email Included, 90 days after purchase
Lifetime Technical Support through online chat Included, lifetime
Lifetime Next Business Day hardware replacement Included, lifetime

Documentation:

Download the NETGEAR M4350 Series Datasheet (PDF).

Pricing Notes:

Netgear Products
NETGEAR Managed Switches
NETGEAR M4350-24X8F8V 24x10G/Multi-Gig PoE++ (290W base, up to 1,770W), 8xSFP+ and 8xSFP28 25G Managed Switch
#XSM4340V-100NES
Price: $9,359.59
Add to Cart for Pricing
