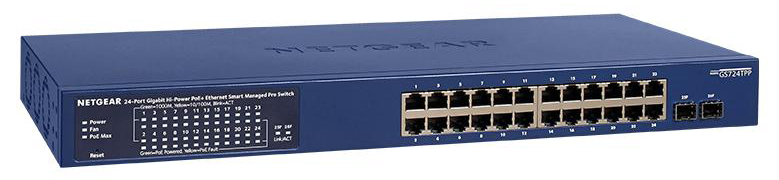

Netgear GS724TPP
24-Port Gigabit Ethernet Hi-Power PoE+ Smart Managed Pro Switch with 2 SFP Ports and optional Insight Remote/Cloud Management (380W)


Netgear GS724TPP


Netgear Products
Netgear Products
NETGEAR 24-Port Gigabit Ethernet Hi-Power PoE+ Smart Switch with 2 SFP Ports and optional Insight Remote/Cloud Management (380W)
#GS724TPP-300NAS
Our Price: $579.99

Click here to jump to more pricing!

Overview:

Going Gigabit and PoE+ Just Got More Cost-Effective!

As a leading provider of network equipment for SMBs, NETGEAR understands the importance of providing great choice of PoE port counts and power budgets that can adapt to the business’s needs, whether in the hospitality, catering, education or retail domains. The GS724TP and GS724TPP 24-port Gigabit Switch with PoE+ and 2 SFP ports join the NETGEAR standalone Smart switches family, adding full 24 port PoE+ support for deployment of modern highpower PoE devices. Cautious spender organizations can now deploy denser PoE+ devices connected to a costeffective switch, with a reasonable PoE power budget of 190W (GS724TP) or 380W (GS724TPP).

NETGEAR Smart switches offer powerful Layer 2 features, great PoE functionality, and enhanced performance and usability. These switches are the ideal solution even for the most advanced small and medium organizations looking for the best combination of features, performance, and value: they are purposely designed for converged networks where voice, video, data are all carried on a single network platform. Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the GS724TP and GS724TPP support quiet rack mounting operation with a maximum of 32.4 dBA (GS724TP) and 35.0 dBA (GS724TPP) even at full power and 25°C (77°F) ambient.

To empower the PoE applications, NETGEAR Insight Remote/Cloud management is added to these two new switch models as an optional management mode. By activating the NETGEAR Insight Cloud management, the users will enable management features allowing businesses simpler configuration and deployment from anywhere using the NETGEAR Insight app from mobile devices or the Insight Cloud portal from any device with a web browser.


More Powerful Switch for High Power Devices

  • 24 x PoE+ Gigabit ports with 380W PoE budget
  • 2 dedicated Gigabit SFP fiber uplink ports

Fast and flexible solution for SMB data, voice and video converged network

  • Non-blocking switching with 52Gbps
  • Flexible rack-mounting option

Fully-integrated cloud-manageable devices

  • Remote/Cloud management capability with NETGEAR Insight. Instantly activate NETGEAR Insight Cloud management from the web GUI, for simpler configuration and deployment from anywhere using the NETGEAR Insight app on mobile devices or the Insight Cloud portal through a web browser

Smart IT, not Big IT

  • Easy to manage via web-based Management interface for multi-switch deployment
  • NETGEAR Insight Remote/Cloud management, monitoring and maintenance using the NETGEAR Insight mobile app or Insight Cloud portal for network-level management
  • NETGEAR Switch Discovery Tool (NSDT) to discover, register and access to the local browser interface to configure the switches
  • Network Management System (NMS300), allowing all NETGEAR business products to be deployed and managed through this single interface

Powerful Connectivity and Security

  • Advanced VLAN support for better network segmentation
  • L2/L3/L4 access control lists (ACLs) for granular network access control including 802.1x port authentication
  • Advanced per port PoE controls for remote power management of PoE connected devices including operation scheduling
  • Advanced QoS (Quality of Service) for traffic prioritization including portbased, 802.1p and L2/L3/L4 DSCPbased
  • Auto DoS (Denial of Service) prevention
  • IGMP Snooping and Querier for multicast optimization
  • Egress Rate limiting and priority queuing for better bandwidth allocation
  • Port mirroring for network monitoring
  • Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings
  • IPv6 management: IPv6 QoS, IPv6 ACL, IPv6 Multicast, and static and dynamic IPv6 address assignment
  • Cable test to troubleshoot connection issues
  • Easy-to-use Web browser-based management GUI available in English, German and Japanese
  • SNMP v1, v2c, v3 and RMON remote monitoring

NETGEAR Quality and Reliability

  • Worry-free limited lifetime warranty, online technical chat support and Next Business Day (NBD) replacement.

Simply activate NETGEAR Insight Cloud management to manage your network. Anytime. Anywhere.

By activating the NETGEAR Insight Cloud management, the users will enable fundamental management features allowing businesses simpler configuration and deployment from anywhere using the NETGEAR Insight app from mobile devices or the Insight Cloud portal from any device with a web browser.

Unique advanced management features of these Insight managed devices include:

  • Remote monitoring and management with performance dashboards and troubleshooting features including remote reboot, port and PoE advanced configuration including remote enable/disable/power-cycle, PoE scheduling, and firmware updates with autoschedule mode
  • Single pane-of-glass multi-device, multi-network, and multi-site remote monitoring and notifications with the NETGEAR Insight app
  • Full-fledged local or remote access for configuration, management, and monitoring on a larger display using your tablet, laptop, or desktop computer through the NETGEAR Insight Cloud portal
  • Configurable in-app and email alerts and notifications
  • Auto-join and configure (zero-touch provisioning) for additional Insight devices added to the network
  • Centralized network configuration (policies) across Insight managed switches, and access points for VLANs, ACLs, QoS, LAGs, etc.
  • Cloud-based network administration, monitoring, and firmware management

Features and Benefits:

Hardware Features

  • Fully-integrated Cloud-manageable Devices
    Require no additional hardware (cloud keys, network portals, local servers, VPN or proxy appliances etc) to directly connect to the cloud and allow remote management. No additional hardware or software. Just switch to Insight Cloud management mode through Web browser-based user interface and go.
  • 1000BASE-T Copper Ethernet PoE+ connections
    Support high-density VoIP, Surveillance and Wi-Fi AP deployments, scalable for future growth. Never face the risk of running out of PoE ports.
  • 1000BASE-X Fiber SFP ports
    Two dedicated Gigabit SFP ports for aggregation to the network core. Support for Fiber and Copper modules.
  • Low Acoustics
    Temperature- and load-based fan-speed control allow for quiet operation in both desktop or rack mount configuration.
  • Energy Efficient Ethernet (IEEE 802.3az)
    Maximum power reduction for ongoing operation cost savings.
  • Desktop and rack mount (kit available)
    Flexible deployment on desktop and also support rack mount.
  • Kensington Lock Slot
    Prevent theft, removal, or tampering when used for desktop deployment.

Software Features

  • Remote setup, management, and monitoring anywhere, anytime, from your mobile device, PC, Mac, or tablet
    Locally or remotely setup, configure, manage, monitor or even troubleshoot your network from anywhere, anytime. Check network status, view dashboards for network health and activity, power cycle PoE ports, etc, and update firmware remotely. No need to be on-site, open up ports to your network, or VPN into it.
  • Auto-join and Configure (Zero-Touch Provisioning)
    Additional Insight managed devices added to the network automatically inherit settings and configuration.
  • Multi-site, Multi-network Single Pane-of-Glass View
    View and configure multiple networks across multiple sites, all from one single app; NETGEAR Insight.
  • Comprehensive IPv6 Support for Management, ACLs and QoS
    Build current network with future in mind. Ensure investment protection and a smooth migration to an IPv6-based network without switch replacement.
  • Robust security features:
    Build a secured, converged network with all types of traffic by preventing external attacks and blocking malware while allowing secure access for authorized users.
    • 802.1x authentication (EAP)
    • Port-based security by locked MAC
  • Comprehensive QoS features:
    Advanced controls for optimized network performance and better delivery of mission-critical traffic such as voice and video.
    • Port-based or VLAN 802.1p-based prioritization
    • Layer 3-based (DSCP) prioritization
    • Port-based egress rate limiting
  • Auto-VoIP and Auto-Voice VLAN
    Automatic Voice over IP prioritization (Auto-VoIP) simplifies most complex multi-vendor IP telephone deployments either based on OUI bytes (default database and user-based OUIs) in the phone source MAC address, providing the best class of service to VoIP streams (both data and signaling) over other ordinary traffic by classifying traffic, and enabling correct egress queue configuration.
  • IGMP Snooping
    Facilitate fast receiver joins and leaves for multicast streams. Save cost and improve network efficiency by ensuring multicast traffic only reaches designated receivers without the need of an extra multicast router.
  • Protected Ports
    Ensure no exchange of unicast, broadcast, or multicast traffic between the protected ports on the switch, thereby improving the security of your converged network. This allows your sensitive phone phone conversations to stay private and your surveillance video clips can be forwarded to their designated storage device without leakage or alteration.
  • DHCP Snooping
    Ensure IP address allocation integrity by only allowing DHCP messages from trusted DHCP servers and dropping malformed DHCP messages with a port or MAC address mismatch.
  • Dynamic VLAN Assignment (RADIUS)
    IP phones and PCs can authenticate on the same port but under different VLAN assignment policies. Users are free to move around and enjoy the same level of network access regardless of their physical location on the network.
  • Link Aggregation (LACP)
    Build up bigger bandwidth to support aggregated uplink/downlink traffic or to provide redundant link(s). Aggregate up to 8 ports for 8Gbps connections.
  • PoE Timer and Scheduling
    Allows IT administrators to increase network security, better utilize network resources and conserve energy by scheduling or remotely controlling on/ off of PoE ports.
  • Port Mirroring and Cable Test
    Many-to-one port mirroring for better and quicker network diagnostics and troubleshooting. Cable test easily identifies bad Ethernet cables.
  • Dual Firmware Images
    Dual firmware images for transparent firmware updates with minimum service interruption
  • Firmware Updates from Cloud
    Direct cloud-to-device firmware updates, initiated and/or scheduled using the Insight app, all from the palm of your hand, anytime, anywhere.

Specifications:

Technical Specifications
Gigabit Ethernet RJ-45 Copper ports (10M/100M/1G) - 1000BASE-T 24
PoE/PoE+ ports 24
Gigabit SFP (fiber) ports (100M/1G) - 1000BASE-X 2 (dedicated)
Power Supply Internal Power Supply

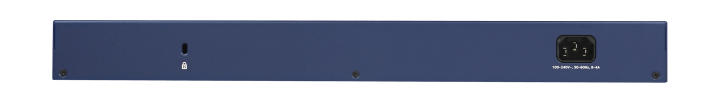

Kensington Lock Yes (rear)
LEDs

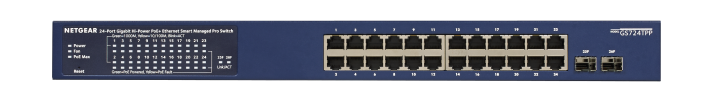

Front (per device) Power (with Cloud Mode Indicator), PoE Max, PoE Fault
Front (per port) Speed/Link/Activity
Unified Network Management (Discovery, Setup, Monitoring, and Management) through NETGEAR Insight Cloud Management
Discovery, setup, monitoring and management NETGEAR Insight mobile app on phone or tablet; Insight Cloud portal from PC, Mac, or tablet web browser
Remote/Cloud management Anywhere, anytime, from the palm of your hand using Insight mobile app or from any PC, Mac, or tablet web browser using the Insight Cloud portal
Centralized network configuration (policies) Centralized network configuration (policies) across Insight managed switches, and wireless access points for VLANs, ACLs, QoS, and LAGs
Device auto-join and configure (zero-touch provisioning) Additional Insight managed devices added to the network automatically inherit the network configuration
Multi-site, multi-network single pane-of-glass view Manage multiple sites, locations, and networks in a single view using the Insight mobile app or Insight Cloud portal
Multi-switch, multi-port concurrent configuration for ACLs, VLANs, QoS, PoE, etc Apply settings and policies on multiple ports across multiple switches all at the same time using the Port Config Wizard
Performance Specification
CPU 500 Mhz MIPS-4KEc CPU
128MB RAM 32MB SPI FLASH
Packet buffer memory (Dynamically shared across only used ports) 512 KB
Forwarding modes Store-and-forward
Bandwidth (non-blocking, full duplex) 52 Gbps
Priority queues 8
Priority queuing Weighted Round Robin (WRR) or Strict Priority
MAC Address database size (48-bit MAC addresses) 8K
Multicast groups 256
Number of VLANs 64
Number of DHCP snooping bindings 256
Access Control Lists (ACLs) 100 shared for MAC, IP and IPv6 ACLs (ingress)
Packet forwarding rate (64 byte packet size) (Mfps or Mpps) 38.6
1G Copper standard latency (µsec) (64-byte; 1518-byte; 9216-byte frames) 64-byte: 3.563 µsec
1518-bye: 3.717 µsec
9216-byte: 3.464 µsec
1G SFP Fiber latency (µsec) (64-byte; 1518-byte; 9216-byte frames) 64-byte: 2.574 µsec
1518-bye: 2.764 µsec
9216-byte: 2.487 µsec
Jumbo frame support 9216
Acoustic noise level @ 25°C (dBA) (ANSI-S10.12) 35.0 dBA
Mean Time Between Failures (MTBF) @ 25°C 634,966 hrs (72 yrs)
POE Configuration
Number of PoE (802.3af) / PoE+ (802.3at) ports 24 PoE+
Total PoE power budget (watts) 380W
Advanced per-port PoE controls (enable/disable/power limit) Yes
Advanced per-port PoE scheduling/timers Yes
L2 Services - VLANs
IEEE 802.1Q VLAN tagging Yes
Management VLAN Configurable
L2 Services - Availability
Broadcast, multicast, unknown unicast storm control Yes
IEEE 802.3ad - LAGs (LACP) Yes
IEEE 802.3x (full duplex and flow control) Yes
IEEE 802.1D Spanning Tree Protocol Yes
IEEE 802.1w Rapid Spanning Tree Protocol Yes
IEEE 802.1s Multiple Spanning Tree Protocol Yes
L2 Services - Multicast Filtering
IGMP snooping (v1, v2, and v3) Yes
IGMP snooping querier Yes
Block unknown multicast Yes
Multicast groups 256
DHCP Services
DHCP client Yes
DHCP snooping Yes
Number of DHCP snooping bindings 256
Link Aggregation
IEEE 802.3ad - LAGs (LACP) Yes
Manual Static LAG Yes
# of Static or LACP LAGs
# of Members in each LAG
8 LAGs with max 8 members in each LAG
Network Monitoring and Discovery Services
802.1ab LLDP Yes
LLDP-MED Yes
SNMP v1, v2c, v3
RMON group 1,2,3,9 Yes
Network Security
IEEE 802.1x Yes (EAP)
Guest VLAN Yes
RADIUS-based VLAN assignment via .1x Yes
MAC-based .1x Yes
RADIUS accounting Yes
Access Control Lists (ACLs) L2 / L3 / L4 ingress
IP-based ACLs (IPv4 and IPv6) Yes
MAC-based ACLs Yes
TCP/UDP-based ACLs Yes
MAC lockdown Yes
MAC lockdown by the number of MACs Yes
Control MAC # Dynamic learned entries 600
Control MAC # Static entries 20
IEEE 802.1x RADIUS port access authentication Yes
Port-based security by locked MAC addresses Yes
Broadcast, multicast, unknown unicast storm control Yes
Protected ports Yes
DoS attacks prevention Yes
Quality of Service (QoS)
Port-based rate limiting Yes ingress
Port-based QoS Yes
Support for IPv6 fields Yes
DiffServ QoS Yes ingress
IEEE 802.1p COS  Yes
Destination MAC and IP  Yes
IPv4 and IPv6 DSCP IPv4 only
TCP/UDP-based Yes
Weighted Round Robin (WRR) Yes
Strict priority queue technology Yes
Auto-VoIP VLAN / Auto-Voice VLAN Yes, manual or automatic assigment of VoIP phone traffic based on OUI bytes (default database and user-based OUIs) in the phone source MAC address to Voice VLAN associated with high priority QoS parameters
Other Features
Advanced per-port PoE controls (enable/disable/power limit) Yes
Advanced per-port PoE scheduling/timers Yes
Loop detection & prevention Yes, by STP
DNS Client Yes
Option to enable/disable BPDU flooding when STP is disabled Yes
Option to enable/disable the flooding of EAPOL when 802.1x is disabled Yes
Management, Monitoring & Troubleshooting
Cloud/Remote management Yes
Insight mobile app & Insight Cloud Portal management Yes
uPnP Discovery Yes
Bonjour Discovery No
Networking monitoring Yes
Data/performance logs Yes
Centralized network configuration/policies (network-centric management) Yes
Device auto-join and configure (zero-touch provisioning) Yes
Multi-site, multi-network single pane-of-glass view Yes
Multi-switch, multi-port concurrent configuration Yes
Network/global password (for all Insight managed devices on a network) Yes (per network/subnet via NETGEAR Insight mobile app and Insight Cloud portal)
Password management Yes
IP Access List Yes
Configurable management VLAN Yes
Admin access control via RADIUS and TACACS+ Yes
IPv6 management Yes
SNTP client over UDP port 123 Yes
Firmware upgrade direct from Cloud (via mobile device or Insight Cloud portal) Yes
SNMP v1/v2c Yes
SNMP v3 with multiple IP addresses Yes
RMON group 1,2,3,9 Yes
Port mirroring Yes
Many-to-one port mirroring Yes
Cable test utility Yes
Ping and tracerout client Yes
Local-only web browser-based management GUI Yes
HTTP/TLS Web-based access (version) Yes (1.2)
HTTP firmware upload/download Yes
Dual software (firmware) image Yes
Memory and flash log Yes
Syslog (Server) Yes
Power Consumption
Max power (worst case, all ports used, line-rate traffic) (Watts) 32.71 W
Max power (worst case, all ports used, full PoE, line-rate traffic) (Watts) 446.70 W
Min power (link-down standby) (Watts) 24.70 W
Heat Dissipation (max w/full PoE & standby) (BTU/hr) Max: 1525.00 BTU/hr
Min: 84.30 BTU/hr
Energy Efficient Ethernet (EEE) IEEE 802.3az Yes (deactivated by default)
Auto Power Down Yes (deactivated by default)
Fan(s) (temperature- and load-based speed control) 2
Physical Specifications
Dimensions (W x D x H) 440 x 204 x 43 mm ( 17.3 x 8.0 x 1.7 in)
Weight 3.7 kg (8.18 lb)
Mounting options Desktop, rack mount
Environmental Specifications
Operating Temperature 0° to 50°C (32° to 122°F)
Operating Humidity (relative) 95% maximum relative humidity (RH), non-condensing
Operating Altitude 10,000 ft (3,000 m) maximum
Storage Temperature –20° to 70°C (– 4° to 158°F)
Storage Humidity (relative) 95% maximum relative humidity (RH), non-condensing
Storage Altitude 10,000 ft (3,000 m) maximum
Warranty and Support
Hardware Limited Warranty Limited Lifetime*
Next-Business-Day (NBD) Replacement Limited Lifetime*
Technical support via phone 90 days free from date of purchase*
24x7 Online Chat Techinical support Limited Lifetime*
ProSUPPORT OnCall 24x7 Service Packs** Category 1
PMB0311-10000S
PMB0331-10000S
PMB0351-10000S
Package Contents

Smart switch
Power cord (localozed to region of sale)
Rack mount
Rubber footpads for tabletop installation
Installation guide

* This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https:// www.netgear.com/about/warranty for details. Intended for indoor use only.
** The NETGEAR OnCall 24x7 contract provides unlimited phone and email technical support for your networking product. For ProSAFE products purchased prior to 06/2014, also includes next business-day hardware replacement.

Diagram:

Example Application

Power The Devices in Your Business

The new standalone GS724TP and GS724TPP switch are designed with 24 ports PoE+ and 2 SFP ports. With 190W power on GS724TP and 380W power on GS724TPP, the two switches can meet the current and future needs of wireless converged networks. Within small and medium-sized organizations, there is growing adoption of PoE devices such as VoIP phones, IP security cameras, wireless access points, proximity sensors, LED lighting, door locks, and other IoT devices that require network switches capable of supporting dense PoE installations. Wireless access points and pan-tilt-zoom HD cameras using Wave 2 802.11ac Wi-Fi also require PoE+ power (802.3at), increasing the power demands on PoE switches.

“PoE devices are putting a strain on switching power demands.” As a leading provider of network equipment for SMBs, NETGEAR understands the importance of providing great choice of PoE port counts and power budgets that can adapt to the business’s needs, whether in the hospitality, education or retail domains.

These switches provide a great value, with configurable Layer 2 network features like VLANs and PoE operation scheduling. Advanced features such as DiffServ QoS, LACP link aggregation and Spanning Tree will satisfy even the most advanced small business networks. With Insight Cloud management capability, managing those PoE and Smart switching features is just one click away.

Views:


Front View


Rear View

Pricing Notes:

Netgear Products
Netgear Products
NETGEAR 24-Port Gigabit Ethernet Hi-Power PoE+ Smart Switch with 2 SFP Ports and optional Insight Remote/Cloud Management (380W)
#GS724TPP-300NAS
Our Price: $579.99
