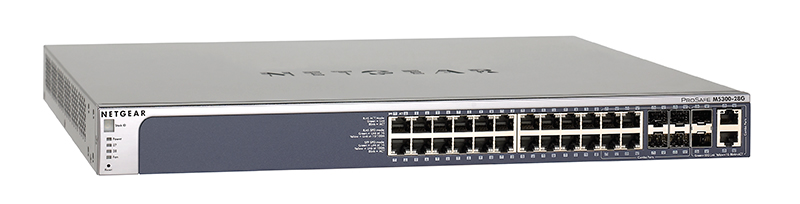

NETGEAR M5300-28G
ProSAFE 24-Port Gigabit Layer 2+ Managed Stackable Switch

Features:

Key Features and Investment Protection

• 24 and 48 Gigabit models, and one 24 Gigabit SFP fiber model
• Because RIP, OSPF, VRRP or PIM aren't always needed, M5300 series comes with port-based / VLAN-based / subnet-based "static routing" only Layer 2+ versions
• You can save costs now and should new applications arise, there's seamless upgrade path with Layer 3 licenses
• 4 or 24 uplink fiber (SFP) ports for Fast Ethernet or Gigabit optics
• Two embedded 10 Gigabit interfaces streamline network uplinks with SFP+ and 10GBase-T (RJ45) combo ports
• Two supplemental 10 Gigabit I/O bays for additional uplinks or local / remote stacking, provide versatile 10 Gigabit deployment capabilities
• Uplink capacity per switch is 4-port 10 Gigabit total, mixing 10GBase-T (RJ45), 10GBase-X (SFP+), 10GBase-CX4 (802.3ak) and 48 Gbps stacking ports

PoE+ Features and Expandable Power

• 380W PoE+ budget built-in per switch and full PoE+ power budget capacity up to 1,440W per switch with external EPS
• Example: 96-port PoE+ in a 3 rack unit (RU) form factor and 30W power on all ports (2,880W budget) using two units M5300-52G-POE+ and one RPS4000
• Redundant power supply functionality with one hot-swap modular power supply
• Optional single switch RPS option (RPS5412, one-to-one protection)
• Optional four-switch RPS option (RPS4000, providing power backup up to four switches concurrently as for one-to-one mode)
• Optional four-switch EPS option (RPS4000 in External Power Supply mode for PoE+ application of up to 2,880W PoE+ budget)

Virtual Chassis Stacking Technology

• True Virtual Chassis Stacking technology with up to 384 Gbps interconnect for network operations simplification
• Meshed stacking for multi-resiliency and advanced load balancing capabilities
• Up to 384 ports Gigabit and 16 available 10 Gigabit uplink ports per Virtual Chassis of 8 switches
• Highest availability with sub-second master failover for L2 and L3 seamless switching
• Distributed Link Aggregation for active-active connections
• Investment protection: backward stacking capability with previous GSM72xxPS v1h1 and GSM73xxS v2h1 models

Management Features

• DHCP/BootP innovative auto-installation including firmware and configuration file upload automation
• Industry standard SNMP, RMON, MIB, LLDP, AAA and sFlow implementation
• Selectable serial RS232 DB9 and Mini-USB port for management console
• Standard USB port for local storage, logs, configuration or image files
• Dual firmware image and configuration file for updates with minimum service interruption
• Industry standard command line interface (CLI) for IT admins used to other vendors commands and scripting
• Fully functional Web console (GUI) for IT admins who prefer an easy to use graphical interface

Industry Leading Availability

• Removable, modular power module for the main power supply
• Hot-swap RPS / EPS capabilities for 100% uptime when the main power supply is replaced

NETGEAR Warranty

• This product is backed by a NETGEAR ProSAFE Lifetime Hardware Warranty.
• Lifetime Next Business Day Hardware Replacement.
• ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
• ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat. (Remote diagnostics performed by our technical experts for prompt resolution of technical issues).

At a Glance:

Hardware at a glance
	Front				Rear
Model name	10/100/ 1000 Base-T RJ45 ports	100/ 1000X Fiber SFP ports	100/ 1000/ 10GBase-T RJ45 ports	1000/ 10GBase- X Fiber SFP+ ports	Additional 10 Gigabit I/O bays	Modular PSU (hot-swap when RPS)	RPS connector	PoE budget
M5300-28G	24	4 (shared)	2 built-in	2 (shared) built-in	2 modules	1 (APS135W)	1 (RPS)	-
M5300-52G	24	4 (shared)	2 built-in	2 (shared) built-in	2 modules	1 (APS135W)	1 (RPS)	-
M5300-28G-POE+	24 PoE+ 380W	4 (shared)	2 built-in	2 (shared) built-in	2 modules	1 (APS525W)	1 (RPS or EPS)	Up to 720W (EPS)
M5300-52G-POE+	48 PoE+ 380W	4 (shared)	2 built-in	2 (shared) built-in	2 modules	1 (APS525W)	1 (RPS or EPS)	Up to 1,440W (EPS)
M5300-28GF3	4 (shared)	24	2 built-in	2 (shared) built-in	2 modules	1 (APS135W)	1 (RPS)	-
M5300-28G3	24	4 (shared)	2 built-in	2 (shared) built-in	2 modules	1 (APS135W)	1 (RPS)	-
M5300-52G3	48	4 (shared)	2 built-in	2 (shared) built-in	2 modules	1 (APS135W)	1 (RPS)	-
Storage (image, config, log files)
1 x USB
Management console
1 x RS232 DB9, 1 x Mini-USB (selectable)

M5300-28G is a 24 + 4x10GbE version, Layer 2+ Upgradeable to Layer 3	M5300-52G is a 48 + 4x10GbE version, Layer 2+ Upgradeable to Layer 3	M5300-28G-POE+ is a 24 + 4x10GbE version, Layer 2+ All ports PoE+ Upgradeable to Layer 3
M5300-52G-POE+ is a 48 + 4x10GbE version, Layer 2+ All ports PoE+ Upgradeable to Layer 3	M5300-28GF3 is a 24 fiber + 4x 10GbE version, Layer 3	M5300-28G3 is a 24 + 4x 10GbE version, Layer 3
M5300-52G3 is a 48 + 4x 10GbE version, Layer 3

Software at a glance
	LAYER 2+ PACKAGE
Model name	Management	Pv4 / IPv6 ACL and QoS, DiffServ	IPv4 / IPv6 Multicast filtering	Auto-VoIP	Green Ethernet	VLANs
M5300 series (all models)	L2, L3, L4, ingress, egress, 1 Kbps	IGMP amd MLD Snooping, Querier mode, MVR	Yes	Static, Dynamic, Voice, MAC, Subnet, Protocol-based, QoQ, Private VLANs	LLDP-MED, RADIUS, 802.1X, PoE timer	Yes (Portbased, Subnet, VLANs, Loopback)
	LAYER 3 PACKAGE
Model name	IPv6 Static Routing	IPv4 Dynamic Routing	IPv6 Dynamic Routing	IPv4/IPv6 Multicast Routing
M5300-28G	Layer 3 License upgrade: GSM7228L-10000S
M5300-52G	Layer 3 License upgrade: GSM7252L-10000S
M5300-28G-POE+	Layer 3 License upgrade: GSM7228PL-10000S
M5300-52G-POE+	Layer 3 License upgrade: GSM7252PL-10000S
M5300-28GF3	Yes (Portbased, Subnet, VLANs)	RIP, OSPF, VRRP, ECMP, Proxy ARP, Multinetting	OSPFv3 Configured 6to4 Automatic 6to4	Static routes, PIM-SM, PIM-DM
M5300-28G3
M5300-52G3

Performance at a Glance
	TABLE SIZE
Model name	Packet buffer	CPU	ACLs	MAC ARP/NDP VLANs DHCP server	Number of Routes (IPv4/IPv6)	RIP/OSPF application route scaling	Static Routes	Multicast IGMP Group membership	IP Multicast Forwarding Entries	sFlow
M5300-28G	16 Mb	800Mhz 512M RAM 128M Flash	100 ACLs 16,384 rules ingress, egress	32K MAC 6K ARP/NDP VLANs: 4K DHCP: 16 pools 1,024 max leases	L3 route table size: 12,256	RIP: 512 OSPF: 12,256	512 IPv4 512 IPv6	2K IPv4 2K IPv6	1K IPv4 or 512 IPv4 256 IPv6	32 samplers 52 pollers 8 receivers
M5300-52G	32 Mb
M5300-28G-POE+	16 Mb
M5300-52G-POE+	32 Mb
M5300-28GF3	16 Mb
M5300-28G3	16 Mb
M5300-52G3	32 Mb

Specifications:

NETGEAR M5300-28G Specifications
Physical Interfaces	24 x Auto-sensing RJ45 10/100/1000 2 x Auto-sensing RJ45 100/1000/10GBase-T 4 x Auto-sensing SFP ports 100/1000 (shared with last 4 Gigabit RJ45) 2 x Auto-sensing SFP+ ports 1000/10GBase-X (shared with the two 10GBT) 2 independent 10 Gigabit I/O bays 1 x Modular PSU 1 x RPS/EPS connector 1 x USB Storage Port Serial RS232 DB9, Mini-USB
Feature Set	Layer 2+ (static routing) Optional Full L3 License
Maximum number of remote Telnet connections	5
Maximum number of remote SSH connections	5
Number of MAC Addresses	32K
Number of VLANs	4K
VLAN ID Range	1 - 4093
Number of 802.1p Traffic Classes	Standalone mode: 8 classes ; Stacking mode: 7 classes
IEEE 802.1x	48
Number of LAGs	64 LAGs with up to 8 ports per group
Maximum multiple spanning tree instances	32
MAC based VLANS	256
Number of log messages buffered	200
Static filter entries	20 Unicast MAC and source port 20 Multicast MAC and source port 2048 Multicast MAC and destination port (only)
Subnet based VLANs	128
Protocol Based VLANs	128 Max number of groups 16 Max protocols
Maximum Multicast MAC Addresses entries	2K
Jumbo Frame Support	12K
Number of DHCP snooping bindings	32K
Number of DHCP snooping static entries	1024
LLDP-MED number of remote nodes	2 x Total switch port count 100 LLDP Remote Management address buffers 100 LLDP Unknown TLV address buffers Total switch port count - LLDP Organisationally Defined Large TLV buffers 12 x Total switch port count - LLDP Organisationally Defined Small TLV buffers
Port MAC Locking	4096 Dynamic addresses per port 48 Static addresses per port
sFlow	32 of samplers 416 of pollers 8 of receivers
Radius	32 Max Authentication servers 32 Max Accounting servers
Number of Routes (v4/v6)	12256 IPv4 only SDM build 6112 IPv4 SDM build routes 3072 IPv4 SDM build routes 512 RIP application route scaling OSPF application route scaling - Can be scaled to maximum number of routes
Number of routing interfaces (including port/vlan)	128
Number of static routes (v4/v6)	512/512
Routing Heap size	26M IPv4 only SDM build 32M IPv6 only SDM build
OSPF	36968 Max OSPFv2 LSAs - IPv4 only SDM build 18536 Max OSPFv2 LSAs - IPv6 only SDM build 400 OSPFv2 max neighbors 9416 Max OSPFv3 LSAs 400 OSPFv3 max neighbors 100 OSPFv3 max neighbors per interface
Tunnels	8 of configured v6-over-v4 tunnels 1 of automatic (6to4) tunnels 16 of 6to4 next hops
DHCP Server	16 Max of pools 1024 Total max leases
DNS Client	16 Concurrent requests 8 Name server entries 6 Seach list entries 64 Static host entries 128 Cache entries 32 Domain search list entries
DHCPv6 Server	16 Max of pools 5 DNS domain names within a pool 8 DNS server addresses within a pool 10 Delegated prefix definitions within a pool
Number of Host Entries (ARP/NDP)	8K/4K Device Hardware Capacity (v4/v6) 6K IPv4 only SDM build 4K/1K IPv4/IPv6 SDM build (v4/v6) 128 Static v4 ARP Entries
Number of ECMP Next Hops per Route	4 of ECMP Next Hops per Route
Total ECMP nexthops in Hardware	2048 Total ECMP nexthops in Hardware
IP Multicast	1K of IPv4/IPv6 Multicast Forwarding Entries (512v4 256v6) 2K IGMP Group Memberships per system (each for v4 & v6) 256 DVMRP Neighbors 256 PIM-DM Neighbors 256 PIM-SM Neighbors 5 PIM-SM Static RP Entries 20 PIM-SM Candidate RP Group Range Entries 5 PIM-SM SSM Range Entries 200 IGMP Sources processed per group per message
ACL Limits	100 Maximum of ACLs (any type) 1023 ingress/511 egress Maximum Configurable Rules per List 1023 ingress/511 egress Maximum ACL Rules per Interface and Direction (IPv4/L2) 1021 ingress/509 egress Maximum ACL Rules per Interface and Direction (IPv6) 16384 Maximum ACL Rules (system-wide) 128 Maximum ACL Logging Rules (system-wide)
COS Device Characteristics	Configurable Queues per Port - Standalone mode: 8 queues; Stacking mode: 7 queues 3 Configurable Drop Precedence Levels
DiffServ Device Limits	Number of Queues (stk/non-stk) - Standalone mode: 8 queues; Stacking mode: 7 queues Requires TLV to contain all policy instances combined 13 Max Rules per Class 28 Max Instances per Policy 3 Max Attributes per Instance Max Service Interfaces (non-stk/stk) - Standalone mode: 58 interfaces; Stacking mode: 422 interfaces
Max Table Entries	32 Class Table 192 Class Rule Table 64 Policy Table 640 Policy Instance Table 1920 Policy Attribute Table 26 Max Nested Class Chain Rule Count
AutoVoIP number of voice calls	16
iSCSI Flow Acceleration	16 Max Monitored TCP Ports/IP Addresses 192 Max Sessions 192 Max Connections
LED
Per port	Speed, Link, Activity
Per device	Power, Fan status, Stack ID, Rear I/O bays
Physical Specifications
Dimensions	440 x 391 x 43 mm (17.3 x 15.4 x 1.7 in)
Weight	6.3 kg (13.89 lb)
Power Consumption
Worst case, all ports used, line-rate traffic, max PoE	55W (240VAC@63Hz) max
Environmental Speifications
Operating	Temperature: 32° to 122°F (0° to 50°C) Humidity: 90% maximum relative humidity, non-condensing Altitude: 10,000 ft (3,000 m) maximum
Storage	Temperature: – 4° to 158°F (–20° to 70°C) Humidity: 95% maximum relative humidity, non-condensing Altitude: 10,000 ft (3,000 m) maximum
Standard
Electronmagnetic Emissions and Immunity	CE mark, commercial FCC Part 15 Class A, VCCI Class A Class A EN 55022 (CISPR 22) Class A Class A C-Tick EN 50082-1 EN 55024
Safety	CE mark, commercial CSA certified (CSA 22.2 #950) UL listed (UL 1950)/cUL IEC 950/EN 60950
Package Content	ProSAFE M5300 series switch Power cord Rubber footpads for tabletop installation Rubber caps for the SFP and SFP+ sockets Rack-mounting kit Mini-USB to USB cable for console Resource CD with links to online documentation, installation guides, software manual, CLI admin guide, Web GUI management guide ProSAFE NMS200 Network Management System DVD with 5-device free test capability
Warranty and Support
ProSAFE Lifetime Warranty†	Included, lifetime
ProSUPPORT Lifetime 24x7 Advanced Technical Support*	Included, lifetime
Next Business Day onsite hardware replacement support**	Included, 3 years

† Lifetime warranty for product purchased aft er 05/01/2007. For product purchased before 05/01/2007, warranty is 5 years.
* 24x7 Lifetime Advanced Technical Support includes Remote Diagnostics performed by our technical experts for prompt resolution of technical issues.
** 3-year Next business day onsite hardware replacement support included: see http://onsite.netgear.com for coverage, availability and terms and conditions.

Documentation:

Download the NETGEAR M5300 Series Datasheet (PDF).
