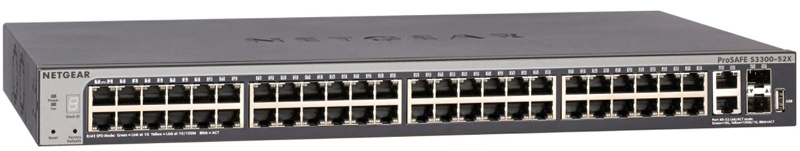

NETGEAR S3300-52X
52-port Gigabit Stackable Smart Switch with 10G Copper/Fiber Uplinks


NETGEAR S3300-52X

Sorry, this product is no longer available, Please contact us for a replacement.



NETGEAR ProSafe

Overview:

The Most Cost Efficient 10G Connectivity for SMB:

The ProSAFE S3300 Series are a new generation of Gigabit Stackable Smart Switches inclusive of 4 10G ports, which can be used for uplinks and/or stacking between other S3300 switches. Dependable switched LAN network design mandates an architecture that can both scale as organization networks grow-and be flexible enough to provide support for faster server and storage connections needs. As SMBs produce and consume more data, Gigabit to the desktop increasingly needs to be underpinned with 10GbE connectivity to the core to ensure a consistent, seamless user experience. This new generation of switches provides SMB customers with the most cost-effective 10G connections between the access and aggregation layer of the network.

Setting New Standards for a Future Proof Network

The ProSAFE S3300 Smart Stackable Series is the blueprint for a dependable future-proof network. From greenfield network requirements to network refresh projects, the ProSAFE S3300 series sets new standards in defining flexibility and choice for SMBs looking to leverage reliable, future proof technologies at affordable price points. Packed with rich enterprise-class feature sets and advanced security measures, it is the only advanced smart switch platform to offer both dedicated 10GBase-T and SFP+ uplink and stacking connectivity in both PoE+ and non PoE configurations – a combination that delivers an unrivalled and powerful interconnect solution for access to core connectivity.

Powerful Platform to Support Demanding Applications

With a choice of 24 or 48 port models, these switches can deliver on demanding tasks such as data replication and backup, video on demand and high volume transaction processing. Up to 6 switches across the series can be stacked for a total of 288 network ports, with 40Gbps stacking bandwidth and full redundancy for unsurpassed reliability. Add in the ability to deliver PoE+ to every port with supplemental RPS and application diversity is readily supported from PTZ IP camera surveillance solutions through to high powered wireless access points and VoIP phones. The inclusion of 10GBase-T uplink capability as standard ensures an affordable way to leverage existing copper installations – if Gigabit speeds and link aggregation meets current requirements, simply migrate to 10GbE connectivity at a pace and time to suit your needs. With lifetime warranty, lifetime NBD and lifetime online technical chat to back you up, you’ll have access to an extensive support service to help protect your investment and reduce downtime risk over the long term.

Highlights

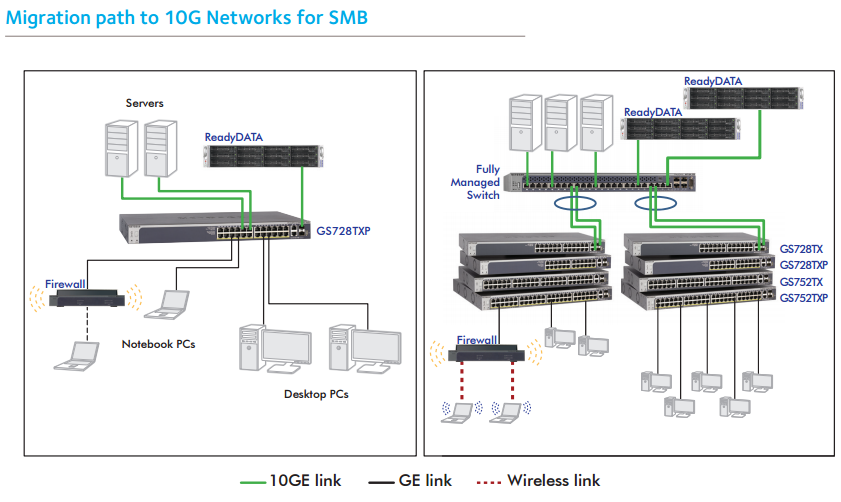

Most Flexible and Cost-Effective Migration path to 10G

  • 4 Dedicated 10G ports
  • Gigabit and 10G network migration path
  • A powerful interconnect link between access and aggregation
  • 10G Fiber and copper can be used flexibly for either stacking and/or uplinks

Enhanced and Powerful

  • Auto-Voice VLAN for easy development of VoIP
  • Auto-Video for simple deployment of IP Surveillance
  • Static routing, helps to route internal traffic for more efficient use of network resources
  • IGMP and MLD snooping, providing advanced multicast filtering
  • Extensive PoE+ capabilities extendable to 1,440W with supplemental RPS solution
  • Solid performance with non-blocking architecture, 8K MAC addresses, 256 VLANs, 480 shared ACL entries, 32 static routes, and 1,024 Multicast Groups
  • Comprehensive IPv6 supporting management, QoS and ACL, ensuring investment protection and a smooth migration to IPv6-based network
  • Dedicated SFPs instead of combo ports, offering more connectivity ports and providing better value and usability at no extra cost
  • Energy Efficient Ethernet (IEEE 802.3az) support for more energy saving in the future when more EEE-compliant end devices come to market
  • Advanced QoS with IPv4/IPv6 ingress traffic filtering (ACLs) and prioritization (QoS - DiffServ)
  • Dynamic VLAN assignment for easy user authentication and location-independent access to network
  • USB for easy access firmware updates

Smart IT, not Big IT

  • Easy to manage via web-Based Management GUI or Smart Control Center (Windows PC required) for multi-switch deployment
  • Smart Control Center, a powerful tool for multi-switch discovery, deployment, monitoring and firmware upgrade
  • Network Management System (NMS300), allowing all NETGEAR business products to be deployed and managed through this single interface
  • Dual firmware images, improving reliability and uptime to your network
  • Worry-free with NETGEAR Lifetime warranty*, Lifetime online Technical chat support and Lifetime Next Business Day replacement

Features:


Hardware Features Benefits
2 Dedicated SFP+Fiber uplinks/stacking ports Dedicated SFP+ ports provides fiber uplinks without sacrificing any downlink Gigabit port. 2 SFP+ ports provide not only redundant uplinks, but can also build dualredundancy by a trunked uplink with link aggregation and failoverredundancy. Note that stacking requires the use of SFP+ (10G) modules only.
2 Dedicated 10GBASE-T uplink/stacking ports Dedicated 10GBASE-T ports supporting 10G/1G/100M speeds can be used for redundant uplinks, or for stacking at 10G speeds only.
PoE+ Support on all ports (PoE models) Flexible to plug-in or change into high-power PD devices on any port without worrying which one port to plug in and whether it will be running out of PoE+ ports.
One USB port on the rear of chassis Quickly and conveniently upgrade or restore firmware.
Energy Efficient Ethernet (IEEE 802.3az) Maximum power reduction for onging operational cost savings.
Stacking with up to 6 switches and 40G bi-directional bandwidth Improved network reliability and resiliency. Easy management and great Solution for virtualized environments.
Software Features Benefits
Dynamic VLAN assignment Build current network with future in mind. Ensure investment protection and a smooth migration to an IPv6-based network without switch replacement.
Static routing A simple way to provide segmentation of the network with internal routing through the switch – reserving the router for external traffic routing only, making the entire network more efficient.
Comprehensive IPv6 support for management, ACL and QoS Build a secured, converged network with all types of traffic by preventing external attacks and blocking malware while allowing secure access for authorized users.
IGMP snooping and MLD snooping Advanced controls for optimized network performance and better delivery of mission-critical traffic such as voice and video.
Robust security features Automatic Voice over IP prioritization (Auto-VoIP) simplifies most complex multi-vendor IP telephone deployments either based on protocols (SIP, H.323 and SCCP) or on OUI bytes (default database and user-based OUIs) in the phone source MAC address, providing the best class of service to VoIP streams (both data and signaling) over other ordinary traffic by classifying traffic, and enabling correct egress queue configuration. Similarly, Auto-Video VLAN enables IGMP snooping to minimize broadcast streams.
Auto-Voice and Auto-Video Facilitate fast receiver joins and leaves for multicast streams. Save cost and improve network efficiency by ensuring multicast traffic only reaches designated receivers without the need of an extra multicast router
Comprehensive QoS features Ensure no exchange of unicast, broadcast, or multicast traffic between the protected ports on the switch, thereby improving the security of your converged network. This allows your sensitive phone phone conversations to stay private and your surveillance video clips can be forwarded to their designated storage device without leakage or alteration.
DHCP snooping Ensure IP address allocation integrity by only allowing DHCP messages from trusted DHCP servers and dropping malformed DHCP messages with a port or MAC address mismatch.
Dual firmware Images and configuration files IP phones and PCs can authenticate on the same port but under different VLAN assignment policies. Users are free to move around and enjoy the same level of network access regardless of their physical location on the network.
Protected ports Private VLANs help reduce broadcast with added security.
Dynamic ARP inspection Dual firmware images and dual configuration files for transparent firmware updates/configuration changes with minimum service interruption.
Multicast VLAN registration Dual firmware images and dual configuration files for transparent firmware updates/configuration changes with minimum service interruption.
EAV (Ethernet Audio/Video Bridging) support1 Dual firmware images and dual configuration files for transparent firmware updates/configuration changes with minimum service interruption.

1 EAV support can be acquired through the purchase of EAV software license that is sold separately from the switch. Please refer to ordering information for part numbers of these licenses.

Features:
Performance
  • 8 Priority queues
  • Weighted Round Robin (WRR) priority queuing
  • 16K Media Access Control (MAC) addresses with 48-bit MAC address
  • 512 Multicast groups
  • 32 static routes; 15 routed VLANs
  • 512 ARP cache entries
  • 8K DHCP snooping bindings
  • 100 shared rules for MAC, IP and IPv6 ACLs
L2 Services - VLANs
  • 256 VLANs supported
  • IEEE 802.1Q VLAN tagging
  • IP-based VLANs
  • MAC-based VLANs
  • Auto-Voice VLAN based on phone's OUI bytes (internal database, or user-maintained) or protocols (SIP, H323 and SCCP)
  • Auto-Video VLAN
L2 Services - Availability
  • Broadcast storm control
  • IEEE 802.3x (full duplex and flow control)
  • IEEE 802.1D Spanning Tree Protocol
  • IEEE 802.1w Rapid Spanning Tree
  • IEEE 802.1s Multiple Spanning Tree
  • BPDU guard
L2 Services - Multicast Filtering
  • IGMP snooping (v1, v2 and v3)
  • MLD snooping support (v1 and v2)
  • IGMP snooping queries
  • Block unknown multicast
  • Multicast VLAN Registration (MVR)
Stacking
  • 10G SFP+ or 10GBase-T copper stacking interface
  • Maximum of 6 switches within a stack
  • 40G bi-directional stacking bandwidth
L3 Services – DHCP
  • DHCP client
  • DHCP snooping
L3 Services - IPv4 Routing
  • 32 Static routes
  • 512 Host ARP table entries
  • Router Discovery (IRDP)
Link Aggregation
  • IEEE 802.3ad - LAGs
  • Manual LAG
  • 26 LAGs with max 8 members in each LAG
Network Monitoring and Discovery Services
  • 802.1ab LLDP
  • SNMP
  • RMON group 1,2,3,9
Network Security
  • IEEE 802.1X (Guest VLAN, RADIUS-based VLAN assignment via .1x)
  • MAC-based .1x
  • RADIUS accounting
  • L2/L3/L4 Access Control Lists (ACLs)
  • IP-based ACLs (IPv4 and IPv6)
  • MAC-based ACL
  • TCP/UDP-based ACL
  • MAC lockdown
  • MAC lockdown by the number of MACs
  • IEEE 802.1X Radius port access authentication
  • Port-based security by locked MAC addresses
  • IP source guard
  • Dynamic ARP inspection (600 Dynamic learned entries, 20 Static entries)
  • Network storm protection, DoS
  • Broadcast, unicast, multicast DoS protection
  • DoS attacks prevention
Quality of Service (QoS)
  • Access Lists
  • L2 MAC, L3 IP and L4 Port ACLs
  • Rate limiting (egress only)
  • Port-based QoS
  • Support for IPv6 fields
  • DiffServ QoS
  • IEEE 802.1p COS
  • Dst MAC and IP
  • IPv4 and v6 DSCP
  • TCP/UDP-based
  • WRR (Weighted Round Robin)
  • Strict priority queue technology
  • Timing and Synchronization for Time-Sensitive Applications (IEEE 802.1AS)
  • Stream Reservation Protocol (SRP) (IEEE 802.1Qat)
  • Forwarding and Queuing for Time-Sensitive Streams (IEEE 802.1Qav)
  • Audio Video Bridging Systems (IEEE 802.1BA)
Management
  • Password management
  • Configurable Management VLAN
NETGEAR Warranty
  • This product is backed by a NETGEAR ProSAFE® Lifetime Hardware Warranty.
  • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.
  • ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat. (Remote diagnostics performed by our technical experts for prompt resolution of technical issues).

Specifications:

Product S3300-28X S3300-28X-PoE+ S3300-52X S3300-52X-PoE+
10/100/1000Mbps ports 24 24 48 48
10-Gigabit ports 4 Dedicated (2 Copper and 2 Fiber)
Performance Specification
Forwarding modes Store-and-forward
Bandwidth 128Gbps 128Gbps 176Gbps 176Gbps
Packet Forwarding Rate
(64 byte packet size) (Mfps or Mpps)		 95.2 95.2 130.9 130.9
Priority queues 8 8 8 8
Priority queuing Weighted Round Robin (WRR)
MAC address database size 16k media access control (MAC) addresses
Addressing 48-bit MAC address
Multicast groups 512
Number of static routes 32
Number of routed VLANs 15
Number of ARP cache entries 512
Number of DHCP snooping bindings 8k
Access Control Lists (ACLs) 100 shared for MAC, IP and IPv6 ACLs
Jumbo frame support Up to 9K packet size
Acoustic noise (ANSI-S10.12) 40dBA 36.8dBA 39dBA 40dBA
Mean Time Between Failures (MTBF) 278,559 hours 147,965 hours 279,970 hours 216,809 hours
Features and Protocols
L2 Services - VLANs
  • 256 VLANs supported
  • IEEE 802.1Q VLAN tagging
  • IP-based VLANs
  • MAC-based VLANs
  • Auto-Voice VLAN based on phone's OUI bytes (internal database, or user-maintained) or protocols (SIP, H323 and SCCP)
  • Auto-Video VLAN
L2 Services - Availability
  • Broadcast storm control
  • IEEE 802.3x (full duplex and flow control)
  • IEEE 802.1D Spanning Tree Protocol
  • IEEE 802.1w Rapid Spanning Tree
  • IEEE 802.1s Multiple Spanning Tree
  • BPDU guard
L2 Services - Multicast Filtering
  • IGMP snooping (v1, v2 and v3)
  • MLD snooping support (v1 and v2)
  • IGMP snooping queries
  • Block unknown multicast
  • Multicast VLAN Registration (MVR)
L3 Services – DHCP
  • DHCP client
  • DHCP snooping
  • DHCP relay
L3 Services - IPv4 Routing
  • 32 Static routes
  • 512 Host ARP table entries
  • Router Discovery (IRDP)
Link Aggregation
  • IEEE 802.3ad - LAGs
  • Manual LAG
  • 26 LAGs with max 8 members in each LAG
Stacking
  • 10G SFP+ or 10GBase-T copper stacking interface
  • Maximum of 6 switches within a stack
  • 40G bi-directional stacking bandwidth
Network Monitoring and Discovery Services
  • 802.1ab LLDP
  • SNMP v1, v2c, v3
  • RMON group 1,2,3,9
Network Security
  • IEEE 802.1X (Guest VLAN, RADIUS-based VLAN assignment via .1x)
  • MAC-based .1x
  • RADIUS accounting
  • L2/L3/L4 Access Control Lists (ACLs)
  • IP-based ACLs (IPv4 and IPv6)
  • MAC-based ACL
  • TCP/UDP-based ACL
  • MAC lockdown
  • MAC lockdown by the number of MACs
  • IEEE 802.1X Radius port access authentication
  • Port-based security by locked MAC addresses
  • IP source guard
  • Dynamic ARP inspection (600 Dynamic learned entries, 20 Static entries)
  • Network storm protection, DoS
  • Broadcast, unicast, multicast DoS protection
  • DoS attacks prevention
Quality of Service (QoS)
  • Access Lists
  • L2 MAC, L3 IP and L4 Port ACLs
  • Rate limiting (egress only)
  • Port-based QoS
  • Support for IPv6 fields
  • DiffServ QoS
  • IEEE 802.1p COS
  • Dst MAC and IP
  • IPv4 and v6 DSCP
  • TCP/UDP-based
  • WRR (Weighted Round Robin)
  • Strict priority queue technology
  • Timing and Synchronization for Time-Sensitive Applications (IEEE 802.1AS)
  • Stream Reservation Protocol (SRP) (IEEE 802.1Qat)
  • Forwarding and Queuing for Time-Sensitive Streams (IEEE 802.1Qav)
  • Audio Video Bridging Systems (IEEE 802.1BA)
  • Auto-VoIP based on protocols (SIP, H323 and SCCP) or on OUI bytes (default database and user-based OUIs) in the phone source MAC address
  • Auto-Video (up to 24 ports simultaneously)
IEEE Network Protocols
  • IEEE 802.3 Ethernet
  • IEEE 802.3i 10BASE-T
  • IEEE 802.3u 100BASE-T
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.1Q VLAN Tagging
  • IEEE 802.3x Full-Duplex Flow Control
  • EEE 802.1Qav1
  • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX
  • IEEE 802.3ae 10-Gigabit Ethernet Over Fiber (10GBASE-SR, 10GBASE-LR, 10GBASE-ER, 10GBASE-LX4)
  • IEEE 802.3an 10GBASE-T 10 Gbit/s Ethernet Over Copper Twisted Pair Cable
  • IEEE 802.3ad Trunking (LACP)
  • IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED)
  • IEEE 802.1p Class of Service
  • IEEE 802.1Qat1
  • IEEE 802.1D Spanning Tree (STP)
  • IEEE 802.1s Multiple Spanning Tree (MSTP)
  • IEEE 802.1w Rapid Spanning Tree (RSTP)
  • IEEE 802.1x RADIUS Network Access Control
  • IEEE 802.1BA1
  • IEEE 802.1AS1
Management
  • Password management
  • Configurable management VLAN
  • Admin access control via RADIUS and TACACS+
  • Web-based graphical user interface (GUI)
  • Smart Control Center (SCC) for multi-switch management
  • IPv6 management Yes Dual software (firmware) image
  • Dual configuration file
  • SNTP client over UDP port 123
  • SNMP v1/v2c Yes SNMP v3 with multiple IP addresses
  • RMON group 1,2,3,9
  • Port mirroring
  • Many-to-one port mirroring
  • Cable test utility
  • SSL/HTTPS and TLS v1.0 for Web-based access
  • TFTP / HTTP File transfers (uploads, downloads)
  • HTTP upload/download (firmware)
  • Syslog (RFC 3164)
  • USB port for firmware and config upload/ download
LEDS
Per port Speed, Link, Activity
Per device Power, Fan, and PoE (GS728TXP and GS752TXP only)
PoE Configuration
Number of PoE+ ports   24   48
Total PoE power budget (watts), without RPS   195W   390W
RPS support: RPS mode, max. PoE power budget with RPS   720W   1440W
Physical Specifications
Dimensions 440 x 257 x 43mm 440 x 257 x 43mm 440 x 257 x 43mm 440 x 345 x 43mm
Weight 3.14kg 3.77kg 3.66kg 5.54kg
Power Consumption
Worst case, all ports used, line-rate traffic 28.18W 748.18W 44.12W 1484.12W
Environment Specifications
Operating Temperature 32° to 122°F (0° to 50°C)
Operating Humidity (relative) 90% maximum relative humidity, non-condensing
Operating Altitude 10,000 ft (3,000 m) maximum
Storage Temperature – 4° to 158°F (–20° to 70°C)
Storage Humidity (relative) 95% maximum relative humidity, non-condensing
Storage Altitude 10,000 ft (3,000 m) maximum
Electromagnetic Emissions and Immunity
Certifications
  • CE mark, commercial
  • FCC Part 15 Class A, VCCI Class A
  • Class A EN 55022 (CISPR 22) Class A
  • Class A C-Tick
  • EN 50082-1
  • EN 55024
  • CCC
Safety
Certifications
  • CE mark, commercial
  • CSA certified (CSA 22.2 #950)
  • UL listed (UL 1950)/cUL IEC 950/EN 60950
Warranty and Support
ProSAFE Lifetime Warranty Included, Lifetime*
Lifetime 24x7 Online Technical Support* Included, Lifetime*
Lifetime Next-Business-Day (NBD) Replacement Included, Lifetime*
ProSUPPORT OnCall 24x7, Category 2** Service Packs
  • PMB0312 (1 yr.)
  • PMB0332 (3 yrs.)
  • PMB0352 (5 yrs.)
Package Content
All Models
  • ProSAFE Gigabit Stackable Smart Managed Switch, S3300 Series
  • Power cord
  • Rack-mounting kit
  • Hardware installation guide
  • Resource CD with links to online documentation, installation guides, Web-management user manual, Smart Control Center (SCC) software and user guide.

* This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and modifications to product may void the warranty; covers hardware, fans, and internal power supplies—not software or external power supplies; see http://www.netgear.com/about/warranty/ for details. Lifetime technical support includes basic phone support for 90 days from purchase date and lifetime online chat support when purchased from a NETGEAR authorized reseller
** The NETGEAR OnCall 24x7 contract provides unlimited phone and email technical support for your networking product. For ProSAFE products purchased prior to 06/2014, also includes nextbusiness-day hardware replacement.
1 EAV support can be acquired through the purchase of EAV software license that is sold separately from the switch. Please refer to ordering information for part numbers of these licenses.

Diagram:

Migration path to 10G Networks for SMB

Why the NETGEAR latest generation of Gigabit Stackable Smart Managed Switch with 10G links is the right choice for SMBs?

NETGEAR Gigabit Stackable Smart Managed Switches offer the most cost-effective migration path to 10G network:

  • Well-positioned for 10G network upgrade into aggregation switches, servers and network storage devices while offering Gigabit to the network edge
  • Stacking capability for redundancy, improved resiliency and ease-of-management
  • Improved usability for easier and smoother deployment of voice, video and WLAN on the same converged platform
  • Lifetime warranty on hardware, lifetime next-business-day (NBD) replacement, lifetime tech support online chat, and 1-year Free Advanced Tech Support* for peace-of-mind.

Documentation:

Download the NETGEAR S3300 Smart Managed Switch Series Datasheet (PDF).
