NETGEAR WAC505
Insight Managed Smart Cloud Wireless Access Point


NETGEAR WAC505

Pricing Notes:

Sorry, this product is no longer available, replaced by the WAC510PA-100NAS.


NETGEAR ProSafe

Overview:

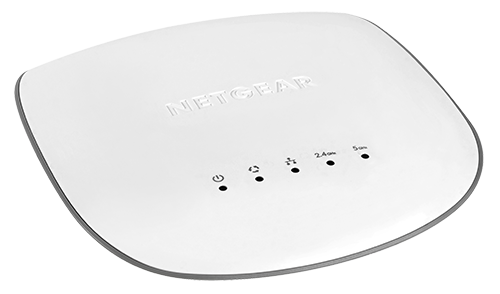

The NETGEAR Insight Managed Wireless Access Point WAC505 delivers high performance WiFi and high client density for enterprises requiring ubiquitous and reliable wireless for all business applications. The WAC505 is managed by NETGEAR Insight app, for a more intuitive and innovative support, with no need for extra management hardware. The WAC505 features Multi-User MIMO (MU-MIMO) to achieve aggregate speeds up to 1.2 Gbps, option to configure as or Access Point modes, and comes with two Ethernet ports, a Power-over-Ethernet (PoE) 1Gb LAN port and a WAN port. WAC505 comes with market-leading 5-year hardware warranty.

Introducing one-touch wireless visibility & management

Wireless network discovery, setup, monitoring and management can now be done from the palm of your hand – anytime, anywhere, with NETGEAR Insight app. Reliable wireless connectivity for employees and customers is a requirement for any business today. All devices are now connected, all users are mobile and “WiFi everywhere” is commonplace. Business owners are often too busy to handle this and need WiFi that just works!

NETGEAR introduces the new IT revolution for small businesses with “One-touch connectivity” with Insight management app. Experience easy set-up, remote management and full control of your wireless network. With 20 years of experience in small & medium business networking, NETGEAR is now delivering wireless connectivity that “just works” at your fingertips.

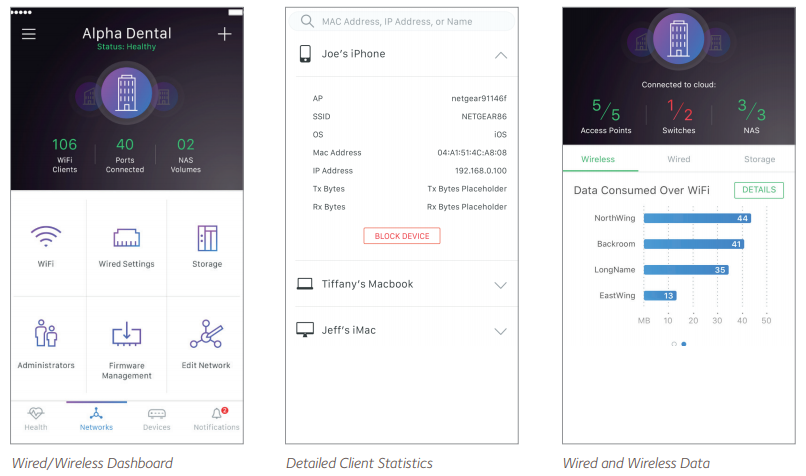

NETGEAR Insight enables multi-device configuration of your NETGEAR Insight Managed wireless access points, either locally or remotely. It provides network management, monitoring and service deployment across multiple remote and local sites for the easiest and most user-friendly wireless networking experience. Anywhere management also includes Insight Managed switches and Business-Class ReadyNAS on top of Insight Managed Wireless Access points, enabling whole network visibility and management. Insight app also allows you discover select wired and wireless devices from your local or remote network.

Business Features for higher speed, greater coverage and higher density WiFi

  • Business class WiFi with superior Wave 2 802.11ac performance and range
  • 2x2 with 2 streams of data for aggregate throughput of up to 1.2Gbps (300 Mbps at 2.4GHz and 867 Mbps at 5GHz)
  • Multi-User Multiple In Multiple Out (MU-MIMO) avoids congestion and ensures performance in high client density deployments like public WiFi hotspots
  • One Ethernet port, with Power-overEthernet (PoE) for ease of deployment (PoE switch & AC/DC power adapter are sold separately)
  • One-touch network visibility. Anywhere. - Smart Cloud remote app management for unrivaled mobile management experience of your wireless network
  • App managed, through NETGEAR Insight app for one-touch installation and management of all your WAC505 and WAC510 Access Points, no additional hardware needed
  • Market leading 5-year warranty with 24x7 chat support for peace of mind

Business Features for higher speed, greater coverage and higher density WiFi

Features:

One-touch wireless connectivity & management with NETGEAR Insight app

  • Instant in-app discovery & set-up
  • Local and Cloud monitoring and management
  • Remote access and multi-device configuration
  • No additional Cloud controller, appliance, network manager, or PC/server is necessary
  • QR code initial configuration for instant installation

Includes Guest Facebook WiFi check-in

  • Easy guest check-in to your business
  • Gain insight on your clients and business
  • Get more attention to your business
  • Instant set-up

Superior performance with 802.11ac Wave 2

  • Dual band concurrent operation between 2.4GHz and 5GHz frequency ranges
  • Maximum performance with multi-gigabit throughput (up to 1.2 Gbps)
  • Multi-User MIMO enable concurrent wireless transmit and receive with multiple clients
  • Improves coverage for multiple users in dense environment

Flexible deployment with Power over Ethernet and accessories

  • Standard based 802.3af Power over Ethernet (PoE)
  • Access Point mode for multiple WAC505 for mid-size office environment
  • Ceiling and wall mount for ease of placement

Specifications:


Specifications WAC505 WAC505
Features
Frequency 2.4GHz and 5GHz 2.4GHz and 5GHz
Wireless Mode (Transmit x Receive) 802.11ac (2x2) 802.11ac (2x2)
802.11ac Wave Wave 2 Wave 2
Multi-User MIMO Yes Yes
Maximum Theoretical Throughput 1.2Gbps 1.2Gbps
Maximum Throughput (2.4/5GHz) 300/867Mbps (2.4/5GHz) 300/867Mbps (2.4/5GHz)
Power over Ethernet (PoE) IEEE 802.3af Yes Yes
PoE Power Consumption 8.9 Watts 9.3 Watts
Centralized Management Insight App, Standalone Insight App, Standalone
SNMP v1, v2c v1, v2c
Secure SSH Yes Yes
Secure Socket Layer (SSL) Yes Yes
Router Mode No Yes
Wireless Distribution System (WDS)
Repeater Yes Yes
Bridge point-to-point/multi-point Yes Yes
Simultaneous bridge & wireless client association Yes Yes
Separate bridge and access point Yes Yes
Antenna Internal 3/4dBi (2.4/5GHz) Internal 3/5dBi (2.4/5GHz)
Security
Security
  • WiFi Protected Access (WPA/WPA2), 802.11i
  • MAC address filtering with access control
  • Rogue AP detection
  • Block SSID Broadcast
  • VLAN Support
  • Guest Network/Captive Portal
  • Easy ceiling mounting/wall mouting
  • Bandwidth management
  • Bandsteering
Technical Specifications
Standards
  • IEEE 802.11ac Wave 2 standard
  • WMM Wireless Multimedia Prioritization
  • WDS Wireless Distribution System
  • Power over Ethernet (PoE) IEEE 802.3af
  • Power over Ethernet (PoE) IEEE 802.3at
Physical Specifications
  • Physical Dimensions (W x D x H): 175 x 165 x 35 mm (6.89 x 6.49 x 1.38 in)
  • Weight: 256 g (0.56 lb)
  • Physical Dimensions (W x D x H): 197.32 x 197.32 x 37mm (7.75 x 7.75 x 1.45in)
  • Weight: 555.5g (1.22lb)
Physical Interfaces
  • One 10/100/1000BASE-T Gigabit Ethernet (RJ-45) ports with Auto Uplink (Auto MDI-X) supporting IEEE 802.3af or 802.3at Power over Ethernet (PoE)
  • Power adapter (not included): 12V DC, 2.5A; plug is localized to country of sale
  • Five (5) LED: Power, Link/ACT, LAN, 2.4GHz, 5GHz
  • Two (WAN/LAN) 10/100/1000BASE-T Gigabit Ethernet (RJ-45) ports with Auto Uplink (Auto MDI-X) with WAN port supporting IEEE 802.3af or 802.3at Power over Ethernet (PoE)
  • Power adapter (not included): 12V DC, 2.5A; plug is localized to country of sale
  • Six (6) LED: Power, Link/ACT, LAN1, LAN2, 2.4GHz, 5GHz
Security
  • WiFi Protected Access (WPA, WPA2)
  • WPA Enterprise (802.1x)
  • Wireless access control to identify authorized wireless network devices
  • MAC address authentication
  • WiFi Protected Access (WPA, WPA2)
  • Wireless access control to identify authorized wireless network devices
  • MAC address authentication
Network Management
  • NETGEAR Insight App Management for setup, monitoring and management
  • SNMP v1, v2
Advanced Wireless
  • Wireless Distribution System (WDS)
    • Bridge mode: Point-to-point wireless
    • Bridge mode: Point-to-multipoint wireless
    • Repeater mode
    • Adjustable Transmit Power Control (TPC)
  • Device detection
    • Identify type of wireless clients in the network
Package Contents
  • (WAC505) Insight Managed Smart Cloud Wireless Access Point
  • Wall/ceiling mount kit
  • Installation guide
  • (WAC510) Insight Managed Smart Cloud Wireless Access Point
  • Wall/ceiling mount kit
  • Installation guide
NETGEAR Warranty NETGEAR 5-year hardware warranty

Diagram:

Deployment Scenario

Deployment Scenario

Documentation:

Download the NETGEAR WAC505 and WAC510 Datasheet (PDF).
