NETGEAR WNDAP350
ProSafe Dual Band Wireless-N Access Point

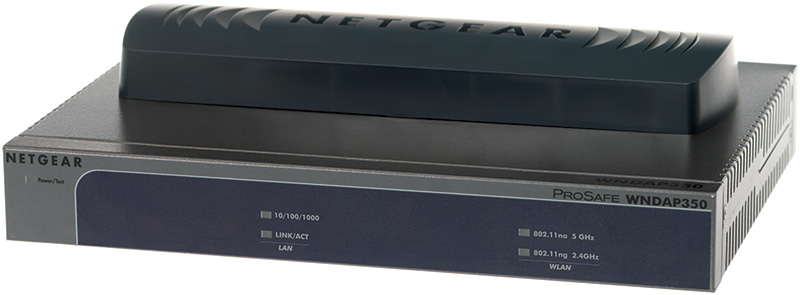

NETGEAR WNDAP350 - ProSafe Dual Band Wireless-N Access Point

Sorry, this product is no longer available, replaced by the WAC720-100NAS.

<

More pricing below, click here!

NETGEAR ProSafe

Overview:

Advanced Speed and Range with Comprehensive Internet Security

  • Up to 15x the speed and 10x the coverage of 802.11g networks
  • Concurrent operation in 2.4 GHz and 5 GHz radio band for maximum wireless throughput
  • Backward compatibility with 802.11a, 802.11g and 802.11b network devices
  • Security features include WPA, WPA2, rogue AP detection and 802.1x with RADIUS support
  • Support for 802.3af PoE for optimal placement of access point

Features

  • Up to 15x the speed and 10x the coverage of 802.11a, 802.11g networks
  • Operation in 5 GHz radio band to avoid interference from 802.11b or 802.11g network devices
  • Concurrent operation in 2.4 GHz and 5 GHz radio band
  • Backward compatibility with 802.11a, 802.11g and 802.11b network devices
  • Integrated 802.3af PoE eliminates extra cables and enables optimal placement of the access point
  • Comprehensive SNMP functionality for advanced network management
  • Deploy wireless coverage over large areas with point-to-point and point-to-multipoint bridging via Wireless Distribution System (WDS)
  • Security features include WPA, WPA2, rogue AP detection and 802.1x with RADIUS support
  • Plenum-rated for safe and convenient placement above drop-down ceilings
  • Metal case includes Kensington lock slot for anti-theft
  • Internal antennas factory-optimized for maximum RF performance
  • Antenna take-offs enable optional accessory antenna attachment for 2.4 GHz operations
  • Lifetime hardware warranty

The NETGEAR Difference

  • Concurrent dual band operation on PoE power
  • Internal antennas optimized for maximum performance
  • Intuitive GUI for easy configuration
  • Attachment points for optional accessory antennasLifetime Warranty

Specifications:

NETGEAR WNDAP350 Specifications
Standards
  • IEEE 802.11n, 2.4 GHz and 5.0 GHz
  • IEEE 802.11a 5.0 GHz
  • IEEE 802.11g, IEEE 802.11b, 2.4 GHz
  • IEEE 802.3ab Gigabit Ethernet
  • WMM - Wi-Fi Multimedia prioritization
  • Wireless Distribution System
  • IEEE 802.3af Power over Ethernet (PoE)
Physical Specifications
  • Dimensions: 32 x 190 x 124 mm (1.25 x 7.5 x 4.9 in)
  • Weight: (.56 kg) 1.2 lb
  • Plenum rated
  • Flash: 16 MB
  • RAM: 128 MB
  • Slots for wall or ceiling mounting
Safety and Electromagnetic Conformance
  • FCC Part 15 Subpart B and Subpart C
  • CE EN 60950, EN 300328-2 v1.1.1, (2000-07), EMC EN 301489-1 v1.2.1, (2000-08), and EN 301489-17 v1.1.1, (2000-09), EN 55022(B), CISPR 22(B), AS/NZS 3548(B)
Environmental Specifications
  • Operating temperature: 0° to 55° C (32° to 131° F)
  • Operating humidity: 90% maximum relative humidity, non-condensing
Physical Interfaces
  • One (1) 10/100/1000BASE-T Gigabit Ethernet (RJ-45) port with Auto Uplink™ (Auto MDI-X) with IEEE 802.3af Power over Ethernet (PoE) support
  • Power adapter: 12V DC, 1A; plug is localized to country of sale
  • Five (5) LEDs: Power, 10/100/1000 Mbps, Link/ACT, 2.4 GHz band, 5.0 GHz band
  • One (1) console port with standard RS-232C interface with DB-9 male connector
  • Two (2) reverse SMA antenna connectors for accessory antennas
Note: Not recommended for use with ProSafe Antennas ANT2405, ANT2409 or ANT24D18
Power over Ethernet Required
  • Up to 12.8W
  • Typical Maximum Transmit Power: 20 dB

Note: Maximum Tx varies based on country and/or region selection to ensure local regulatory compliance

Security
  • Wi-Fi Protected Access (WPA, WPA2)
  • Wired Equivalent Privacy (WEP) 64-bit, 128-bit encryption and 256-bit encryption
  • IEEE 802.1x RADIUS authentication with EAP TLS, TTLS, PEAP
  • Wireless access control to identify authorized wireless network devices
  • MAC address authentication ; up to 256 entries
  • VPN pass-through support
  • Secure SSH telnet
  • Secure Sockets Layer (SSL) remote management login
  • Multiple SSID: 8 per band (16 total)
  • Block SSID Broadcast
  • VLAN Support: 17 VLAN
  • Rogue AP detection
  • Client isolation for Hotspot applications
  • Kensington locking slot for physical security
Network Management
  • Remote configuration and management through Web browser, SNMP or telnet with Command Line Interface (CLI)
  • SNMP management supports SNMP MIB I, MIB II, 802.11 MIB and proprietary configuration MIB, SNMP v1, V2c
Advanced Wireless Features
  • Point-to-point wireless bridge mode
  • Point-to-multipoint wireless bridge mode
  • Repeater mode
  • Simultaneous wireless bridge and access point mode
  • Wireless Distribution System (WDS)
  • Adjustable transmit power control (TPC) from 100 mW down to 0 mW
  • WMM support for traffic prioritization
  • WMM-PS support for saving client battery life
  • DHCP Server for clients
Warranty
  • Access point: ProSafe Lifetime Warranty
  • Power supply: 3-year warranty
System Requirements
  • 2.4 GHz/5 GHz 802.11n draft specification adapter or 2.4 GHz 802.11b/g wireless adapter or 5 GHz 802.11a wireless adapter
  • Microsoft® Windows® Vista™, XP, 2000, 98, Me, Mac® OS, UNIX®, Linux®
  • Internet Explorer® 6.0, Mozilla Firefox 1.5
  • We recommend using this product with the RangeMax™ Dual Band Wireless USB 2.0 Adapter (WNDA3100)
Package Contents
  • ProSafe Dual Band Wireless-N Access Point (WNDAP350)
  • Ethernet cable
  • Wall-mount kit
  • Installation guide
  • Resource CD
  • 12V, 1A power adapter, localized to country of sale

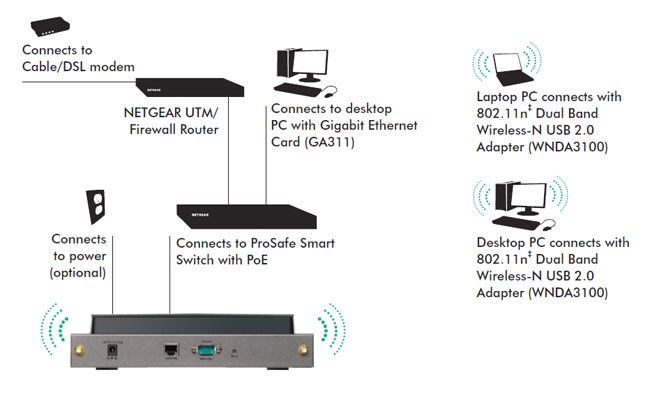

Diagram:

NETGEAR WNDAP330 Diagram

Documentation:

Download the NETGEAR WNDAP350 Datasheet (PDF).
