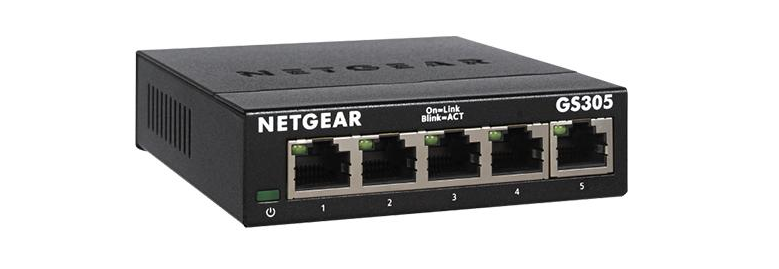

NETGEAR GS305
5-Port Gigabit Ethernet SOHO Unmanaged Switch


NETGEAR GS305

Netgear Products
NETGEAR Unmanaged Switches
NETGEAR 5-Port Gigabit Ethernet SOHO Unmanaged Switch
#GS305-300PAS
Price: $35.86
Add to Cart for Pricing

More pricing below, click here!

Overview:

Expanding Wired Connectivity for SOHO Networks

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The GS305P/GS305PP and GS308P with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.

  • Auto-MDI/MDIX eliminates the need for crossover cables
  • LED indicators for ease of use
  • Energy-efficient technology for power savings
  • Fanless design for silent operation
  • Auto-negotiation for automatic connection at the highest common speed between switch and an end device
  • Non-blocking switching architecture for maximum throughput at wire speed
  • 802.1p QoS for traffic/frame prioritization
  • Plug-and-play; no setup required
  • Durable and rugged metal case
  • Desktop or wall-mountable (5, 8, 16-port models); GS324 is desktop, wall-mountable, and rack-mountable (rack-mount kit included); GS348 is rackmountable (rack-mount kit included)
  • Ideal for small office and home networks
  • Standards-based technology ensures interoperability with any standardsbased devices in the existing network
  • Power up to 4 PoE-capable devices (GS305P/GS305PP and GS308P only)
  • 802.3af Power Over Ethernet (PoE) for IP cameras, VoIP/Internet-based phones, wireless access points (GS308P only)

Specifications:

Technical Specifications GS305 GS305P GS305PP GS308 GS308P GS316 GS324 GS348
Features
10/100/1000Mbps Ports (Auto Uplink) 5 5 5 8 8 16 24 48
Enclosure Metal Metal Metal Metal Metal Metal Metal Metal
Connector Type Metal Metal Metal Plastic Metal Metal Plastic Metal
Form Factor Desktop or wall-mountable Desktop or wall-mountable Desktop or wall-mountable Desktop or wall-mountable Desktop or wall-mountable Desktop or wall-mountable Desktop, wall-mountable, rackmountable Desktop, rack-mountable
Power On/Off Switch No No No Yes No No No No
Performance Specifications
Bandwidth (Non-Blocking) 10 Gbps 10 Gbps 10 Gbps 16 Gbps 16 Gbps 32 Gbps 48 Gbps 96 Gbps
Packet Buffer Memory (Dynamically shared across only used ports) 128KB 128KB 128KB 192KB 192KB 768KB 512KB 1.5MB
Jumbo Frame Support 9,216 bytes 9,216 bytes 9,216 bytes 9,216 bytes 9,720 bytes 9,216 bytes 9,216 bytes 9,216 bytes
Queue WRR (Weighted Round Robin) Ratio 1:2:4:8 1:3:5:7:8:10:12:15 1:3:5:7:8:10:12:15 1:2:4:8 1:2:4:8 1:2:4:8 1:2:4:8 1:3:5:7:8:10:12:15
Forwarding Rate (using 64-byte packets) - 1000Mbps Port 1,448,000 pps 1,448,000 pps 1,448,000 pps 1,448,000 pps 1,448,000 pps 1,448,000 pps 1,448,000 pps 1,448,000 pps
Latency (using 64-byte packets) - 1000Mbps Port (average) < 2.6 µsec < 2.4 µsec < 2.4 µsec < 2.6 µsec < 3.0 µsec < 3.9 µsec < 4.7 µsec < 4 µsec
MAC Address Table Size 2K 2K 2K 8K 4K 16K 8K 8K
Auto MDI/MDI-X Cable Detection Yes Yes Yes Yes Yes Yes Yes Yes
Auto-sensing Half/Full Duplex Switched Ports Yes Yes Yes Yes Yes Yes Yes Yes
Mean Time Between Failures (MTBF) @ 25° C 3,831,422 hours 3,222,482 hours 6,189,896 hours 3,711,898 hours 2,244,211 hours 9,041,798 hours 620,798 hours 1,094,297 hours
LEDs
Per port Link/Activity Speed, Link/ Activity (Left), Ports 1-4: PoE (Right) Speed, Link/ Activity (Left), Ports 1-4: PoE (Right) Link/Activity Speed, Link/ Activity (Left), Ports 1-4: PoE (Right) Speed, Link/Activity Speed, Link/Activity Speed, Link/Activity
Per device Power Power, PoE Max Power, PoE Max Power Power, PoE Max Power Power Power
Quality Of Service (QOS)
Energy Efficient Ethernet (IEEE 802.3az) Yes Yes Yes Yes Yes Yes Yes Yes
Auto Power Down Yes No No Yes No No Yes Yes
POE Configuration
802.3af PoE Ports N/A Ports 1-4 Ports 1-4 N/A Ports 1-4 N/A N/A N/A
PoE Max Power Per Port N/A up to 15.4W up to 30W N/A up to 15.4W N/A N/A N/A
Total PoE Power Budget** N/A up to 55.5W up to 83W N/A up to 53W N/A N/A N/A
Power/Consumption
DC Input 5V / 0.7A 48V / 1.25A 54V / 1.66A 12V / 0.5A 48V / 1.25A 12V / 1.0A Internal (AC:110-240V, 50/60Hz, 1.0A max) Internal (AC: 110-240V, 50/60Hz, 1.0A max)
Power Consumption (Max and Standby) 2.15W/0.31W 60W/0.96W 2.89W/88.89W 3.04W/0.36W 60.0W/0.28W 8.4W/1.83W 11.1W/8.47W 23W/8.81W
Heat Dissipation (Max and Standby) (BTU/Hr 7.35 BTU/
1.06 BTU
205.2 BTU/ 3.28 BTU 304BTU/
5.3BTU
10.40 BTU/
1.06 BTU
205.20 BTU/
0.96 BTU
28.73 BTU/
6.26 BTU
37.96 BTU/
28.97 BTU
78.66 BTU/
30.13 BTU
Energy Efficency
Energy Efficient Ethernet (EEE) IEEE 802.3az compliant Yes Yes Yes Yes Yes Yes Yes Yes
Auto Power Down Yes Yes Yes Yes Yes Yes Yes Yes
Short Cable Detection Yes Yes Yes Yes Yes Yes Yes No
Fan/Fanless Fanless Fanless Fanless Fanless Fanless Fanless Fanless Fanless
Physical Specifications
Dimensions 101 x 94 x 29 mm
(4.0 x 3.7 x 1.1 in)
158 x 101 x 29 mm
(6.2 x 4.0 x 1.1 in)
158 x 101 x 29 mm
(6.2 x 4.0 x 1.1 in)
158 x 101 x 29 mm
(6.2 x 4.0 x 1.1 in)
158 x 101 x 29 mm
(6.2 x 4.0 x 1.1 in)
286 x 101 x 26 mm
(11.3 x 4.0 x 1.0 in)
252 x 180 x 44 mm
(9.9 x 7.1 x 1.7 in)
440 x 202 x 43 mm
(17.3 x 8 x 1.7 in)
Weight 0.25 kg
(0.55 lb)
0.39 kg
(0.86 lb)
0.41 kg
(0.90 lb)
0.39 kg
(0.86 lb)
0.46 kg
(1.02 lb)
0.84 kg
(1.86 lb)
1.31 kg
(2.90 lb)
3.15 kg
(6.95 lb)
Environmental Specifications
Operating Temperature 0° to 40°C (32° to 104°F)
Operating Humidity (relative) 90% maximum relative humidity (RH), non-condensing
Operating Altitude 10,000 ft (3,000 m) maximum
Storage Temperature 20° to 70°C (– 4° to 158°F)
Storage Humidity 95% maximum relative humidity (RH), non-condensing
Electromagnetic Emissions and Immunity
Certifications CE Mark,
FCC Part 15 Class B,
IC Class B,
RCM,
VCCI
CE Mark,
FCC Part 15 Class B,
IC Class B,
RCM,
CCC,
VCCI,
KC
CE Mark,
FCC Part 15 Class B,
IC Class B,
RCM,
CCC,
VCCI,
KC
CE Mark,
FCC Part 15 Class B,
IC Class B,
RCM,
CCC,
VCCI,
KC
CE Mark,
FCC Part 15 Class B,
IC Class B,
RCM,
CCC,
VCCI,
KC
CE Mark,
FCC Part 15 Class B,
IC Class B,
RCM,
CCC,
VCCI,
KC
CE Mark,
FCC Part 15 Class B,
IC Class B,
RCM,
CCC,
VCCI,
KC
CE Mark,
FCC Part 15 Class B,
IC Class B,
RCM,
CCC,
VCCI,
KC
Safety Certifications
Certifications CB,
CE LVD
CB,
CE LVD,
CCC
CB,
CE LVD,
CCC
CB,
CE LVD,
CCC
CB,
CE LVD,
CCC
CB,
CE LVD,
CCC
CB,
CE LVD,
CCC
CB,
CE LVD,
CCC
IEEE Network Protocols
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3x Flow Control
IEEE 802.1p Priority QoS (all models)
IEEE 802.1p Priority QoS and DSCP (except GS316)
IEEE 802.3 CSMA/CD
802.3az Energy Efficient Ethernet

*This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only.

Diagram:

Small Office/Home Office Network Diagram

Small Office/Home Office Network Diagram

Views:

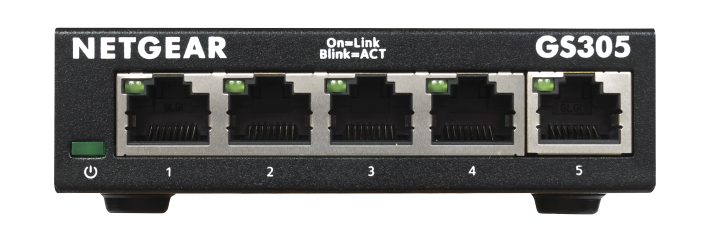

Front View

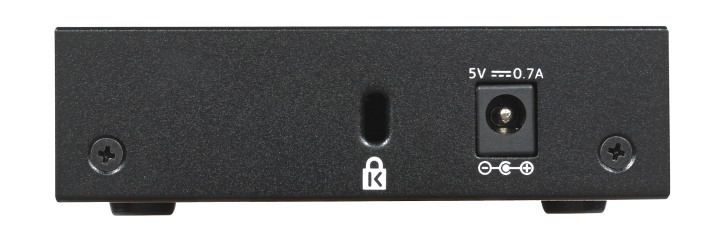

Rear View
