NETGEAR FS116
ProSafe 16-Port 10/100 Desktop Switch

NETGEAR FS116 ProSafe® 16-Port Desktop Switch

Sorry, this product is no longer available, Please contact us for a replacement.



Overview:

Solid Network Performance for Growing Businesses

The popular NETGEAR FS100 series desktop switches, known for its reliability and performance, provide your LAN with high-speed, 10/100 Mbps autosensing connectivity for as many as 5, 8, or 16 users. Just plug in your Ethernet cables, connect a power cord, and you’re ready to go-there’s no software to configure. Engineered without the need for internal fans, they operate silently. And each of these very compact switches is housed in a sturdy metal case for years of dependable use.

When you want solid network performance for your growing business, plus the added benefit of quiet operation, the NETGEAR ProSAFE FS105, FS108, and FS116 are your best choices for quality, convenience, and smooth — running usability — all at very affordable prices.

Highlights

  • At Your Service
    Five, eight, or sixteen ports provide LAN access for many users. Every port supports up to 200 Mbps in dedicated bandwidth and traffic is forwarded flawlessly with automatic flow control.
  • Compact
    The standards-based ProSafe FS108P senses and adjusts for network speed and cabling type automatically, for easy integration into your existing 10/100 Ethernet network. For PoE, the switch automatically detects 802.3af-compliant devices, and supplies power as needed. Front panel LEDs keep you informed of switch and PoE status.
  • Simple To Use
    Once you connect the hardware, your switch is operating! Auto negotiation takes care of the speed and duplex, while Auto Uplink takes care of the MDI/MDI-X connection.
  • Quiet
    No fan means no noise, which helps maintain a peaceful atmosphere in your busy office.

Specifications:

NETGEAR FS116 Specifications
Network Ports Sixteen (16) 10/100Mbps auto speed-sensing UTP ports
Standards Compliance
  • IEEE 802.3 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • IEEE 802.3x Full-duplex Flow Control
Performance Specifications
  • Forwarding modes: Store-and-forward
  • Bandwidth: 3.2 Gbps
  • Network latency: Less than 20 μs for 64-byte frames in store-and-forward mode for 100 Mbps to 100 Mbps transmission
  • Buffer memory: 512 KB
  • Address database size: 4,000
  • Addressing: 48-bit MAC address
  • Mean time between failure (MTBF): 4.0M hours
  • Acoustic noise: 0 dB
Status LEDs
  • Power
  • Link and activity indicators built into each
  • RJ-45 port
AC Power
  • Auto-sensing 100 to 240V, 50/60Hz
  • Localized plug for North America, Japan, UK, Europe, Australia
  • 5.5W maximum
Physical Specifications
  • Dimensions (w x d x h): 285 x 102 x 27mm (11.2 x 4.0 x 1.1in)
  • Weight: 0.80kg (1.8lb)
Environmental Specifications
  • Operating temperature: 32˚ to 104°F (0˚ to 40° C)
  • Storage temperature: 14˚ to 158°F (-10˚ to 70°C)
  • Operating humidity: 90% maximum relative humidity, non-condensing
  • Storage humidity: 95% maximum relative humidity, non-condensing
  • Operating altitude: 10,000 ft (3,000 m) maximum
  • Storage altitude: 10,000 ft (3,000 m) maximum
Electromagnetic Emissions
  • CE mark, commercial
  • FCC part 15 Class A
  • EN 55022 (CISPR22), Class A
  • VCCI Class A
  • C-Tick
  • RU EAC
Safety Agency Approvals
  • UL listed (UL 1950)/cUL
  • IEC 950/EN 60950
  • RU EAC
System Requirements
  • Network Cables
  • Network card for each PC or server
  • Network software (e.g., Windows, Linux, Mac OS)
Warranty
  • Switch: NETGEAR Lifetime Warranty*
  • Power adapter: NETGEAR 2-year Warranty
ProSupport Service Packs Available
  • OnCall 24x7, Category 1
    • PMB0331-100 (US)
    • PMB0331 (non-US)
Package Contents
  • ProSafe 16-port 10/100 Desktop Switch (FS116)
  • Wall-mount kit
  • AC adapter
  • Quick Installation Guide
  • Warranty/support information card

*Free basic installation support provided for 90 days from date of purchase. Advanced product features and configurations are not included in free basic installation support; optional premium support available.

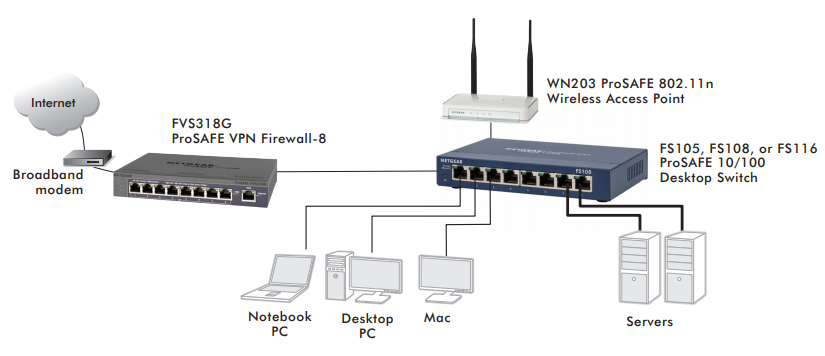

Diagram:

NETGEAR FS116 Diagram

Documentation:

Download the NETGEAR ProSAFE 10/100 Desktop Switches Datasheet (PDF).
