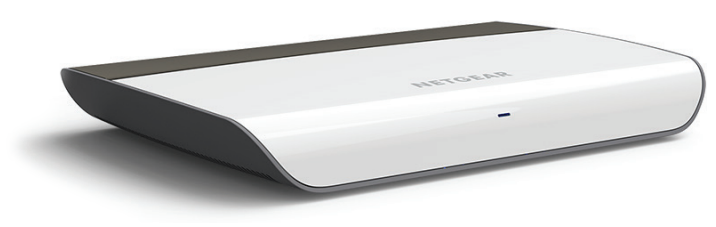

NETGEAR GS908
8-port Gigabit Unmanaged Switch

NETGEAR GS908

Sorry, this product is no longer available, Please contact us for a replacement.





Overview:

Connect your Network with Style

Traditional switches are not designed to be installed in a living room, bedroom or office desk so usually we hide them because the design is not user-friendly -- they have flashing LED lights and a bunch of cables that we don’t want to see. NETGEAR tackles this problem head-on with the industry’s first consumer-friendly switch with integrated cable management. The 900 Series switches are the first switch that you want to display! Thanks to the stylish design and the built-in cable organizer, you will keep your office and home neat and tidy. Moreover the LED ON/OFF button will keep your environment quiet so no light will disturb your movie, work or sleep.

Key Highlights

Key Highlights

Features:

Gone are the days of flashing LED lights, tangled cables, and bulky design.

The GS908 and GS908E are the first switches that you want to display! Thanks to the stylish design and the built-in cable organizer you will keep your office and home neat and tidy. Moreover the Port LED ON/OFF button will keep your environment quiet so no light will disturb your movie, work or sleep.

Integrated cable management

Clean up your network with style, No more messy cables!! Our integrated cable management will keep your office and home neat & tidy with no more tangled cables causing an unsightly mess.

  • Shaped holes: Innovative shaped holes will prevent that your cables will move around.
  • Universal Cable Management : Designed to support different types of Ethernet Cables, USB Cables and Power Adapter
  • Easy-Access : The top flip will stay open when you connect the cables

Sleek and stylish Lifestyle design

  • Rounded shapes and a slim design make the 900 series switches that you want to see.
  • Lightweight Switch: Allows it to be mounted and installed anywhere.
  • Mirror White: The glossy white colour will seamlessly integrate with any other network equipment in your home or business.

GS908 - Plug-and-play connectivity

With the GS908, experience automatic connectivity to your router or modem of 7 additional wired connections. No need for an IT expert!

Specifications:

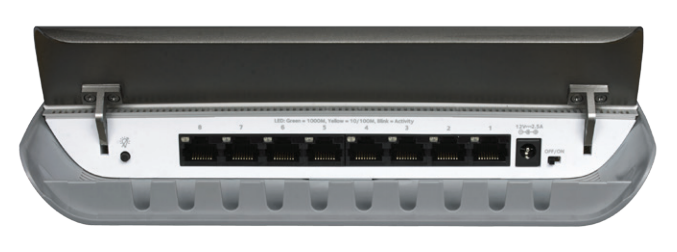

GS908 rear

GS908 Rear

  • 8 x 1G RJ-45 Ports
  • External Power Adapter
  • LED ON/OFF switch
  • Power OFF/ON switch
Technical Specifications
Models: GS908 GS908E
Product Specifications
1G RJ-45 ports 8 8
USB Charging Ports N/A 2-port
10W maximum per port
20W maximum total
LED ON/OFF Button Yes Yes
Performance Specifications
Bandwidth 16 Gbps 16 Gbps
Priority queues 4 4
Priority queuing Weighted Round Robin (WRR) Weighted Round Robin (WRR)
MAC Address database size (48-bit MAC addresses) 4K 4K
Multicast groups 128 128
Packet forwarding rate (64 byte packet size) (Mfps or Mpps) 11.9 Mfps 11.9 Mfps
Speed/Latency 10Mbps:<76.9µs
100Mbps:<9.1µs
1000Mbps:<2.7µs
10Mbps:<76.9µs
100Mbps:<9.1µs
1000Mbps:<2.7µs
Jumbo frame support Up to 9K packet size Up to 9K packet size
Acoustic noise level @ 25°C 0 0
Power/Energy Efficency
802.1p-based QoS/CoS Supported Yes Yes
Auto Power Down Yes Yes
Short Cable Detection/Power Saving Yes Yes
Max power (worst case, all ports used, line-rate traffic) 3.1W maximum 3.3W maximum (no USB charging)
26.3W maximum (with USB charging)
Quality of Service (QoS)
Models: GS908 GS908E
Port-based rate limiting N/A Ingress and egress
Port-based QoS N/A Yes
IEEE 802.1p COS N/A Yes
IPv4 DSCP N/A Yes
Port Rate Limiting Rates N/A 512 kbit/s
1/2/5/8/16/32/64/128/256/512 Mbit/s
Pre-Defined Port Priority Queues N/A Critical/High/Medium/Low
Weighted Round Robin (WRR) N/A Yes
Strict priority queue technology N/A No
VLANS
VLAN (# Supported) N/A 64
Port-based VLAN N/A Yes
IEEE 802.1Q VLAN Tagging N/A Yes
L2 Services - Multicast Filtering
Models: GS908 GS908E
IGMP snooping (v1, v2, and v3) N/A Yes
IGMP snooping querier N/A No
Block unknown multicast N/A Yes
Static multicast router port N/A Yes
L3 Services - DHCP
DHCP client N/A Yes
Link Aggregation
Static Manual LAGs (Port Trunking) N/A Yes
# of Static LAGs / # of members in each LAG N/A 2 LAGs with maximum 4 members in each LAG
LEDs
Per port Speed, Link, Activity Speed, Link, Activity
Per device Power Power (Blue), Auto-Diagnostics (Amber)
Physical Specifications
Models: GS908 GS908E
Dimensions 234 x 164 x 33mm (9.22 x 6.46 x 1.29in) 234 x 164 x 33mm (9.22 x 6.46 x 1.29in)
Weight 0.37kg (0.81lb) 0.37kg (0.81lb)
Power Consumption
Power Supply AC Power Adapter, 100-240VAC, 50-60Hz
Adapter is localized to country of sale
Max power (worst case, all ports used, line-rate traffic) (Watts) 3.1W maximum 3.3W maximum (no USB charging)
26.3W maximum (with USB charging)
Min power (link-down standby) 1.5W minimum 1.6W minimum (no USB charging)
Heat Dissipation (max and min) 5.1 BTU/hr minimum
10.4 BTU/hr maximum
5.4 BTU/hr minimum (no USB charging)
89.8 BTU/hr maximum (with USB charging)
Fan(s) Fanless Fanless
Environmental Specifications
Operating Temperature 0° to 40°C (32° to 104°F)
Operating Humidity 90% maximum relative humidity (RH), non-condensing
Operating Altitude 10,000 ft (3,000 m) maximum
Storage Temperature –20° to 70°C (– 4° to 158°F)
Storage Humidity 95% maximum relative humidity (RH), non-condensing
Storage Altitude 10,000 ft (3,000 m) maximum
Electromagnetic Emissions and Immunity
Certifications
  • 47 CFR FCC Part 15, Subpart B, Class B
  • ICES-003:2016 Issue 6, Class B
  • ANSI C63.4:2014
  • EN 55022:2010 + AC:2011, Class A
  • EN 55024:2010 EN 61000-3-2:2014, Class A
  • EN 6100-3-3:2013
  • AS/NZS CISPR 22:2009 + A1:2010, Class B
  • VCCI V-3/2015.04, Class A
  • V-4/2012.4
  • Russia EAC mark
  • CNS 13438
Electromagnetic Compliance (Class A or B) Class B
Safety
Certifications
  • CB mark, commercial
  • IEC 60950-1:2005(ed.2) + A1:2009 + A2:2013
  • UL/cUL Listed (UL 60950-1)/CAN/CSA C22.2 No. 60960-1-07
  • EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
  • IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013
  • AS/NZS 60950.1:2015
  • Russia EAC mark
Warranty and Support
ProSAFE Lifetime Warranty
  • Industry-leading 3 year warranty
  • 90-day complimentary technical support following purchase from a NETGEAR authorized reseller
Package Contents
All Models
  • GS908 or GS908E Gigabit Ethernet Switch
  • Cable retention strap
  • Wall-mounting kit
  • AC power adapter
  • Quick install guide

*Free basic installation support provided for 90 days from date of purchase. Advanced product features and configurations are not included in free basic installation support; optional premium support available.

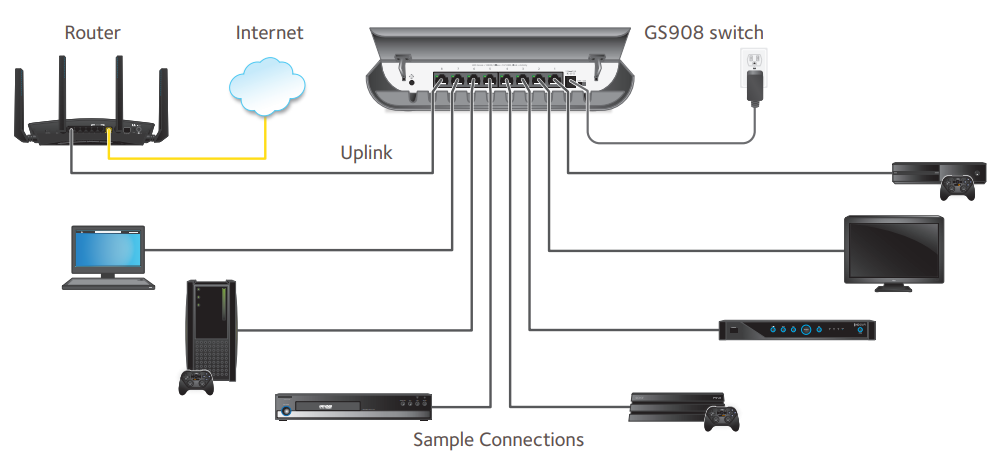

Diagram:

Diagram

Why the 900 Series switches are ideal for Home and Business Users

Plug-and-play: Automatic connectivity to your router or modem of 7 additional wired connections. No need for an IT expert!

Sleek and Stylish Design: The round shape and slim design will match any decor, and our lightweight housing allows the switch to be mounted anywhere

Integrated Cable Management: Clean up your network with style -- No more messy cables!! Our integrated cable management will keep your office and home neat & tidy with no more tangled cables causing an unsightly mess.

Silent and invisible: Don’t allow a blinking light to disturb your movie, work or sleep. Just push the LED ON/OFF button and any flashing lights will be turned off; also the fanless design keeps the switch silent.

Documentation:

Download the NETGEAR GS908 and GS908E Datasheet (PDF).
