NETGEAR WAC104
Dual Band 802.11ac Wireless Access Point

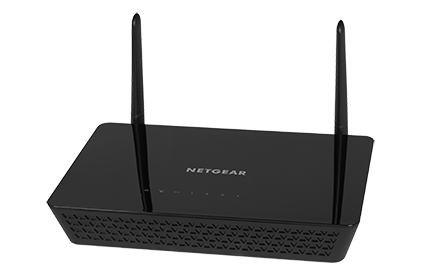

NETGEAR WAC104

Sorry, this product is no longer available, please contact us for a replacement.


More pricing below, click here!

Overview:

NETGEAR dual band 802.11ac Wireless Access Point, purposely designed for Small Office and Home Office deployments

The NETGEAR Dual Band 802.11ac Wireless Access Point (AP) delivers high performance for Small Office and Home Office (SOHO) deployments and supports dual band concurrent operation at 2.4GHz and 5GHz with combined throughput of 1.2 Gbps (300Mbps at 2.4GHz and 867Mbps at 5GHz). The WAC104 Wireless 802.11ac Access Point provides standalone configuration with easy setup for a reliable, high-performance, and affordable wireless solution.

Easy to Configure

  • Simple setup in minutes with intuitive Graphical User Interface (GUI)
  • Comprehensive monitoring with web-based access

High performance and superior coverage

  • Dual band concurrent operation between 2.4GHz and 5GHz frequency ranges
  • Maximize coverage for optimal deployment for SOHO

Comprehensive security

  • Supports wireless security features (WPA, WPA2)
  • MAC based Access Control List to protect against intruders

Interoperate with both new and legacy clients

  • Support latest 802.11ac wireless clients to achieve maximum speed
  • Backward compatible to allow legacy devices to connect at their fastest speed

Specifications:

NETGEAR WAC104 Specifications
Power
  • Country-specific plug: 12V/1.5A (18W)
  • 1.5 Amp power adapter
  • Power consumption: 8.1W (maximum)
Physical Specifications
  • Dimensions (L x W x H): 9.43 x 7.14 x 1.59in (239.65 x 181.45 x 40.6mm)
  • Weight: 0.84lb (385g)
Mounting
  • Desktop standable
  • Wall mountable
Physical Interfaces Four (4) 10/100/1000BASE-T Ethernet (RJ-45) port with Auto Uplink (Auto MDI-X)
LEDs Power, WPS, WiFi, LAN Activity
Default Reset Yes
Operating Temperature 32° to 104°F (0° to 40°C)
Storage Temperature -4° to 158°F (-20° to 70°C)
Operating Relative Humidity 10-90%
Storage Humidity 5-95%
MTBF
  • @ 25°C > 285,000 hours
  • @ 50°C > 100,000 hours
Standards
  • IEEE 802.11ac specification
  • IEEE 802.11n 2.0 specification
  • IEEE 802.11g
  • IEEE 802.11b
  • IEEE 802.11a
Frequency Band 2.4GHz and 5GHz concurrent operation
Maximum Theoretical Throughput
  • 300 Mbps (2.4GHz)
  • 867 Mbps (5GHz)
Maximum Number of Clients 128
Deployment options
  • Standalone
  • Web UI
Access Point Antenna: 3dBi (internal)
Advanced Wireless
  • WDS Point-to-point wireless bridge mode
  • WDS Point-to-multipoint wireless bridge mode
Security
  • Wired Equivalent Privacy (WEP) Encryption
  • WiFi Protected Access Pre-shared Key (WPA-PSK, WPA2-PSK)
  • MAC Address filtering
  • 1 BSSID
MAC ACL Yes
VPN Pass-through Yes
802.11e WMM (Wireless multimedia mode) for QoS
Simultaneous Bridge/Client Association Yes
Package Contents
  • 802.11ac Wireless AP (WAC104)
  • Ethernet cable
  • Installation guide
  • Power adapter, localized to country of sale
  • Warranty/support information card
Safety Certification CE (EN60950)
Optional Support
  • PMB0351: 5 years OnCall 24x7
  • PMB0331: 3 years OnCall 24x7
  • PMB0311: 1 year OnCall 24x7
Product Ordering Information
  • WAC104-100AUS
  • WAC104-100NAS
  • WAC104-100PES
  • WAC104-100PRS
  • WAC104-100UKS
  • WAC104-100INS
NETGEAR Warranty NETGEAR 3-year Warranty* (including the power adapter)

* 3-Year Warranty cover hardware, fans, and internal power supplies - not external power supplies or software. Warranty is only valid for the original purchaser, and modifications to product may void the warranty. See http://www.netgear.com/about/warranty/ for details. Basic phone support for 90 days from purchase when purchased from a NETGEAR authorized reseller.

Deployment:

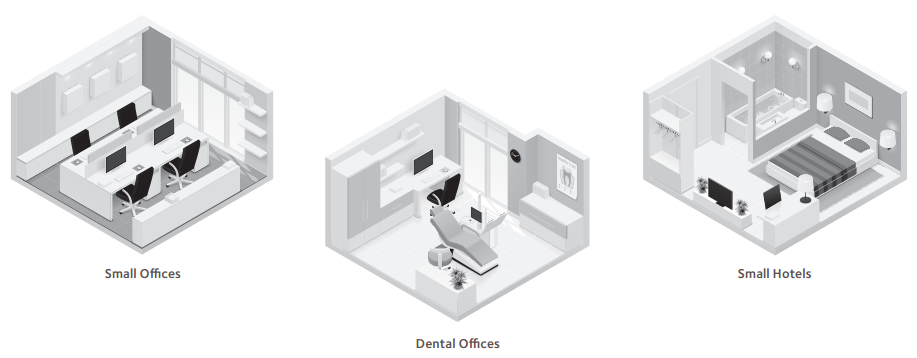

Sample Deployment Use Cases

Sample Deployment Use Cases

Dual Band 802.11ac Wireless Access Point

Dual Band 802.11ac Wireless Access Point

Documentation:

Download the NETGEAR WAC104 Datasheet (PDF).
